This UK 13A 5-Way Wood-Grain Aluminium PDU Power Strip with Surge Protection and 30W USB-C PD Fast Charging is designed for convenient power distribution and device charging in home, office, and indoor environments. It features a 6063-T5 aluminium alloy housing with a wood-grain heat transfer finish and a high-strength PC side cover, combining a distinctive appearance with a durable construction.
Equipped with 5 BS 1363-2 UK socket outlets, a BS 1363-1 13A UK plug, an illuminated circuit breaker switch, a surge protection device, and 30W USB-C PD fast charging, it combines convenient power control, surge protection, and fast charging for compatible devices. The PDU is rated at 250V AC, 13A Max and 50Hz, with a 1.5 mm² 3-conductor, 2 m power cord.
The compact 1U QY TY Series profile and left-side cable entry make it suitable for space-conscious desktop and indoor power distribution applications. The product is designed in accordance with applicable ISO technical requirements and UK electrical safety requirements, with UKCA conformity assessment requirements considered for the Great Britain market.
| Availability: | |
|---|---|
| Quantity: | |
(DMQY-TY-E7-KxJqUt30-1.5p2m-YB13A)-Wood
PEDIU
PE20260828-305
The 1U QY TY Series UK PDU with 5 BS 1363 Socket Outlets, 30W USB-C PD Fast Charging and Surge Protection is a compact power distribution and charging solution designed for UK office, commercial, educational and home-working environments.
The PDU features a 6063-T5 aluminium alloy housing with a wood-grain heat-transfer finish and high-strength PC side covers. Its compact 1U profile integrates 5 BS 1363-2 UK socket outlets, an illuminated circuit breaker switch, 30W USB-C PD fast charging, and a surge protection device into one streamlined unit.
Rated at 250V AC, 13A Max and 50Hz, the PDU is equipped with a BS 1363-1 13A UK plug and a 2 m, 1.5 mm² 3-conductor power cord. The 13A Max rating applies to the overall PDU, so the combined load of connected equipment must remain within the rated capacity.
Designed according to applicable ISO technical documentation and engineering drawing requirements, the product is also designed to meet applicable UK electrical safety requirements and relevant product regulations. For the Great Britain market, it is designed to meet applicable UKCA conformity assessment requirements, with UKCA marking applied where required.

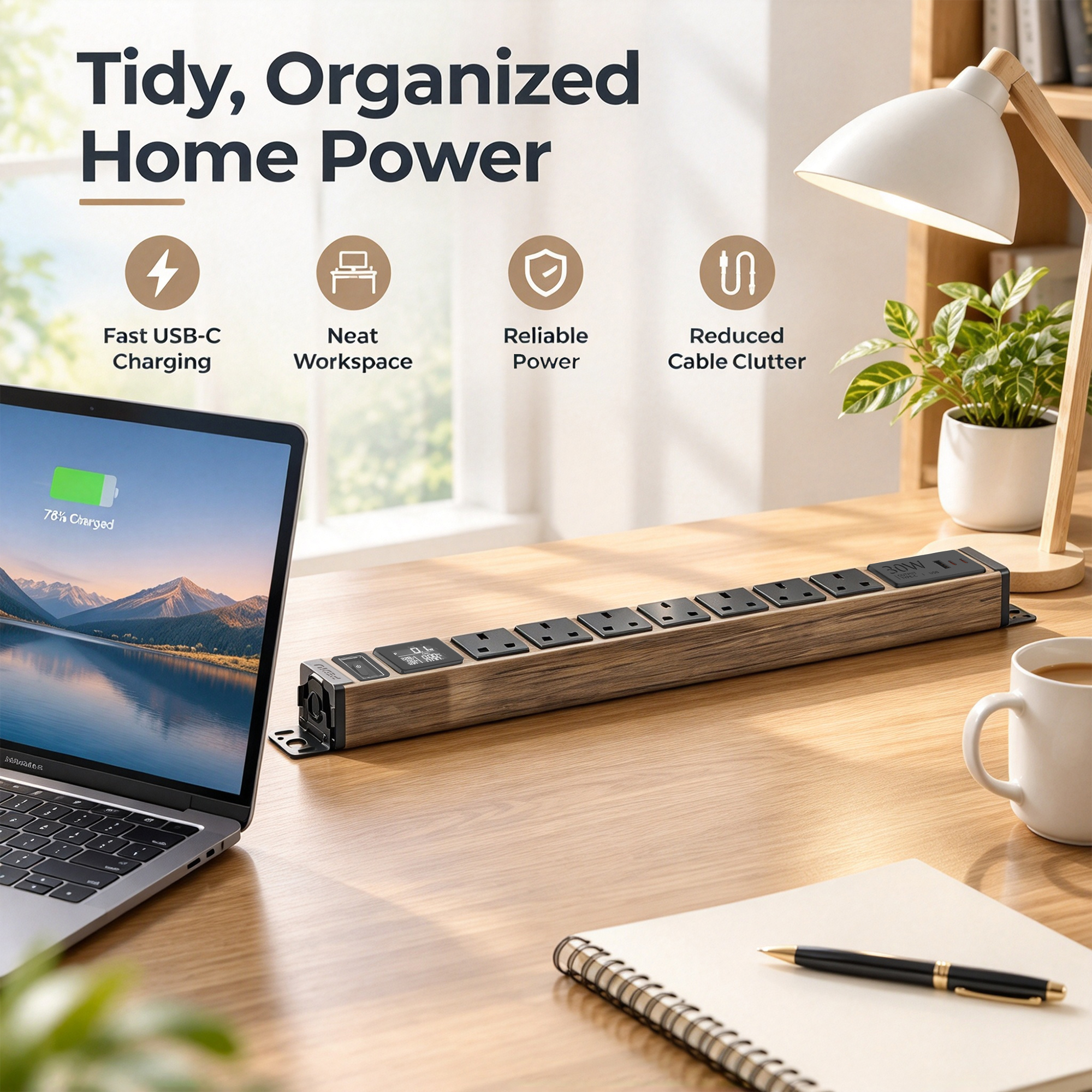

The combination of five UK-standard socket outlets, 30W USB-C PD charging, surge protection and a compact 1U profile makes this PDU suitable for:
Office Workstations – Powering computers, monitors, printers and other office equipment.
Executive Desks – Provides convenient UK-standard AC power and USB-C charging access in professional workspaces.
Conference & Meeting Tables – Suitable for laptops, presentation equipment and meeting-room electronics.
Home Office – Provides multiple UK socket outlets and USB-C charging for everyday desktop equipment.
Coworking Spaces – Centralised power access for shared workstations and portable devices.
Educational Facilities – Suitable for classrooms, training rooms and study areas requiring multiple UK socket outlets.
Commercial Furniture – Suitable for furniture-integrated power applications where the approved installation method permits.
AV & Electronic Equipment Areas – Provides power distribution, USB-C charging and specified surge protection for compatible equipment.
Desktop Charging Applications – 30W USB-C PD provides a dedicated charging interface for compatible USB-C devices.
UK Electrical Safety Design
The PDU is designed to comply with applicable UK electrical safety requirements and relevant product regulations.
UKCA Conformity Requirements
The product is designed to meet applicable UKCA conformity assessment requirements for the Great Britain market. UKCA marking is applied where required, with applicable technical documentation and Declaration of Conformity maintained as required.
13A Maximum Rated Current
The 13A Max rating applies to the overall PDU, not to each individual socket outlet. The combined load of all connected equipment must remain within the rated capacity.
Illuminated Circuit Breaker Switch
The integrated illuminated circuit breaker switch provides a visible operating indication while incorporating the specified circuit-breaker function.
30W USB-C PD Fast Charging
The integrated USB-C PD module provides up to 30W charging output for compatible USB-C devices. Actual charging performance depends on the connected device and its supported charging protocol.
Surge Protection Device
The integrated surge protection device provides the specified surge protection function for the PDU. The protection level and applicable operating conditions should be considered according to the product's approved technical specifications.
Proper Earthing
The product shall be properly earthed before use to support safe electrical operation.
Secure Internal Assembly
Internal wiring is securely fastened and properly insulated, while electrical connections are securely terminated according to manufacturing requirements.
Quality Inspection
Finished products are inspected before delivery, including applicable dimensional, visual, assembly and electrical safety checks. Finished surfaces are protected during handling, packaging and transportation.
For customers requiring product customisation, OEM/ODM development can be provided based on the approved product structure, application requirements and applicable UK electrical requirements.
Potential customisation areas include:
Housing dimensions and structural design
Aluminium profile and side-cover configuration
Housing colour and surface finish
Wood-grain appearance and decorative treatment
UK socket quantity and configuration
Plug and electrical configuration
Circuit breaker switch configuration
USB-C PD charging power and configuration
Surge protection configuration
Power cord specification and length
Cable entry direction
Product identification and marking
Packaging and documentation
Engineering drawings and technical documentation
Customised solutions can be developed according to the customer's application, installation environment and target-market requirements, subject to technical evaluation and product approval.
Equipped with 5 × BS 1363-2 UK socket outlets and a BS 1363-1 13A UK plug, this PDU provides convenient centralized power access for multiple UK-standard electrical devices.
The integrated 30W USB-C PD fast-charging module provides convenient charging for compatible USB-C devices, making the PDU suitable for modern desks and workspaces where both AC power and USB-C charging are required.
The built-in surge protection device adds an additional layer of protection for connected equipment during everyday power distribution, providing a more comprehensive solution for applications where electrical protection is important.

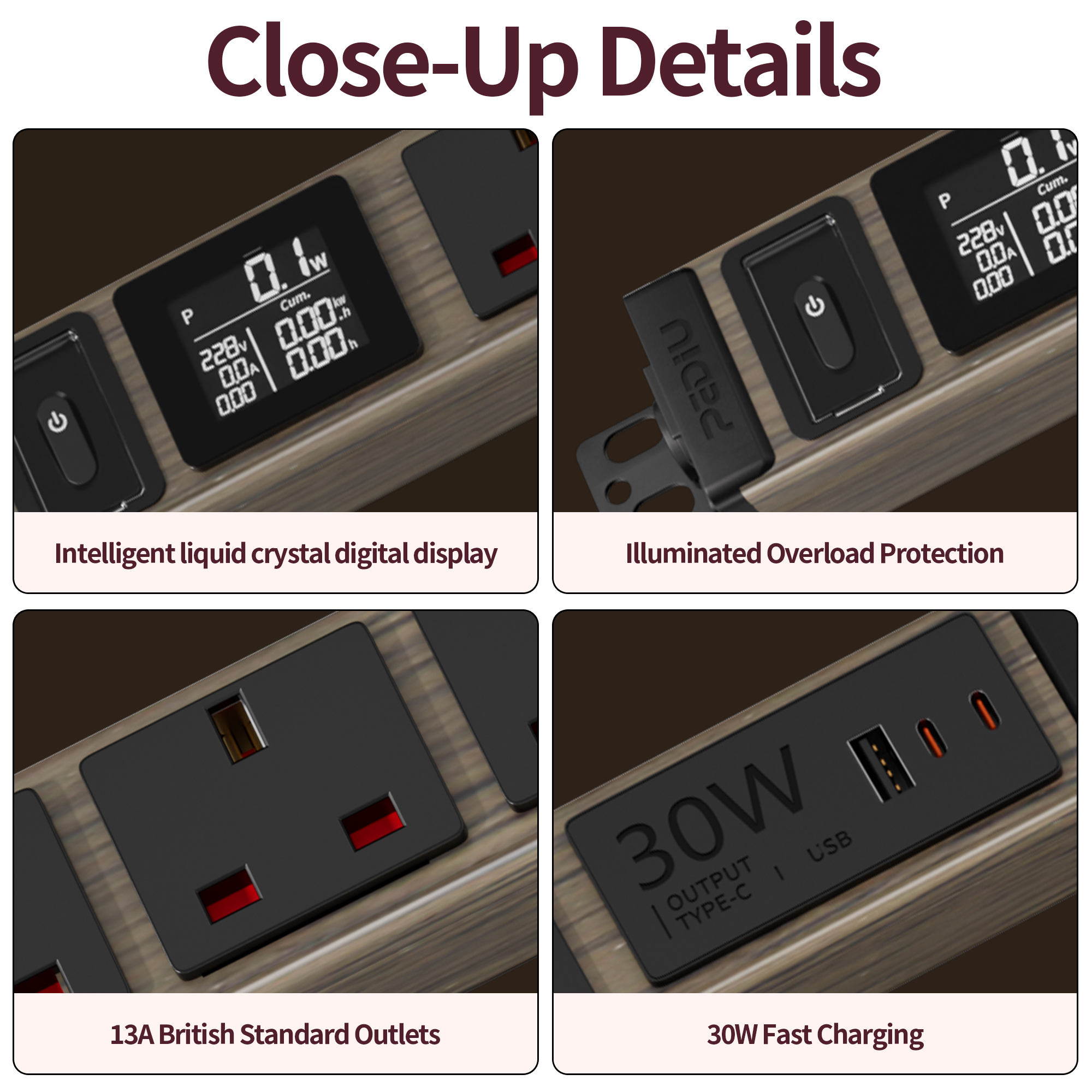

The illuminated circuit breaker switch provides convenient power control while making the switch status easy to identify during operation.

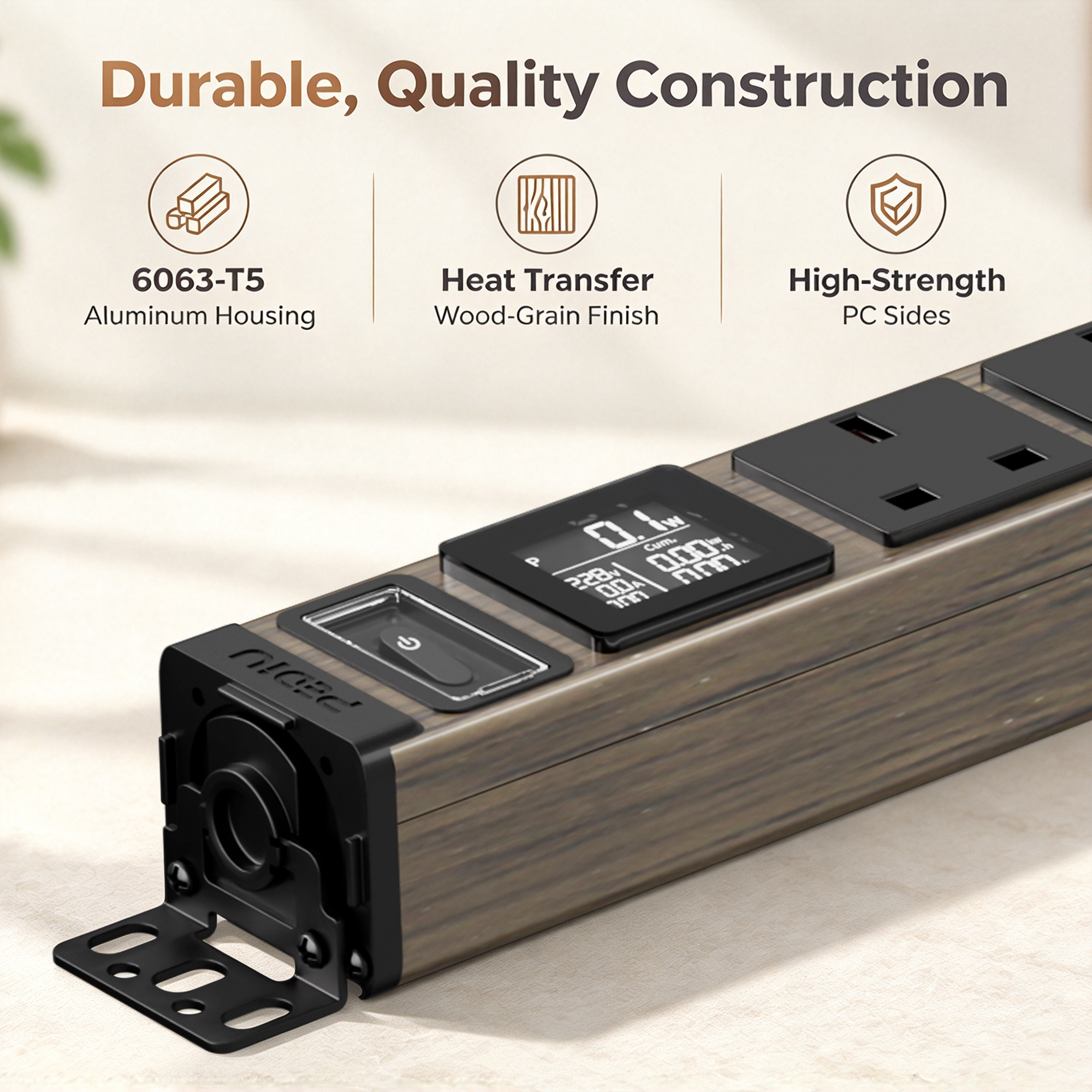

The 6063-T5 aluminum alloy housing features a wood-grain heat transfer printed finish, combining a durable metal structure with a warm, furniture-friendly appearance. The black high-strength PC side covers complement the wood-grain housing.

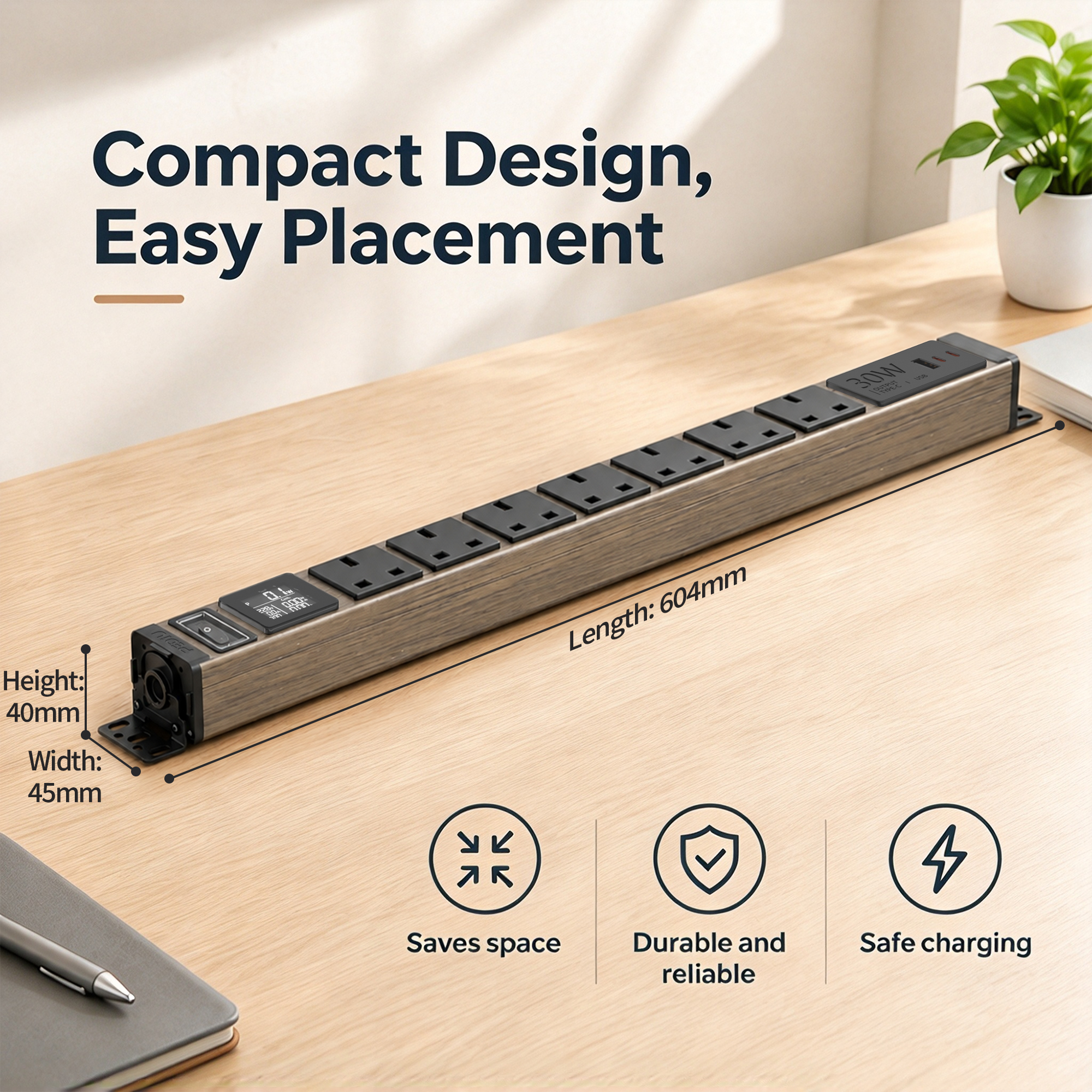

The 1U QY TY Series profile provides a compact solution for applications where available space is limited. Power distribution, USB-C charging and surge protection are integrated into a single compact PDU.
The wood-grain finish provides a more furniture-oriented appearance than conventional industrial-style power distribution products, making the PDU easier to coordinate with modern desks, office furniture and interior environments.
Internal wiring is securely fastened and properly insulated, while all electrical connections are securely terminated. Finished products undergo dimensional, visual, assembly and applicable electrical safety inspections before delivery.
The product is designed to comply with applicable UK electrical safety requirements and relevant product regulations, with applicable requirements for UKCA conformity assessment addressed for the Great Britain market. UKCA marking and supporting technical documentation are maintained where required.
Specification | Details |
|---|---|
Product Category | Power Distribution Unit (PDU) |
Profile Series | 2U CN Series |
Main Housing Material | 6063-T5 Aluminum Alloy |
Side Cover Material | High-Strength PC |
Housing Finish | Eco-Friendly Powder Coating |
Housing Color | Black |
Side Cover Color | Green |
Rated Voltage | 250V AC |
Rated Current | 13A Max. |
Rated Frequency | 50Hz |
Plug Type | BS 1363-1, 13A UK Plug |
Outlet Type | BS 1363-2 UK Socket Outlet × 6 |
Switch | Green Double-Pole Switch (Cover) × 1 |
Overload Protection | Overload Protection Device |
Surge Protection | Filtered Surge Protection |
Metering | Full Display Metering, White |
USB-C Charging | USB-C PD Fast Charging 65W |
Power Cord | 1.5 mm², 3-Conductor, 2 m |
Cable Entry | Left Entry |
Profile Height | 45 mm |
Wiring | Internal wiring securely fastened and properly insulated |
Electrical Connections | All electrical connections securely terminated |
Safety & Compliance | Designed in accordance with applicable UK electrical safety standards and product requirements; applicable Declaration of Conformity shall be maintained as required |
Earthing | Product shall be properly earthed before use |
Overload Requirement | Overloading beyond the rated capacity is prohibited |
This compact 2U UK PDU is designed to provide multiple BS 1363-2 socket outlets in one unit, making it suitable for indoor workstations, home offices, meeting areas and commercial furniture applications.
It combines five UK socket outlets, overload protection and a compact aluminium housing in one power distribution unit, helping provide a more organised power connection solution.
Yes. Multiple compatible devices can be connected through the five UK socket outlets, provided that the combined load does not exceed the PDU's 13A maximum rated current.
It can be used with compatible UK-plug equipment such as computers, monitors, office equipment, lamps and other suitable indoor electrical devices. Always check the rated requirements of each device before connection.
Yes. An overload protection device is included to help protect the PDU when the connected load exceeds the specified capacity. Users should still avoid exceeding the 13A maximum rating.
The product specification includes green double-pole switches with protective covers. The exact switching arrangement should be confirmed according to the final product drawing and circuit configuration.
Yes. Its five UK outlets and compact 45 mm profile can provide a practical power connection solution for indoor home-office equipment.
It can provide several UK power connection points for shared desks and workstations. The connected equipment should be selected according to the available 13A capacity.
The five socket outlets can provide convenient access to UK mains power for users around meeting tables and other collaborative indoor workspaces.
Yes. The 2U CN Series profile can be considered for office furniture and workspace projects where its dimensions, outlet configuration and installation requirements match the furniture design.
