Product Overview
1. Product Positioning

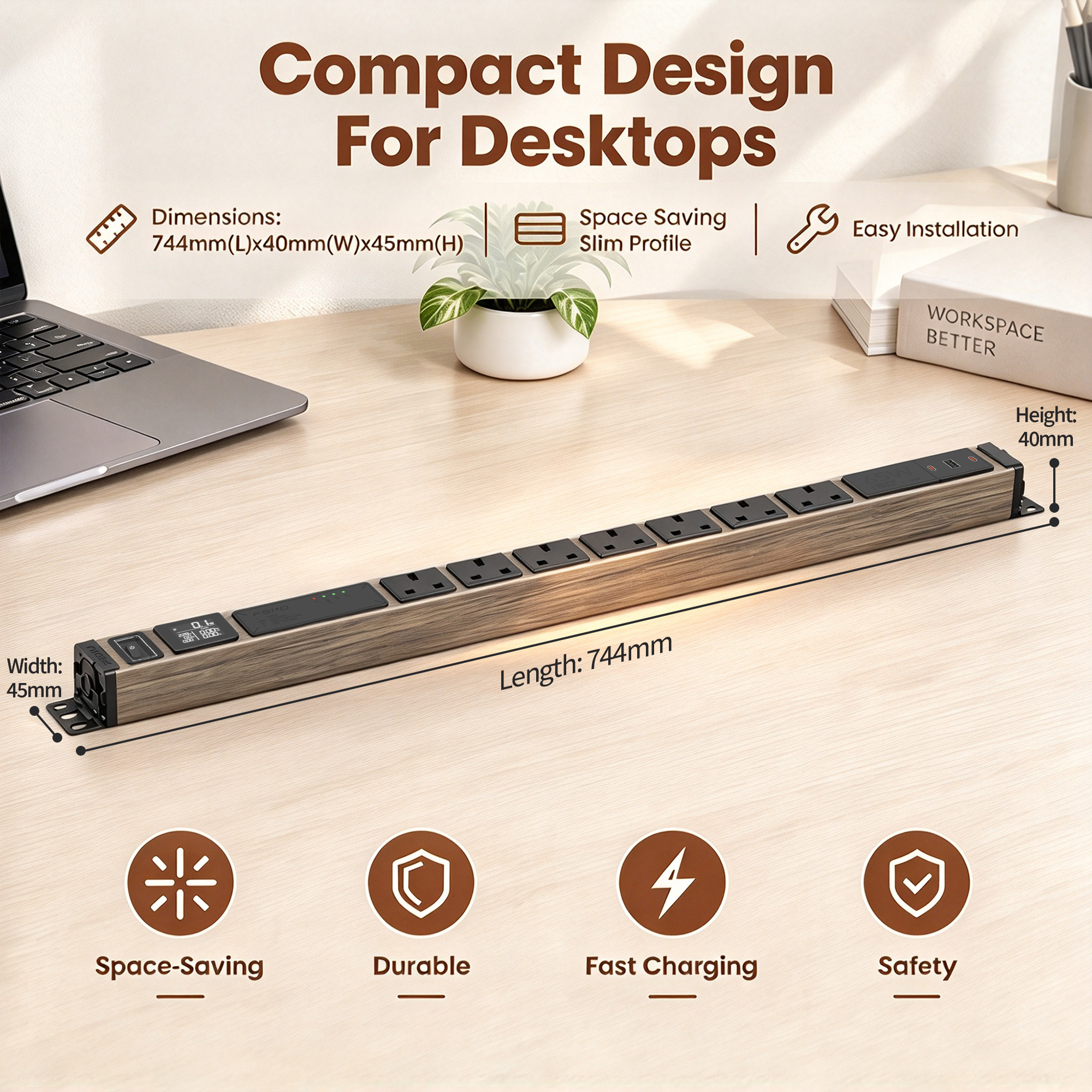

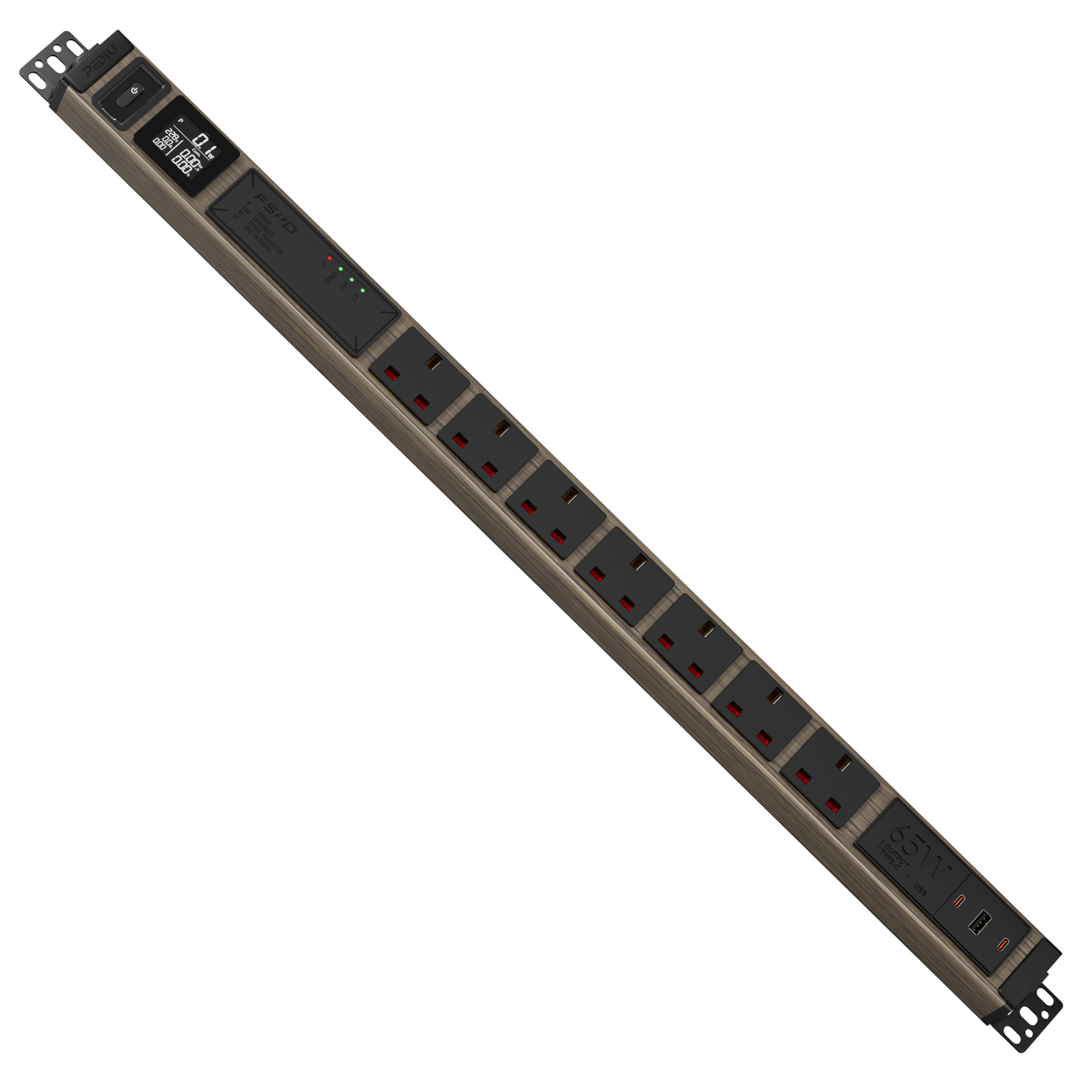

1U QY TY Series UK PDU with 6 BS 1363 Socket Outlets, 65W USB-C PD Fast Charging, Full Display Metering & Filtered Surge Protection
This 1U QY TY Series UK PDU is a compact power distribution and charging solution designed for UK office, desktop and commercial furniture applications. It combines 6 BS 1363-2 UK socket outlets, 65W USB-C PD fast charging, full display metering, filtered surge protection and an illuminated circuit breaker switch in a slim 1U profile.
The main housing is made from durable 6063-T5 aluminium alloy with a wood-grain heat-transfer finish, complemented by a high-strength PC black side cover. The PDU is rated at 250V AC, 13A Max and 50Hz, with a BS 1363-1 13A UK plug and a 2 m power cord.
With its wood-grain appearance, compact 1U structure and integrated charging and power-management functions, this UK PDU is suitable for modern workspaces where convenient access to AC power, USB-C charging and electrical status information is required.
Important: The 13A Max rating applies to the overall PDU, not 13A for each individual socket outlet.
2. Application Scenarios
Office Workstations
Provides convenient AC power and USB-C PD charging for computers, monitors, peripherals and other office equipment.
Executive Desks & Home Offices
The wood-grain finish and compact 1U design integrate well with modern desks while providing centralised access to power and charging.
Conference Tables
Suitable for meeting areas where multiple users need convenient access to UK socket outlets and USB-C charging.
Commercial Furniture
Can be integrated into office furniture and other commercial furniture applications where a compact UK power distribution solution is required.
Coworking Spaces
Six UK socket outlets combined with 65W USB-C PD charging provide flexible access to power for shared workspaces.
AV & Electronic Equipment Areas
The integrated metering and filtered surge protection functions provide additional power-management capabilities for suitable electronic equipment applications.
4. Safety & Reliability
UK-Oriented Electrical Design
The PDU is designed according to applicable UK electrical safety standards and product requirements, with a BS 1363-1 13A UK plug and BS 1363-2 UK socket outlets for the intended UK market application.
Rated 13A Max Capacity
The PDU has an overall rated current of 13A Max. The total connected load must remain within the rated capacity of the PDU.
Illuminated Circuit Breaker
The illuminated circuit breaker switch provides a clear visual indication of the switching status while supporting the product's electrical control configuration.
65W USB-C PD Fast Charging
The integrated 65W USB-C PD charging module provides high-power USB-C charging capability for compatible devices. Actual charging performance depends on the connected device and supported charging protocol.

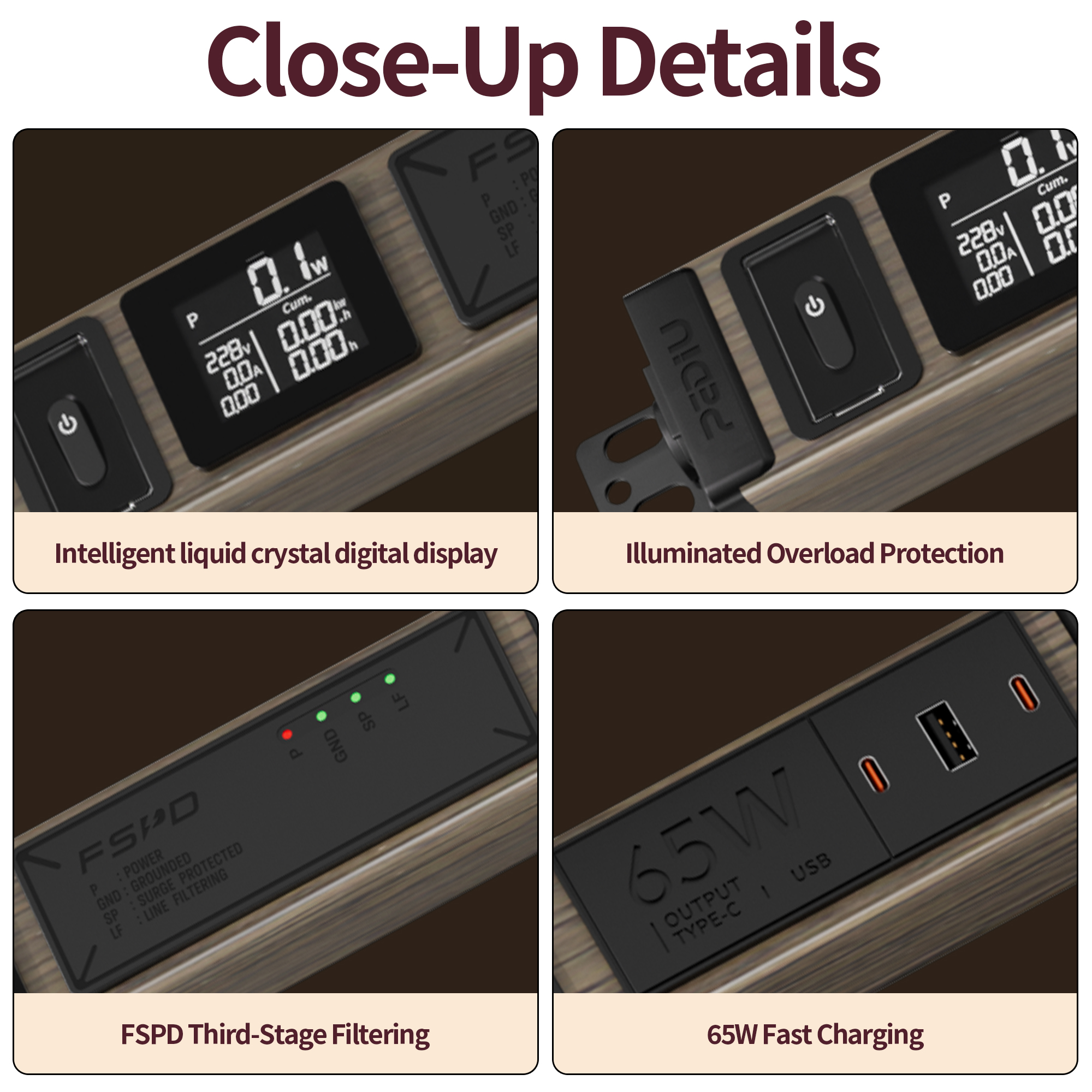

Full Display Metering
The white full-display metering module provides a clear interface for viewing supported electrical information, helping users monitor the PDU during operation.
Filtered Surge Protection
The integrated filtered surge protection device adds a dedicated protection function to the PDU's electrical configuration.
Secure Construction & Inspection
Internal wiring is securely fastened and properly insulated, while electrical connections are securely terminated. Finished products undergo applicable dimensional, visual, assembly and electrical safety inspections before delivery.
Earthing & Safe Use
The product must be properly earthed before use, and overloading beyond the rated capacity is prohibited. Applicable technical documentation and Declaration of Conformity shall be maintained as required.
4. OEM & ODM Support
For customers requiring product customisation, OEM/ODM development can be provided based on the approved product structure, application requirements and applicable UK electrical requirements.
