This UK 13A 5-Way Wood-Grain Aluminium PDU Power Strip with Surge Protection and 30W USB-C PD Fast Charging is designed for convenient power distribution and device charging in home, office, and indoor environments. It features a 6063-T5 aluminium alloy housing with a wood-grain heat transfer finish and a high-strength PC side cover, combining a distinctive appearance with a durable construction.
Equipped with 5 BS 1363-2 UK socket outlets, a BS 1363-1 13A UK plug, an illuminated circuit breaker switch, a surge protection device, and 30W USB-C PD fast charging, it combines convenient power control, surge protection, and fast charging for compatible devices. The PDU is rated at 250V AC, 13A Max and 50Hz, with a 1.5 mm² 3-conductor, 2 m power cord.
The compact 1U QY TY Series profile and left-side cable entry make it suitable for space-conscious desktop and indoor power distribution applications. The product is designed in accordance with applicable ISO technical requirements and UK electrical safety requirements, with UKCA conformity assessment requirements considered for the Great Britain market.
| Availability: | |
|---|---|
| Quantity: | |
(DMQY-TY-E6-KxUt65-1.5p2m-YB13A)-Wood
PEDIU
PE20260828-304

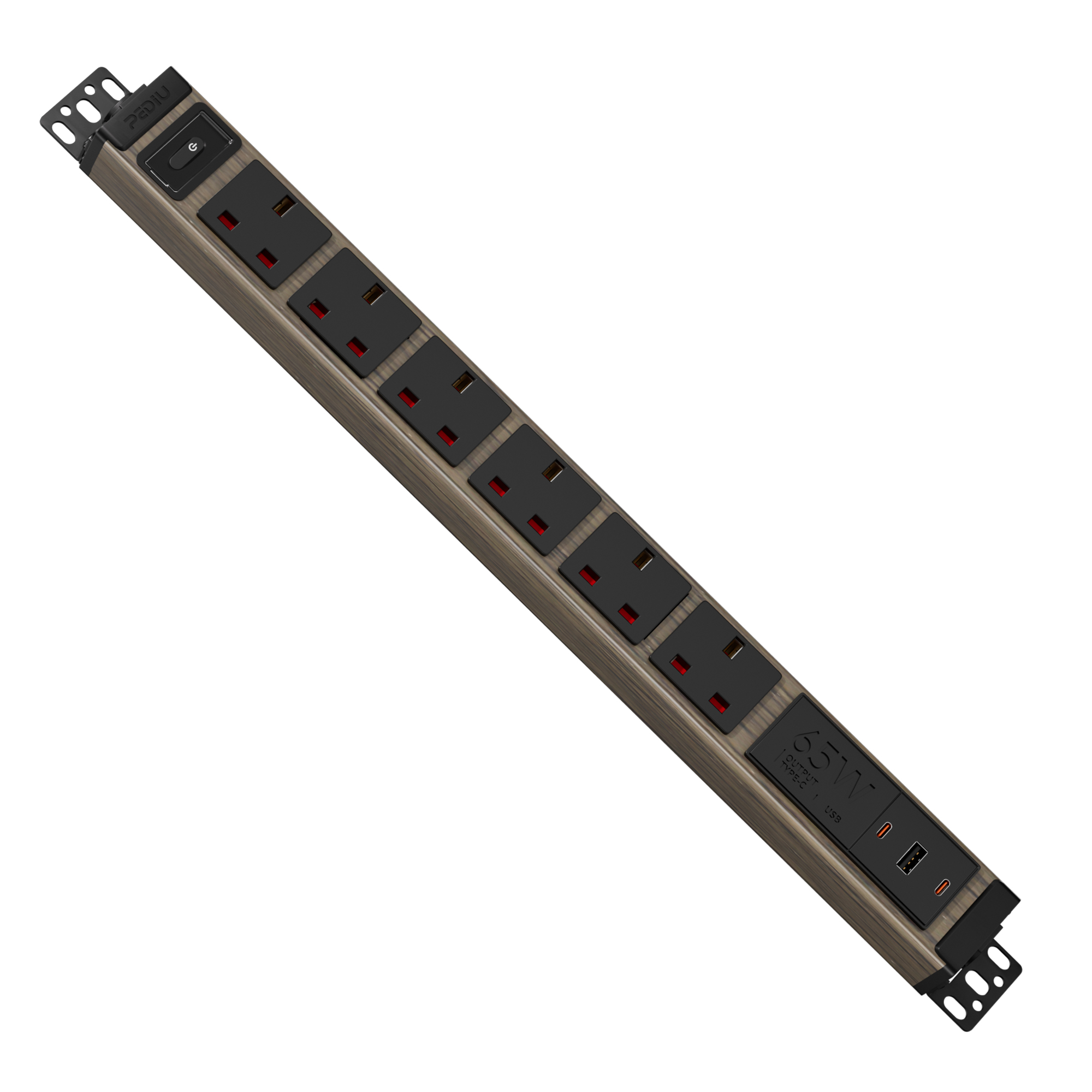

The 1U QY TY Series UK PDU with 6 BS 1363 Socket Outlets and 65W USB-C PD Fast Charging is a compact power distribution and high-power USB-C charging solution designed for UK office, commercial, educational and home-working environments.
The PDU features a 6063-T5 aluminium alloy housing with a wood-grain heat-transfer finish and high-strength PC side covers. Its compact 1U profile integrates 6 BS 1363-2 UK socket outlets, an illuminated circuit breaker switch, and 65W USB-C PD fast charging into a streamlined power distribution unit.
Rated at 250V AC, 13A Max and 50Hz, the unit is equipped with a BS 1363-1 13A UK plug and a 2 m, 1.5 mm² 3-conductor power cord. The 13A Max rating applies to the overall PDU, so the combined load of connected AC equipment must remain within the rated capacity.
Designed according to applicable ISO technical documentation and engineering drawing requirements, the product is also designed to meet applicable UK electrical safety requirements and relevant product regulations. For the Great Britain market, it is designed to meet applicable UKCA conformity assessment requirements, with UKCA marking applied where required.

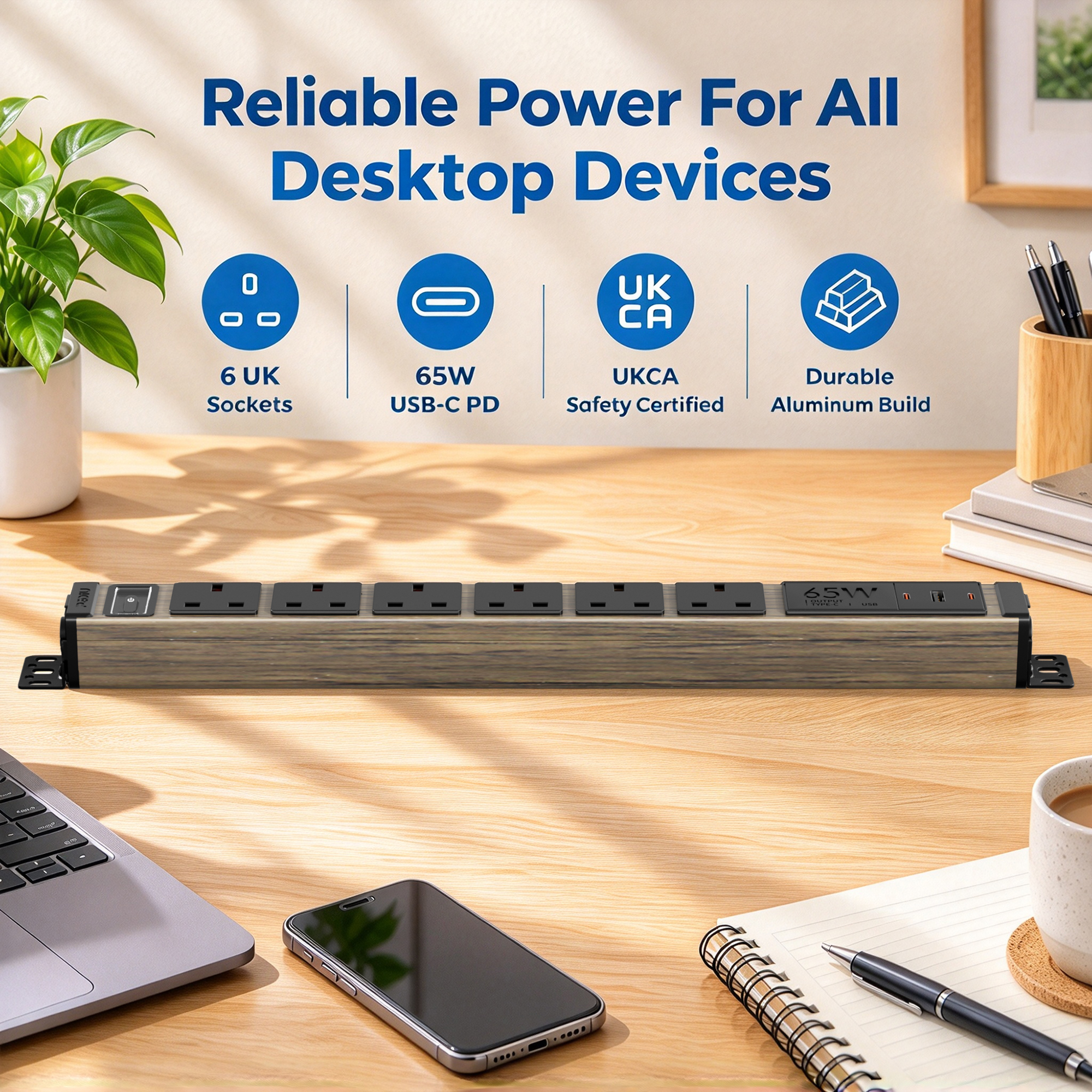

The combination of six UK-standard socket outlets, 65W USB-C PD charging and a compact 1U profile makes this PDU suitable for:
Office Workstations – Powering computers, monitors, printers and other office equipment while providing USB-C charging.
Executive Desks – Provides convenient UK-standard AC power and high-power USB-C charging access.
Conference & Meeting Tables – Suitable for laptops, presentation equipment and meeting-room electronics.
Home Office – Provides multiple UK socket outlets and USB-C PD charging for desktop and personal electronic devices.
Coworking Spaces – Centralised power access for shared workstations and portable devices.
Educational Facilities – Suitable for classrooms, training rooms and study areas requiring multiple UK socket outlets and USB-C charging.
Commercial Furniture – Suitable for furniture-integrated power applications where the approved installation method permits.
AV & Electronic Equipment Areas – Provides convenient AC power distribution and USB-C charging for compatible equipment.
Desktop Charging Applications – 65W USB-C PD provides a dedicated high-power charging interface for compatible USB-C devices.
UK Electrical Safety Design
The PDU is designed to comply with applicable UK electrical safety requirements and relevant product regulations.
UKCA Conformity Requirements
The product is designed to meet applicable UKCA conformity assessment requirements for the Great Britain market. UKCA marking is applied where required, with applicable technical documentation and Declaration of Conformity maintained as required.
13A Maximum Rated Current
The 13A Max rating applies to the overall PDU, not to each individual socket outlet. The combined load of all connected equipment must remain within the rated capacity.
Illuminated Circuit Breaker Switch
The integrated illuminated circuit breaker switch provides a visible operating indication while incorporating the specified circuit-breaker function.
65W USB-C PD Fast Charging
The integrated USB-C PD module provides up to 65W charging output for compatible USB-C devices. Actual charging performance depends on the connected device and its supported charging protocol.
Proper Earthing
The product shall be properly earthed before use to support safe electrical operation.
Secure Internal Assembly
Internal wiring is securely fastened and properly insulated, while electrical connections are securely terminated according to manufacturing requirements.
Quality Inspection
Finished products are inspected before delivery, including applicable dimensional, visual, assembly and electrical safety checks. Finished surfaces are protected during handling, packaging and transportation.
For customers requiring product customisation, OEM/ODM development can be provided based on the approved product structure, application requirements and applicable UK electrical requirements.
Potential customisation areas include:
Housing dimensions and structural design
Aluminium profile and side-cover configuration
Housing colour and surface finish
Wood-grain appearance and decorative treatment
UK socket quantity and configuration
Plug and electrical configuration
Circuit breaker switch configuration
USB-C PD charging power and configuration
Power cord specification and length
Cable entry direction
Product identification and marking
Packaging and documentation
Engineering drawings and technical documentation
Customised solutions can be developed according to the customer's application, installation environment and target-market requirements, subject to technical evaluation and product approval.

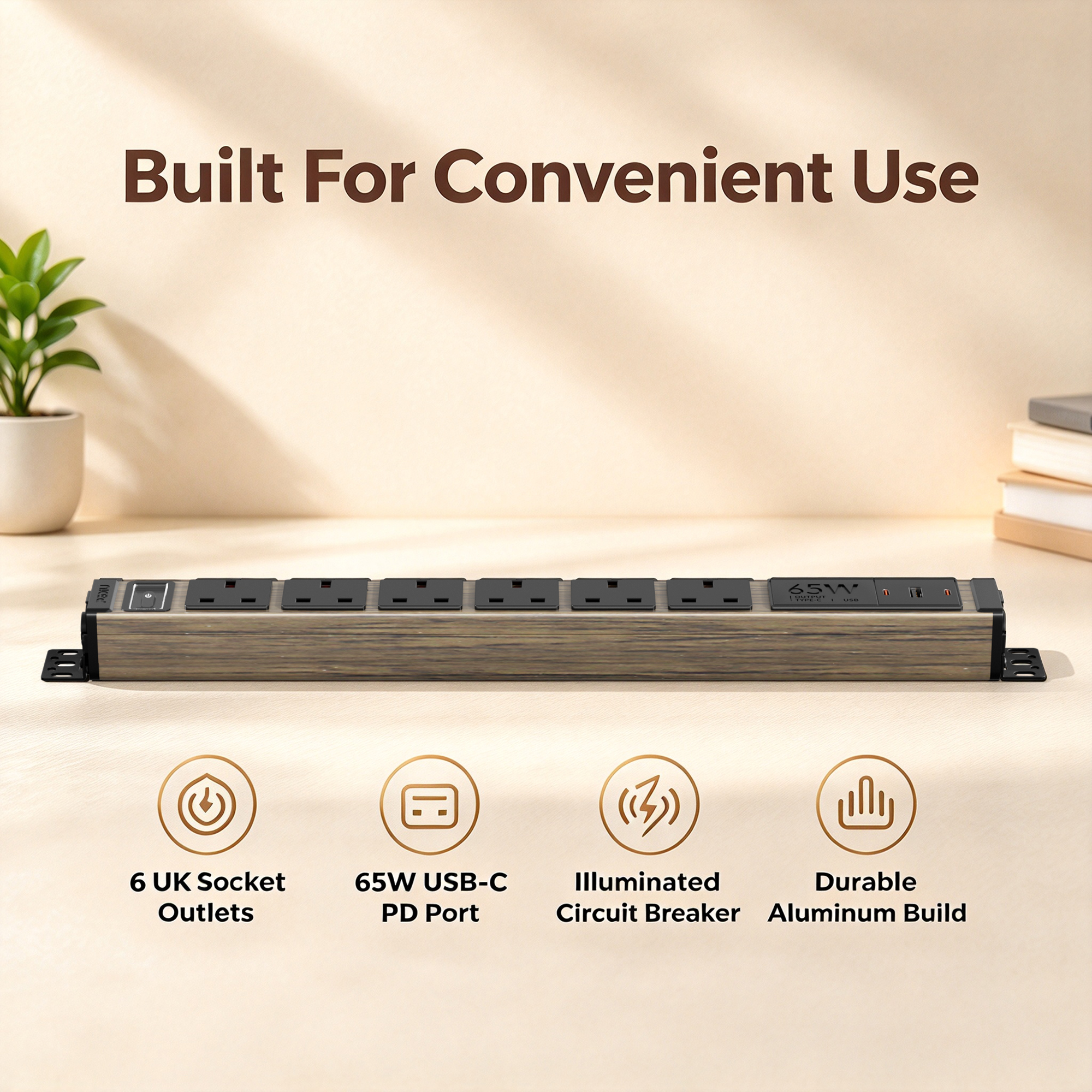

Equipped with 6 × BS 1363-2 UK socket outlets and a BS 1363-1 13A UK plug, this PDU provides convenient centralized power access for multiple UK-standard electrical devices.
The integrated 65W USB-C PD fast-charging module provides higher-power charging for compatible USB-C devices, making the PDU suitable for modern workspaces where both AC power and USB-C charging are required.
The illuminated circuit breaker switch provides convenient power control while making the switch status easy to identify during daily operation.

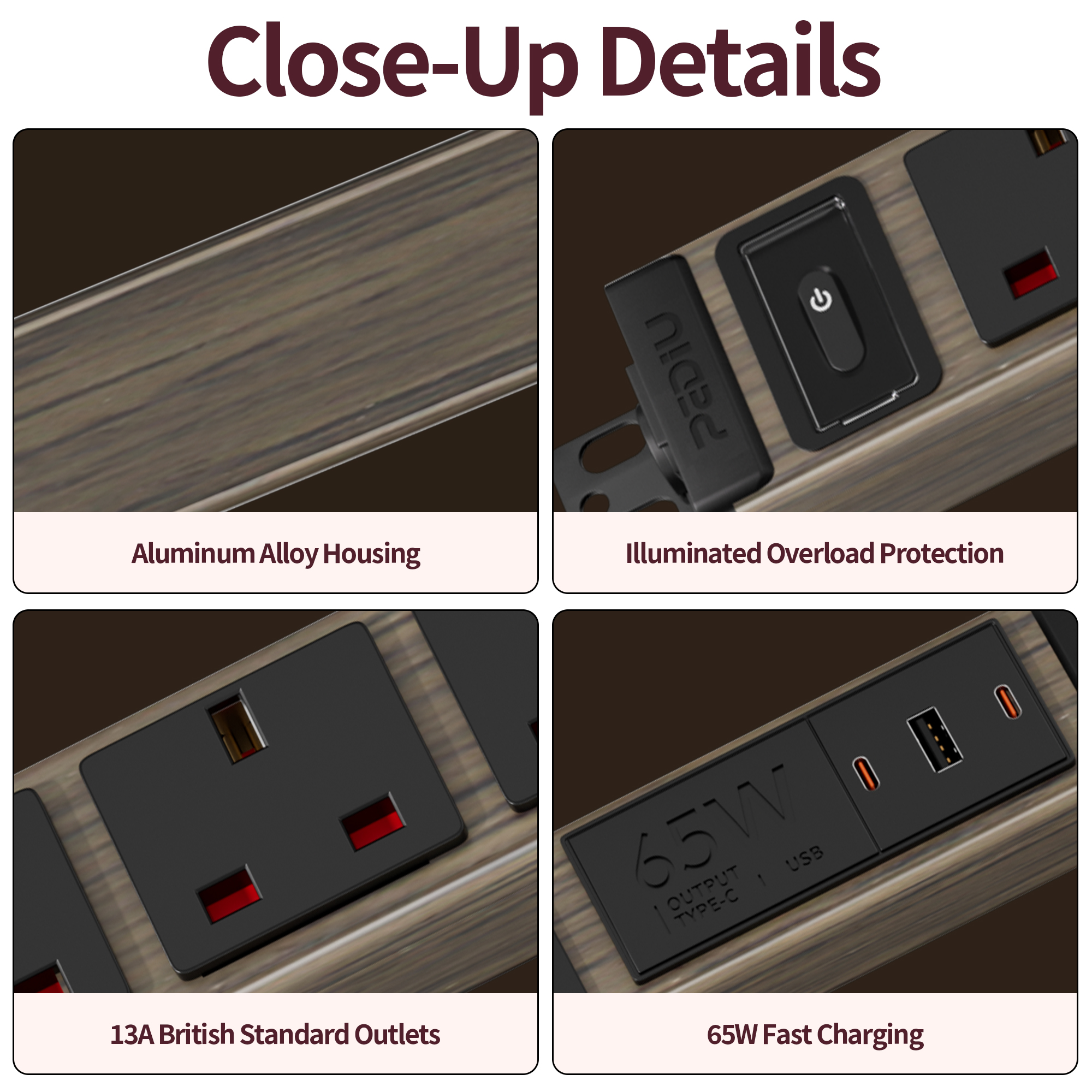

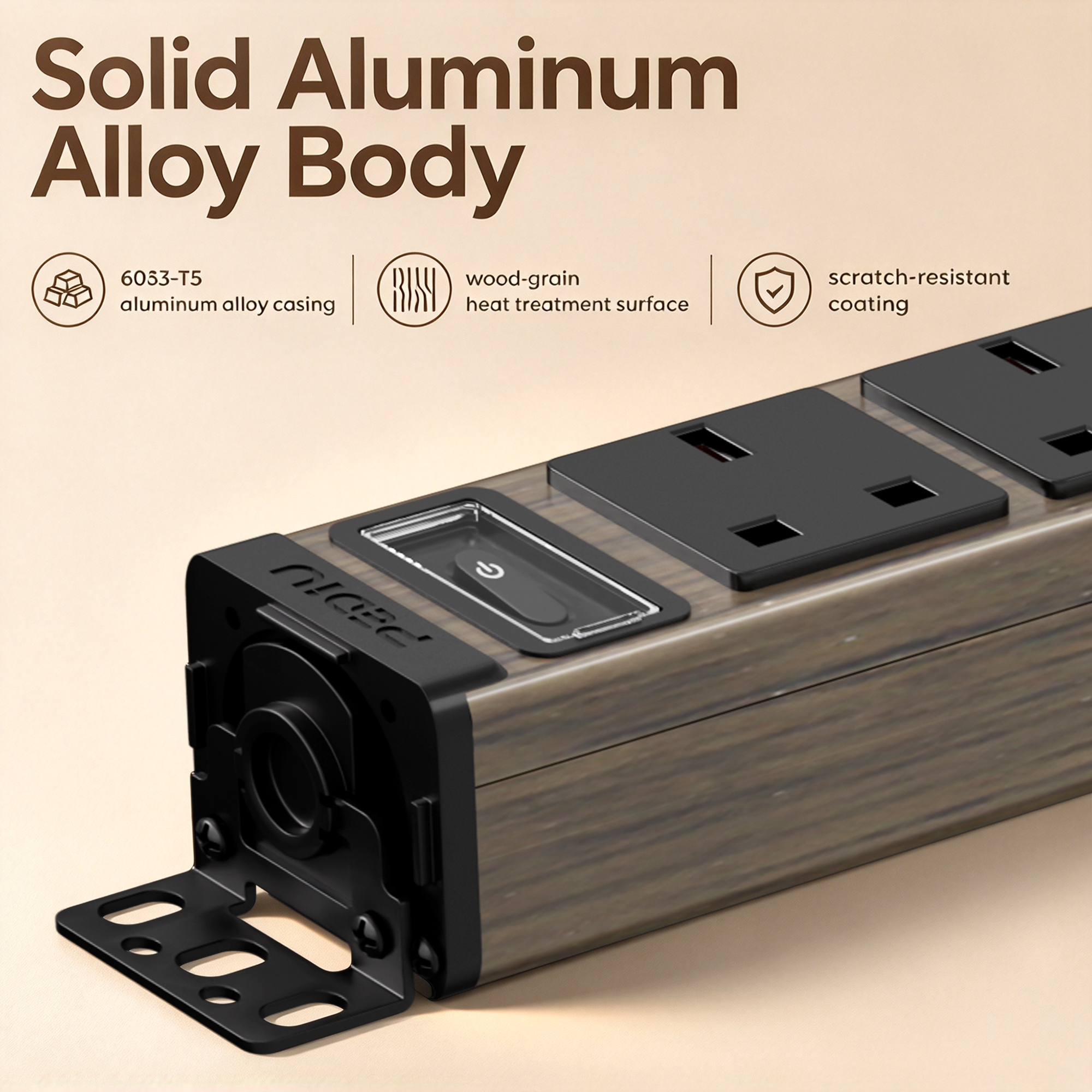

The 6063-T5 aluminum alloy housing features a wood-grain heat transfer printed finish, combining a durable metal structure with a warm, furniture-friendly appearance. The black high-strength PC side covers complete the distinctive design.

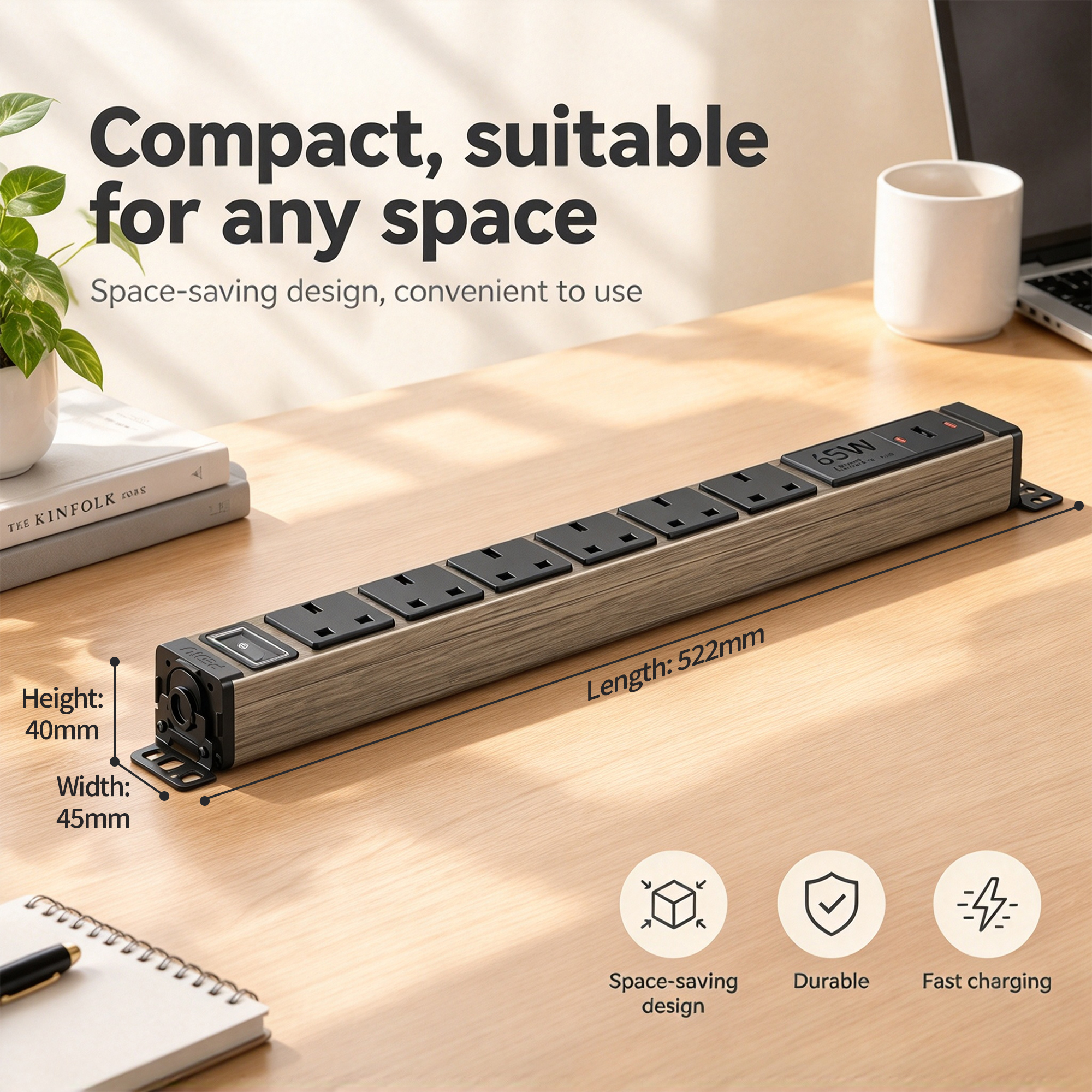

The 1U QY TY Series design provides a compact solution for applications where available space and appearance are important. Power distribution and 65W USB-C charging are integrated into a single compact PDU.
The wood-grain finish gives the PDU a more furniture-oriented appearance than conventional industrial-style power distribution products, allowing it to coordinate naturally with modern desks and interior environments.
With a rated specification of 250V AC, 13A maximum and 50Hz, the PDU combines UK-standard AC power distribution with convenient 65W USB-C PD charging in a compact format.
Internal wiring is securely fastened and properly insulated, while all electrical connections are securely terminated. Finished products undergo applicable dimensional, visual, assembly and electrical safety inspections before delivery.
The product is designed to comply with applicable UK electrical safety requirements and relevant product regulations, with applicable requirements for UKCA conformity assessment addressed for the Great Britain market. UKCA marking and supporting technical documentation are maintained where required.
Specification | Details |
|---|---|
Product Category | Power Distribution Unit (PDU) |
Profile Series | 1U QY TY Series |
Main Housing Material | 6063-T5 Aluminum Alloy |
Side Cover Material | High-Strength PC |
Housing Finish | Heat Transfer Printing |
Main Housing Color | Wood-Grain |
Side Cover Color | Black |
Rated Voltage | 250V AC |
Rated Current | 13A Max. |
Rated Frequency | 50Hz |
Plug Type | BS 1363-1, 13A UK Plug |
Outlet Type | BS 1363-2 UK Socket Outlet × 6 |
Circuit Breaker Switch | Illuminated Circuit Breaker Switch × 1 |
USB-C Charging | USB-C PD Fast Charging 65W |
Power Cord | 1.5 mm², 3-Conductor, 2 m |
Cable Entry | Left Entry |
Profile Height | 1U |
Wiring 内部布线 | Internal wiring shall be securely fastened and properly insulated / 内部线路应牢固固定并进行适当绝缘 |
Electrical Connections 电气连接 | All electrical connections shall be securely terminated / 所有电气连接均应牢固端接 |
Safety & Compliance | Complies with applicable UK electrical safety requirements and relevant product regulations; designed to meet applicable UKCA conformity assessment requirements for the Great Britain market |
Earthing | Product shall be properly earthed before use |
Overload Requirement | Overloading beyond the rated capacity is prohibited |
This 1U UK PDU combines six BS 1363-2 UK sockets with a 65W USB-C PD charging port and an illuminated circuit breaker switch, providing a more functional power solution for modern workspaces.
Yes. The 65W USB-C PD output is designed for compatible USB-C devices, making it convenient for charging phones, tablets, accessories and compatible laptops within the supported power range.
Yes. The product provides both UK mains sockets and USB-C PD charging, allowing compatible devices to be powered or charged from the same PDU. Always keep the total connected load within the 13A rated capacity.
It is suitable for compatible USB-C devices such as smartphones, tablets, accessories and selected laptops that support USB-C Power Delivery within the available power range.
Yes. Its six UK sockets, 65W USB-C charging and compact 1U profile make it suitable for home offices, study areas and desktop workstations.
Yes. The aluminium housing uses a wood-grain heat-transfer finish, giving the PDU a furniture-friendly appearance that can complement desks, workstations and other interior environments.
The 6063-T5 aluminium alloy housing provides a solid structural enclosure while supporting a clean, furniture-oriented appearance.
Yes. The 1U QY TY profile is designed with a compact height, helping reduce the space occupied by the PDU in organised workspaces and furniture applications.
Yes. Its compact 1U structure, left-side cable entry and wood-grain aluminium housing make it suitable for organised desktop and workstation environments.
The illuminated circuit breaker switch provides a clear visual indication of the switch status while also serving as the PDU's integrated circuit protection and switching component.
The left-side cable entry provides a defined cable-routing direction, which can help keep connected cables more organised in suitable installation layouts.
Six BS 1363-2 sockets provide multiple connection points for common workstation equipment and accessories. The actual number of devices should always be determined by their combined power requirements.
