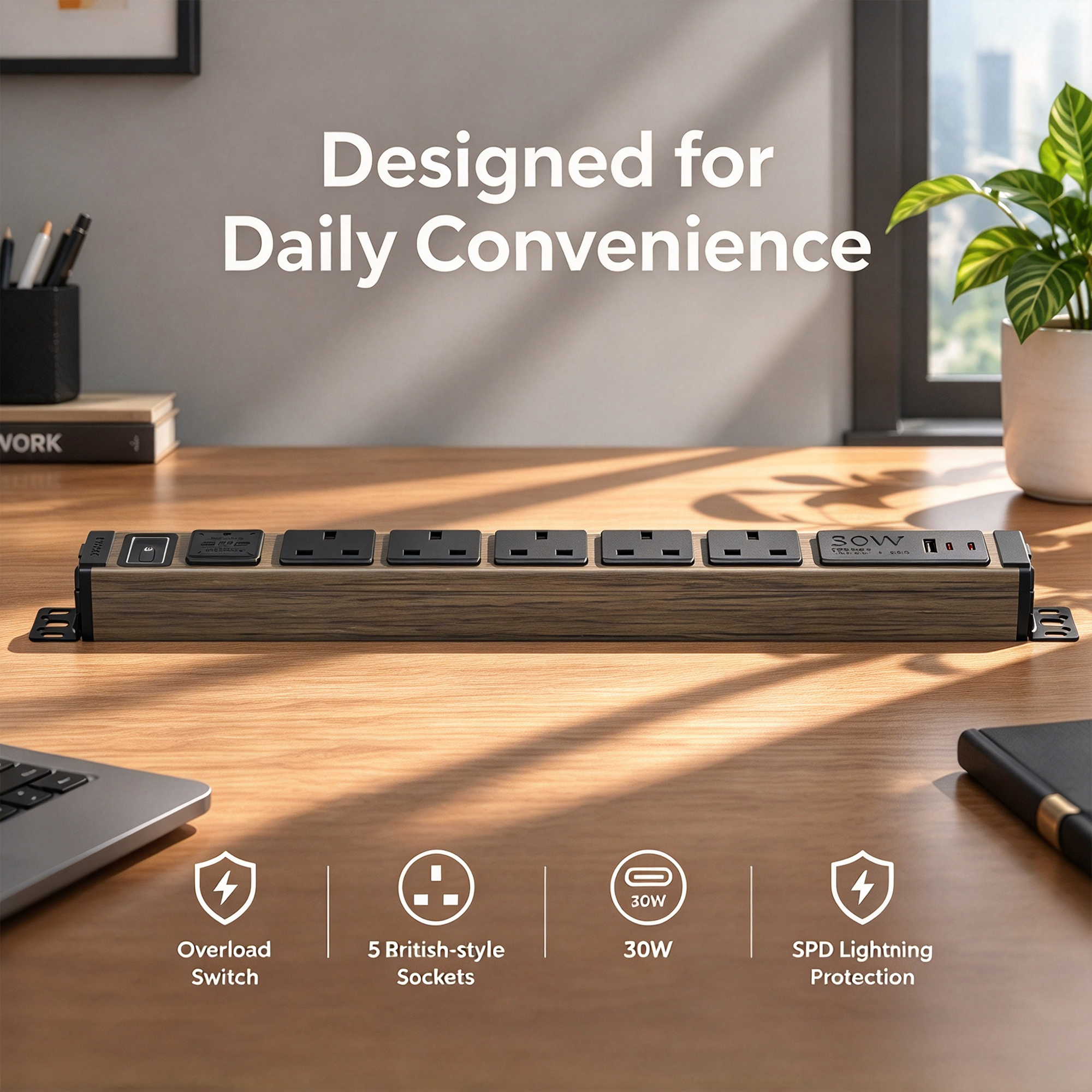

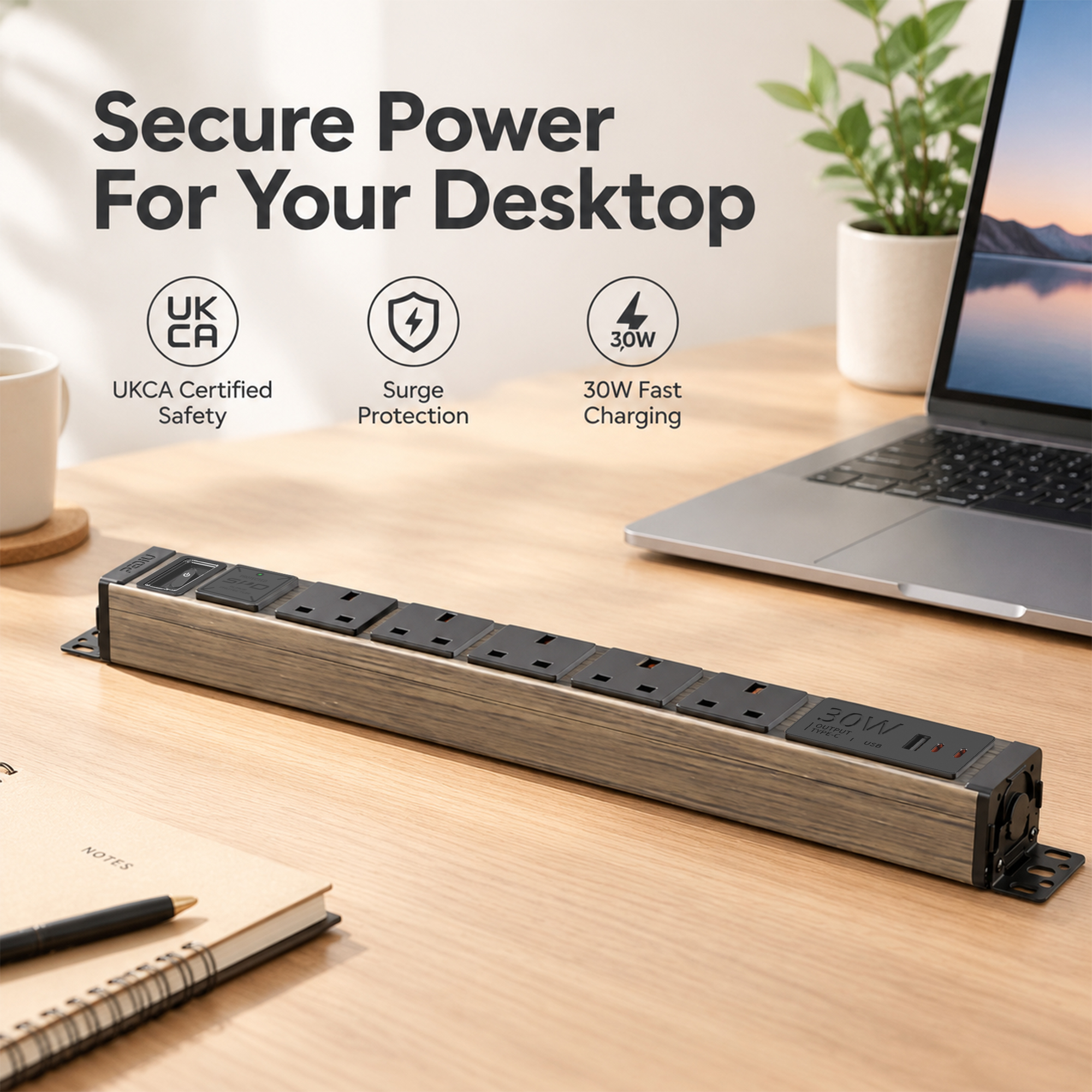

This UK 13A 5-Way Wood-Grain Aluminium PDU Power Strip with Surge Protection and 30W USB-C PD Fast Charging is designed for convenient power distribution and device charging in home, office, and indoor environments. It features a 6063-T5 aluminium alloy housing with a wood-grain heat transfer finish and a high-strength PC side cover, combining a distinctive appearance with a durable construction.
Equipped with 5 BS 1363-2 UK socket outlets, a BS 1363-1 13A UK plug, an illuminated circuit breaker switch, a surge protection device, and 30W USB-C PD fast charging, it provides convenient power control, surge protection, and fast charging for compatible devices. The PDU is rated at 250V AC, 13A Max and 50Hz, with a 1.5 mm² 3-conductor, 2 m power cord.
The compact 1U QY TY Series profile and left-side cable entry make it suitable for space-conscious desktop and indoor power distribution applications. The product is designed in accordance with applicable ISO technical requirements and UK electrical safety requirements, with UKCA conformity assessment requirements considered for the Great Britain market.
| Availability: | |
|---|---|
| Quantity: | |
(DMQY-TY-E5-KxFUt30-1.5p2m-YB13A)-Wood
PEDIU
PE20260828-303

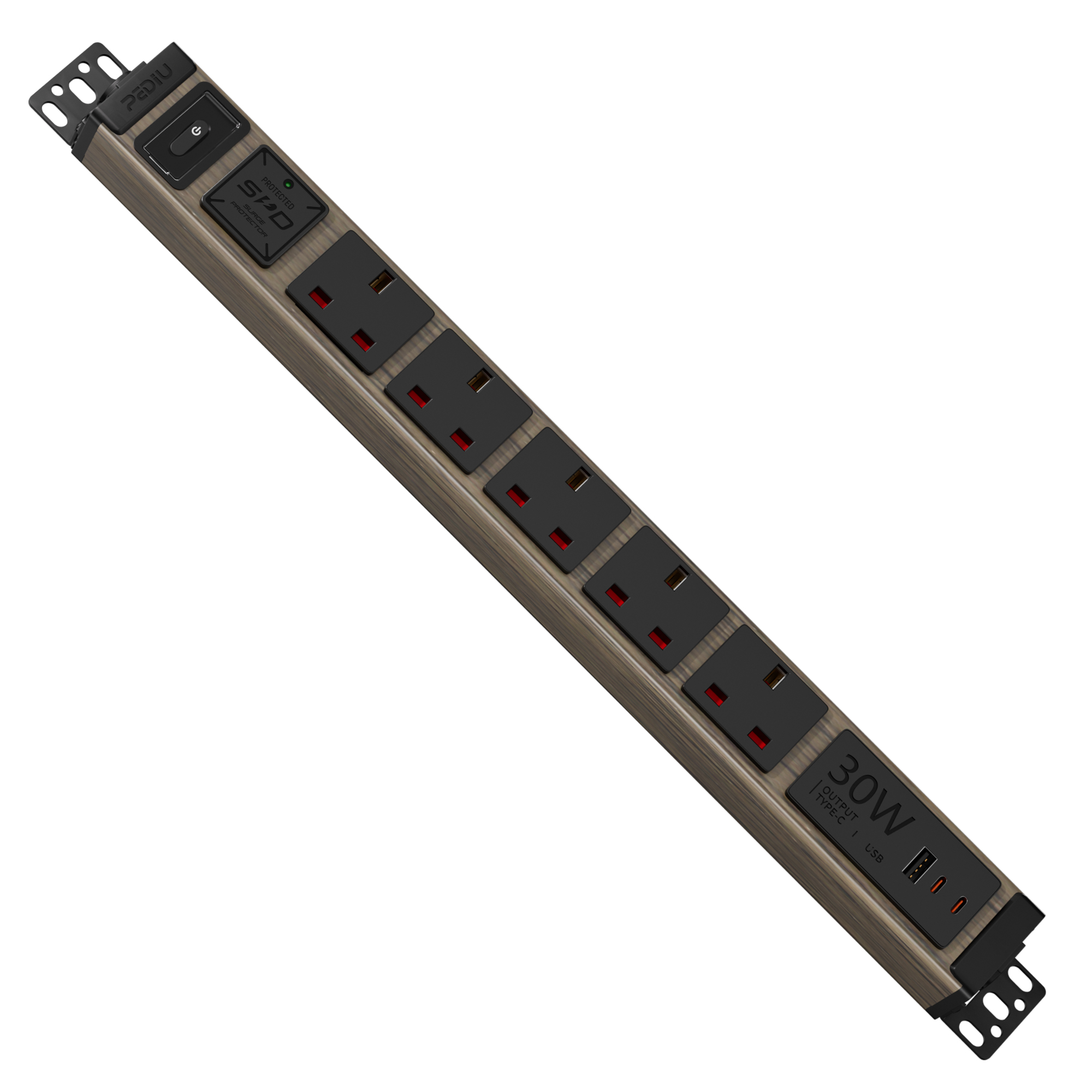

The 1U QY TY Series UK PDU with 5 BS 1363 Socket Outlets, 30W USB-C PD Fast Charging and Surge Protection is a compact power distribution and charging solution designed for UK office, commercial, educational and home-working environments.
The PDU features a durable 6063-T5 aluminium alloy housing with a wood-grain heat-transfer finish and high-strength PC side covers. Its space-efficient 1U profile integrates 5 BS 1363-2 UK socket outlets, an illuminated circuit breaker switch, 30W USB-C PD fast charging, and a surge protection device into one compact power distribution unit.
Rated at 250V AC, 13A Max and 50Hz, the unit is equipped with a BS 1363-1 13A UK plug and a 2 m, 1.5 mm² 3-conductor power cord. The 13A Max rating applies to the overall PDU, so the combined load of connected equipment must remain within the rated capacity.
Designed according to applicable ISO technical documentation and engineering drawing requirements, the product is also designed to meet applicable UK electrical safety requirements and relevant product regulations. For the Great Britain market, it is designed to meet applicable UKCA conformity assessment requirements, with UKCA marking applied where required.
The combination of five UK-standard socket outlets, 30W USB-C PD charging, surge protection and a compact 1U profile makes this PDU suitable for:
Office Workstations – Power distribution for computers, monitors, printers and other office equipment.
Executive Desks – Provides convenient UK-standard AC power and USB-C charging access in professional workspaces.
Conference & Meeting Tables – Suitable for laptops, presentation equipment and meeting-room electronics.
Home Office – Provides multiple UK socket outlets and USB-C charging for everyday desktop equipment.
Coworking Spaces – Centralised power access for shared workstations and portable devices.
Educational Facilities – Suitable for classrooms, training rooms and study areas requiring multiple UK socket outlets.
Commercial Furniture – Suitable for furniture-integrated power applications where the approved installation method permits.
AV & Electronic Equipment Areas – Provides power distribution, USB-C charging and specified surge protection for compatible equipment.
Desktop Charging Applications – 30W USB-C PD provides a dedicated charging interface for compatible USB-C devices.
UK Electrical Safety Design
The PDU is designed to comply with applicable UK electrical safety requirements and relevant product regulations.
UKCA Conformity Requirements
The product is designed to meet applicable UKCA conformity assessment requirements for the Great Britain market. UKCA marking is applied where required, with applicable technical documentation and Declaration of Conformity maintained as required.
13A Maximum Rated Current
The 13A Max rating applies to the overall PDU, not to each individual socket outlet. The combined load of all connected equipment must remain within the rated capacity.
Illuminated Circuit Breaker Switch
The integrated illuminated circuit breaker switch provides a visible operating indication while incorporating the specified circuit-breaker function.
30W USB-C PD Fast Charging
The integrated USB-C PD module provides up to 30W charging output for compatible USB-C devices. Actual charging performance depends on the connected device and its supported charging protocol.
Surge Protection Device
The integrated surge protection device provides the specified surge protection function for the PDU. The protection level and applicable operating conditions should be considered according to the product's approved technical specifications.
Proper Earthing
The product shall be properly earthed before use to support safe electrical operation.
Secure Internal Assembly
Internal wiring is securely fastened and properly insulated, while electrical connections are securely terminated according to manufacturing requirements.
Quality Inspection
Finished products are inspected before delivery, including applicable dimensional, visual, assembly and electrical safety checks. Finished surfaces are protected during handling, packaging and transportation.
For customers requiring product customisation, OEM/ODM development can be provided based on the approved product structure, application requirements and applicable UK electrical requirements.
Potential customisation areas include:
Housing dimensions and structural design
Aluminium profile and side-cover configuration
Housing colour and surface finish
Wood-grain appearance and decorative treatment
UK socket quantity and configuration
Plug and electrical configuration
Circuit breaker switch configuration
USB-C PD charging power and configuration
Surge protection configuration
Power cord specification and length
Cable entry direction
Product identification and marking
Packaging and documentation
Engineering drawings and technical documentation
Customised solutions can be developed according to the customer's application, installation environment and target-market requirements, subject to technical evaluation and product approval.

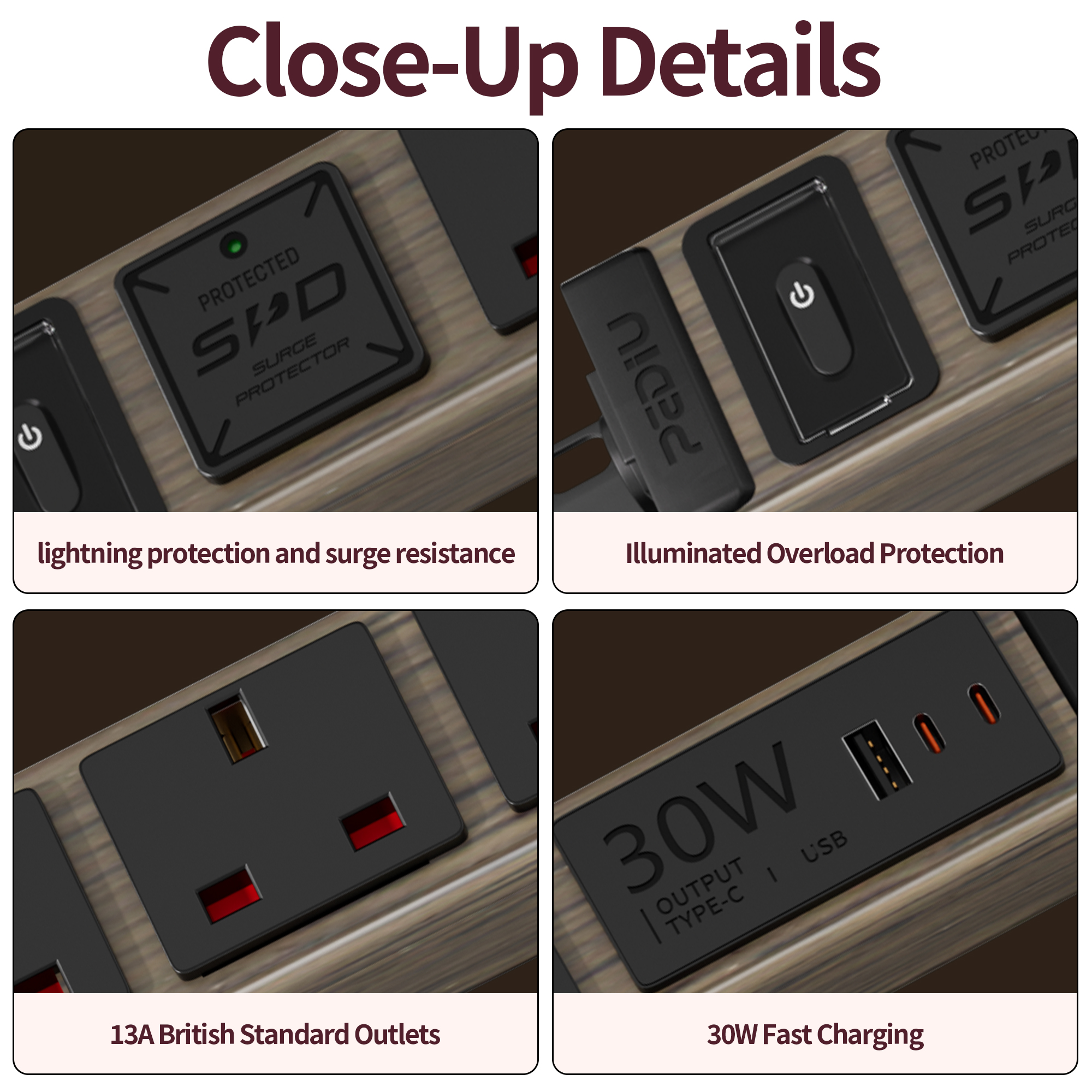

Equipped with 5 × BS 1363-2 UK socket outlets and a BS 1363-1 13A UK plug, this PDU provides convenient centralized power access for multiple UK-standard electrical devices.
The integrated 30W USB-C PD fast-charging module provides convenient higher-power charging for compatible USB-C devices, making the PDU more versatile for modern desktop and workspace applications.
The built-in surge protection device adds an additional layer of protection for connected equipment during everyday power distribution, helping make the PDU suitable for applications where electrical protection is an important consideration.
The illuminated circuit breaker switch provides convenient power control while making the switch status easier to identify during operation.

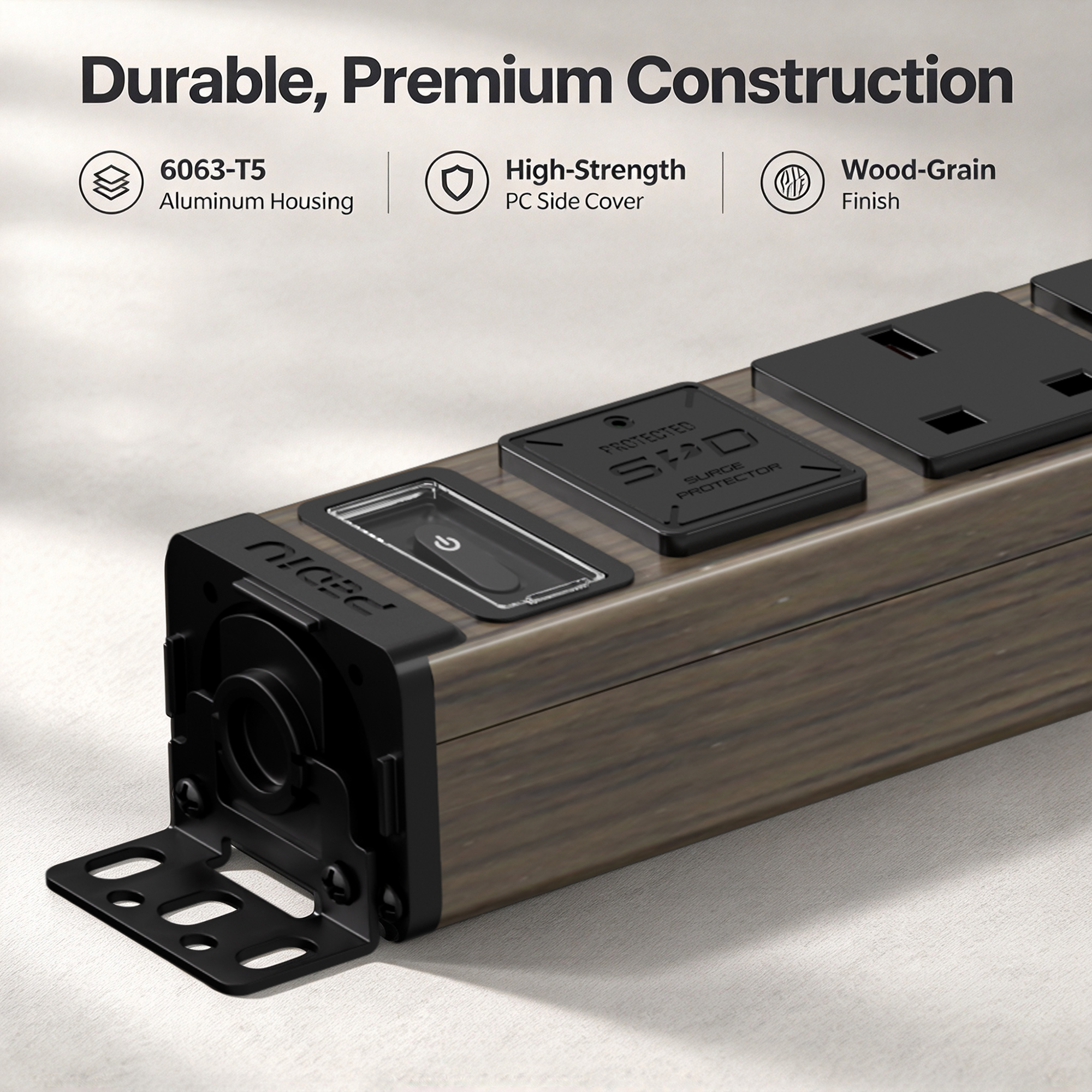

The 6063-T5 aluminum alloy housing features a wood-grain heat transfer printed finish, combining a durable metal structure with a warm, furniture-friendly appearance. The black high-strength PC side covers complete the distinctive design.

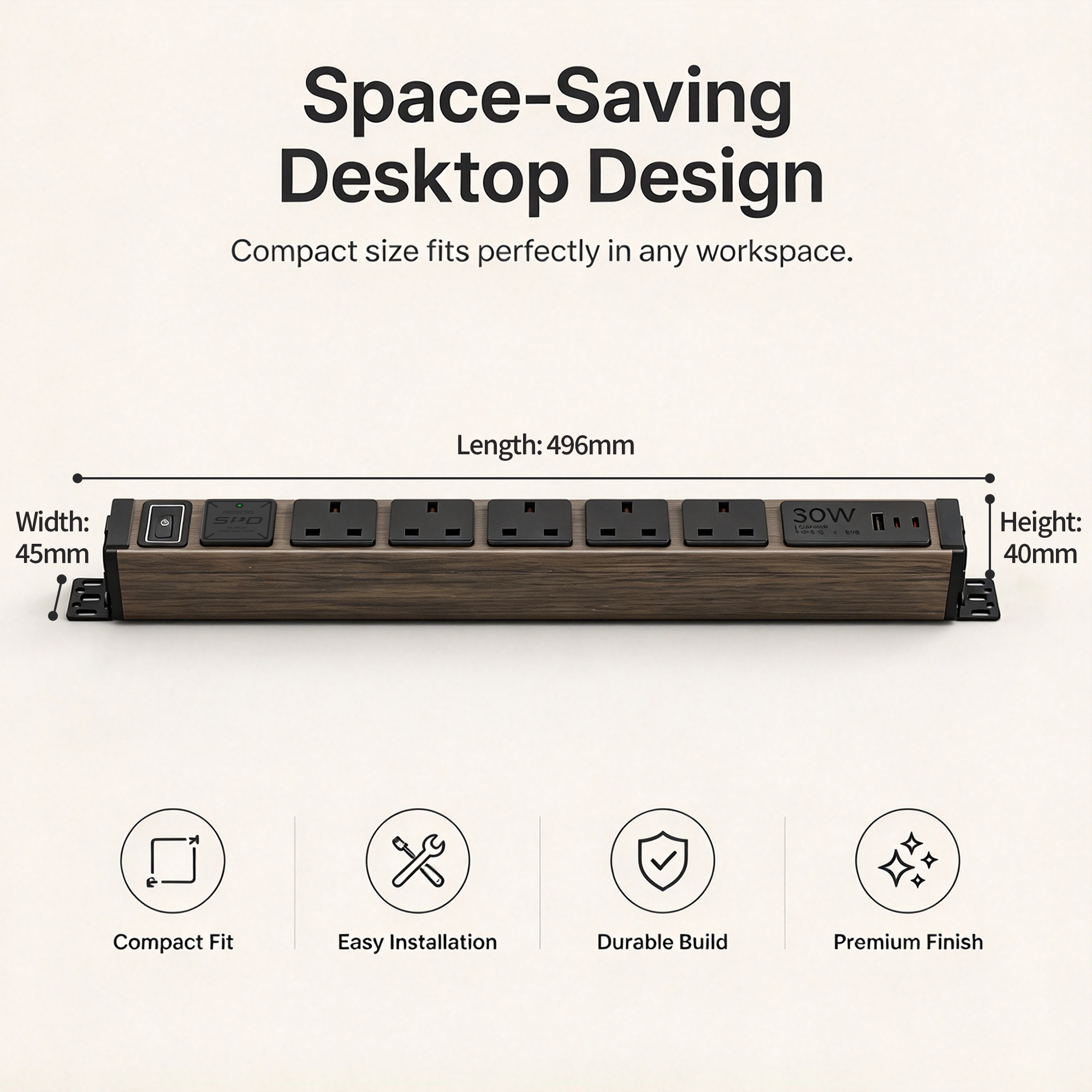

The 1U QY TY Series profile provides a compact solution for applications where installation space and appearance are important. It integrates power distribution, USB-C charging and surge protection into a single compact PDU.
The wood-grain finish gives the PDU a more furniture-oriented appearance compared with conventional industrial-style power distribution products, making it easier to coordinate with modern desks and interior environments.
Internal wiring is securely fastened and properly insulated, while electrical connections are securely terminated. Finished products undergo dimensional, visual, assembly and applicable electrical safety inspections before delivery.
The product is designed to comply with applicable UK electrical safety requirements and relevant product regulations, with applicable requirements for UKCA conformity assessment addressed for the Great Britain market. UKCA marking and supporting technical documentation are maintained where required.
Specification | Details |
|---|---|
Product Category | Power Distribution Unit (PDU) |
Profile Series | 1U QY TY Series |
Main Housing Material | 6063-T5 Aluminum Alloy |
Side Cover Material | High-Strength PC |
Housing Finish | Heat Transfer Printing |
Main Housing Color | Wood-Grain |
Side Cover Color | Black |
Rated Voltage | 250V AC |
Rated Current | 13A Max. |
Rated Frequency | 50Hz |
Plug Type | BS 1363-1, 13A UK Plug |
Outlet Type | BS 1363-2 UK Socket Outlet × 5 |
Circuit Breaker Switch | Illuminated Circuit Breaker Switch × 1 |
USB-C Charging | USB-C PD Fast Charging 30W |
Surge Protection | Surge Protection Device |
Power Cord | 1.5 mm², 3-Conductor, 2 m |
Cable Entry | Left Entry |
Profile Height | 1U |
Wiring | Internal wiring shall be securely fastened and properly insulated |
Electrical Connections | All electrical connections shall be securely terminated |
Safety & Compliance | Complies with applicable UK electrical safety requirements and relevant product regulations; designed to meet applicable UKCA conformity assessment requirements for the Great Britain market |
Earthing | Product shall be properly earthed before use |
Overload Requirement | Overloading beyond the rated capacity is prohibited |
This 1U PDU combines five UK socket outlets with 30W USB-C PD fast charging, a surge protection device and an illuminated circuit breaker switch, providing multiple power functions in one compact unit.
The 30W USB-C PD port provides a convenient charging option for compatible USB-C devices, reducing the need for a separate USB-C charger in the workspace.
Yes. The USB-C PD charging function and UK socket outlets can be used together, provided that the total electrical load remains within the PDU's 13A maximum rated capacity.
It is designed for compatible USB-C devices that support charging within the 30W output range. Actual compatibility depends on the charging requirements of the connected device.
The integrated surge protection device is designed to provide an additional layer of protection against certain electrical disturbances. Users should still follow the product's rated capacity and electrical safety requirements.
The illuminated circuit breaker switch provides a visible indication of the PDU's power status, making it easier to identify whether the unit is switched on during everyday use.
By combining five UK outlets and USB-C charging in one compact unit, the PDU can centralise power connections and help reduce the need for multiple separate power and charging devices around the desk.
Yes. Its compact 1U design, five UK sockets and integrated USB-C PD charging make it suitable for home-office desks and other indoor personal workspaces.
Yes. It can provide multiple UK power connections and USB-C charging for office equipment in individual or shared workstations, subject to the 13A maximum rated load.
The wood-grain heat-transfer finish gives the aluminium housing a furniture-oriented appearance, making it suitable for office desks, executive furniture and other interior designs where a less industrial look is preferred.
