Product Overview
1. Product Positioning

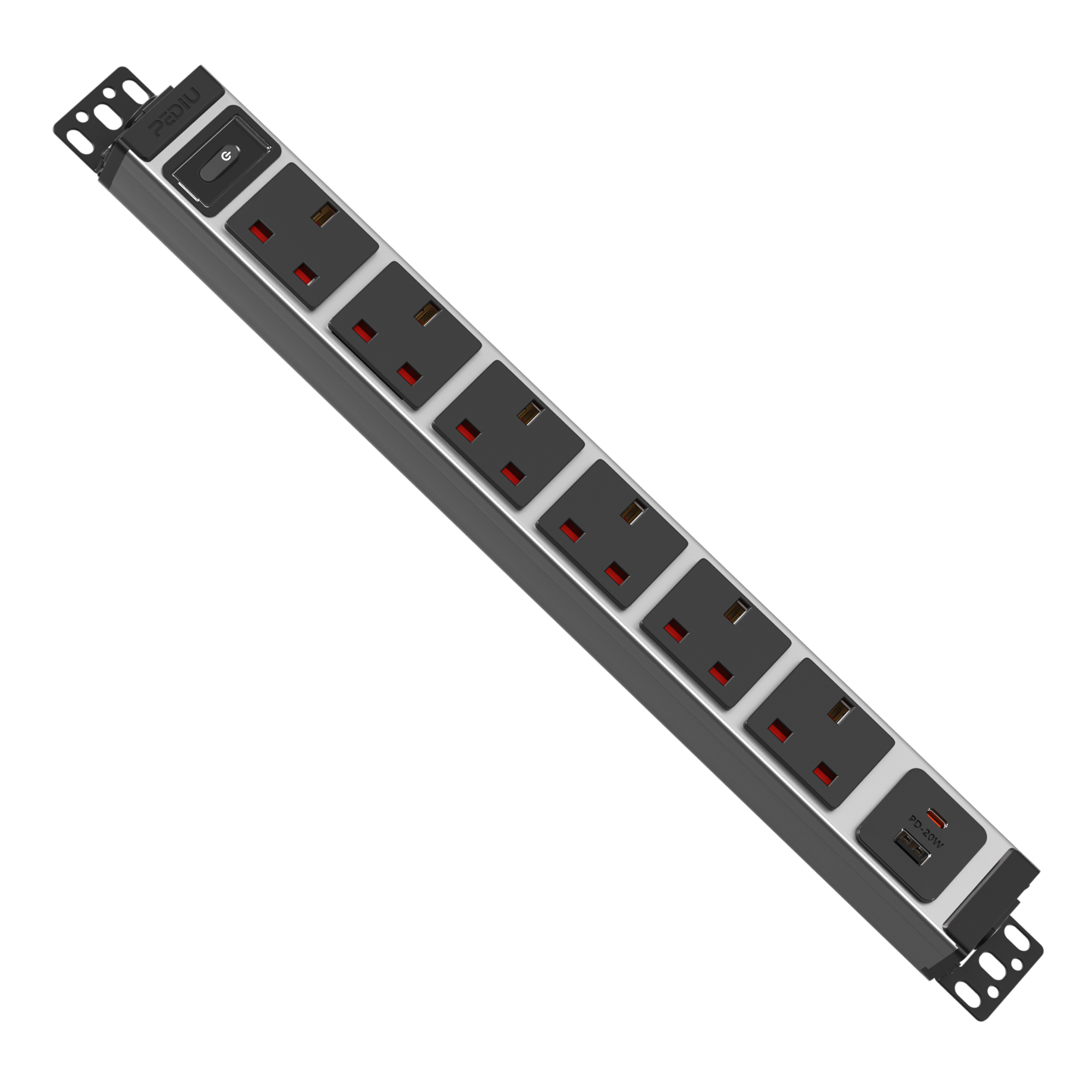

1U QY TY Series UK PDU with 6 BS 1363 Socket Outlets & 20W USB-C PD Fast Charging
This 1U QY TY Series UK PDU is a compact power distribution and charging solution designed for UK office, desktop and commercial furniture applications. It combines 6 BS 1363-2 UK socket outlets, 20W USB-C PD fast charging and an illuminated circuit breaker switch in a space-efficient 1U profile.
The PDU features a 6063-T5 aluminium alloy housing with a silver sandblasted finish and a high-strength black PC side cover. It is rated at 250V AC, 13A Max and 50Hz, with a BS 1363-1 13A UK plug and a 2 m power cord.

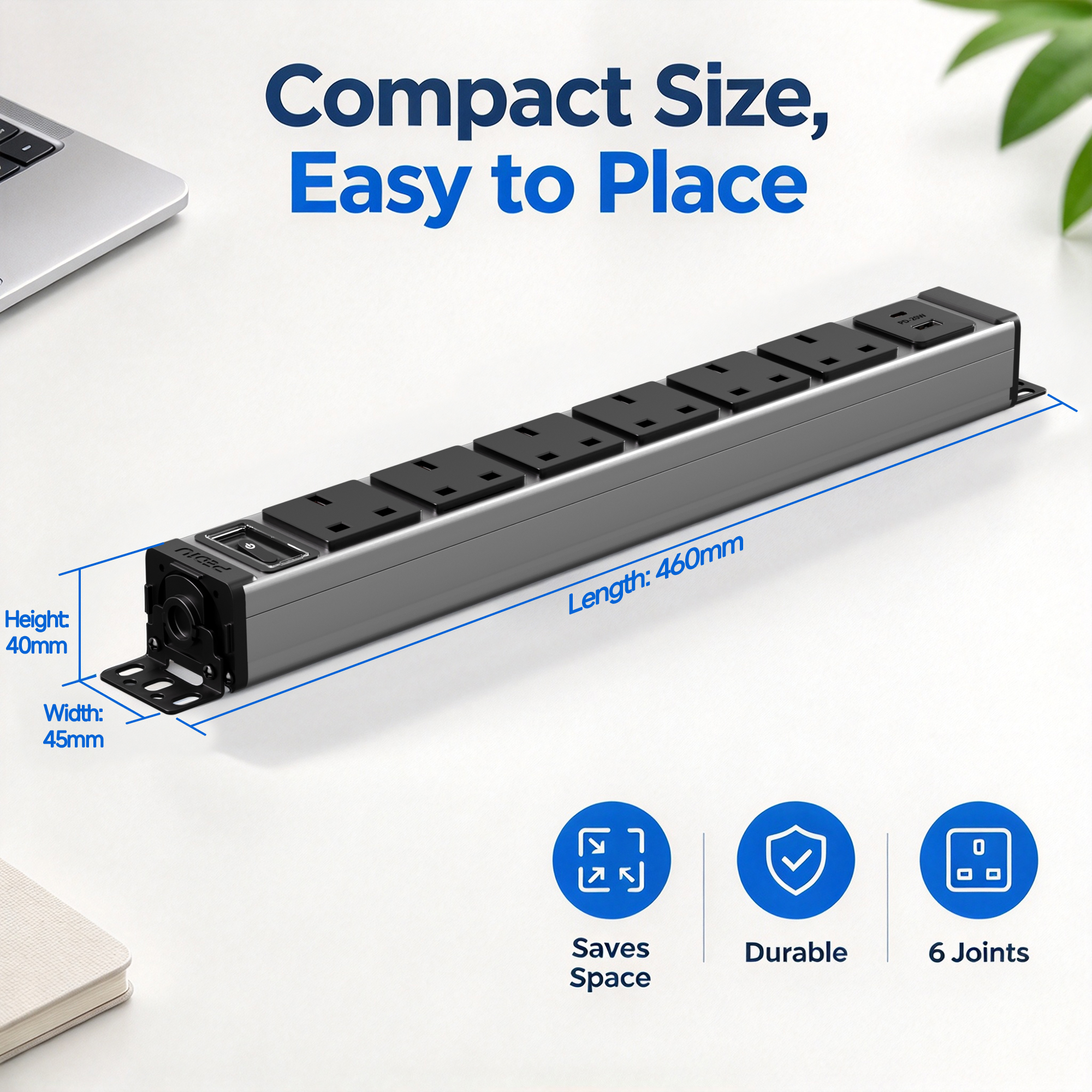

Its compact structure and clean silver aluminium appearance make it suitable for modern workstations, office desks, conference tables, home offices and commercial furniture applications where convenient access to UK AC power and USB-C charging is required.
Important: The 13A Max rating applies to the overall PDU, not 13A for each individual socket outlet.
2. Application Scenarios

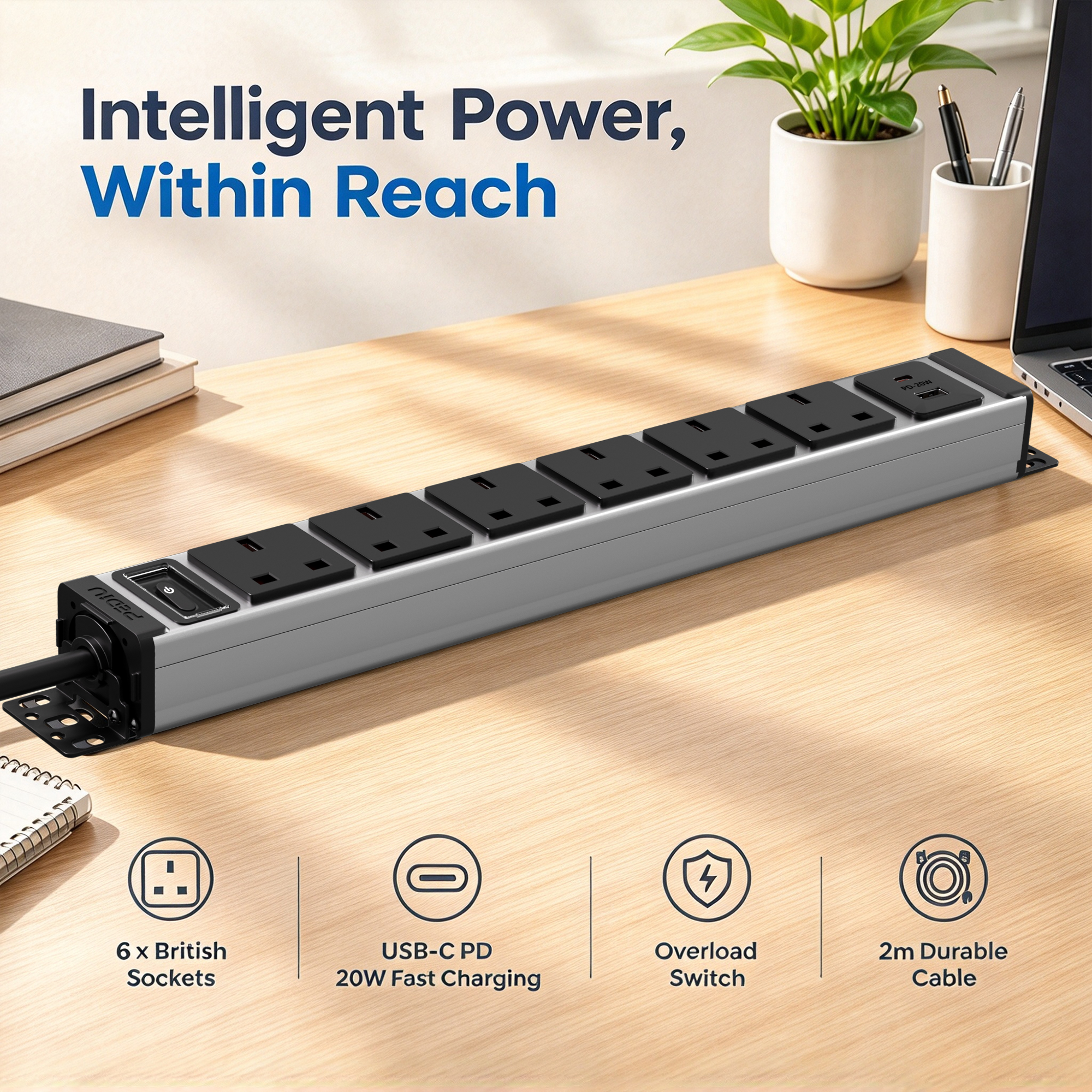

Office Workstations
Provides convenient access to six UK socket outlets and USB-C PD charging for computers, monitors, peripherals and other office equipment.
Executive Desks & Home Offices
The compact 1U profile and silver aluminium finish integrate well with modern desktop environments.
Conference Tables
Provides convenient UK power access and USB-C charging for meeting participants.
Commercial Furniture
Suitable for office furniture and other commercial furniture applications requiring a compact UK power distribution solution.
Coworking Spaces
Six UK socket outlets provide flexible power access for shared workstations and collaborative environments.
Desktop Electronic Equipment
The integrated 20W USB-C PD module provides convenient charging for compatible USB-C devices alongside AC power distribution.
3. Safety & Reliability
UK Electrical Safety Design

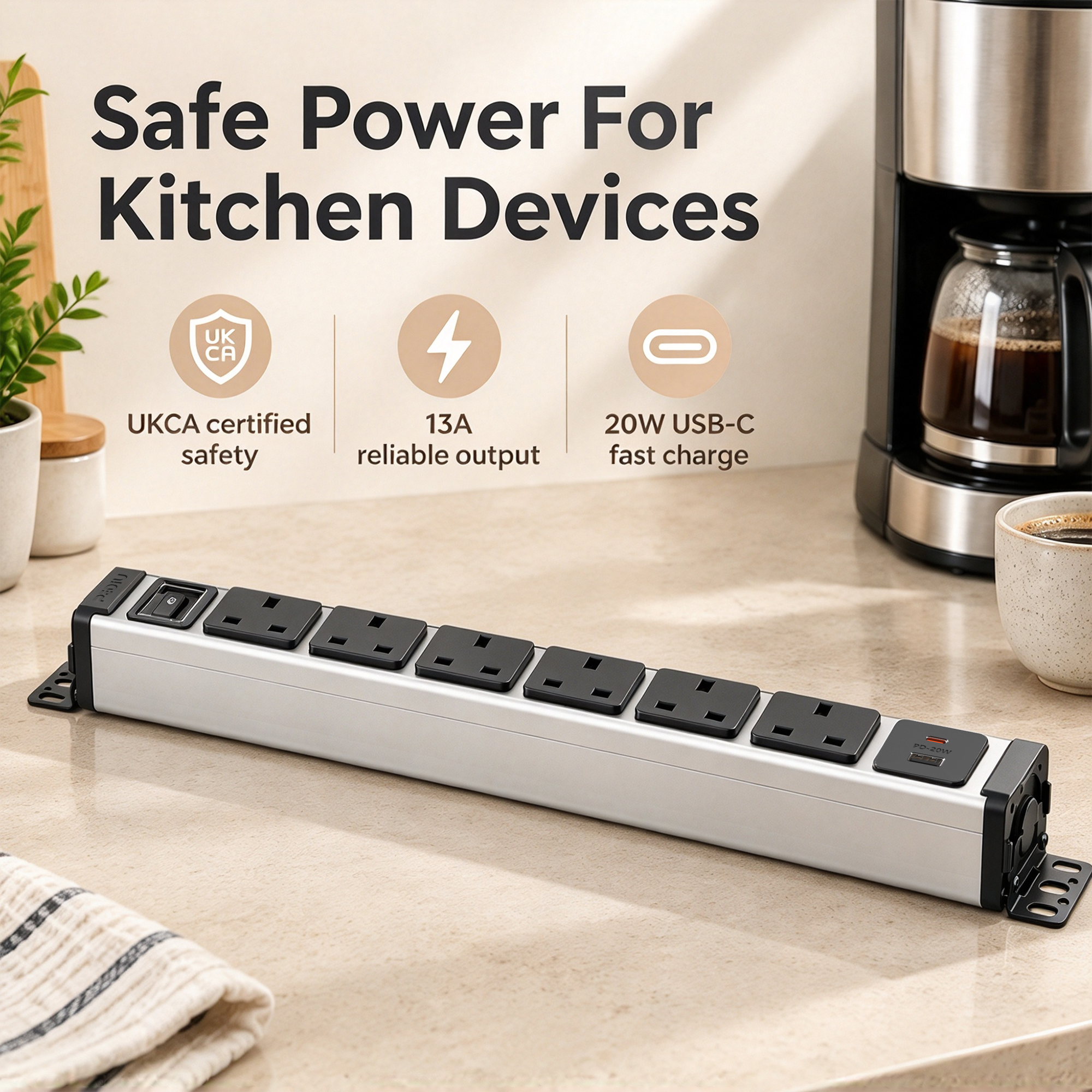

The PDU is designed to comply with applicable UK electrical safety requirements and relevant product regulations. It uses a BS 1363-1 13A UK plug and BS 1363-2 UK socket outlets for the intended UK market application.

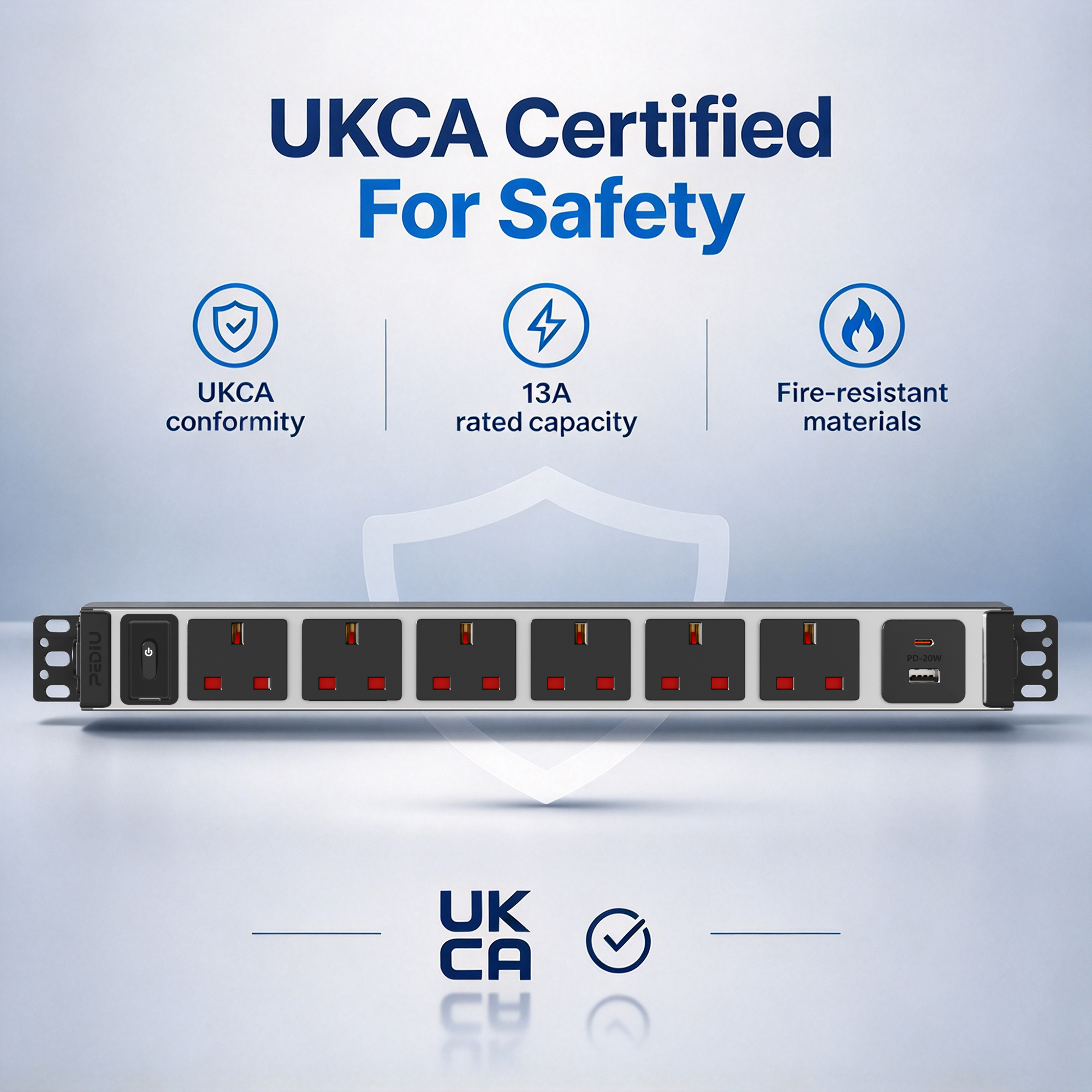

The product is designed to meet the applicable requirements for UKCA conformity assessment for the Great Britain market. UKCA marking shall be applied where required, with applicable technical documentation and Declaration of Conformity maintained as required.
Rated 13A Max Capacity
The PDU has an overall rated current of 13A Max. The total connected load must remain within the rated capacity of the PDU. Overloading beyond the rated capacity is prohibited.
Illuminated Circuit Breaker
The illuminated circuit breaker switch provides a visible switching status and forms part of the PDU's electrical control configuration.
20W USB-C PD Fast Charging
The integrated 20W USB-C PD module provides convenient USB-C charging for compatible devices. Actual charging performance depends on the connected device and supported charging protocol.
Secure Internal Construction
Internal wiring is securely fastened and properly insulated, while all electrical connections are securely terminated. Components are cleaned before assembly to support consistent assembly quality.
Inspection & Surface Protection
Finished products are inspected before delivery, including applicable dimensional, visual, assembly and electrical safety checks. Finished surfaces are protected during handling, packaging and transportation.
Proper Earthing
The product must be properly earthed before use and operated within its specified electrical rating.
4. OEM & ODM Support
For customers requiring product customisation, OEM/ODM development can be provided based on the approved product structure, application requirements and applicable UK electrical requirements.
