Product Features And Advantages

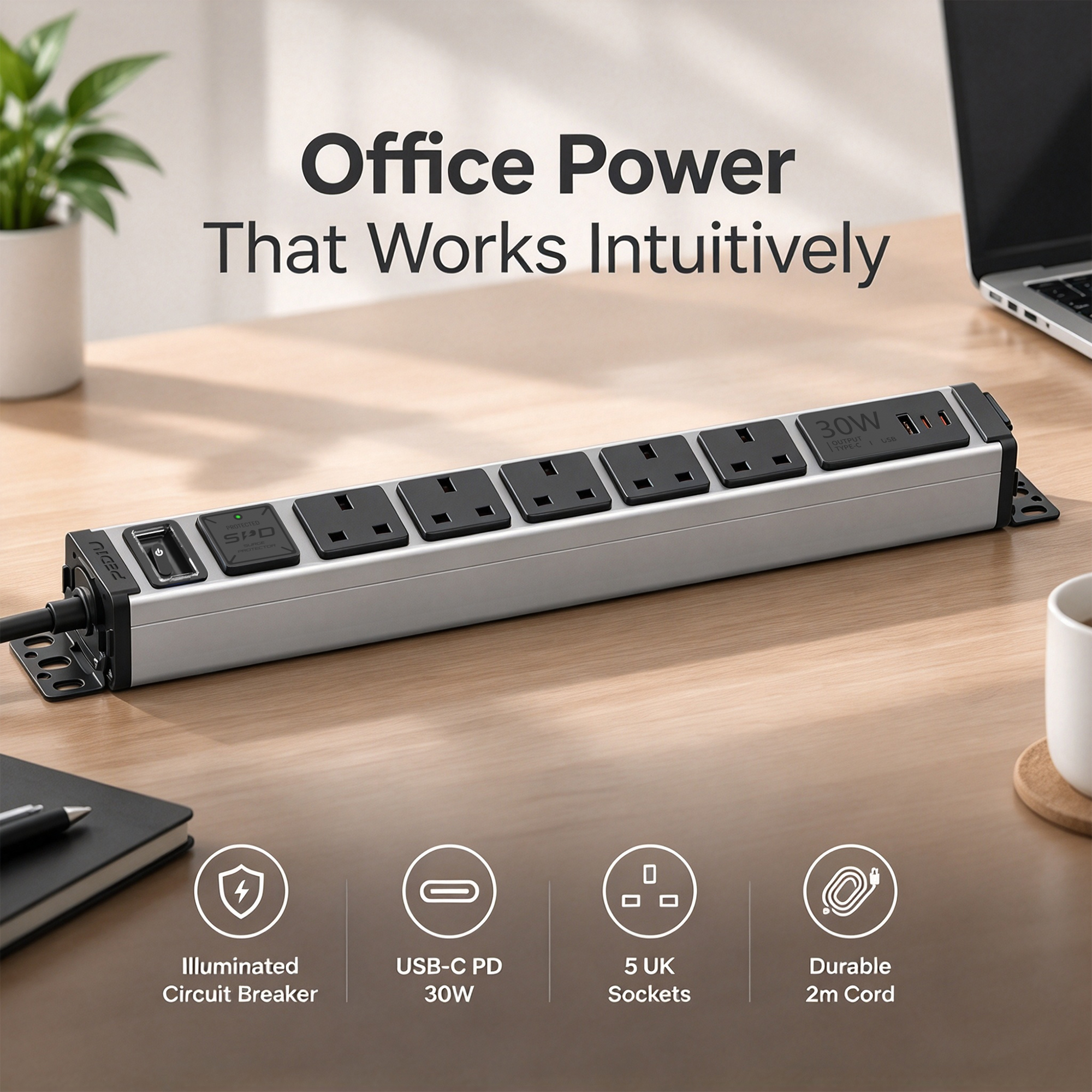

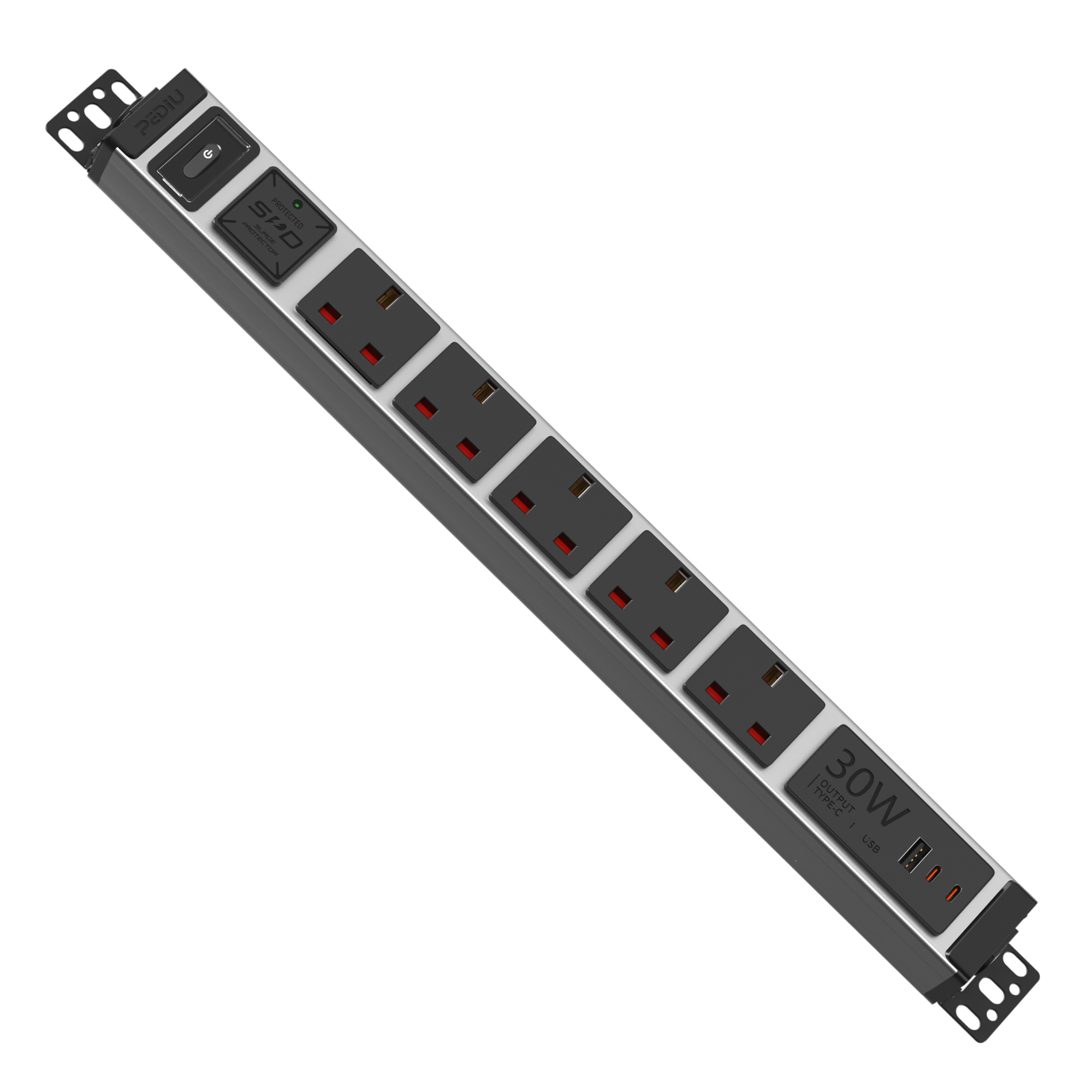

1. 5 UK Socket Outlets for Power Distribution

Featuring 5 BS 1363-2 UK socket outlets, this PDU provides convenient power connections for compatible electrical equipment. With a rated voltage of 250V AC, a maximum current of 13A and a rated frequency of 50Hz, it is designed for compatible UK-style power distribution applications.

2. 30W USB-C PD Fast Charging

The integrated 30W USB-C Power Delivery (PD) charging module provides a convenient charging option for compatible USB-C devices. By combining AC outlets and USB-C charging in one unit, this PDU helps simplify power access across office workspaces, commercial environments and equipment setups.

3. Integrated Surge Protection

Equipped with a surge protection device, this PDU integrates surge protection into a compact power distribution unit. It is designed for use with compatible equipment within the product's rated specifications. Specific surge ratings and protection performance should be confirmed against the detailed technical documentation.

4. Illuminated Circuit Breaker Switch

The integrated illuminated circuit breaker switch provides a clearly visible control point for the PDU. Its illuminated design makes the switch easier to identify during operation, adding practical functionality to the unit's streamlined appearance.

5. Silver Sandblasted Aluminum Alloy Housing

The main housing is made from 6063-T5 aluminum alloy with a silver sandblasted finish, paired with high-strength black PC side covers. The combination creates a clean, professional appearance suitable for office, commercial and technical environments. Finished surfaces are subject to inspection for visible scratches, dents, cracks and other defects.

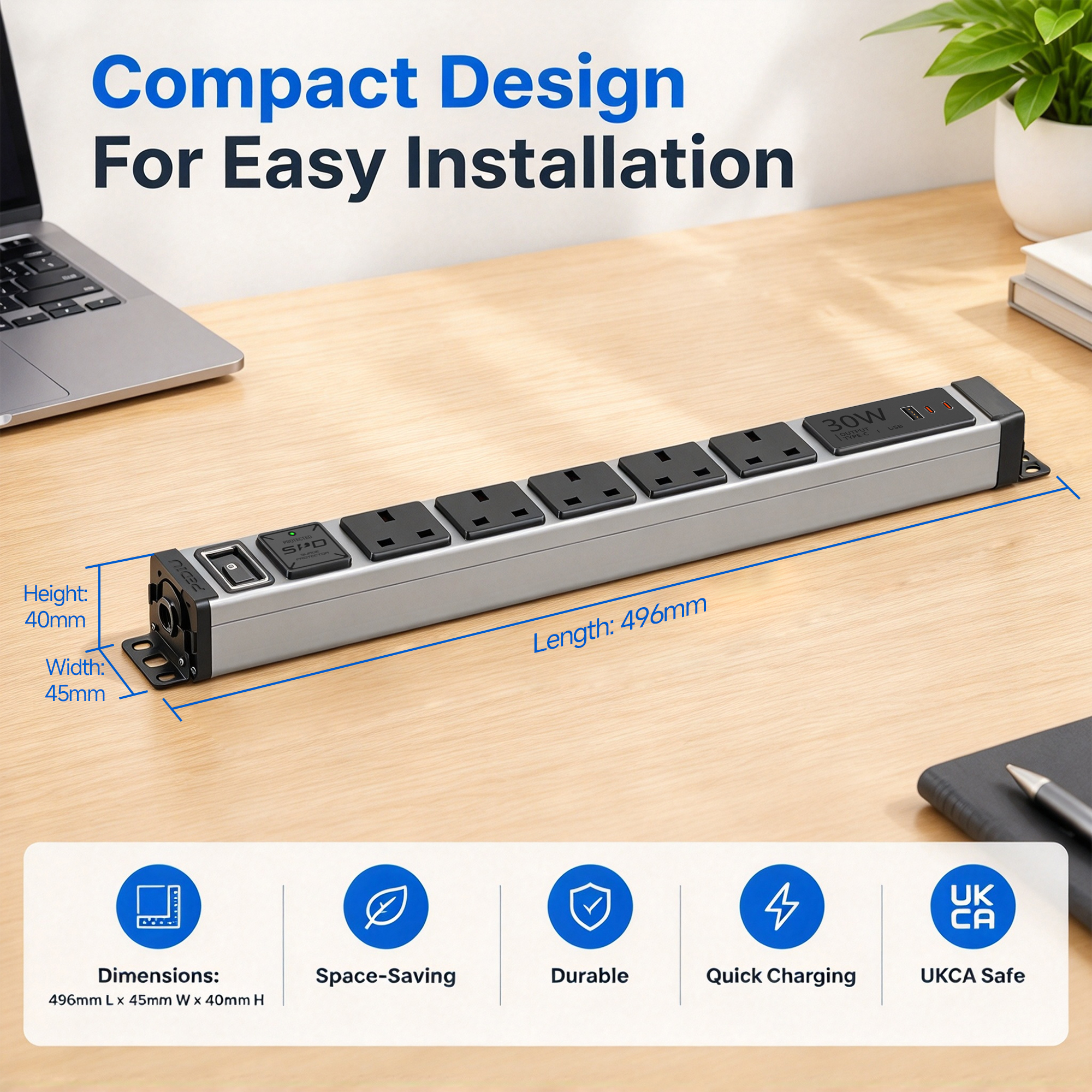

6. Compact 1U QY TY Profile and Left Cable Entry

The 1U QY TY Series profile supports space-conscious installation in compatible setups. Left-side cable entry helps accommodate the specified cable routing arrangement, while the 2 m, 1.5 mm² three-conductor power cord provides the specified electrical connection configuration.

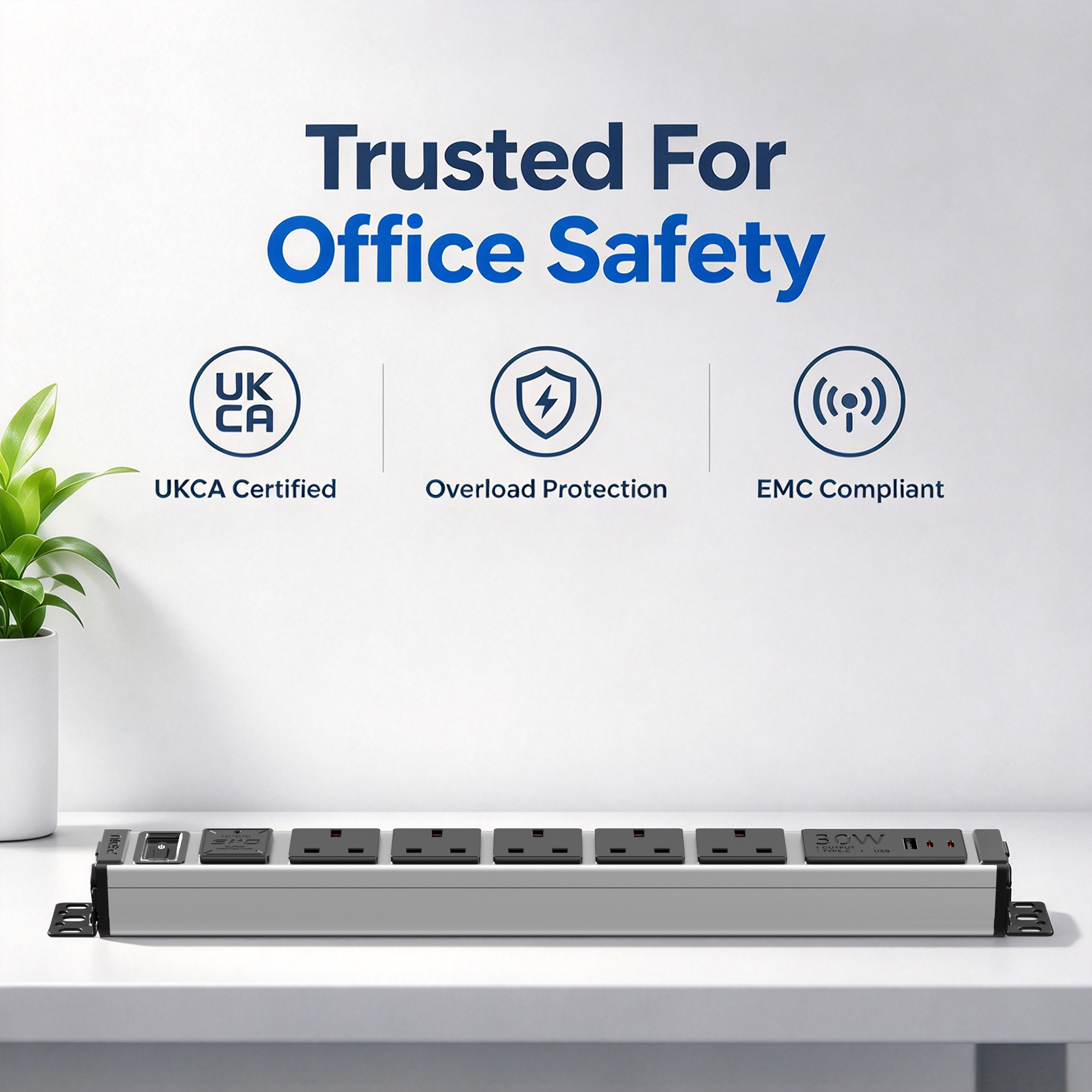

7. Quality Inspection and Compliance Requirements

Manufacturing requirements include secure internal wiring, proper insulation and securely terminated electrical connections. Finished products undergo applicable dimensional, visual, assembly and electrical safety inspections. The product specification also addresses applicable UK electrical safety requirements and UKCA conformity assessment, with marking applied where required.

Product Description

Frequently Asked Questions

Q1. How does the illuminated circuit breaker switch help during daily use?

A: The illuminated switch provides a visible indication of its operating state and combines switching with circuit protection. Refer to the product instructions for its specific operating and protection characteristics.

Q2. What should I do if the circuit breaker trips repeatedly?

A: Disconnect connected equipment and check for possible overloads or faults. If the breaker continues to trip, stop using the PDU and have it inspected by a qualified professional.

Q3. Is this PDU suitable for a home office or workstation?

A: Yes. Its five UK outlets and USB-C charging port make it suitable for powering compatible computers, monitors, peripherals, and mobile devices in home offices and workstations.

Q4. What is the advantage of the sandblasted aluminum finish?

A: The sandblasted aluminum surface provides a textured metallic appearance. It gives the silver housing a distinctive finish while retaining the structural properties of the aluminum alloy.

Q5. How should I maintain the silver aluminum housing?

A: Disconnect the PDU from the power supply before cleaning. Use a soft cloth and avoid abrasive cleaners or tools that could scratch the sandblasted surface.

Q6. Why does the PDU use high-strength PC side covers?

A: The PC side covers form part of the enclosure structure and complement the aluminum housing. Together, these materials create the product's external enclosure.

Q7. What should I consider when positioning the PDU with left-side cable entry?

A: Leave sufficient space on the left side for the power cord to exit without sharp bends, crushing, or obstruction. Plan cable routing to avoid trip hazards and strain on the connection.

Q8. Can this PDU be installed in any rack or under any desk?

A: Not automatically. The mounting type is not specified in the available technical information. Check the product drawing and installation requirements to confirm whether the intended location is suitable.

Q9. Can I connect several high-power devices to the PDU?

A: Multiple devices can be connected only if their combined load remains within the PDU's rated capacity. Do not exceed the rated load, and ensure the product is properly earthed.

Q10. What should I check before connecting sensitive electronic equipment?

A: Confirm that the equipment is electrically compatible, check its power requirements, and review the surge protection device's detailed specifications if a particular protection level is required.

Q11. What quality checks are carried out before the product is shipped?

A: Finished products are inspected before delivery. Applicable checks include dimensional accuracy, visual appearance, assembly quality, and electrical safety.
