Product Features & Advantages

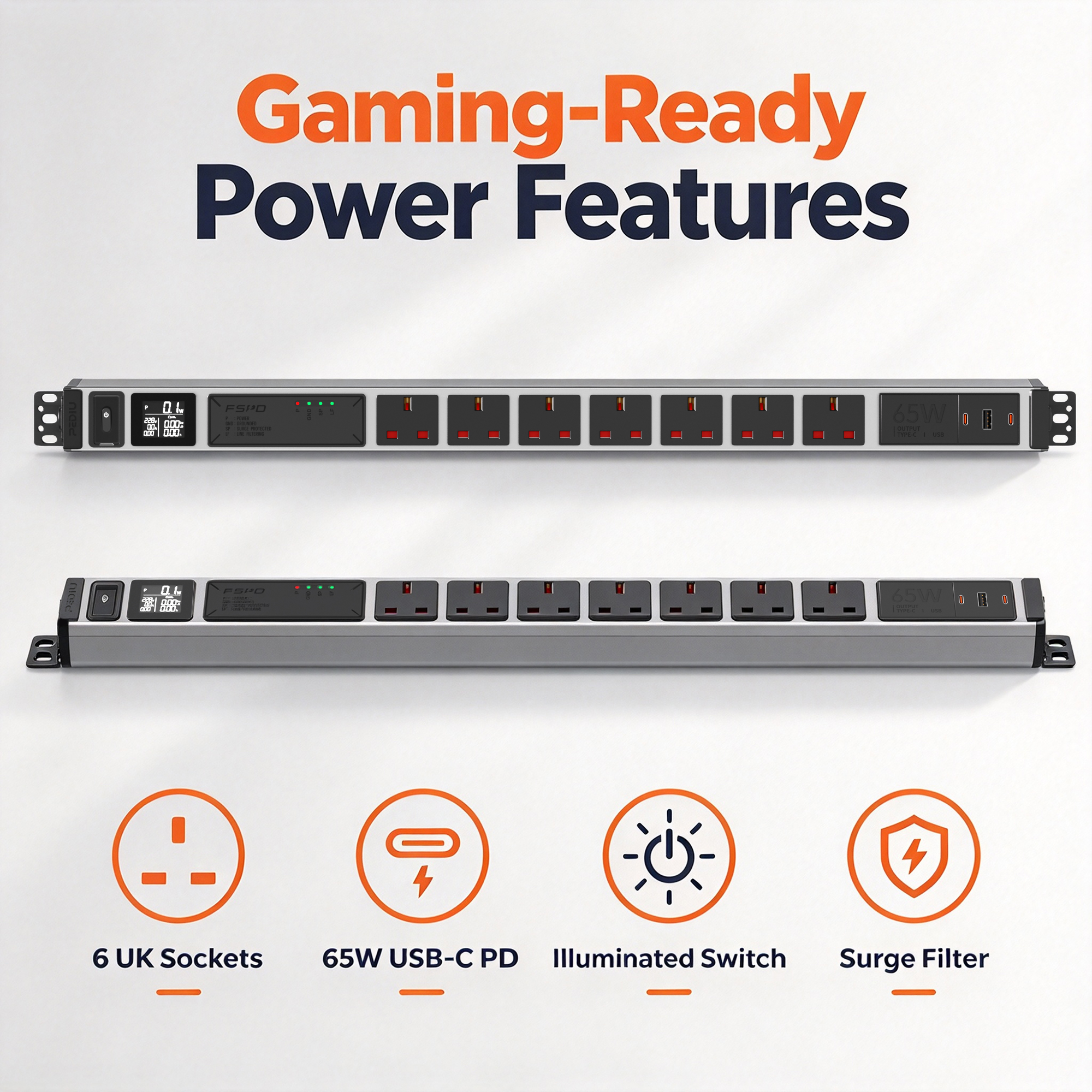

1. 6 BS 1363-2 UK Outlets for Centralised Power Distribution

Equipped with 6 BS 1363-2 UK socket outlets, this PDU provides convenient power access for multiple electronic devices through a single 13A UK power connection. The six-outlet configuration supports organised power distribution in offices, workstations, conference tables and other indoor environments.

2. 65W USB-C PD Fast Charging

The integrated 65W USB-C PD fast-charging module provides a convenient charging interface for compatible laptops, tablets, smartphones and other USB-C devices that support the required power profile. It helps reduce reliance on separate charging adapters and keeps device charging accessible within the workspace.

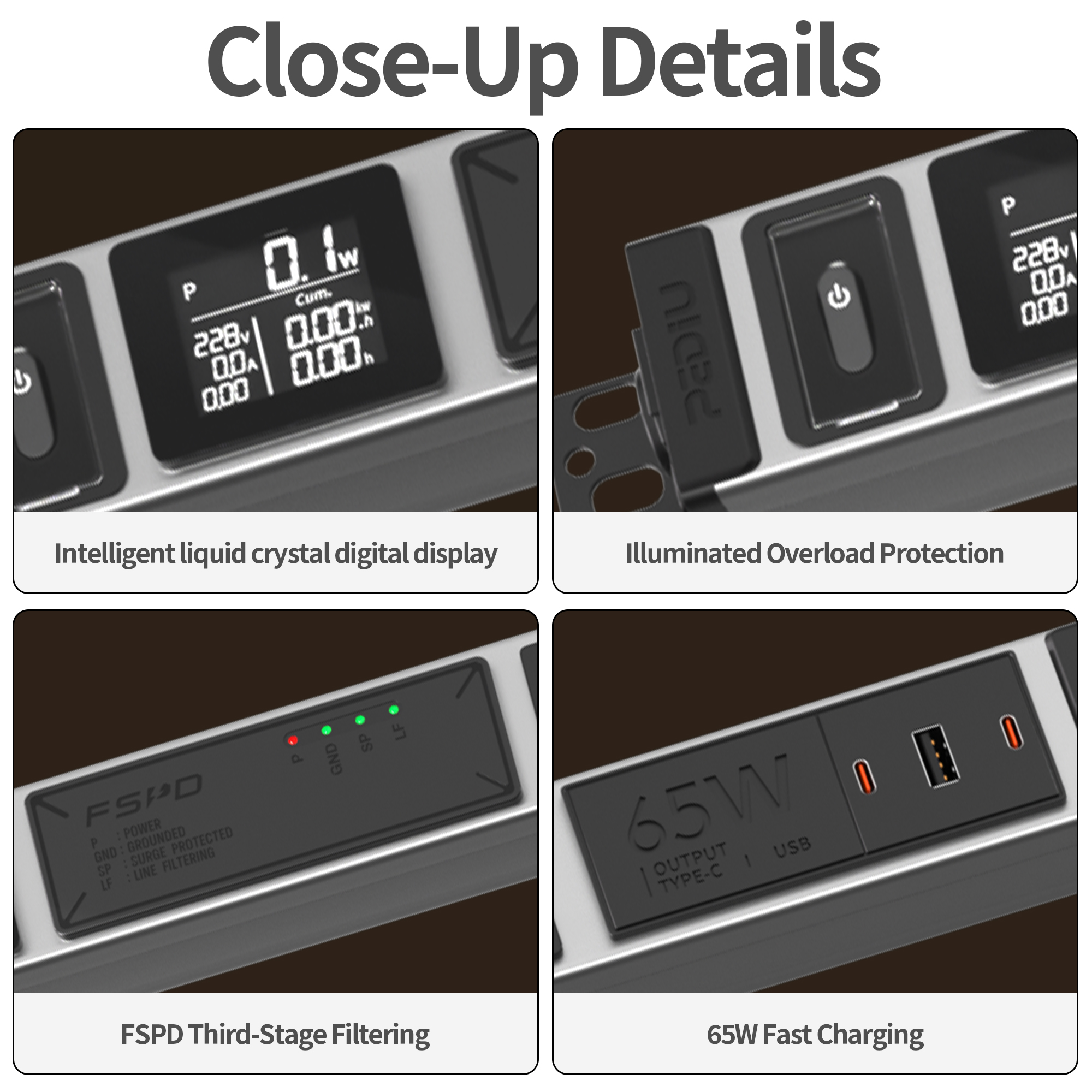

3. Full Display Metering for Visible Electrical Information

The white full-display metering module provides visible electrical information during operation, helping users check relevant electrical readings more conveniently. This adds a practical monitoring function to the PDU and supports a more informed approach to everyday power management.

4. Filtered Surge Protection

The integrated filtered surge protection device combines surge protection with filtering functionality in one module. It adds an additional layer of protection against applicable transient electrical disturbances and supports power distribution applications where both protection and filtering functions are desired.

5. Illuminated Circuit Breaker Switch

The illuminated circuit breaker switch combines power control with a visible indicator, making the PDU easier to identify and operate. Its integrated design provides convenient power control for everyday use in office and workstation environments.

6. 6063-T5 Aluminium Alloy Housing with Silver Sandblasted Finish

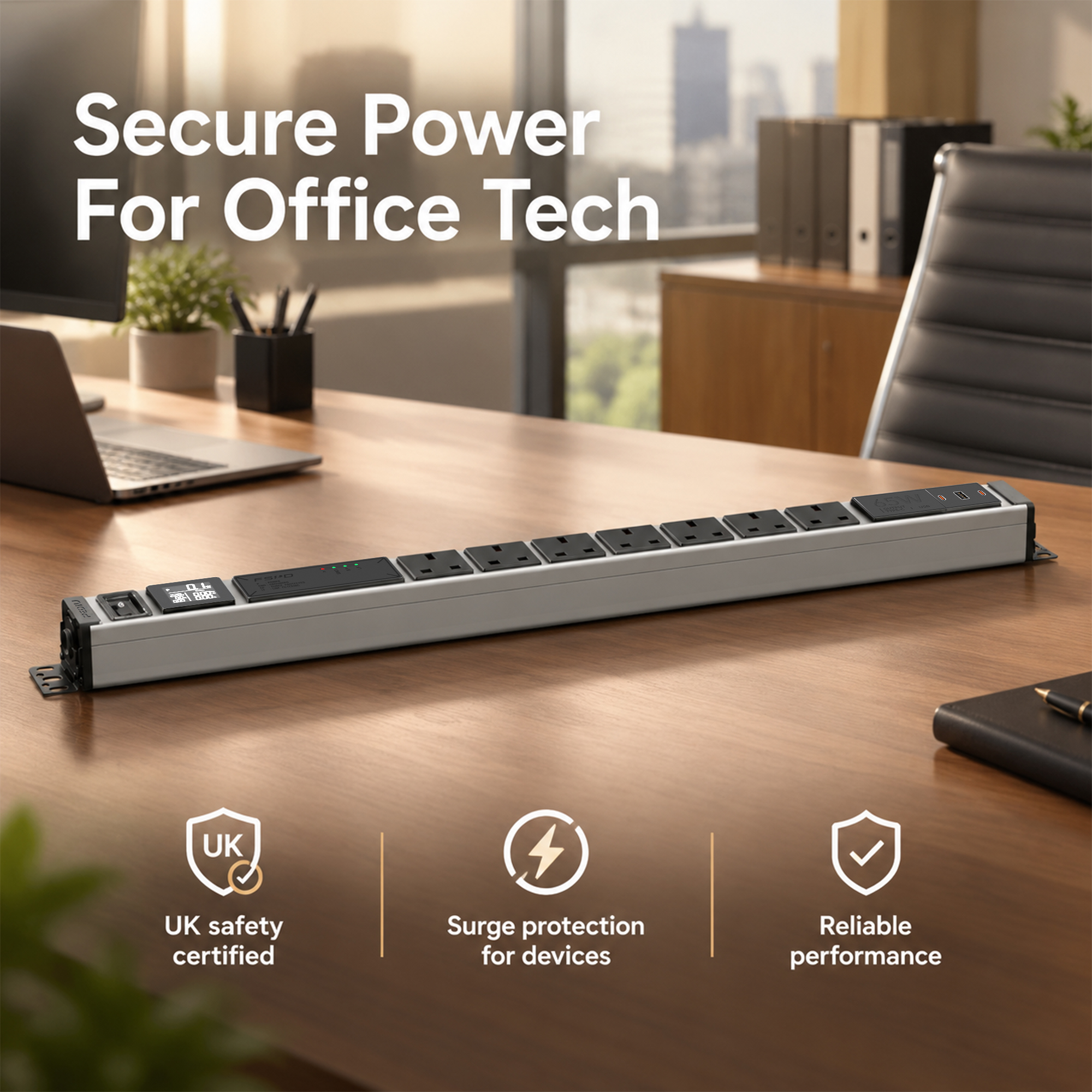

The main housing is manufactured from 6063-T5 aluminium alloy and finished with a silver sandblasted surface. Its clean metallic appearance complements modern office furniture, workstations and conference tables, providing a professional look for contemporary indoor environments.

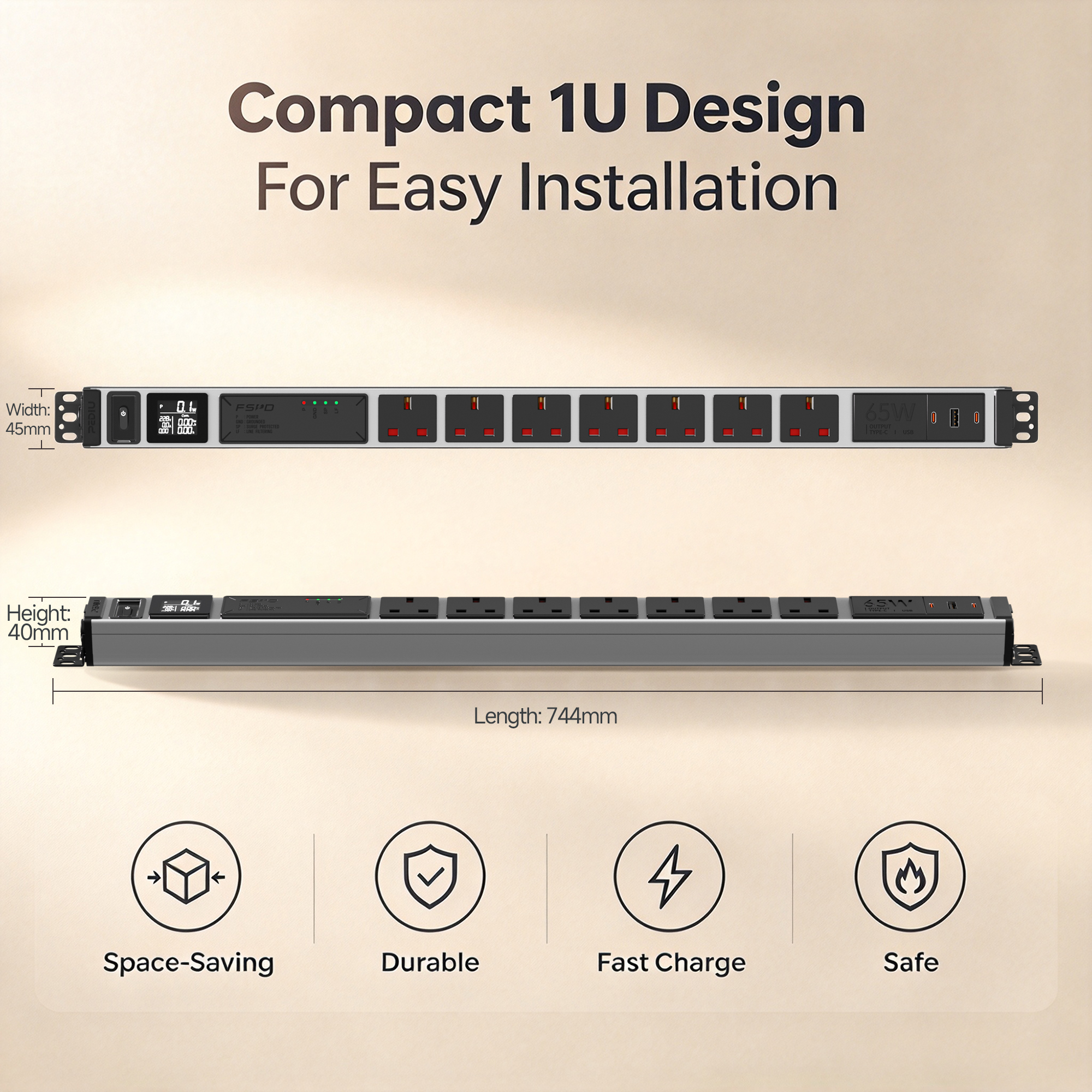

7. Compact 1U QY TY Profile

The 1U QY TY profile offers a compact form factor for applications where space efficiency and a neat installation are important. It is suitable for desktop power distribution in offices, workstations and conference furniture.

8. Left-Side Cable Entry and Secure Internal Assembly

The left-side cable entry provides a defined direction for power cord routing, helping maintain an organised installation around desks and workstations. Internal wiring is securely fastened and properly insulated, while electrical connections are securely terminated.

9. Quality Inspection and Technical Documentation

Finished products undergo applicable dimensional, visual, assembly and electrical safety inspections before delivery. Relevant technical documentation and the applicable Declaration of Conformity are maintained as required, supporting product traceability and documentation control.

Product Description

Frequently Asked Questions

Q1. Can the 65W USB-C port charge a laptop?

It can charge compatible laptops that support USB-C Power Delivery within the module’s power range. Check your laptop’s charging requirements, as some models require more than 65W or use a proprietary charging method.

Q2. What information does the full display metering function provide?

The full display metering module provides a visual presentation of electrical information. The exact parameters and display behaviour should be confirmed against the final product configuration and approved technical documentation.

Q3. Why is full display metering useful?

A built-in display makes available electrical information easier to check without relying solely on external measuring equipment. It can support routine power monitoring, depending on the parameters provided by the selected configuration.

Q4. Does this PDU include filtered surge protection?

Yes. The PDU includes a filtered surge protection device designed to help reduce the impact of certain electrical disturbances. Its protection performance depends on the specified device characteristics and operating conditions.

Q5. What is the benefit of combining surge protection and filtering?

Surge protection and filtering are intended to address certain electrical disturbances through complementary functions. They can provide an additional layer of protection for compatible connected equipment, but should not be treated as a guarantee against every electrical event.

Q6. What is the purpose of the illuminated circuit breaker switch?

The illuminated circuit breaker switch provides a visible indication when illuminated and serves as a switching and circuit protection component. Operate it according to the product instructions.

Q7. What are the electrical ratings of this UK PDU?

The unit is rated at 250V AC, 13A maximum and 50Hz. The combined load of all connected devices must not exceed its rated capacity.

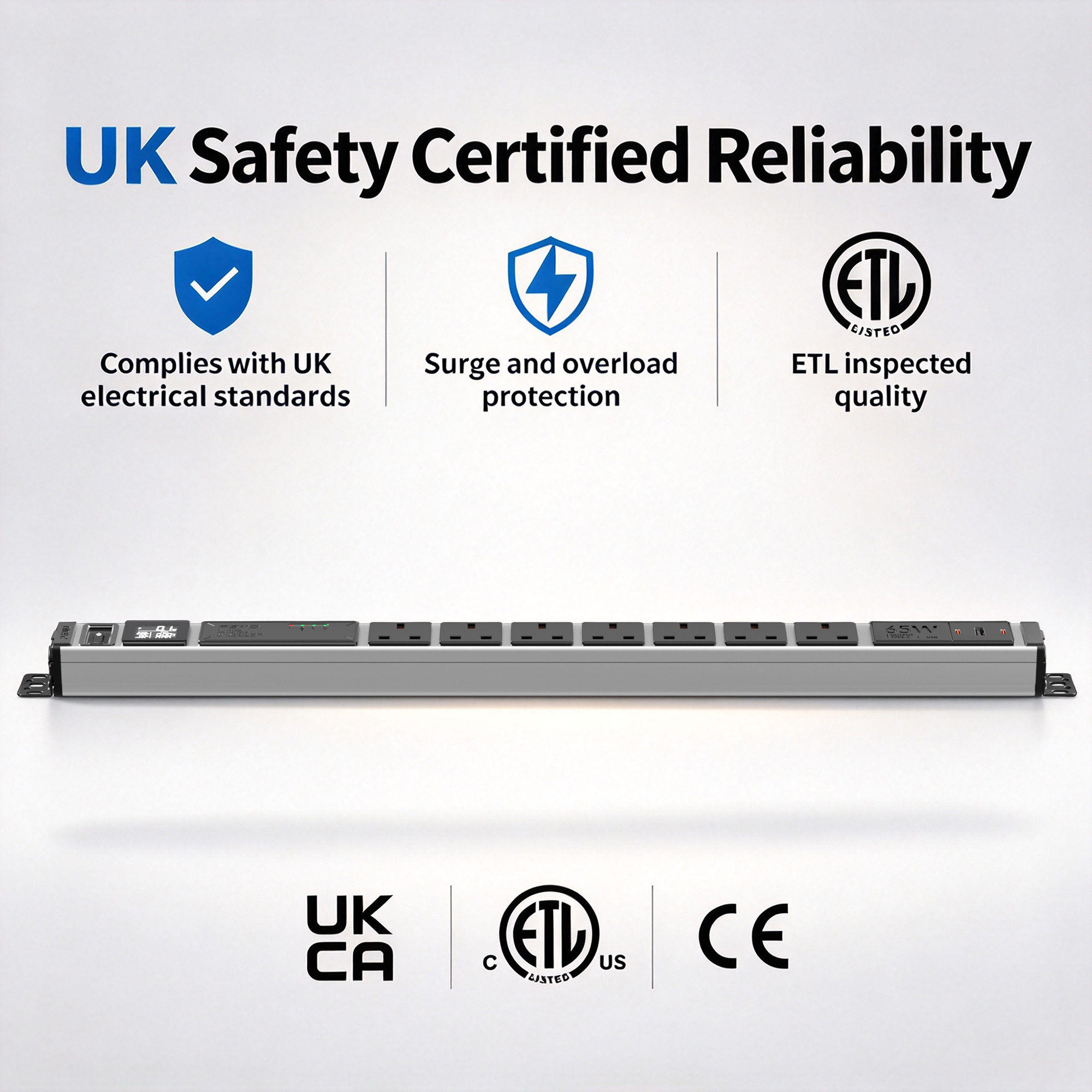

Q8. Is this PDU compatible with UK mains power?

It is fitted with a 13A UK plug compliant with BS 1363-1 and six UK socket outlets compliant with BS 1363-2. Confirm that the supply and connected equipment are compatible with the product’s electrical ratings.

Q9. What are the advantages of the 1U profile?

The 1U profile offers a compact format for installations where space efficiency matters. Check the approved product drawing and available clearance to confirm whether it fits your intended rack, cabinet or workspace.

Q10. What materials are used for the housing and side covers?

The main housing is made from 6063-T5 aluminium alloy, while the side covers are made from high-strength PC. Both materials are specified to meet the product’s applicable mechanical and electrical safety requirements.

Q11. What are the benefits of the silver sandblasted aluminium finish?

The silver sandblasted finish gives the aluminium housing a clean, professional appearance. Finished surfaces are required to be free from visible scratches, dents, cracks and similar defects.
