Product Features & Advantages
1. 7 UK Socket Outlets for Multi-Device Power Management
Featuring 7 BS 1363-2 UK socket outlets, this PDU provides a convenient power distribution solution for multiple indoor electrical devices. The multi-outlet design allows users to connect computers, office equipment, entertainment systems and other electronic devices from one centralized power source.
2. Integrated USB-C PD 30W Fast Charging
The built-in USB-C PD fast charging module up to 30W provides efficient charging for smartphones, tablets, portable devices and other USB-C compatible electronics. The integrated charging function reduces the need for additional charging adapters and keeps desktop areas more organised.
3. Full Display Metering for Real-Time Power Monitoring
Equipped with a full display metering module, this PDU provides clear visibility of operating power information. Users can conveniently monitor power usage status and improve awareness of connected device consumption.
4. BS 1363 Standard UK Plug & Socket Configuration
Designed with a BS 1363-1 13A UK plug and BS 1363-2 UK socket outlets, this PDU is suitable for UK-standard electrical environments. The 250V AC / 13A maximum rating provides reliable power distribution for indoor applications.

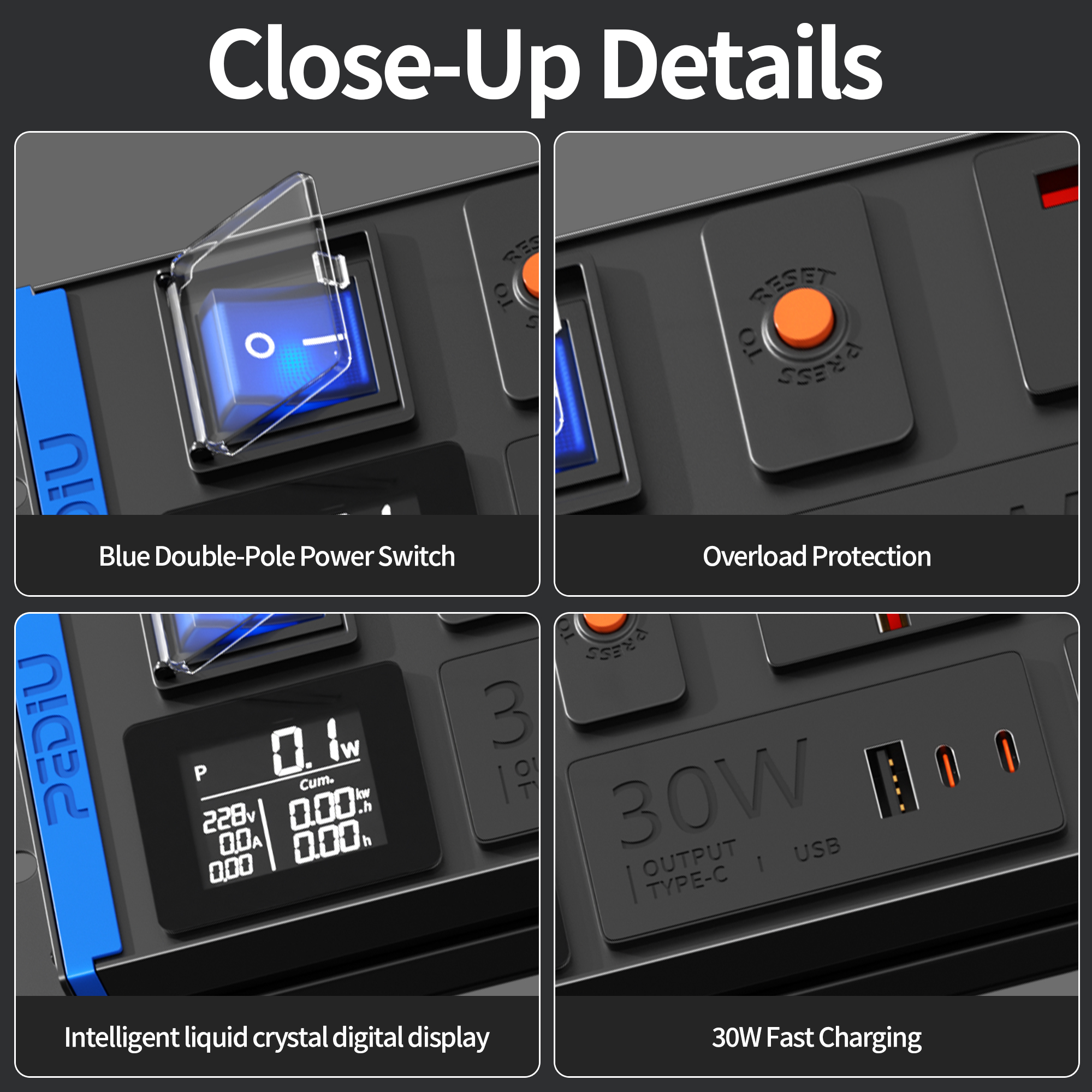

5. Blue Double-Pole Switch with Protective Cover
The PDU features a blue double-pole switch with protective cover, providing a clear power control interface. The protective cover design helps reduce accidental operation while maintaining convenient daily access.
6. Built-In Overload Protection for Enhanced Safety
The integrated overload protection device helps protect connected equipment under excessive current conditions. This feature supports safer operation when multiple devices are connected simultaneously.
7. Durable 6063-T5 Aluminium Alloy Housing
The main housing is manufactured from 6063-T5 aluminium alloy, providing a strong and durable structure for long-term indoor use. Combined with high-strength PC side covers, the housing offers reliable protection for internal electrical components.
8. Professional Black & Blue Appearance Design
The aluminium housing features an eco-friendly powder-coated black finish with blue PC side covers. The modern colour combination creates a professional appearance suitable for contemporary homes and workspaces.

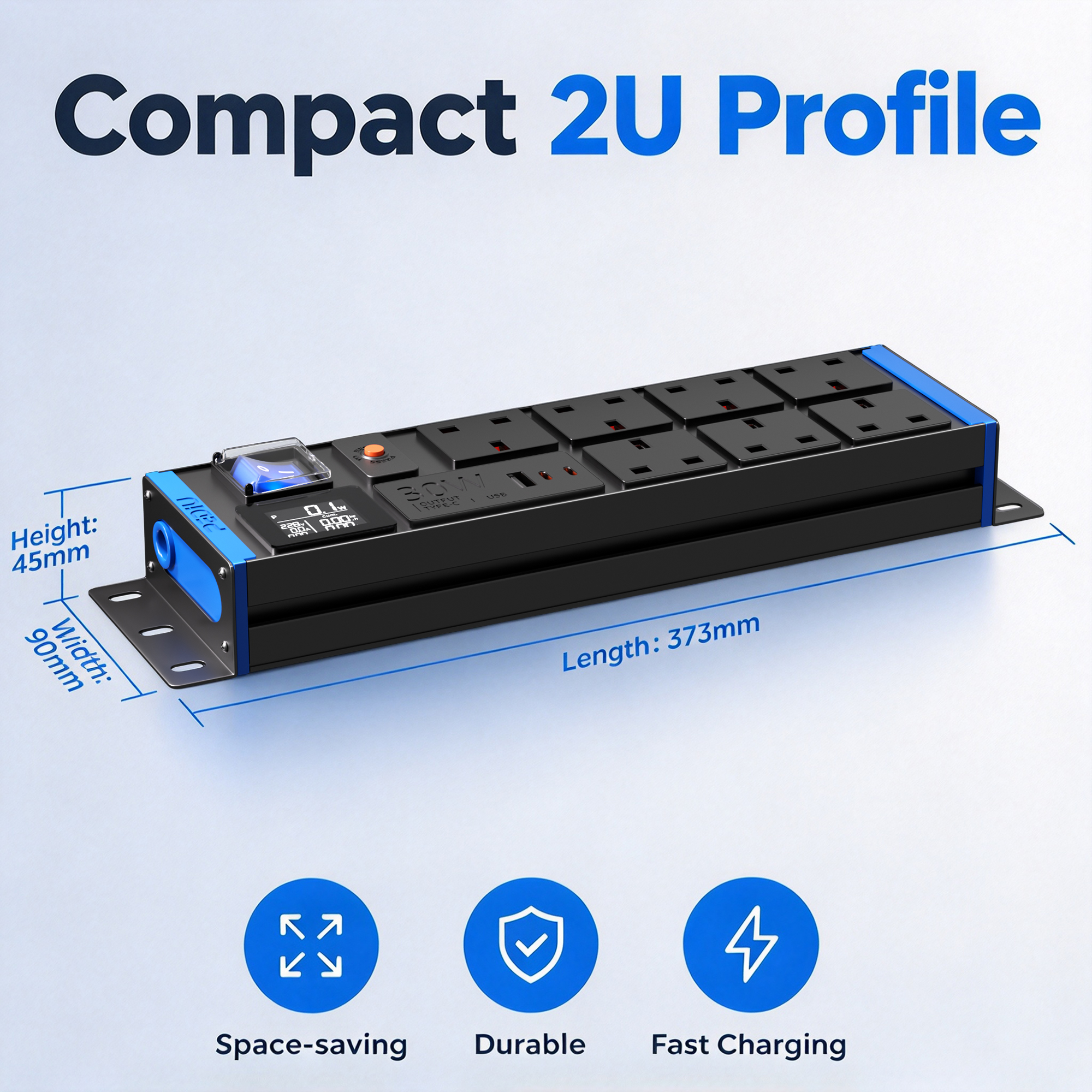

9. 2U CN Series Aluminium Profile Structure
Built with a 2U CN Series profile and a profile height of 45mm, this PDU combines a compact structure with excellent mechanical stability. The aluminium profile design provides a professional appearance and durable construction.
10. Optimised Left Cable Entry Design
The left cable entry configuration with a 2m, 1.5mm² three-conductor power cord provides flexible installation and helps achieve cleaner cable routing in indoor environments.
11. Reliable Internal Wiring & Assembly Quality
Internal wiring is securely fastened and properly insulated according to assembly requirements. All electrical connections are securely terminated to ensure consistent product quality and reliable electrical performance.
12. Ideal for Smart Home, Office & Desktop Applications
Combining UK socket expansion, USB-C fast charging, power monitoring and safety protection, this PDU is suitable for various indoor applications:
13. Designed for UK Electrical Safety Requirements
The product design follows applicable UK electrical safety requirements and supports UKCA conformity assessment requirements for the Great Britain market where applicable.
14. Quality Inspection Before Delivery
Each finished product undergoes inspection before shipment, including dimensional, visual, assembly and electrical safety checks. Surface protection is applied during packaging and transportation to maintain product quality.
