(DMCN-2UT-E5-6KG-1.5p2m-YB13A)-Blue
PEDIU
PE20260828-341

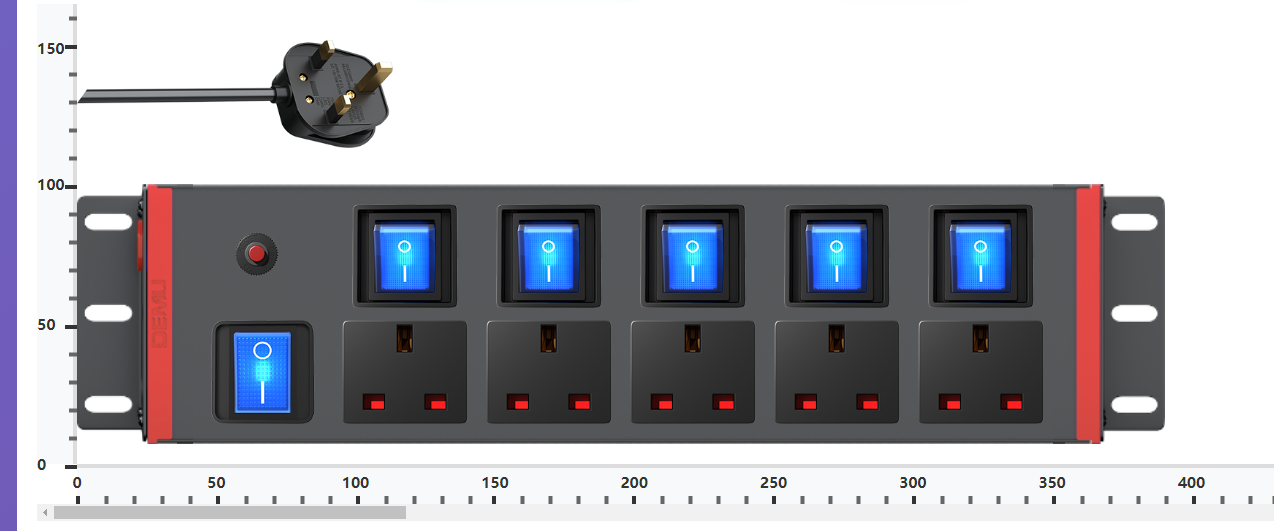

The 2U CN Series Black Aluminum UK PDU is a professional power distribution solution designed for modern office workstations, commercial furniture, technical workspaces, and indoor equipment applications requiring UK-standard socket outlets and independent power control.
The PDU features a durable 6063-T5 aluminum alloy housing with an eco-friendly black powder-coated finish and blue high-strength PC side covers. This aluminium and PC construction provides a durable enclosure while maintaining a clean, professional appearance suitable for modern workspaces and furniture applications.
Featuring a compact 2U CN Series profile with a 45 mm height, the PDU is designed for space-efficient power distribution. The left-side cable entry helps support organised cable routing and a cleaner installation.
The electrical configuration includes a BS 1363-1 13A UK plug, 5 × BS 1363-2 UK socket outlets, 6 blue double-pole switches with covers, and an overload protection device. The six switches provide separate power control for the configured circuits, allowing connected equipment to be managed individually.
The unit is rated at 250V AC, 13A Max, 50Hz and is supplied with a 1.5 mm² three-conductor, 2 m power cord.
The 2U CN Series UK PDU is suitable for indoor applications requiring multiple UK socket outlets and separate power control.
Typical applications include:
Office Workstations
Executive Desks
Commercial Offices
Conference Tables
Meeting Rooms
Technical Workstations
IT Equipment Areas
Audio-Visual Equipment Areas
Smart Office Furniture
Educational Facilities
Hotel Furniture
Coworking Spaces
Commercial Projects
The PDU is designed to comply with applicable UK electrical safety requirements and relevant product regulations. Internal wiring is securely fastened and properly insulated, while all electrical connections are securely terminated during assembly.
The integrated overload protection device provides protection against applicable overload conditions. The six double-pole switches provide separate control of the configured power circuits.
All finished products are inspected before delivery. Inspection may include dimensional, visual, assembly, and electrical safety checks according to the applicable inspection requirements.
For safe operation:
Do not exceed the 13A maximum rated current.
Ensure the product is properly earthed before use.
Do not operate the PDU beyond its rated capacity.
Follow the approved product drawing and applicable installation requirements.
We provide OEM and ODM support for customers requiring customised UK PDU solutions. Product configurations can be evaluated according to application requirements, electrical specifications, installation conditions, and project requirements.
Potential customisation options include:
Housing dimensions and structural design
Socket outlet quantity and arrangement
Switch quantity and configuration
Plug and power cord specifications
Protection module configuration
Housing colour and surface finish
Logo and product marking
Packaging requirements
All customised solutions are subject to technical evaluation and confirmation before production.
We provide a one-year limited warranty for this aluminum desktop PDU series.
During the warranty period, free repair service is available for confirmed quality-related issues. Customers may return defective products for inspection and repair according to warranty terms.
Equipped with 6 BS 1363-2 UK socket outlets, this PDU provides convenient power distribution for multiple compatible electrical devices. The multi-outlet design helps reduce the need for separate power strips and supports a more organised desktop or equipment setup.
The integrated 65W USB-C PD fast-charging module provides high-power charging for compatible laptops, tablets, smartphones and other USB-C devices. By integrating charging directly into the PDU, users can reduce the need for additional charging adapters on the desktop.
The PDU integrates filtered surge protection, combining surge protection with power filtering to provide an additional layer of protection for connected equipment. This design is suitable for applications where cleaner and better-managed power is required.
The built-in full display metering module with a white display provides visible electrical information during operation. It allows users to monitor the PDU's operating status and connected load conditions more conveniently.
A red double-pole switch with cover provides a clearly identifiable main switching interface. The protective cover helps reduce accidental operation while the red switch creates a distinct visual control point.
The integrated overload protection device helps protect the PDU under overload conditions. The unit should always be operated within its specified 250V AC and 13A maximum rated capacity.
The main housing is manufactured from 6063-T5 aluminium alloy, providing a strong and durable enclosure for the internal electrical components. High-strength PC side covers complement the aluminium structure and provide additional mechanical protection.
The aluminium housing features an eco-friendly powder-coated black finish, complemented by red high-strength PC side covers. The contrasting colour combination gives the PDU a distinctive and professional appearance.
Built around a 2U CN Series profile with a specified profile height of 45mm, this PDU provides a structured form factor for professional power distribution applications. Its aluminium profile construction combines practical dimensions with a robust enclosure design.
The left-side cable entry is paired with a 2m, 1.5mm² three-conductor power cord, providing a practical connection configuration for indoor installations and helping users plan cable routing more efficiently.
Internal wiring is securely fastened and properly insulated, while electrical connections are securely terminated according to the product assembly requirements. These measures support consistent construction and reliable electrical connections.
With multiple UK outlets, 65W USB-C PD charging, filtered surge protection and full display metering, this PDU is suitable for a variety of indoor applications, including:
Home office workstations
Computer and laptop setups
Gaming desks
Meeting and conference areas
Audio and video equipment
Professional desktop workstations
Indoor electronic equipment environments
Each finished product is inspected before delivery, including applicable dimensional, visual, assembly and electrical safety checks. The finished surface is also protected during handling, packaging and transportation to help maintain product appearance.
Specification | Details |
|---|---|
Product Category | Power Distribution Unit (PDU) |
Main Housing Material | 6063-T5 Aluminum Alloy |
Side Cover Material | High-Strength PC |
Surface Finish | Eco-Friendly Powder Coating |
Main Housing Color | Black |
Side Cover Color | Blue |
Profile | 2U CN Series |
Profile Height | 45 mm |
Rated Voltage | 250V AC |
Rated Current | 13A Max. |
Rated Frequency | 50Hz |
Plug Type | BS 1363-1, 13A UK Plug |
Outlet Type | BS 1363-2 UK Socket Outlet ×5 |
Switch Type | Blue Double-Pole Switch with Cover ×6 |
Overload Protection | Overload Protection Device |
Power Cord | 1.5 mm², 3-Conductor, 2 m |
Cable Entry | Left Entry |
Internal Wiring | Internal wiring shall be securely fastened and properly insulated. |
Electrical Connections | All electrical connections shall be securely terminated. |
UKCA Compliance | Meets applicable UKCA conformity assessment requirements for the Great Britain market; UKCA marking shall be applied where required. |
Safety Requirements | Overloading beyond the rated capacity is prohibited. Proper earthing is required before use. |
Frequently Asked Questions
The 2U CN Series profile provides a compact and structured housing for multi-outlet power distribution while maintaining a 45 mm profile height.
The PDU is equipped with an overload protection device to help protect the power distribution circuit when the connected load exceeds the applicable protection limit.
The PDU is rated at 13A maximum at 250V AC. The total connected load must remain within the rated capacity, and high-power appliances should only be connected when their requirements are compatible with the PDU rating.
The six blue double-pole switch modules shown in the specification are part of the product's switching configuration. The exact switching arrangement should follow the approved product drawing.
The main housing is made from 6063-T5 aluminium alloy, providing a rigid metal enclosure for the PDU. The surface is finished with eco-friendly powder coating for a clean and consistent
The product is designed for indoor electrical power distribution. It should be kept away from water, excessive moisture and other unsuitable environmental conditions unless a specific application has been approved.
