This UK 13A 6-Way Aluminium PDU Power Strip with Filtered Surge Protection and 65W USB-C PD Fast Charging is designed for efficient power distribution in home, office, and indoor environments. Featuring a durable 6063-T5 aluminium alloy housing, high-strength PC side covers, and an eco-friendly powder-coated black finish with blue accents, it combines reliable performance with a modern appearance.
Equipped with 6 BS 1363-2 UK socket outlets, a BS 1363-1 13A UK plug, a blue double-pole switch with cover, overload protection, filtered surge protection, full display metering, and 65W USB-C PD fast charging, it provides comprehensive power management for computers, smart devices, and electronic equipment. Rated at 250V AC, 13A Max and 50Hz, it includes a 1.5 mm² 3-conductor, 2 m power cord and left-side cable entry. The 2U CN Series 45 mm profile offers a compact and organised power distribution solution.
| Availability: | |
|---|---|
| Quantity: | |
(DMCN-2UT-E6-KGFdJqUt65-1.5p2m-YB13A)-Blue
PEDIU
PE20260828-346
The 2U CN Series Blue UK PDU with Filtered Surge Protection, Full Display Metering and 65W USB-C PD Fast Charging is a professional power distribution solution designed for modern offices, commercial workspaces, smart furniture and professional desktop power management applications.
The PDU features a durable 6063-T5 aluminium alloy housing, high-strength PC side cover and eco-friendly powder-coated finish. The black aluminium housing with blue side cover provides a clean and professional appearance while supporting reliable structural performance.
Configured with 6 BS 1363-2 UK socket outlets, a blue double-pole switch with protective cover, overload protection, filtered surge protection, full display metering, and USB-C PD 65W fast charging, this model combines UK-standard AC power distribution, electrical protection, power monitoring and device charging in one compact unit.
The 2U CN Series profile with a 45 mm height provides a space-efficient power distribution solution. The left-side cable entry also helps maintain organised cable routing in professional installation environments.
The 2U CN Series UK PDU is suitable for environments requiring UK-standard power distribution, electrical protection, power monitoring and USB-C charging.
Office Workstations – Power computers, monitors, printers and other office equipment while providing convenient USB-C charging.
Executive Desks & Smart Offices – Integrates AC power, power monitoring and USB-C PD charging into a compact desktop power solution.
Conference & Meeting Rooms – Provides power access for laptops, displays, presentation equipment and other meeting devices.
Commercial Workspaces – Suitable for organised power distribution in professional office and commercial environments.
Home Office – Provides a compact power management solution for computers, displays and personal electronic equipment.
Education Facilities – Suitable for classrooms, training rooms and computer-based learning environments.
Coworking Spaces – Supports shared workstations requiring multiple UK-standard power outlets and USB-C charging.
Smart Furniture Applications – Suitable for desks, workstations and other furniture-integrated power applications.
Filtered Surge Protection
The integrated filtered surge protection function provides protection against applicable transient disturbances while incorporating filtering within the protection module.
Overload Protection
The PDU includes an overload protection device. Connected equipment must remain within the product's rated 13A maximum capacity.
Double-Pole Switching
The blue double-pole switch with protective cover provides convenient power control.
Full Display Metering
The white full-display metering module provides a clear interface for monitoring the electrical parameters supported by the product.
Durable Aluminium Construction
The 6063-T5 aluminium alloy housing provides a robust structure suitable for professional indoor applications.
Secure Internal Wiring
Internal wiring is securely fastened and properly insulated, while electrical connections are securely terminated according to the specified assembly requirements.
Quality Inspection
Finished products are inspected before delivery, including applicable dimensional, visual, assembly and electrical safety checks. Finished surfaces are also protected during handling, packaging and transportation.
Earthing Requirement
The product must be properly earthed before use, and operation beyond the rated capacity is prohibited.
We provide OEM and ODM customisation services for customers requiring tailored UK PDU solutions.
Customisation can be developed according to specific application and technical requirements, including:
Housing structure and dimensions
Housing and side-cover colours
UK socket outlet configuration
Plug and power cord specifications
Switch configuration
Overload and surge protection modules
Metering functions
USB-C charging power
Product appearance
Packaging requirements
Technical documentation
Customised products can be developed according to approved technical drawings and customer requirements.
Equipped with 6 BS 1363-2 UK socket outlets, this PDU provides convenient power distribution for multiple compatible electrical devices. The multi-outlet configuration helps users centralise power connections and maintain a more organised desktop or equipment setup.
The integrated 65W USB-C PD fast-charging module provides high-power charging for compatible laptops, tablets, smartphones and other USB-C devices. The built-in charging function reduces the need for separate charging adapters and improves convenience in modern workspaces.
The PDU integrates filtered surge protection, combining surge protection and filtering functions to provide an additional layer of protection for connected electrical equipment. This feature is particularly useful for desktop electronics and equipment that require enhanced power protection.
The built-in full display metering module with a white display provides visible electrical information during operation. It helps users monitor power conditions and understand the operating status of connected loads more conveniently.
A blue double-pole switch with protective cover provides a clearly identifiable power control interface. The protective cover helps reduce accidental operation while the blue colour provides a distinctive visual design.
The integrated overload protection device helps protect the PDU under overload conditions. The product should be operated within its specified 250V AC and 13A maximum rated capacity.
The main housing is manufactured from 6063-T5 aluminium alloy, providing a strong and durable enclosure for the internal electrical components. High-strength PC side covers complement the aluminium housing and provide additional structural protection.
The aluminium housing features an eco-friendly powder-coated black finish, complemented by blue high-strength PC side covers. The black-and-blue colour combination creates a distinctive and professional appearance for modern workspaces.

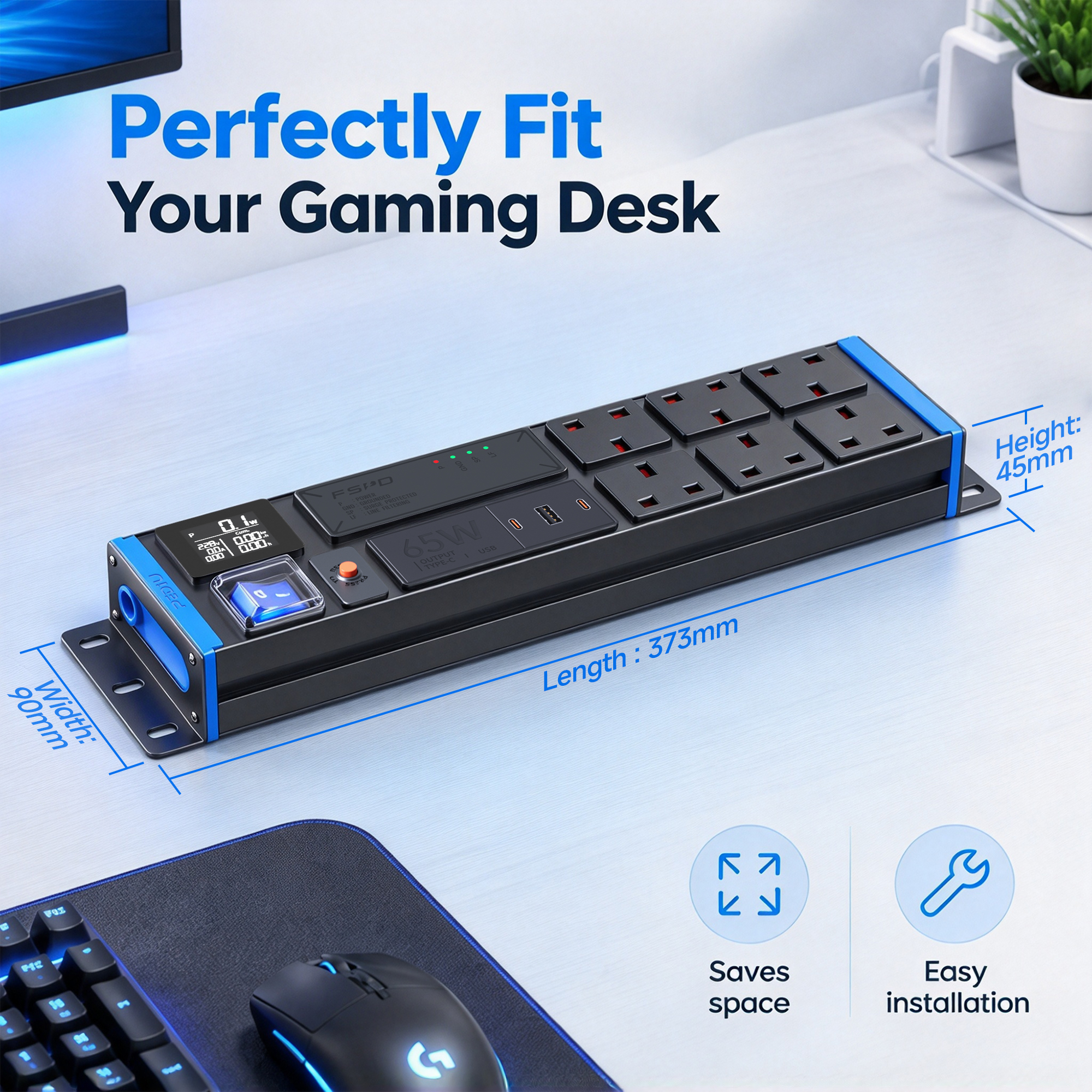

Built with a 2U CN Series profile and a specified profile height of 45mm, this PDU provides a structured form factor for professional power distribution applications. The aluminium profile construction combines a durable structure with a professional appearance.
The PDU features left-side cable entry and a 2m, 1.5mm² three-conductor power cord, providing a practical connection configuration for indoor installations and helping users organise cable routing more efficiently.
Internal wiring is securely fastened and properly insulated according to the product assembly requirements. All electrical connections are securely terminated to support consistent construction and reliable electrical connections.
Combining 6 UK outlets, 65W USB-C PD charging, filtered surge protection, full display metering and overload protection, this PDU is suitable for a wide range of indoor applications, including:
Home office workstations
Computer and laptop setups
Gaming desks
Professional workstations
Meeting and conference areas
Audio and video equipment
Desktop electronic equipment
The product is designed with applicable UK electrical safety requirements and relevant product requirements in mind. Technical documentation and the applicable Declaration of Conformity are maintained as required.
Finished products are inspected before delivery, including applicable dimensional, visual, assembly and electrical safety checks. Finished surfaces are protected during handling, packaging and transportation to help maintain product appearance and quality.
Specification | Details |
|---|---|
Product Category | Power Distribution Unit (PDU) / UK Power Distribution Unit |
Main Housing Material | 6063-T5 Aluminum Alloy |
Side Cover Material | High-Strength PC |
Surface Finish | Eco-Friendly Powder Coating |
Main Housing Color | Black |
Side Cover Color | Blue |
Profile Series | 2U CN Series |
Profile Height | 45 mm |
Rated Voltage | 250V AC |
Rated Current | 13A Max. |
Rated Frequency | 50Hz |
Plug Type | BS 1363-1, 13A UK Plug |
Outlet Type | BS 1363-2 UK Socket Outlet ×6 |
Switch Module | Blue Double-Pole Switch with Cover ×1 |
Overload Protection | Overload Protection Device |
Surge Protection | Filtered Surge Protection |
Metering Function | Full Display Metering (White) |
Charging Function | USB-C PD Fast Charging 65W |
Power Cord | 1.5 mm², 3-Conductor, 2 m |
Cable Entry | Left Entry |
Internal Wiring | Securely fastened and properly insulated |
Electrical Connection | All electrical connections shall be securely terminated |
Safety Requirements | Overloading beyond the rated capacity is prohibited. The product shall be properly earthed before use. |
The integrated filtered surge protection is designed to help reduce the impact of certain electrical disturbances and transient voltage surges on connected equipment.
The full-display meter provides visible electrical information, allowing users to monitor the operating condition and power usage of connected equipment more conveniently.
Yes. An integrated overload protection device helps protect the power distribution circuit when the connected load exceeds the applicable protection limit.
The main housing uses 6063-T5 aluminium alloy, providing a rigid metal enclosure while giving the PDU a clean and professional appearance.
The high-strength PC side cover forms part of the PDU's enclosure structure and provides electrical insulation and mechanical protection for the product.
The PDU is rated at 250V AC and 13A maximum at 50Hz. The total connected load must remain within the rated capacity.
Yes. The product must be properly earthed before use. Correct earthing is an important part of safe electrical operation.
