Product Features And Advantages

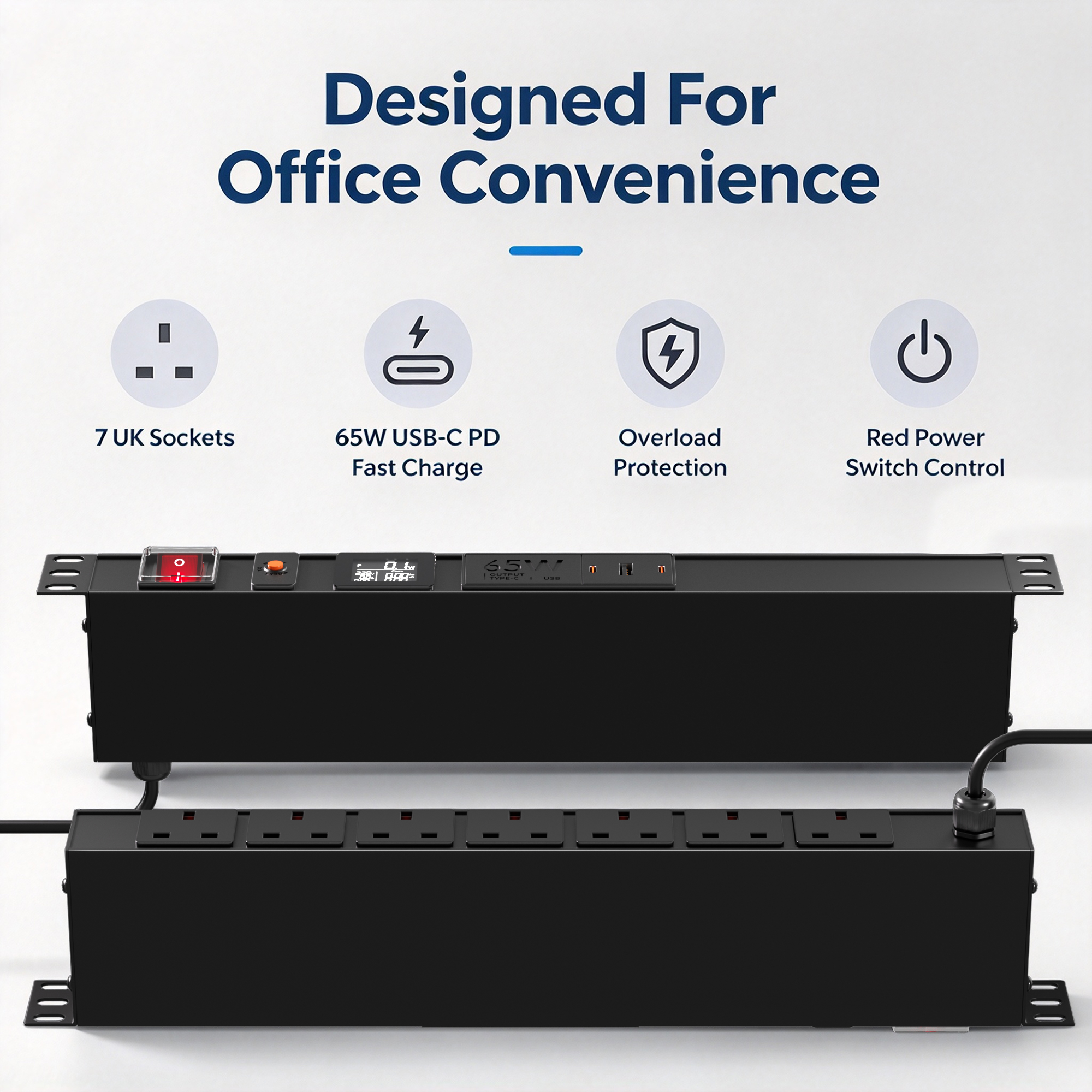

1. 7 UK Socket Outlets for Multi-Device Power Distribution

Featuring 7 BS 1363-2 UK socket outlets, this PDU provides multiple power connections for compatible electrical equipment. Rated at 250V AC, 50Hz and a maximum current of 13A, it is designed for compatible UK-style power distribution applications.

2. 65W USB-C PD Fast Charging

The integrated 65W USB-C Power Delivery (PD) charging module provides high-power charging for compatible USB-C devices. By combining AC outlets and USB-C charging in one unit, this PDU offers a convenient power solution for workspaces and equipment setups. Actual charging performance depends on device compatibility and the USB-C PD implementation.

3. White Full Display Metering

The integrated white full display metering module provides a dedicated interface for viewing supported electrical readings. It adds visibility to the power distribution setup and helps users check the values available on the display. Refer to the detailed metering specifications for the exact parameters and measurement capabilities.

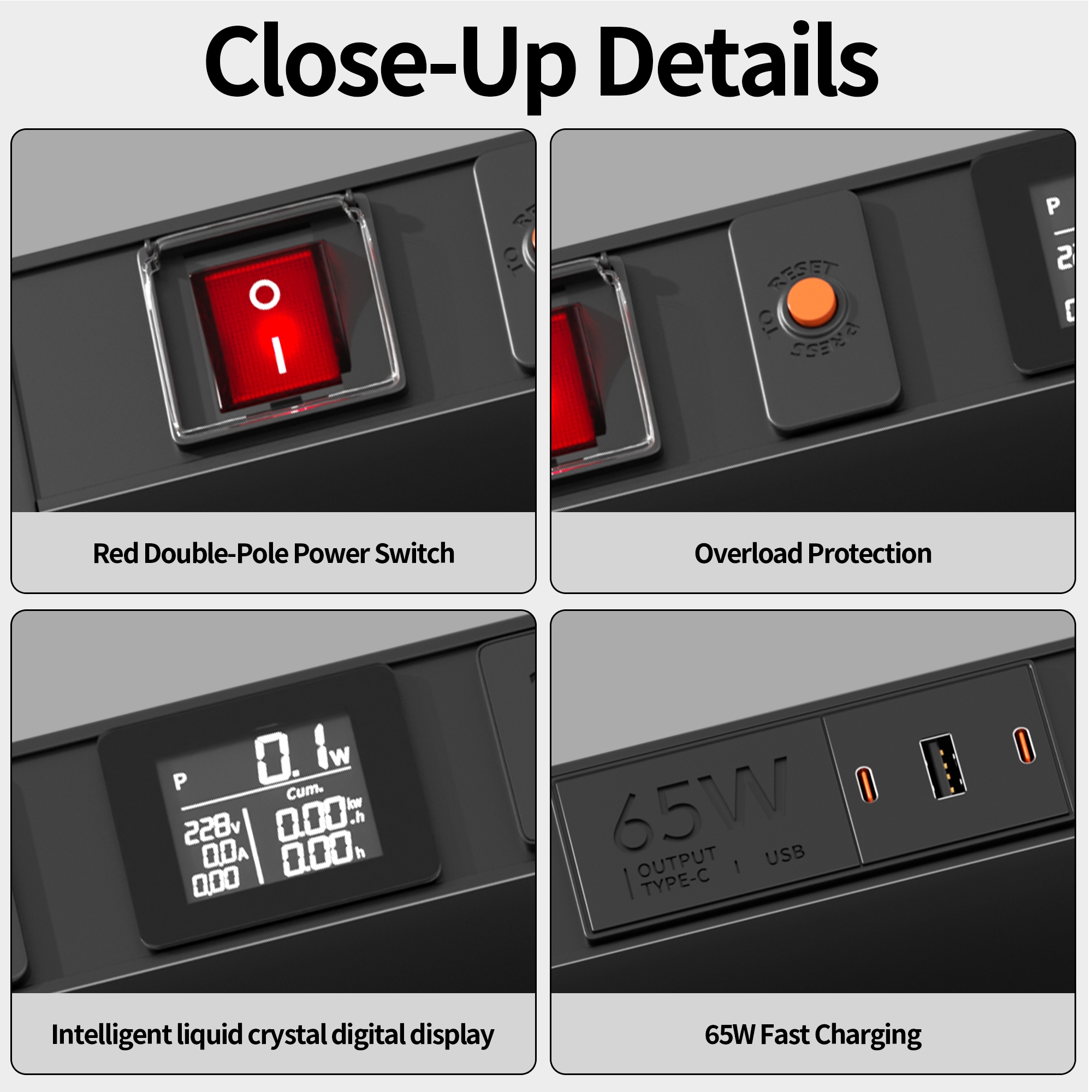

4. Overload Protection and Double-Pole Switching

Equipped with an overload protection device and a red covered double-pole switch, this PDU combines overload protection with a clearly visible power control point. For safe operation, do not exceed the rated capacity, and ensure the product is properly earthed before use.

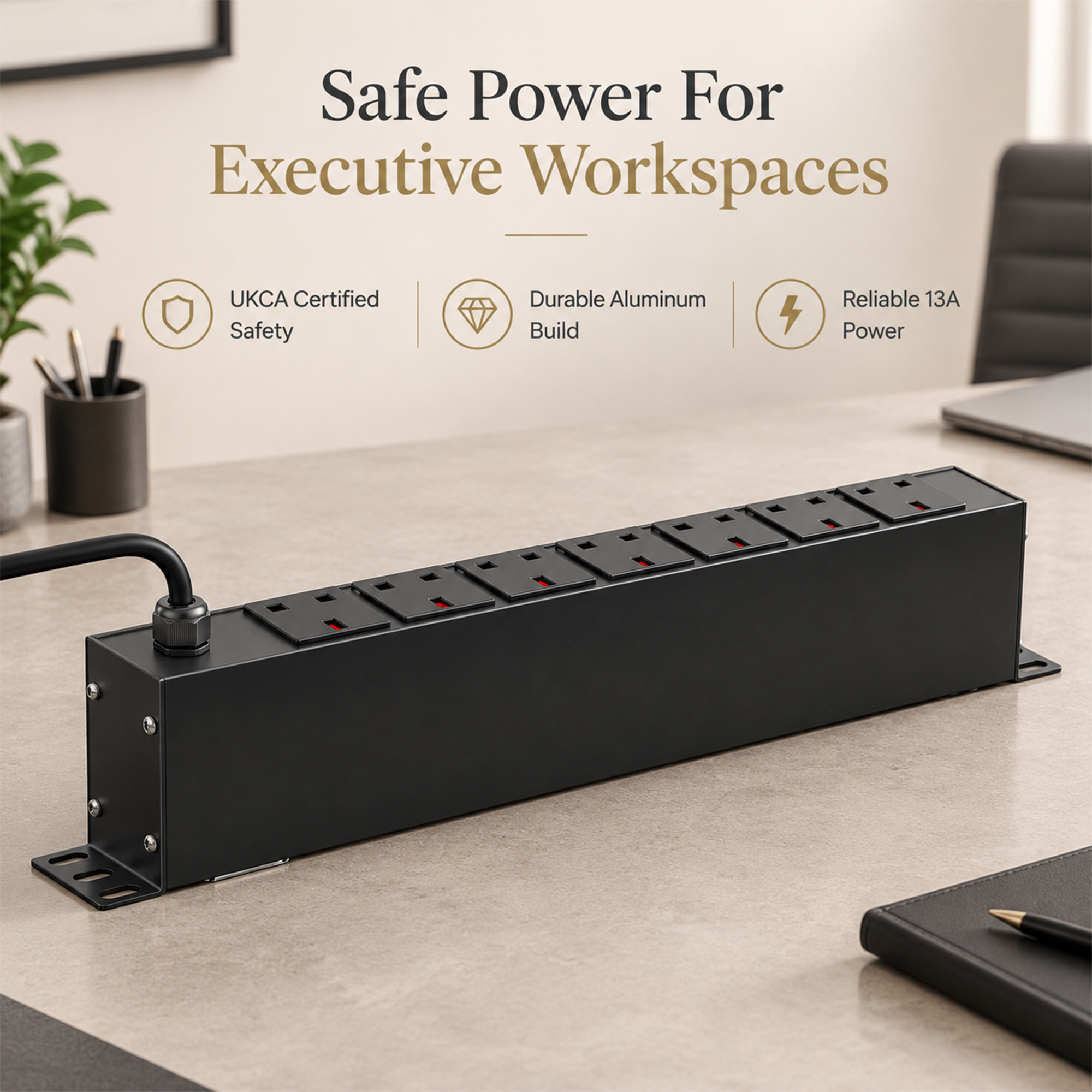

5. Durable Black Aluminum Alloy Housing

The main housing is manufactured from 6063-T5 aluminum alloy, paired with high-strength PC side covers. Its black eco-friendly powder-coated finish provides a professional appearance suitable for office, commercial and technical environments. Finished surfaces are inspected for visible scratches, dents, cracks and other defects.

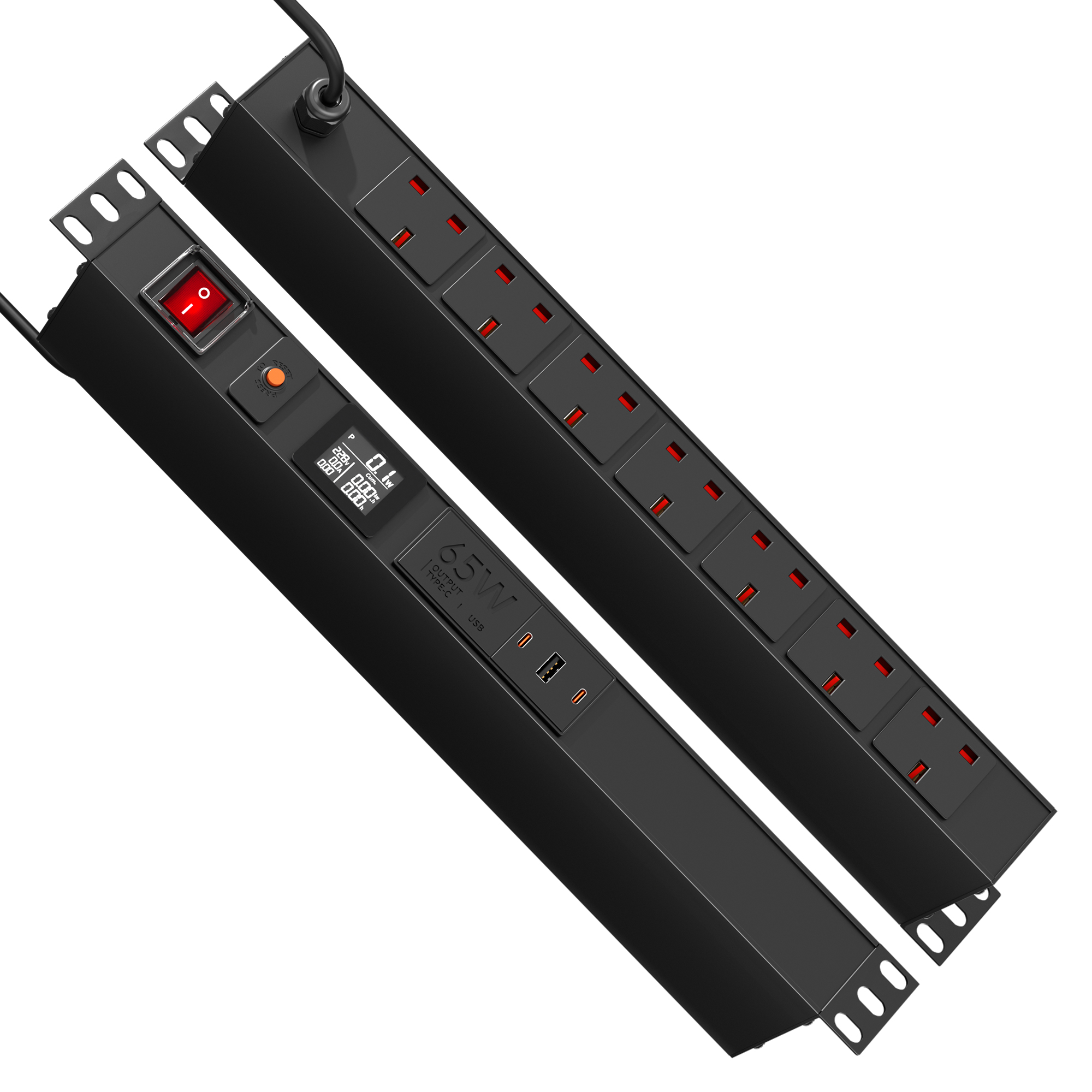

6. Rear Cable Entry and Compact 1+1U CN Profile

Designed with rear cable entry and a 45 mm profile height, the 1+1U CN Series design supports organized cable routing in compatible installations. The 2 m, 1.5 mm² three-conductor power cord provides the specified connection configuration. Its compact profile integrates AC outlets, 65W USB-C charging and display metering in one unit.

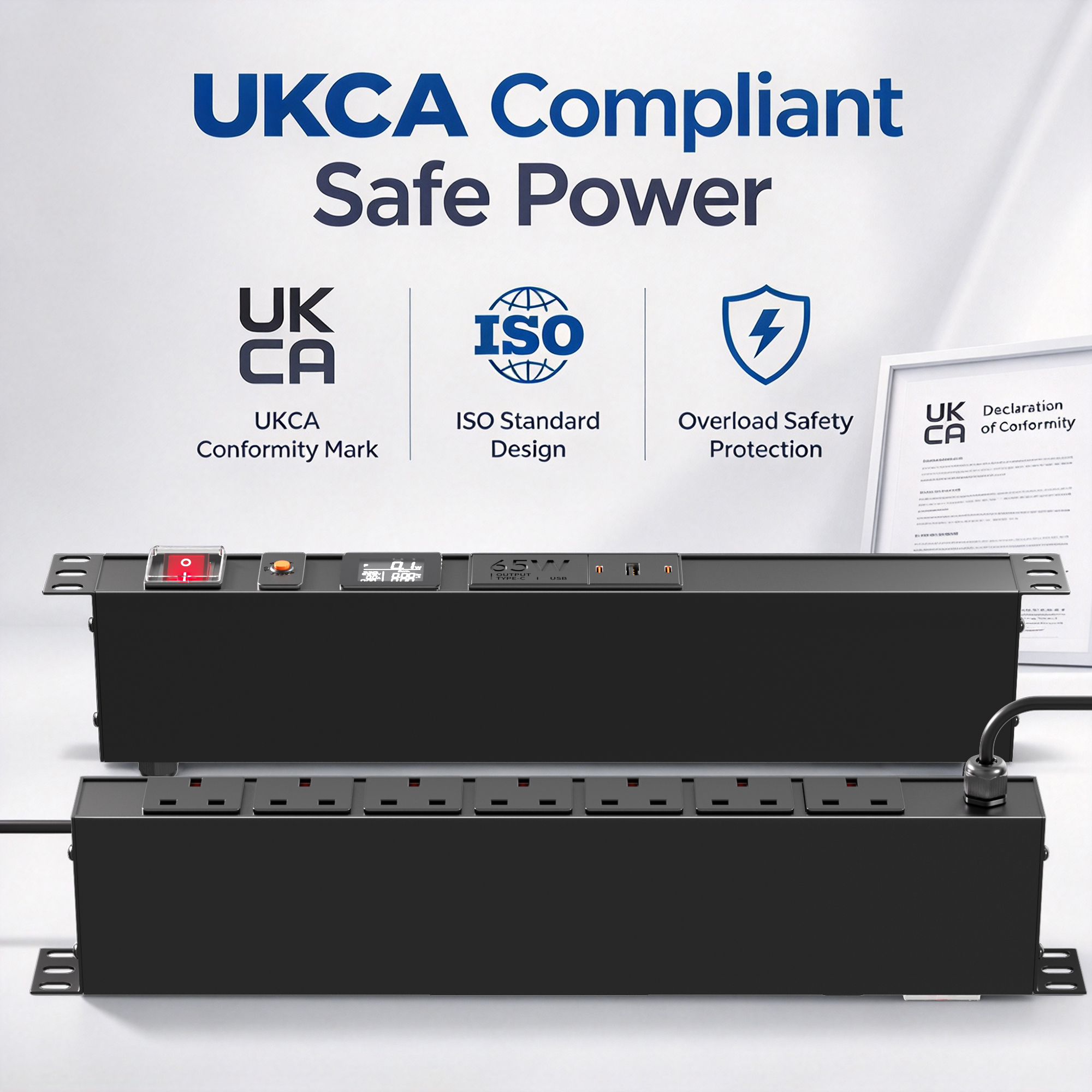

7. Quality Inspection and Compliance Requirements

Manufacturing requirements include secure internal wiring, proper insulation and securely terminated electrical connections. Finished products undergo applicable dimensional, visual, assembly and electrical safety inspections. The specification also addresses applicable UK electrical safety requirements and UKCA conformity assessment, with marking applied where required.

Product Description

Frequently Asked Questions

Q1. What is the purpose of the built-in overload protection device?

A: It is designed to provide protection against overload conditions. Users must still ensure that the total connected load does not exceed the PDU's rated capacity.

Q2. Can the full-display meter help monitor connected equipment?

A: The PDU includes a full-display metering module. The exact measurement functions should be confirmed from the detailed meter specifications before relying on specific readings.

Q3. Is the PDU suitable for a home office or shared workspace?

A: Yes, it can provide power and USB-C charging for compatible equipment in home offices, office workstations, and shared workspaces where a UK power connection is available.

Q4. What is the advantage of the aluminum housing?

A: The 6063-T5 aluminum housing provides a rigid enclosure for the internal components and features a powder-coated surface for a consistent finish.

Q5. Why are PC side covers used in the product design?

A: The high-strength PC side covers form part of the enclosure structure and complement the aluminum housing.

Q6. How should I clean the PDU's black powder-coated surface?

A: Disconnect the PDU from the power supply before cleaning. Use a soft, dry or slightly damp cloth, and avoid abrasive cleaners or tools that could damage the finish.

Q7. What should I do if the power cord or housing is damaged?

A: Stop using the PDU and disconnect it from the power supply if this can be done safely. Do not continue using a damaged product; arrange for inspection or replacement by a qualified service provider.

Q8. Can the PDU be used with equipment that has a higher power demand?

A: Only if the equipment is compatible with the PDU's electrical rating and the combined load remains within its rated capacity. Equipment exceeding the allowable load must not be connected.

Q9. Why is protective earthing required?

A: Protective earthing is an essential safety measure that helps reduce the risk of electric shock under certain fault conditions. The PDU must be properly earthed before use.

Q10. How is product quality checked before delivery?

A: Finished products are inspected before delivery. Depending on the applicable inspection requirements, checks include dimensions, appearance, assembly quality, and electrical safety.

Q11. What should I confirm before ordering this PDU for a project?

A: Confirm the required socket configuration, USB-C charging compatibility, installation space, cable routing, and applicable compliance documentation. For customized projects, discuss the required configuration and order conditions with the supplier.
