Black 1+1U UK PDU with 7 BS 1363 Sockets, Red Double-Pole Switches & Overload Protection

5 0 Reviews

This UK 13A 7-Way Black Aluminium PDU Power Strip with Individual Red Double-Pole Switches is designed for organised power distribution in offices, commercial environments, and indoor equipment setups. It features a durable 6063-T5 aluminium alloy housing with an eco-friendly black powder-coated finish and high-strength black PC side covers, combining a professional appearance with a robust structure.

The PDU provides 7 BS 1363-2 UK socket outlets, each controlled by an individual red double-pole switch cover on the front panel. An integrated overload protection device helps protect against excessive electrical load when used within the product’s rated specifications. It is rated at 250V AC, 13A Max, and 50Hz, and comes with a BS 1363-1 13A UK plug and a 1.5 mm² 3-conductor, 2 m power cord.

Featuring a 1+1U CN Series profile, a 45 mm overall height, and rear cable entry, this PDU supports practical installation and cable management. Its individual switching arrangement allows users to control connected equipment separately, making it a functional solution for everyday power distribution.

Availability:
Quantity:
Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

  • （DMCN-1+1U-E7-7KG-1.5p2m-YB13A）

  • PEDIU

  • PE20260828-371

Product Overview
Product Features & Advantages
Product Description
Product Drawing
Frequently Asked Questions

Product Overview

1. Product Positioning

The 1+1U CN Series PDU is a UK-standard power distribution unit designed for applications requiring multiple socket outlets and individual outlet switching. It features seven BS 1363-2 UK socket outlets, seven red double-pole switch covers on the front panel, and an overload protection device.

Built with a 6063-T5 aluminium alloy housing and high-strength PC side covers, this PDU features a black eco-friendly powder-coated finish for a clean, professional appearance. It is rated at 250V AC, 13A maximum and 50Hz, with a BS 1363-1 UK plug and a 2-metre, 1.5 mm² three-conductor power cord. The 45 mm profile and rear cable entry support integration into suitable power distribution and equipment setups.

2. Application Scenarios

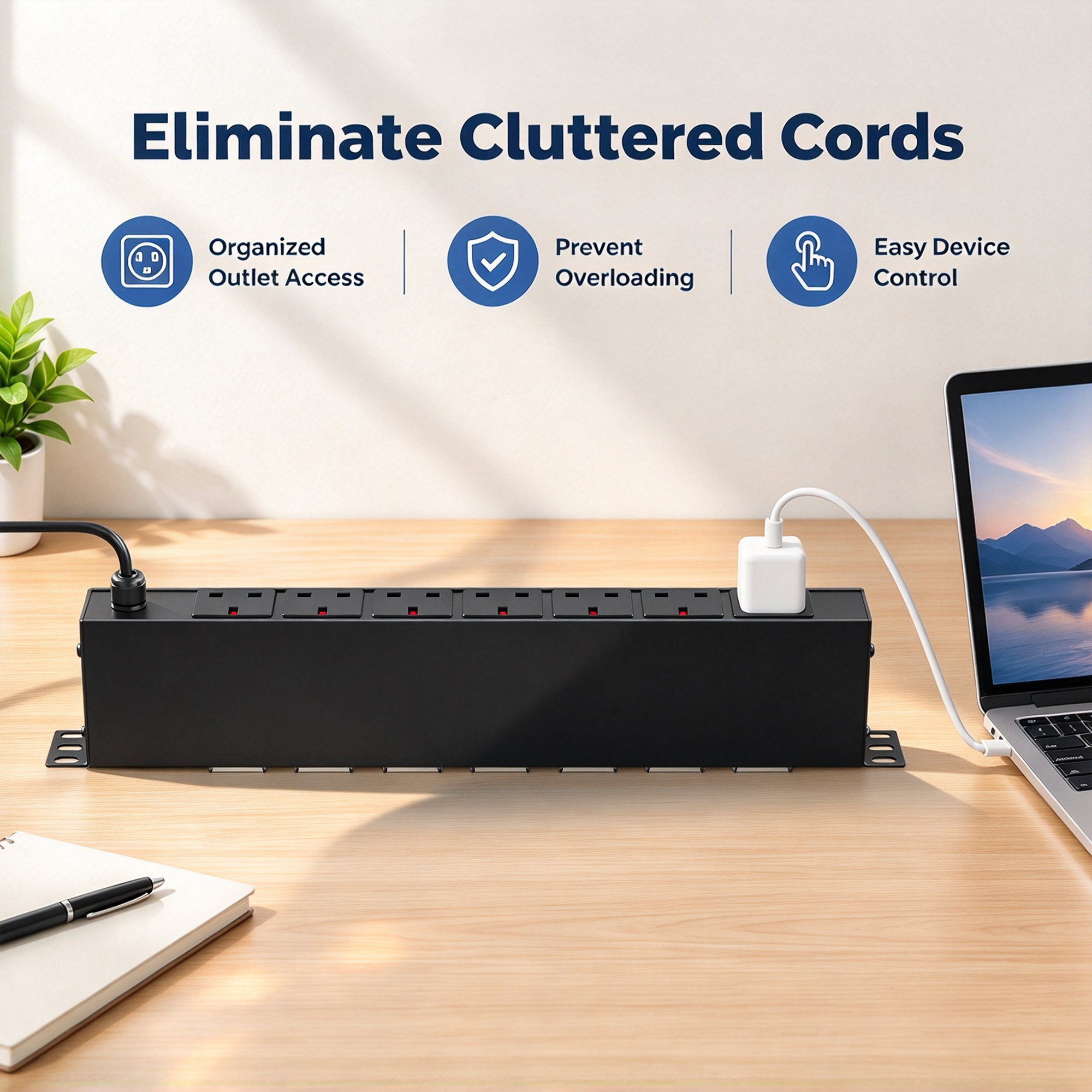

With seven UK socket outlets, red double-pole switch covers, and an overload protection device, the 1+1U CN Series PDU is suitable for equipment and workspace applications that require organised power distribution. Potential applications include:

  • Office and commercial equipment setups

  • Workstations and technical work areas

  • Audio-visual and media equipment installations

  • Equipment cabinets and integrated furniture systems, where compatible with the installation design

  • Commercial and institutional environments

  • OEM/ODM power distribution projects

3. Customization Service

We provide OEM and ODM support for customers seeking customised PDU solutions. Depending on project requirements and technical feasibility, customisation options can be discussed for housing finish and colour, outlet and switch configurations, power cord specifications, cable entry direction, branding, and packaging.

Contact our team to discuss your application, installation requirements, and preferred configuration.

4. Warranty & After-Sales Service

We provide a one-year warranty service for this product.

During the warranty period, free repair service is available for product quality issues. Customers can return defective products to the manufacturer for inspection and repair.

No repair fees will be charged, and domestic shipping costs will be covered by the manufacturer according to agreed arrangements.

Product Features And Advantages

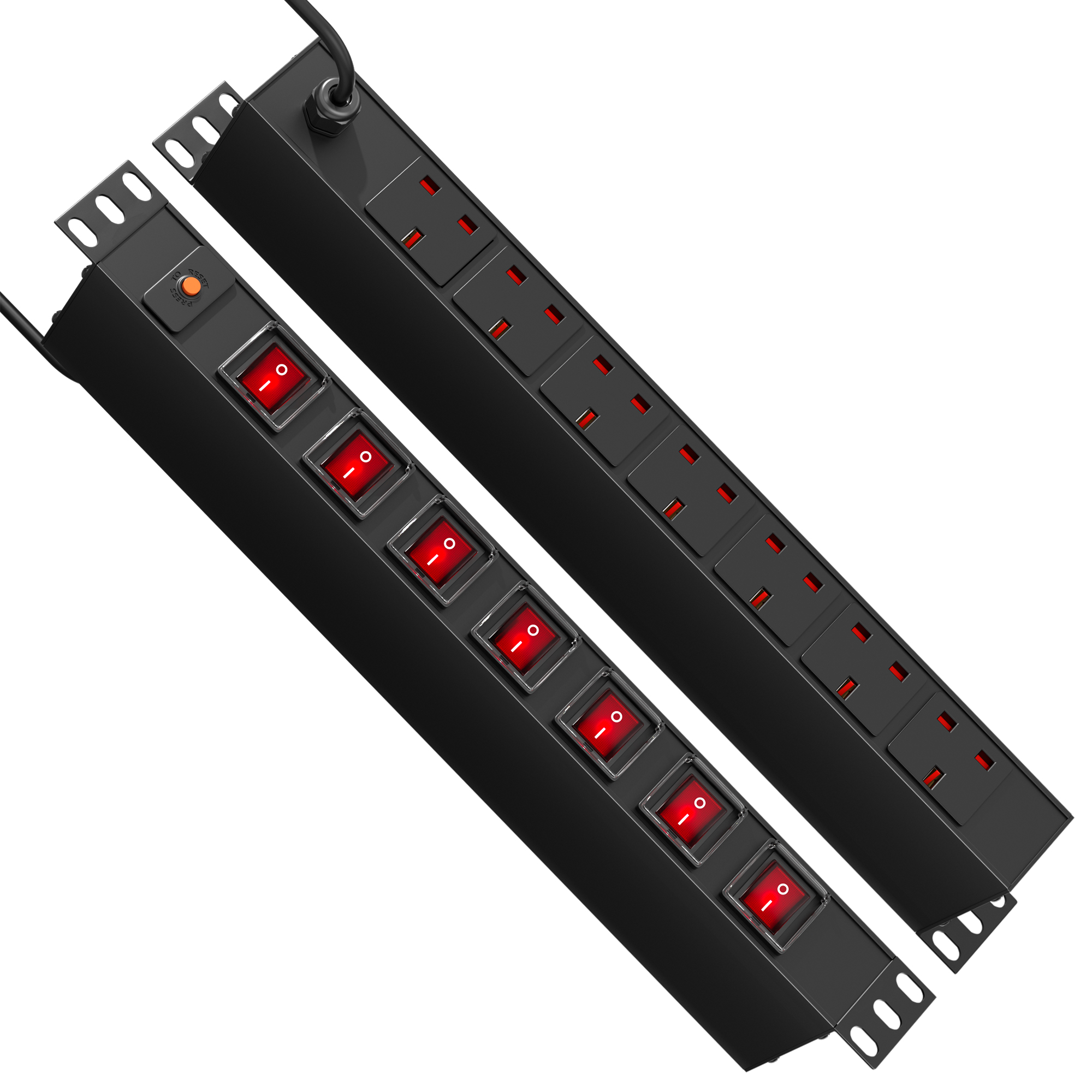

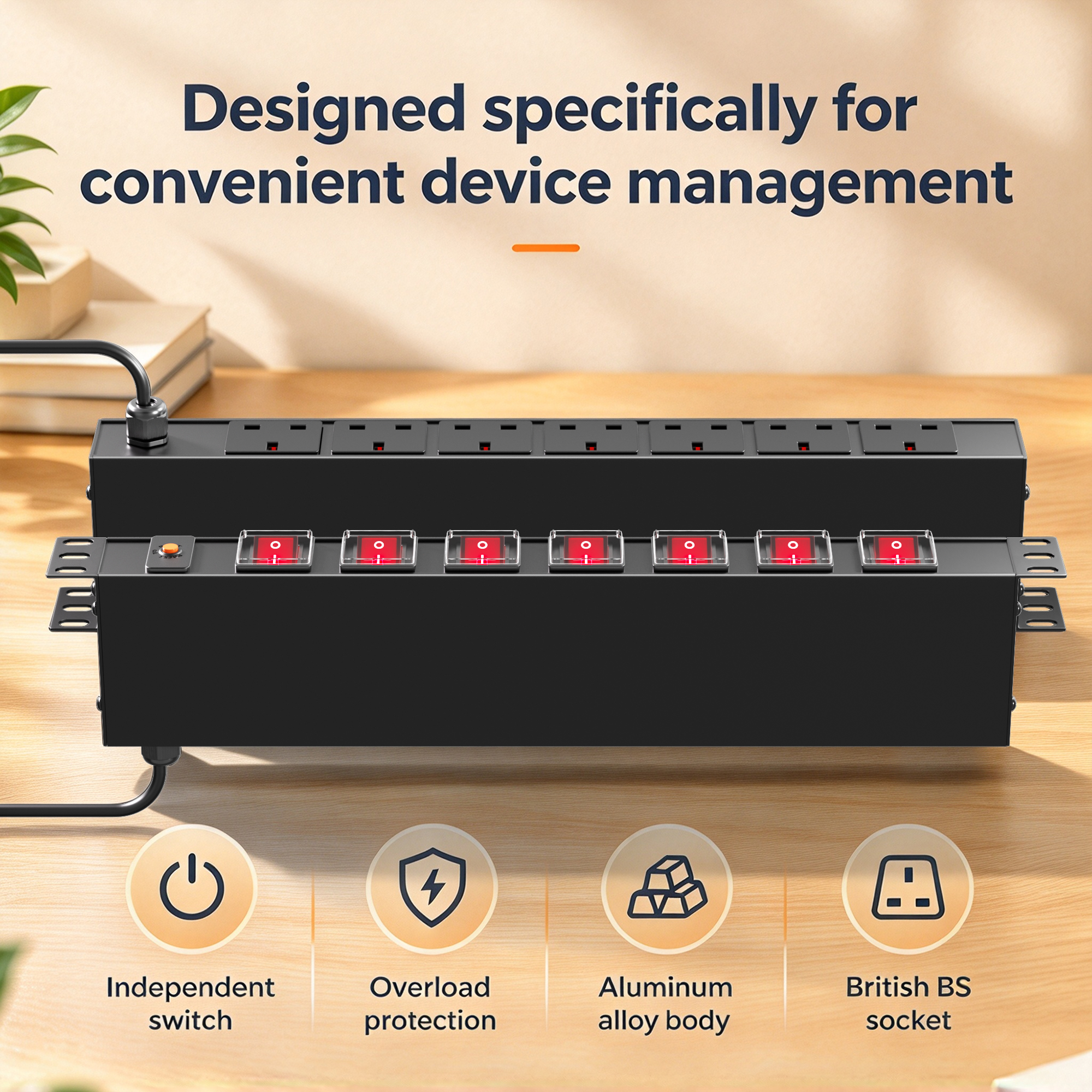

1. 7 UK Socket Outlets with Individual Switching

Designed with 7 BS 1363-2 UK socket outlets and 7 red covered double-pole switches, this PDU provides convenient power distribution and individual switching control for connected equipment. The clearly visible red switches help users identify the switching positions quickly, making it suitable for office, commercial and equipment power distribution applications.

2. Reliable Overload Protection

Equipped with an overload protection device, this PDU is designed to support safer power distribution when used within its rated capacity. With a maximum rated current of 13A, it is suitable for compatible UK electrical equipment. Users should avoid exceeding the rated load and ensure the product is properly earthed before use.

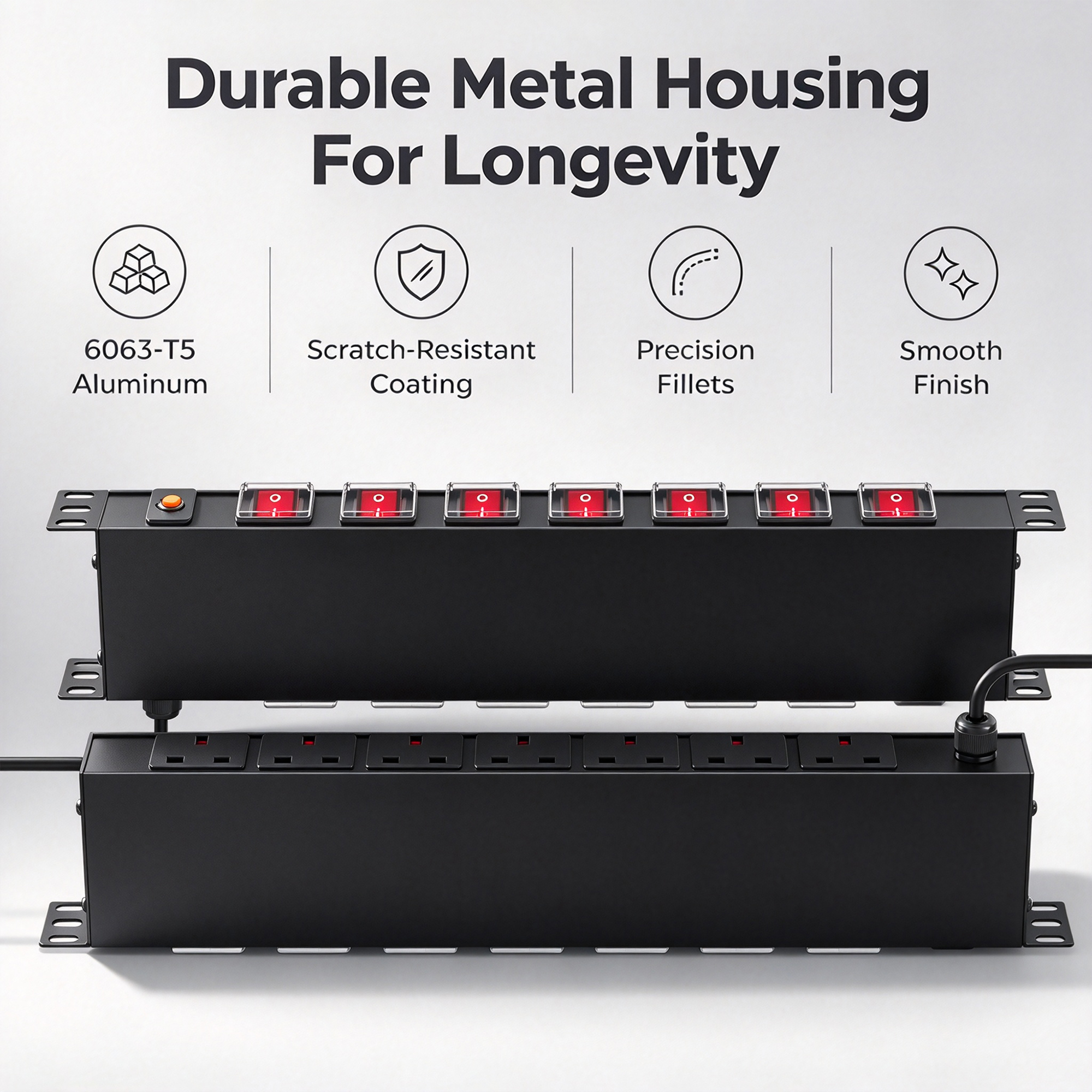

3. Durable Aluminum Alloy Housing

The main housing is made from 6063-T5 aluminum alloy, combined with high-strength PC side covers. This construction provides a robust housing for everyday power distribution applications. The black eco-friendly powder-coated finish creates a clean, professional appearance suitable for office equipment, commercial workspaces and technical installations.

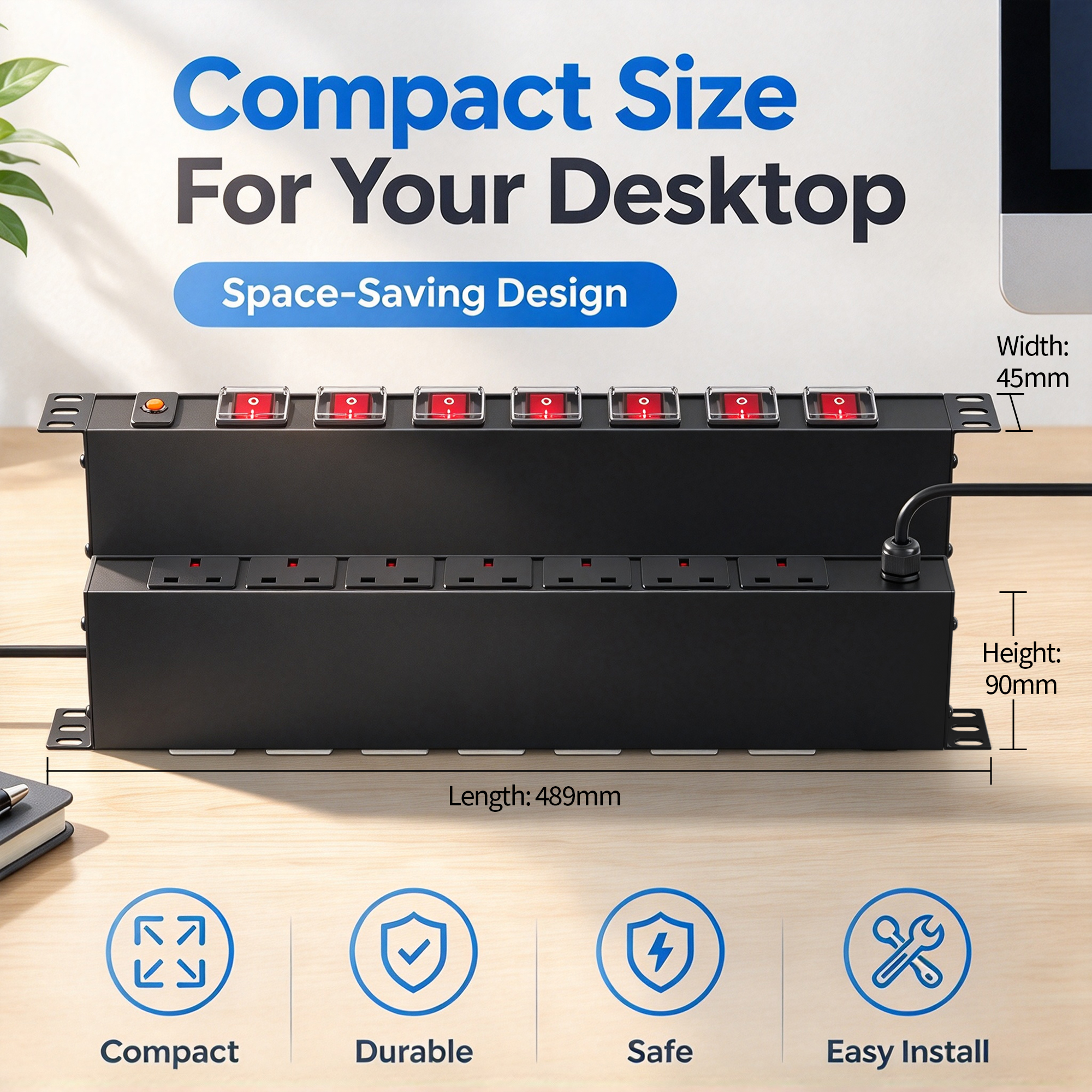

4. Rear Cable Entry and Compact 1+1U CN Design

Featuring a rear cable entry and a 45 mm profile height, the 1+1U CN Series design supports organized cable routing in compatible installations. The 2 m power cord provides connection flexibility, while the compact profile helps integrate the PDU into suitable equipment and power distribution setups.

5. UK Electrical Interface and Rated Specifications

Designed with a BS 1363-1 13A UK plug and 7 BS 1363-2 UK socket outlets, this PDU is specified for a 250V AC supply, 50Hz frequency and a maximum rated current of 13A. Its 1.5 mm² three-conductor power cord and earthed design support the specified UK-style electrical connection. Always verify installation compatibility and the total connected load before use.

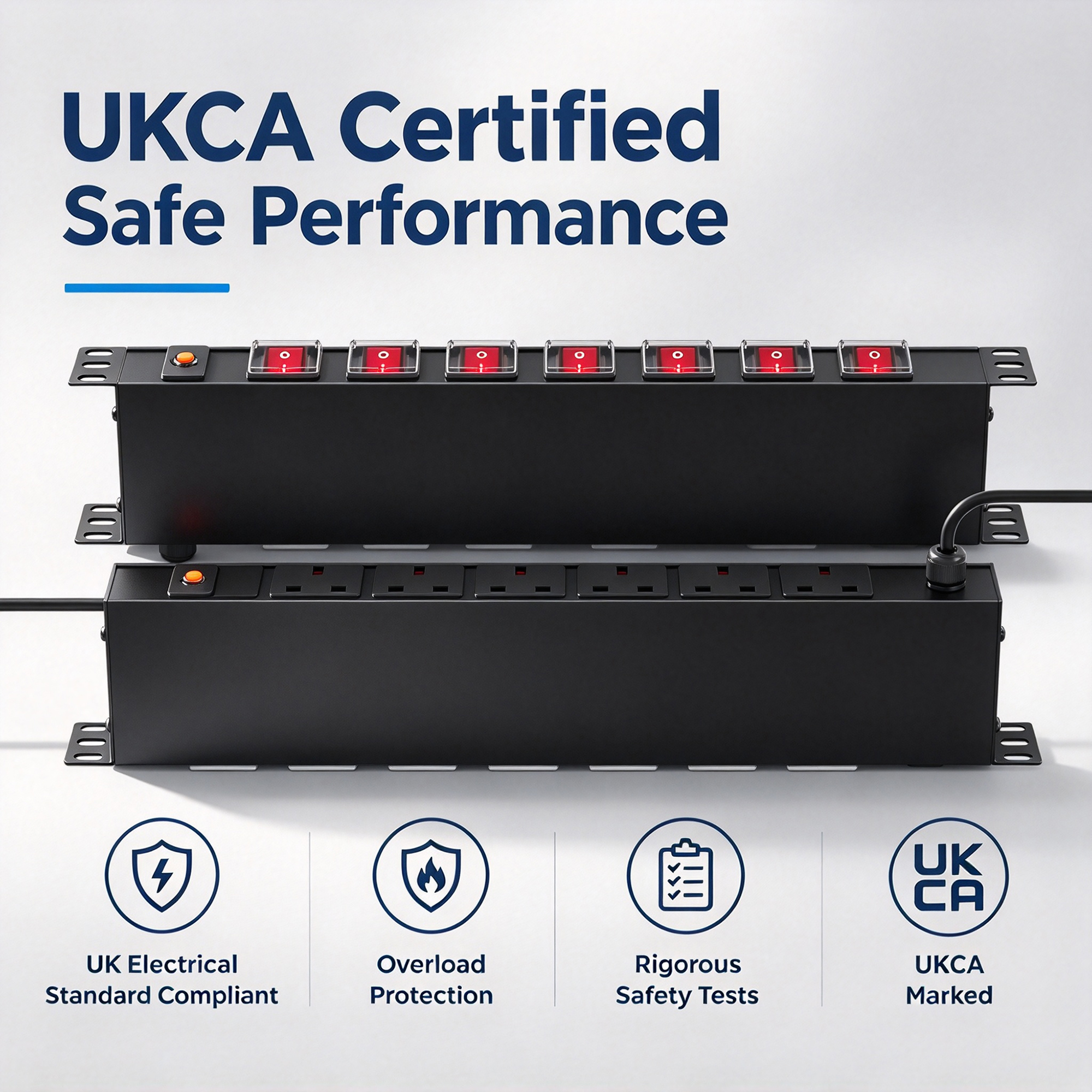

6. Quality Inspection and Compliance Documentation

The manufacturing process includes dimensional and visual inspection, assembly checks and applicable electrical safety checks. Internal wiring must be securely fastened and properly insulated, and electrical connections must be securely terminated. The product specification also addresses applicable UK electrical safety requirements and UKCA conformity assessment, with marking applied where required. This does not by itself confirm that a specific product has already obtained UKCA conformity.

Product Description

Specification

Details

Product Type

1+1U Power Distribution Unit (PDU)

Main Housing Material

6063-T5 Aluminum Alloy

Side Cover Material

High-Strength PC

Surface Finish

Eco-Friendly Powder Coating

Main Housing Color

Black

Side Cover Color

Black

Rated Voltage

250V AC

Rated Current

13A Max.

Rated Frequency

50Hz

Plug Type

BS 1363-1, 13A UK Plug

Front View Configuration

Red Double-Pole Switch Cover × 7; Overload Protection Device.

Rear View Configuration

BS 1363-2 UK Socket Outlet × 7

Power Cord

1.5 mm², 3-Conductor, 2 m

Cable Entry

Rear Cable Entry

Profile Series

1+1U CN Series

Profile Height

45 mm

Usage Requirements

Overloading beyond the rated capacity is prohibited.

Earthing

The product shall be properly earthed before use.

Frequently Asked Questions

Q1: What is the rated voltage?

The rated voltage is 250V AC. Ensure that the connected equipment is compatible with this voltage.

Q2: What is the maximum rated current?

The maximum rated current is 13A. The total connected load must remain within the product's rated capacity.

Q3: What is the operating frequency?

The rated frequency is 50Hz, suitable for compatible electrical systems operating at this frequency.

Q4: What type of input plug does it use?

The PDU uses a BS 1363-1, 13A UK plug, designed for compatible UK-style power connections.

Q5: What type of socket outlets does it provide?

It provides seven BS 1363-2 UK socket outlets for connecting compatible UK-style plugs.

Q6: Does each outlet have an individual switch?

The product specification lists seven red double-pole switches with covers on the front panel. Confirm the final switch-to-outlet configuration against the approved product drawing.

Q9: Does this PDU have overload protection?

Yes. The specifications include an overload protection device designed to help protect the PDU against overload conditions. Always observe the rated current and applicable operating instructions.

Q10: What material is used for the main housing?

The main housing is made of 6063-T5 aluminum alloy, providing a rigid structure suitable for power distribution equipment.

Q11: What material is used for the side covers?

The side covers are made of high-strength PC (polycarbonate), selected to meet the specified mechanical and electrical requirements.

Q12: What color is the PDU?

The main aluminum housing and side covers are both black. The front panel features red double-pole switch covers for visual contrast.

Q13: What surface finish does the housing have?

The aluminum housing uses an eco-friendly powder-coated finish. Finished surfaces should be free from visible scratches, dents, cracks, and other defects.
