Product Features And Advantages

1. 7 UK Socket Outlets for Multi-Device Power Distribution

Featuring 7 BS 1363-2 UK socket outlets, this PDU provides convenient power connections for compatible electrical equipment. With a rated voltage of 250V AC, a maximum rated current of 13A and a rated frequency of 50Hz, it is designed for compatible UK-style power distribution applications.

2. 30W USB-C PD Fast Charging

The integrated 30W USB-C Power Delivery (PD) charging module provides a convenient charging option for compatible USB-C devices. By combining AC power outlets and USB-C charging in one unit, this PDU helps simplify power access across office workspaces, commercial environments and equipment setups.

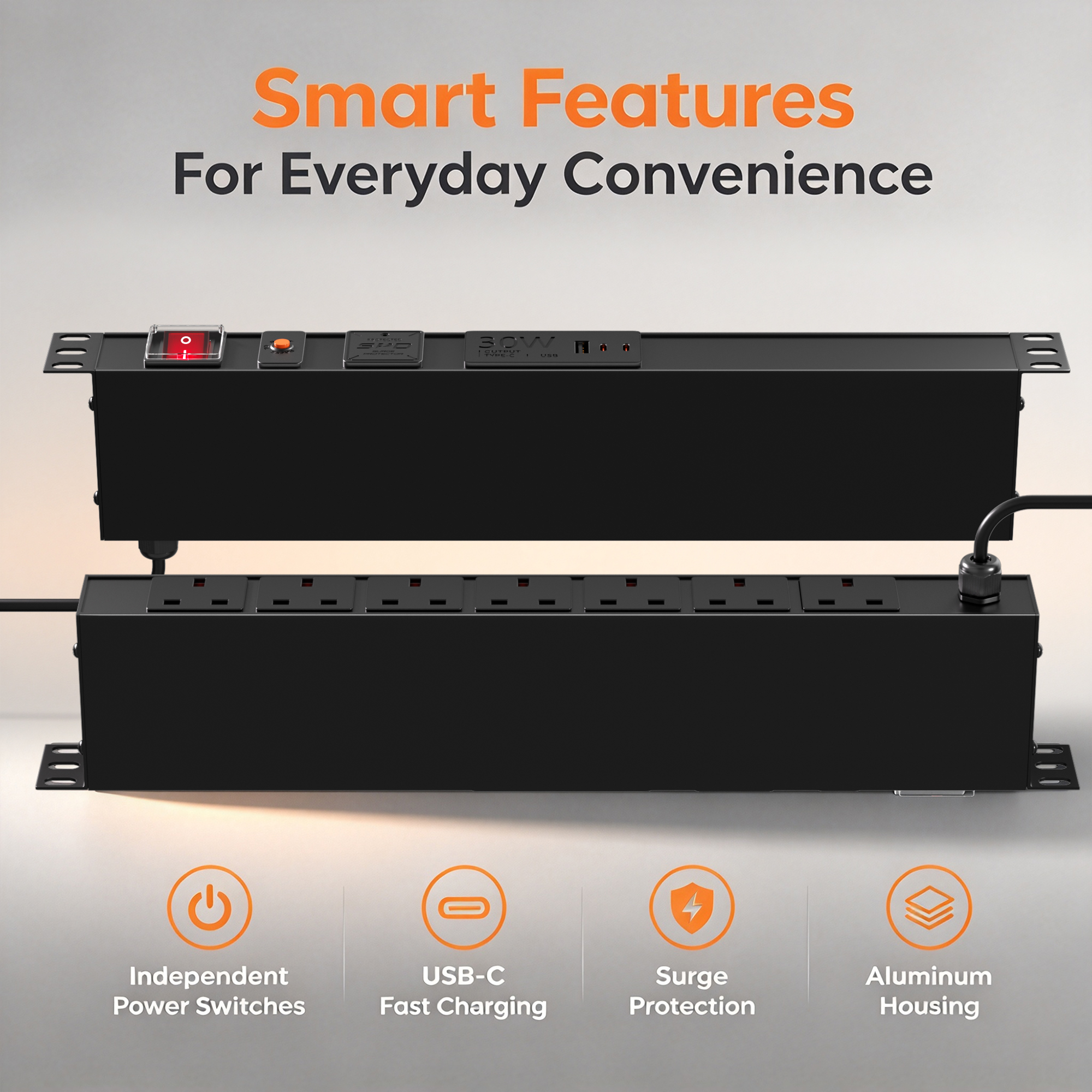

3. Surge Protection and Overload Protection

Equipped with a surge protection device and an overload protection device, this PDU integrates two power protection functions in one unit. These features support power distribution for compatible equipment when the product is correctly installed and operated within its rated capacity. Always ensure proper earthing and follow the product's electrical safety instructions.

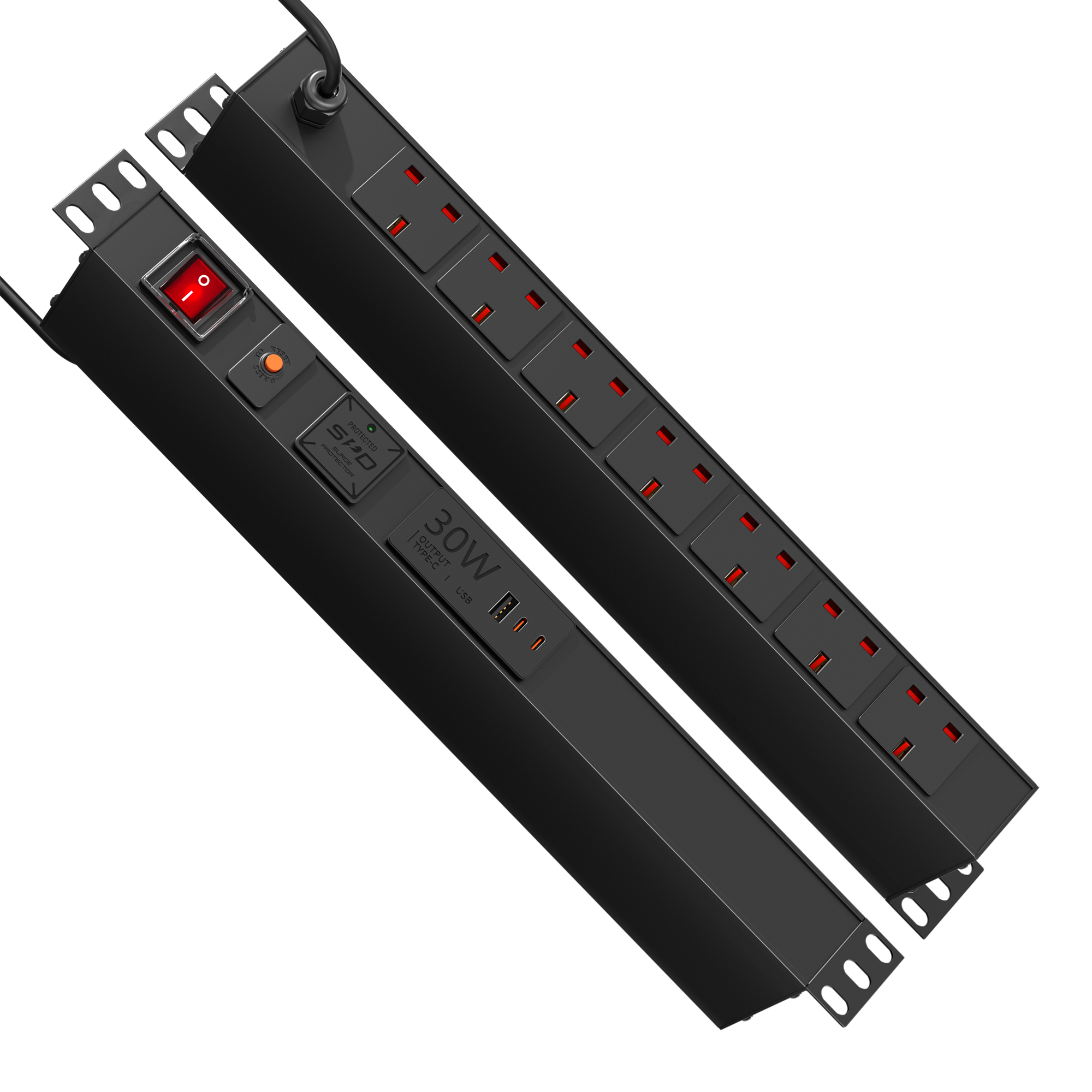

4. Red Double-Pole Switch for Convenient Power Control

The front panel features a red covered double-pole switch, providing a clearly visible control point for the PDU. The red switch complements the black housing while supporting convenient power management in compatible installations.

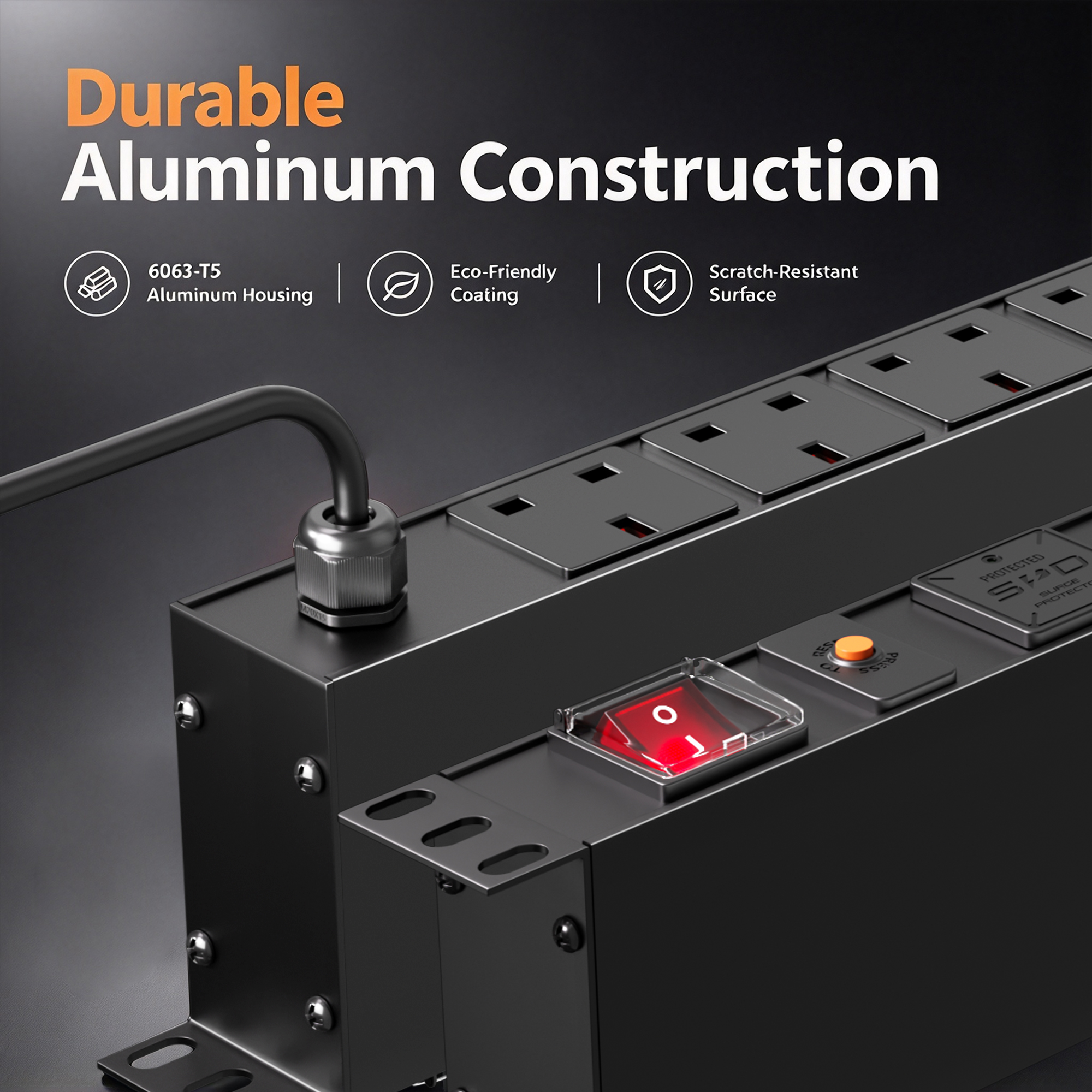

5. Durable Black Aluminum Alloy Housing

The main housing is made from 6063-T5 aluminum alloy, paired with high-strength PC side covers. Its black eco-friendly powder-coated finish creates a clean, professional appearance suitable for office, commercial and technical environments. Finished surfaces are subject to visual inspection to help identify visible scratches, dents, cracks and other defects.

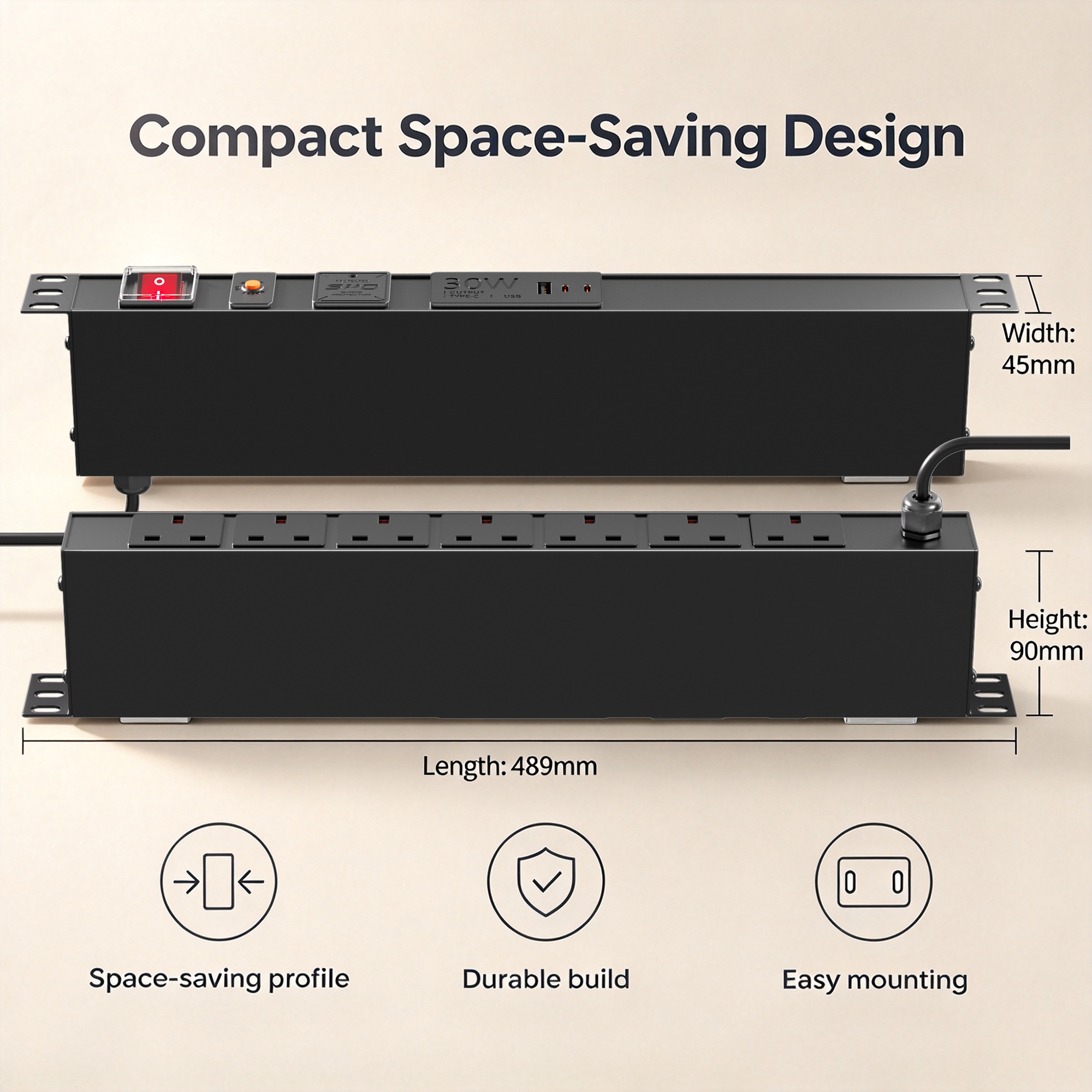

6. Rear Cable Entry and Compact 1+1U CN Profile

Designed with a rear cable entry and a 45 mm profile height, the 1+1U CN Series PDU supports organized cable routing in compatible installations. The 2 m, 1.5 mm² three-conductor power cord provides the specified connection configuration, while the compact profile integrates multiple power outlets, USB-C charging and protection functions in one unit.

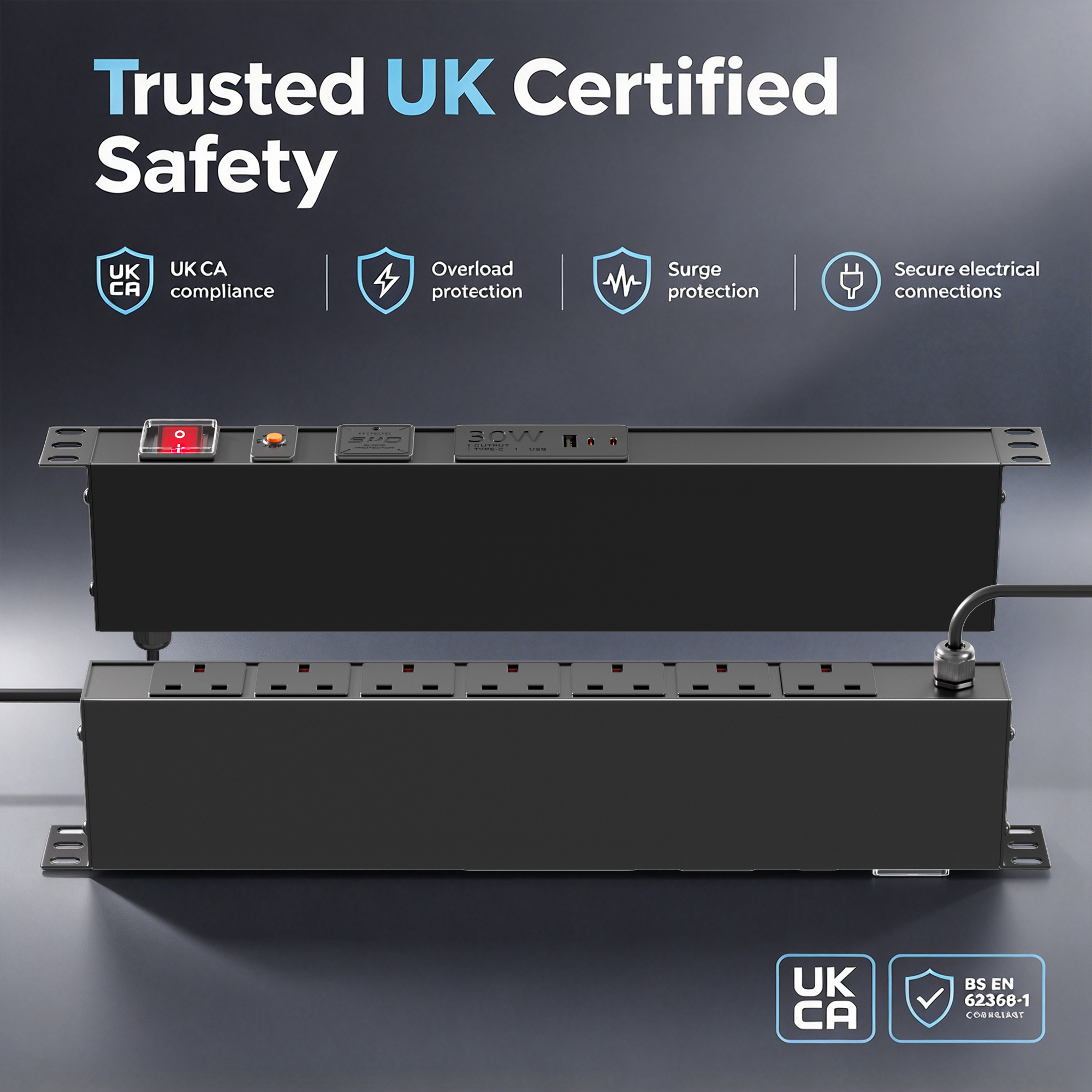

7. Quality Inspection and Compliance Requirements

Manufacturing requirements include secure internal wiring, proper insulation, securely terminated electrical connections and finished-product inspections. Checks may include dimensional, visual, assembly and applicable electrical safety inspections. The product specification also addresses applicable UK electrical safety requirements and UKCA conformity assessment, with marking applied where required.

Product Description

Frequently Asked Questions

Q1: What USB-C fast charging capability does it offer?

The PDU supports 30W USB-C Power Delivery (PD) fast charging for compatible devices. Actual charging speed depends on the device's charging protocol and power requirements.

Q2: Can it charge smartphones, tablets, and laptops?

It can charge compatible smartphones and tablets. Laptops may also be charged if they support USB-C PD and their power requirements are compatible with the 30W output.

Q3: Can the AC outlets and USB-C port be used simultaneously?

The product provides both AC power outlets and USB-C charging. Simultaneous use is subject to the PDU's rated capacity and the output limitations specified in the final technical documentation.

Q4: What materials are used for the housing?

The main housing is made of 6063-T5 aluminum alloy, while the side covers use high-strength PC (polycarbonate).

Q5: What is the product's color and surface finish?

Both the main housing and side covers are black. The aluminum housing features an eco-friendly powder-coated finish.

Q6: What does 1+1U CN Series mean?

It identifies the product's specified profile series. The profile height is 45 mm. Rack compatibility and the mounting method should be confirmed against the approved product drawing.

Q7: What are the power cord specifications?

The power cord is 1.5 mm², three-conductor, and 2 meters long, with a rear cable entry.

Q8: Is this PDU suitable for UK electrical systems?

The product uses a UK-standard input plug and UK-standard socket outlets, with a rated voltage of 250V AC and frequency of 50Hz. Confirm the final product's electrical ratings and applicable compliance documentation before use or sale.

Q9: Does the product comply with UKCA requirements?

The design specification requires compliance with applicable UKCA conformity assessment requirements for the Great Britain market. Actual conformity status must be confirmed through the applicable assessment, technical documentation, Declaration of Conformity, and marking.

Q10: What should I check before using the PDU?

Check the supply voltage, plug compatibility, cable condition, grounding, and total connected load. Do not exceed the 13A maximum rated current. Confirm the protection-device ratings and USB-C output specifications before connecting sensitive or high-power equipment.
