DMQY-TY-U5
PEDIU
This V2L Vehicle-to-Load (V2L) Aluminum PDU Power Strip is designed for the U.S. market as a portable power distribution solution that connects directly to a compatible vehicle's V2L power outlet and provides standard North American AC power for household, outdoor, emergency, and mobile applications.
Unlike a conventional wall-connected power strip, this V2L PDU uses a V2L connector as the power input, allowing compatible electric vehicles to serve as a mobile AC power source. The output side is equipped with NEMA 5-15R and NEMA 5-20R outlets, making it suitable for powering common U.S. electrical devices and equipment.
The PDU features a durable 6063-T5 aluminum housing with a premium wood-grain heat transfer printing finish. Its compact 1U QY TY Series aluminum profile provides a space-efficient structure while combining durability, heat dissipation, and a distinctive appearance.
With multiple configurations available, the series can be equipped with an illuminated circuit breaker switch, surge protective device, 30W Type-C + USB charging, and 65W Type-C + USB charging with full-display metering, providing flexible power management options for different V2L applications.
The V2L PDU allows a compatible electric vehicle to provide AC power to multiple connected devices through a single power distribution unit. With a 125V AC, 20A Max. electrical configuration, the PDU is designed to distribute vehicle-generated power to suitable North American electrical loads.
The V2L input is connected through a dedicated V2L connector, while the PDU distributes power through NEMA 5-15R and NEMA 5-20R receptacles.
This configuration is particularly useful when conventional grid power is unavailable or when users need a convenient mobile power source.
The series offers flexible outlet configurations based on different product models, including:
3 × NEMA 5-15R + 1 × NEMA 5-20R
5 × NEMA 5-15R + 1 × NEMA 5-20R
These standard North American receptacles allow compatible household appliances, electronic devices, tools, lighting equipment, and other electrical products to be connected directly to the V2L PDU.
Different versions are available to meet different V2L power management requirements:
The basic version features an illuminated circuit breaker switch, providing convenient power control and circuit protection for connected loads.
The surge-protected version adds a Surge Protective Device (SPD) to provide additional protection against transient voltage surges.
The charging version integrates a 30W Type-C + USB charging module, allowing users to charge compatible mobile devices while powering other AC equipment.
The expanded-output version provides 5 NEMA 5-15R + 1 NEMA 5-20R outlets, offering increased connection capacity for multiple devices.

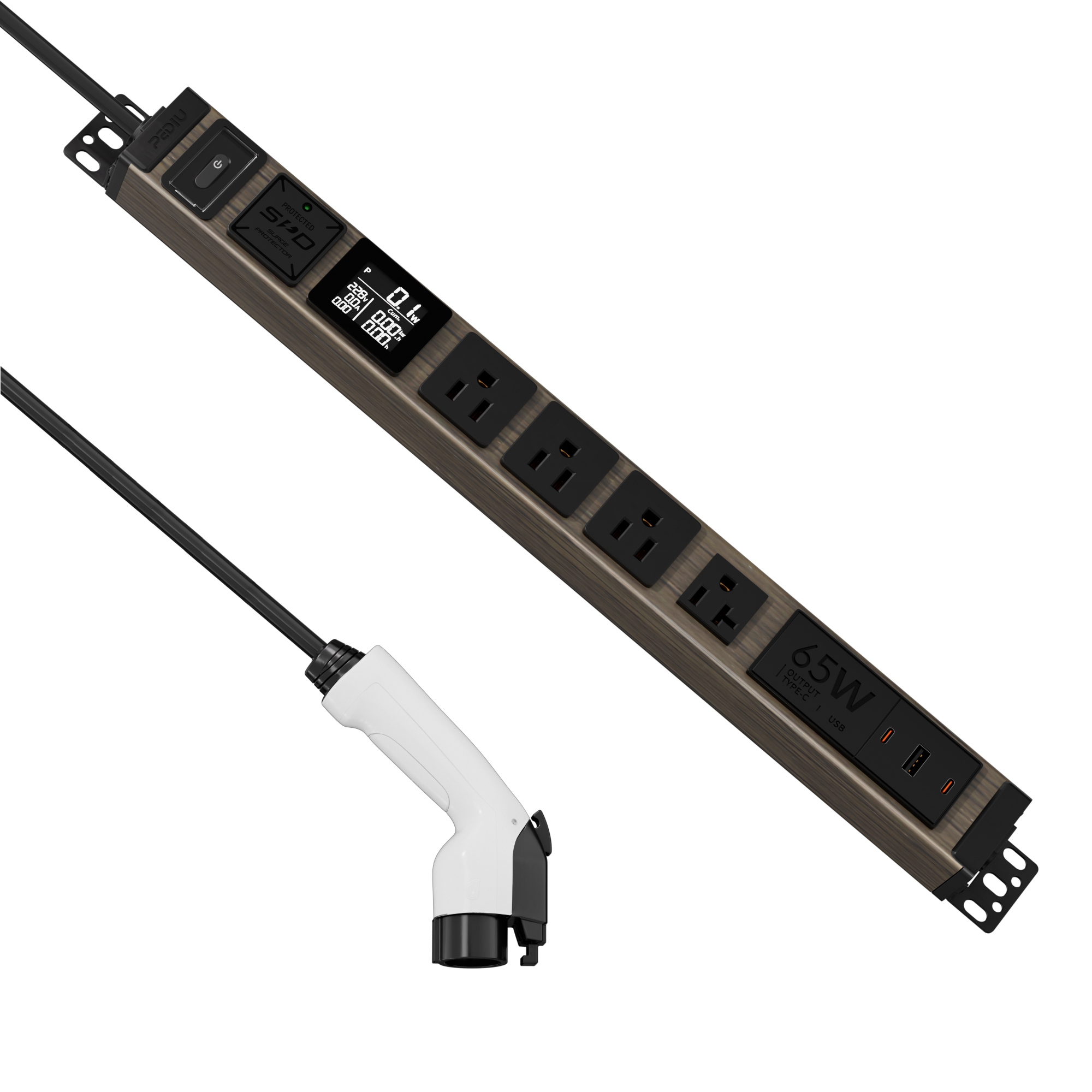

The premium version combines an illuminated circuit breaker switch, Surge Protective Device, full-display metering, and 65W Type-C + USB charging. It provides enhanced power management, charging, and electrical monitoring in one compact V2L PDU.
The PDU uses a 6063-T5 aluminum alloy housing designed to provide durability, structural strength, and efficient heat dissipation. The wood-grain heat transfer printing creates a more refined appearance than conventional plastic power strips, making the product suitable for both functional and lifestyle-oriented applications.
The black side covers complement the wood-grain aluminum housing to create a modern and premium appearance.
The 1U QY TY Series aluminum profile provides a compact and space-efficient enclosure for mobile power distribution. The streamlined profile is easy to integrate into portable power solutions, vehicle-based power applications, emergency power kits, outdoor equipment, and other space-conscious environments.
This V2L PDU is suitable for a variety of mobile power applications, including:
Electric Vehicle V2L Power Distribution
Emergency Backup Power
Outdoor Activities & Camping
Tailgating
Mobile Workstations
Outdoor Tools & Equipment
Temporary Power Supply
Home Emergency Power
Portable Power Applications
Vehicle-Based Power Systems
Professional OEM and ODM services are available for different V2L power distribution requirements. Customization options may include:
V2L input connector
NEMA outlet combinations
Outlet quantity
Rated current configuration
Circuit breaker options
Surge protection
USB Type-C charging power
Power metering
Aluminum profile structure
Housing appearance and finish
Cable length and specifications
Logo and packaging
We can develop customized V2L PDU solutions for EV accessory brands, outdoor power equipment companies, distributors, vehicle equipment suppliers, and other specialized applications.
The PDU is designed with securely fastened and insulated internal wiring, a copper busbar power distribution structure, and circuit protection options according to the selected configuration. Finished products undergo inspection and grounding tests before shipment.
The product should only be connected to a compatible V2L power source and operated within the specified 125V AC / 20A Max. rating. The actual usable power is also subject to the V2L vehicle's output capacity and protection settings.
Designed with a V2L Connector input, this power distribution unit allows compatible vehicles with Vehicle-to-Load capability to supply power to multiple electrical devices through a centralized PDU. It converts vehicle-generated AC power into convenient multi-outlet power access for temporary and mobile power applications.
Rated for 125V AC and up to 20A, the PDU provides higher power capacity for demanding electrical loads. The V2L input is paired with a 14 AWG 3-conductor, 3 m power cable and a 3 mm² copper busbar to support stable internal power distribution.
The product family provides flexible combinations of NEMA 5-15R and NEMA 5-20R outlets, allowing users to connect common U.S. electrical equipment as well as higher-current devices.
Available configurations include:
3 × NEMA 5-15R + 1 × NEMA 5-20R
5 × NEMA 5-15R + 1 × NEMA 5-20R
This outlet flexibility makes the V2L PDU suitable for powering multiple devices from a single vehicle power source.
An illuminated circuit breaker switch provides both power control and circuit protection. The illuminated design makes the switch status easy to identify, while the circuit breaker helps protect the PDU from overload conditions.
Selected configurations integrate a Surge Protective Device (SPD) to provide additional protection against transient voltage surges. This option is suitable when sensitive electronic equipment is connected to the vehicle-powered PDU.
Selected models include a 2 Type-C + USB charging module, available in 30W or 65W configurations. This provides convenient charging access for smartphones, tablets, portable electronics, and other USB-powered devices without occupying the AC outlets.
The premium configuration integrates full display metering, providing real-time electrical information through the built-in display. Users can monitor operating power conditions while using the PDU for vehicle-powered applications.
The PDU housing is manufactured from 6063-T5 aluminum alloy, providing a strong and durable enclosure with good heat dissipation characteristics. The wood-grain heat transfer finish gives the product a distinctive appearance while maintaining the structural advantages of aluminum construction.
The 1U QY TY Series profile provides a compact and organized housing for the V2L power distribution system. Its space-efficient structure helps integrate multiple outlets and functional modules without requiring a large enclosure.
A 3 m (9.84 ft) 14 AWG 3-conductor power cable provides extended reach between the V2L vehicle connection and the PDU, giving users greater flexibility when positioning the PDU near the equipment being powered.
The left-side cable entry configuration helps organize the incoming V2L cable and maintain a clean cable routing direction. This design is particularly useful when the PDU needs to be positioned alongside portable equipment or temporary power setups.
By combining a vehicle V2L input with U.S.-style NEMA outlets, the PDU provides a practical way to distribute vehicle-generated power to multiple loads. It can be used for outdoor activities, temporary workstations, mobile equipment, emergency backup power setups, and other situations where a vehicle serves as a portable power source.
The V2L PDU platform supports customization of outlet quantity, NEMA outlet combination, protection functions, USB charging power, metering functions, cable length, housing finish, and structural configuration.
OEM and ODM solutions are available for vehicle power distribution projects and specialized mobile power applications.
Specification | Details |
|---|---|
Product Name | EV V2L Power Distribution PDU |
Product Category | Vehicle-to-Load (V2L) Power Distribution Unit |
Housing Material | 6063-T5 Aluminum Alloy |
Housing Finish | Heat Transfer Printing |
Housing Color | Wood-Grain |
Side Cover Material | High-Strength PC |
Side Cover Color | Black |
Profile Specification | 1U QY TY Series |
Rated Voltage | 125V AC |
Rated Current | 20A Max. |
Input Connector | V2L Connector |
Outlet Type | NEMA 5-15R / NEMA 5-20R |
Power Cord Type | 14 AWG 3-Conductor Power Cord |
Power Cord Length | 3 m (9.84 ft) |
Power Entry | Left Entry |
Internal Wiring | 3 mm² Copper Bar |
Switch Type | Illuminated Circuit Breaker Switch |
Protection | Overload Protection and/or Surge Protection, Depending on Configuration |
USB Charging | Type-C + USB Charging, 30W or 65W Depending on Configuration |
Power Metering | Full Display Metering, Optional |
Outlet Quantity | 4 or 6 Outlets Depending on Configuration |
Operating Environment | Suitable for Indoor and Outdoor V2L Power Applications |
Target Market | USA / North American 125V AC Applications |
Warranty | 1 Year Limited Warranty |
PE20260604-241(DMQY-TY-U3Ua1-Kx-2.08p3m-FD20A)-Wood-EN.pdf
PE20260604-242(DMQY-TY-U3Ua1-KxFu-2.08p3m-FD20A)-Wood-EN.pdf
PE20260604-243(DMQY-TY-U3Ua1-KxUt30-2.08p3m-FD20A)-Wood-EN.pdf PE20260604-244(DMQY-TY-U5Ua1-Kx-2.08p3m-FD20A)-Wood-EN.pdf PE20260604-245(DMQY-TY-U3Ua1-KxFuJqUt65-2.08p3m-FD20A)-Wood-EN.pdf A V2L Power Distribution Unit (PDU) is designed to distribute AC power from an electric vehicle equipped with Vehicle-to-Load (V2L) functionality. It connects to the vehicle through a compatible V2L connector and provides multiple NEMA AC outlets for powering household appliances, tools, electronic devices, and other electrical equipment.
Yes. The PDU is designed around a 125V AC electrical output and uses NEMA 5-15R and/or NEMA 5-20R outlets, making it suitable for applications using standard North American AC receptacle formats, provided that the connected V2L vehicle supplies compatible voltage, current, connector, and grounding characteristics.
This PDU is intended for electric vehicles that support V2L (Vehicle-to-Load) power output and are compatible with the specified V2L connector. Vehicle compatibility should be confirmed before use because V2L interfaces and electrical specifications can vary by vehicle manufacturer and model.
The PDU is rated at 125V AC and 20A Max. The actual available output power depends on the V2L vehicle's maximum power output and the electrical limitations of the PDU and connected loads.
Yes. Multiple NEMA outlets allow several electrical devices to be connected simultaneously, provided that the combined load does not exceed the rated capacity of the PDU or the available V2L output from the vehicle.
The specified configuration uses a 3 mm² copper busbar/conductor system for power distribution. This design supports reliable current transmission within the PDU under the specified electrical rating.
Before use, verify that the EV supports V2L output and that the V2L connector is compatible with the PDU. Do not exceed the vehicle's V2L output capacity or the PDU's 20A maximum rating. Users should also follow the vehicle manufacturer's V2L operating instructions and applicable local electrical safety requirements.
Unlike conventional power strips, this V2L PDU is designed to distribute power from a compatible V2L-capable EV through multiple NEMA AC outlets. Its durable aluminum housing provides higher structural strength, rigidity, and heat dissipation than typical plastic power strips.
Depending on the configuration, it can also include an illuminated circuit breaker, surge protection, power metering, and Type-C + USB charging.
