Product Features And Advantages

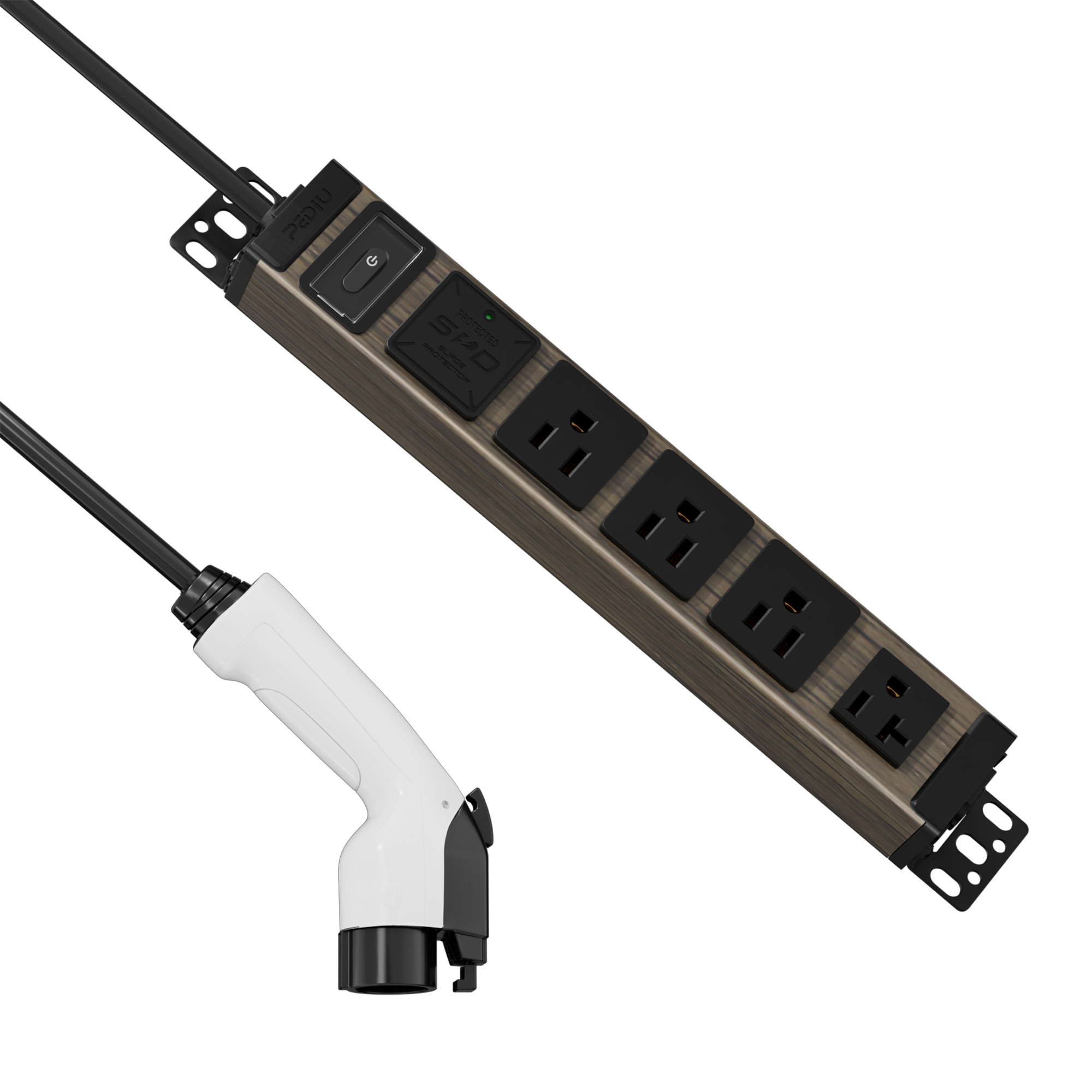

Integrated EV Discharge Gun PDU Power Solution

Designed with an integrated V2L connector, power cable, and power distribution unit structure, this EV Discharge Gun PDU enables electric vehicles to serve as mobile power sources. It efficiently converts vehicle battery energy into AC power output, providing a convenient solution for outdoor power supply, emergency backup, camping, and mobile applications.

20A High-Power V2L Energy Output Capability

Supporting up to 20A rated current through a V2L connector input, this PDU provides stable and efficient power output from compatible electric vehicles. The 125V AC system is suitable for powering various electrical devices, tools, and equipment in environments without fixed power sources.

Flexible Multi-Outlet Power Distribution

Equipped with 3 × NEMA 5-15R outlets and 1 × NEMA 5-20R outlet, the PDU supports simultaneous connection of multiple devices. The mixed outlet configuration provides enhanced compatibility for household appliances, outdoor equipment, power tools, and professional electrical devices.

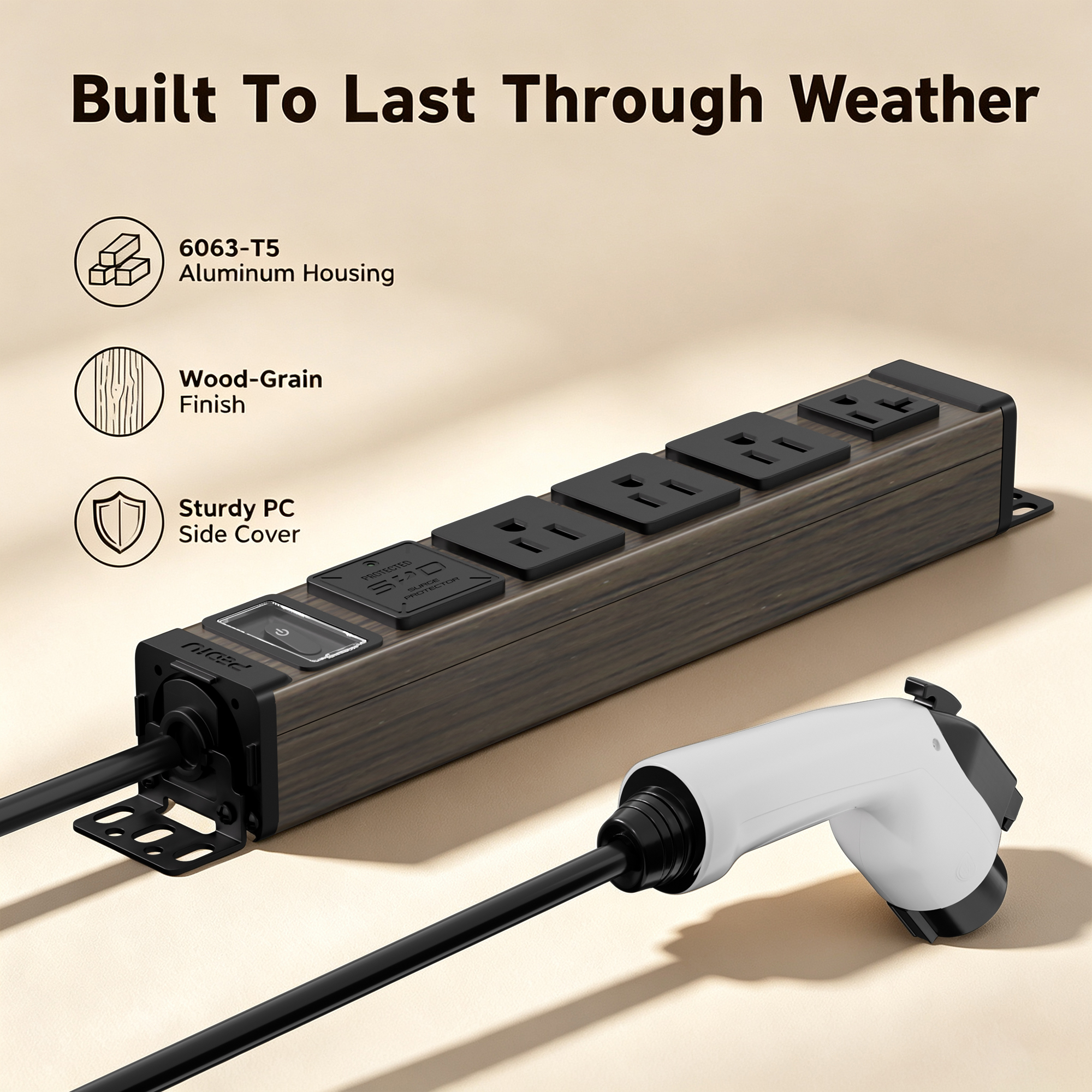

Premium Wood-Grain Aluminum Alloy Housing

Built with 6063-T5 aluminum alloy, the housing provides excellent strength, durability, and heat dissipation performance. The wood-grain heat transfer printing surface treatment combines a premium appearance with reliable protection for portable and outdoor power applications.

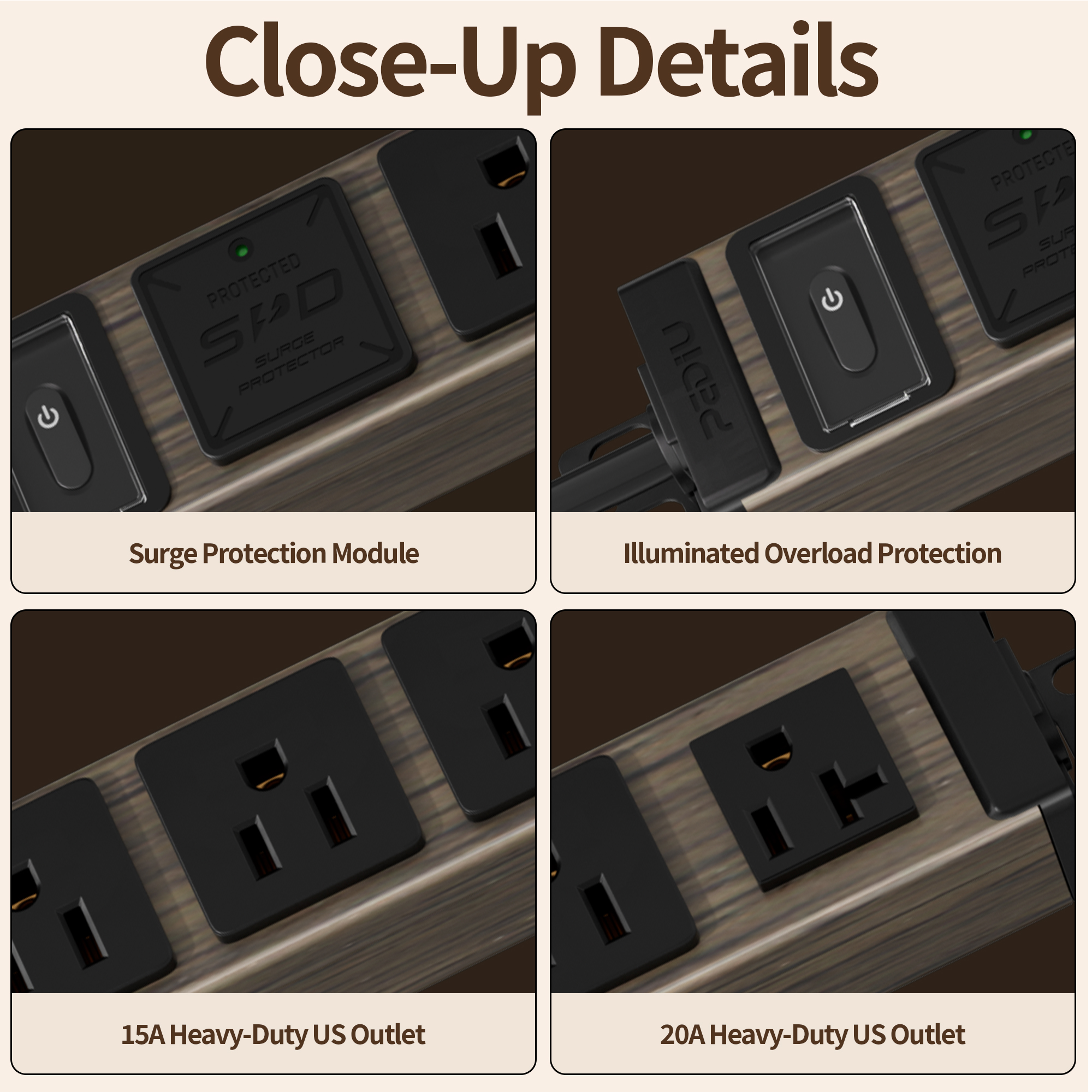

Integrated Illuminated Circuit Breaker Protection

Featuring an illuminated circuit breaker switch, the PDU provides convenient operation control and overload protection. The visual indicator allows users to quickly identify power status while helping protect connected devices from abnormal current conditions.

Reliable Copper Busbar Power Transmission

Utilizing a 3mm² copper busbar structure, the internal power system ensures efficient current transmission, reduced power loss, and improved electrical stability. Securely fixed and insulated internal wiring enhances safety during continuous operation.

Compact 1U Design for Mobile Power Applications

Featuring a 1U QY TY Series profile with horizontal installation capability, this compact PDU is optimized for portable power solutions, vehicle energy applications, outdoor events, emergency power systems, and customized installation environments.

OEM & ODM Customization Support

Customization services are available for V2L connector specifications, cable length, outlet configurations, housing appearance, functional modules, and electrical parameters to support different EV power distribution requirements.

Frequently Asked Questions

Q1: What is a V2L PDU and how does it work?

A V2L PDU is a power distribution unit designed to work with electric vehicles that support Vehicle-to-Load (V2L) power output. By connecting the V2L connector to a compatible EV, the vehicle battery can supply AC power to multiple external devices through the integrated NEMA outlets, providing a convenient mobile power solution.

Q2: What vehicles are compatible with this V2L PDU?

This V2L PDU is compatible with electric vehicles equipped with a V2L discharge function and matching V2L connector output. Vehicle compatibility depends on the EV manufacturer, vehicle model, and V2L output specifications. Please confirm your vehicle supports V2L power discharge before purchase.

Q3: What is the maximum power output of this V2L PDU?

The V2L PDU supports up to 125V AC and 20A maximum current, providing reliable power distribution for outdoor equipment, portable appliances, tools, lighting systems, and other electrical devices within the rated capacity.

Q4: What outlet configurations does this V2L PDU provide?

The PDU includes:

• 3 × NEMA 5-15R outlets

• 1 × NEMA 5-20R outlet

This combination provides flexible compatibility with common North American electrical equipment, including household appliances, camping equipment, and professional tools.

Q5: Can this V2L PDU be used for outdoor camping and emergency power?

Yes. This V2L PDU is designed for mobile power applications such as:

• EV camping power supply

• Outdoor activities

• Emergency backup power

• Mobile workstations

• Portable tools and equipment

• Tailgate power applications

It allows EV owners to utilize their vehicle battery as a convenient portable power source.

Q6: Does this product include overload protection?

Yes. The V2L PDU is equipped with an illuminated circuit breaker switch that provides overload protection and allows users to quickly disconnect power when abnormal current conditions occur.

Q7: What materials are used for this V2L PDU?

The main housing is manufactured from 6063-T5 aluminum alloy, providing excellent mechanical strength, durability, and heat dissipation performance. The side covers use high-strength PC material for reliable insulation and impact resistance.

The wood-grain heat transfer printing finish provides a premium appearance suitable for residential, outdoor, and lifestyle applications.

Q8: Is this V2L PDU suitable for continuous outdoor use?

The product is designed for mobile and outdoor power applications. However, it should be operated according to the product rating and environmental requirements. Avoid exposure to extreme weather conditions, water immersion, or usage beyond the rated electrical specifications.

Q9: What type of V2L connector does this product use?

This product uses a V2L connector input interface designed for connection with compatible electric vehicles supporting vehicle power output functionality.

The connector type and compatibility should be confirmed according to the specific EV model.

Q10: Does this V2L PDU support high-power equipment?

Yes. With a 20A maximum current rating, the PDU can support various medium-power devices within its rated capacity, including:

• Portable refrigerators

• Camping equipment

• LED lighting systems

• Small power tools

• Outdoor entertainment equipment

High-power devices exceeding the rated capacity should not be connected.
