Product Overview
1. Product Positioning

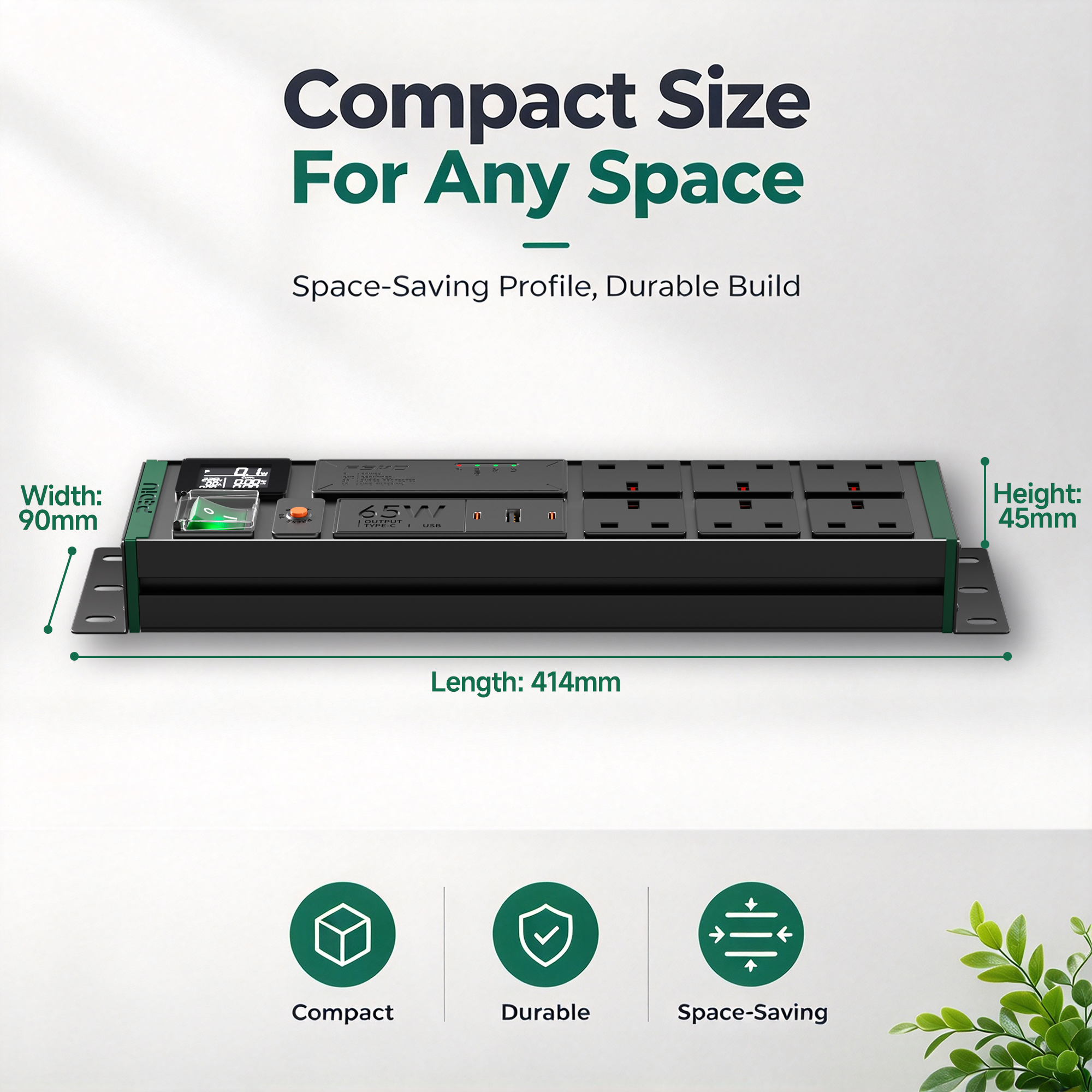

The 2U CN Series UK PDU is a multifunctional power distribution, protection, monitoring and charging solution designed for UK office, commercial, workstation and equipment power applications. It features a 6063-T5 aluminium alloy housing, high-strength PC side cover and eco-friendly powder-coated finish, combined with a compact 2U profile for organised power management.

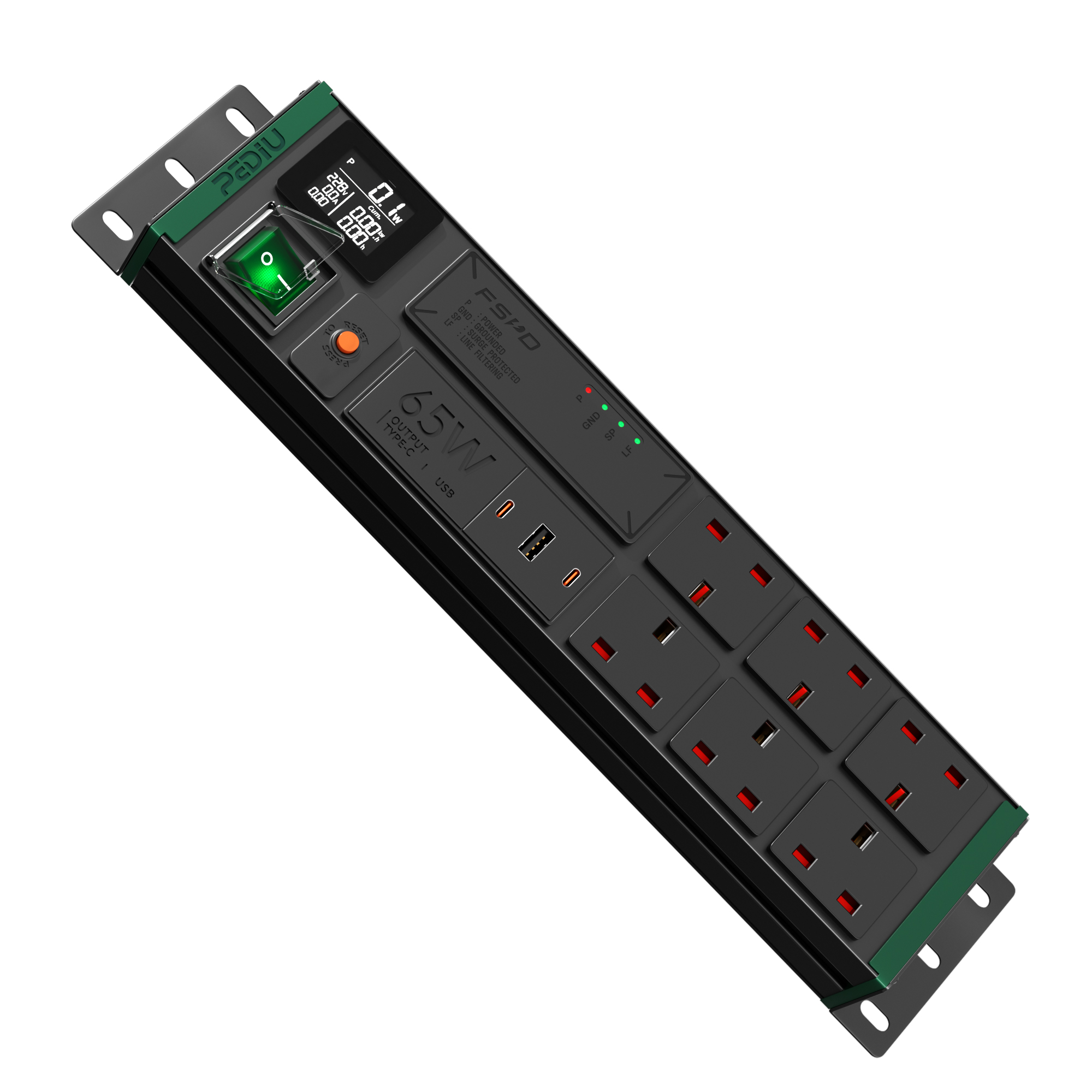

The PDU provides 6 BS 1363-2 UK socket outlets, a green double-pole switch with protective cover, an overload protection device, filtered surge protection, full display metering, and 65W USB-C PD fast charging. With a 250V AC / 13A Max rating, 2 m power cord and left-side cable entry, it integrates AC power distribution, electrical protection, metering and USB-C charging into one compact unit.
2. Application Scenarios
Office Workstations and Desks
Executive Desks
Commercial Offices
Conference Rooms and Meeting Spaces
Home Office Workstations
Coworking Spaces
Educational Facilities
Commercial Furniture
Professional Equipment Power Distribution
Desktop Charging Applications
Office and AV Equipment
Equipment Power Management

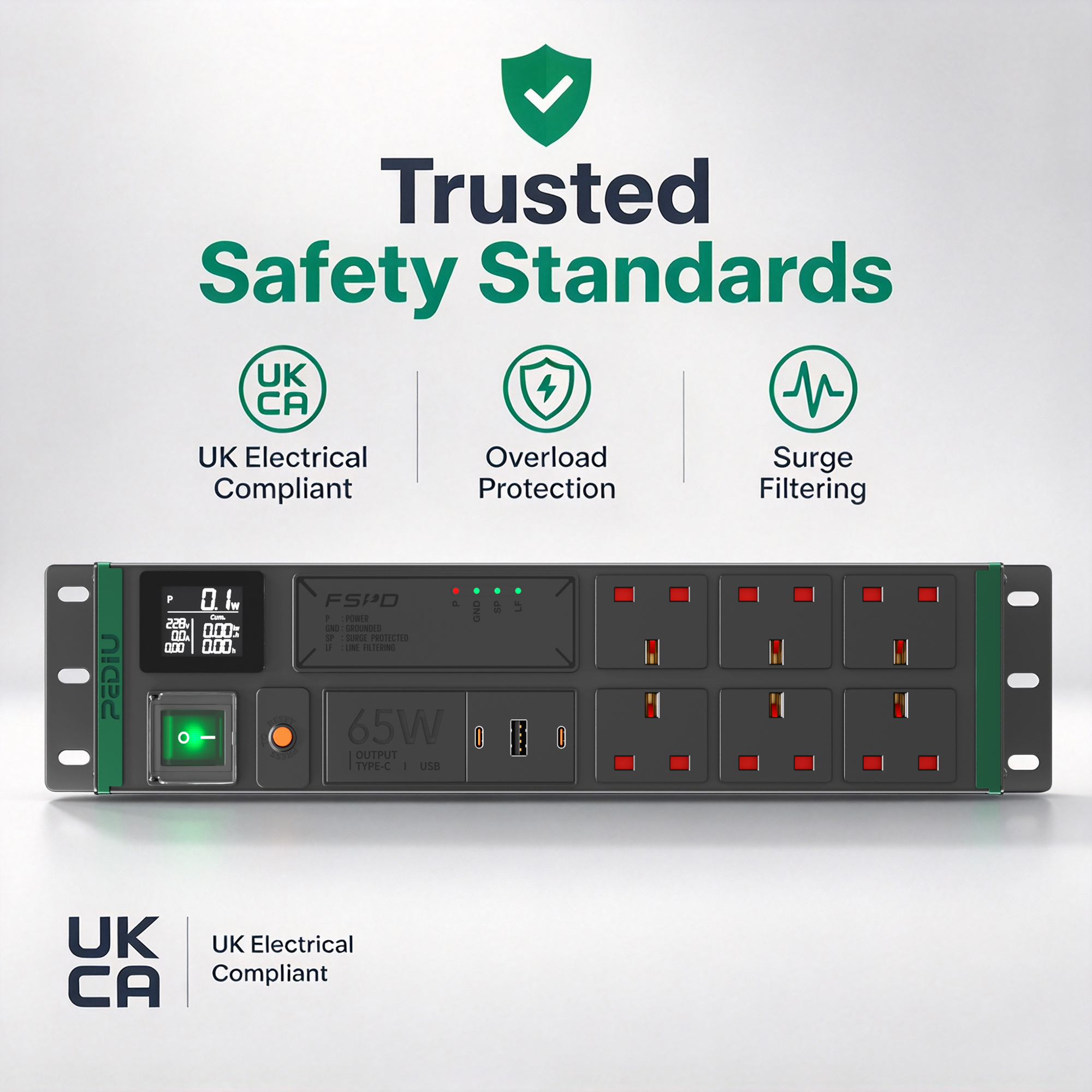

3. Safety & Reliability
Overload Protection
The PDU incorporates an overload protection device. The total connected AC load must remain within the 13A maximum rated current and must not exceed the product's rated capacity.
Filtered Surge Protection
The integrated filtered surge protection combines filtering and surge protection functions to provide an additional layer of protection for connected equipment against applicable electrical disturbances and surge events.
Full Display Metering
The integrated full display metering provides a clear display interface for monitoring the electrical parameters supported by the product, helping users view relevant electrical information during operation.
65W USB-C PD Fast Charging
The integrated 65W USB-C PD fast charging function provides a high-power charging interface for compatible USB-C devices. Actual charging performance depends on the connected device, charging protocol and power requirements.
UK Standard Socket Configuration
The PDU provides 6 BS 1363-2 UK socket outlets, supporting compatible electrical equipment using the UK socket standard.
Double-Pole Switching
The green double-pole switch with protective cover provides a convenient power switching interface, while the cover helps protect the switch during normal use.
Aluminium Alloy Housing
The 6063-T5 aluminium alloy housing provides a robust enclosure structure for professional power distribution applications. The eco-friendly powder-coated finish provides a consistent and clean appearance.
Secure Internal Assembly
Internal wiring is securely fastened and properly insulated, while electrical connections are securely terminated. Finished products are inspected before delivery according to applicable inspection requirements.
Safety & Documentation
The product documentation includes the applicable technical documentation and Declaration of Conformity as required. The product must be properly earthed before use and must not be operated beyond its rated capacity.
4. OEM & ODM Support
For customers requiring customised PDU solutions, OEM and ODM services can be developed according to specific application and project requirements. Customisation options may include:
Housing dimensions and structural design
Housing and side-cover colours
UK socket quantity and configuration
Plug type and electrical configuration
Power cord specification and length
Switch type and configuration
USB-C PD charging power
Surge and filtering configuration
Overload protection configuration
Metering function and display configuration
Cable-entry position
Product appearance and surface finish
Packaging and product identification
Technical drawings and documentation
