Key Advantages & Features

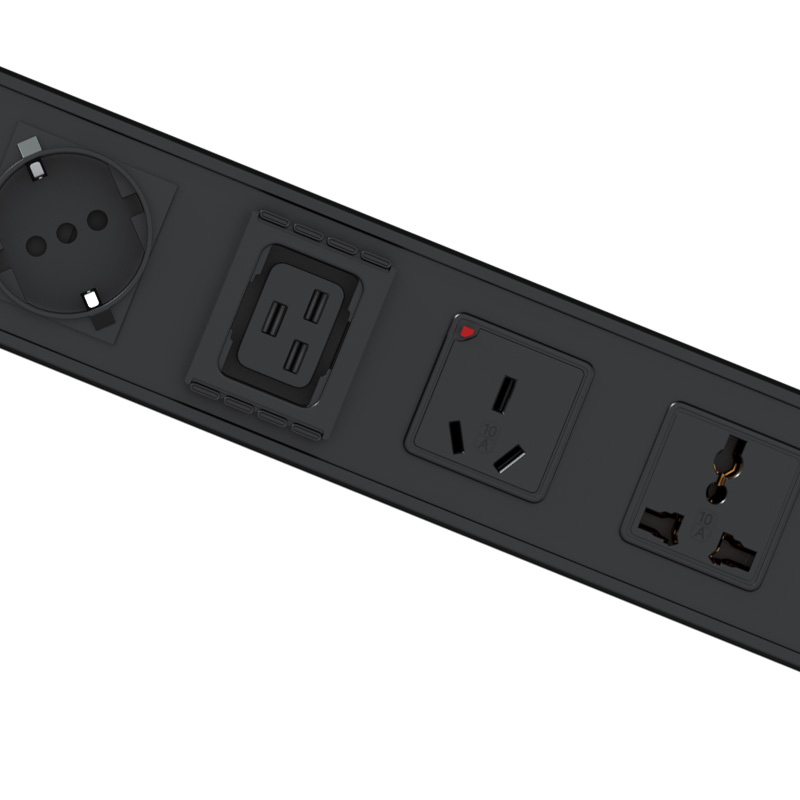

1. Comprehensive Global Outlet Coverage for Testing

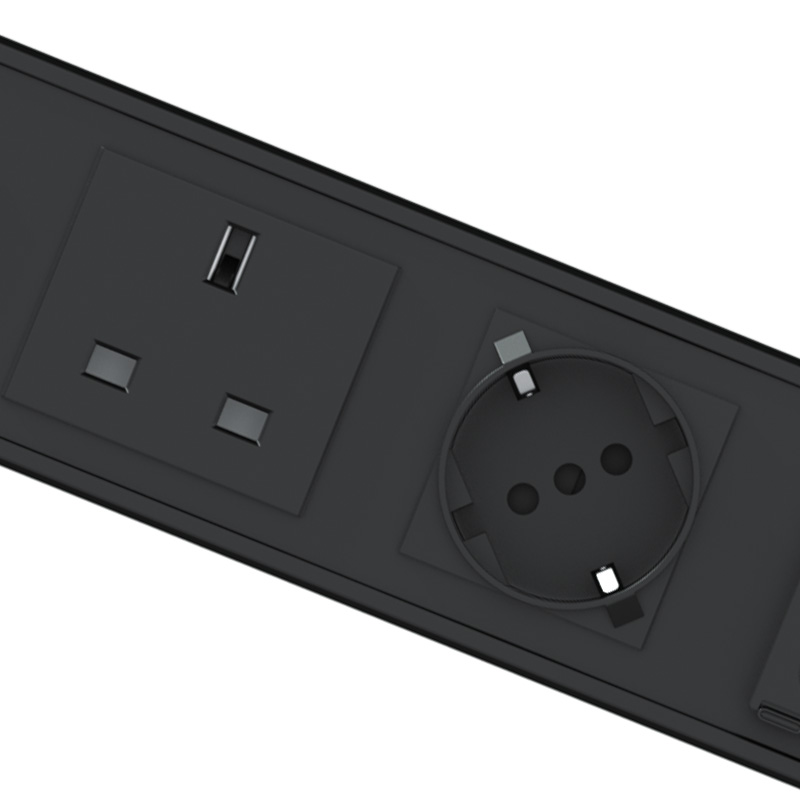

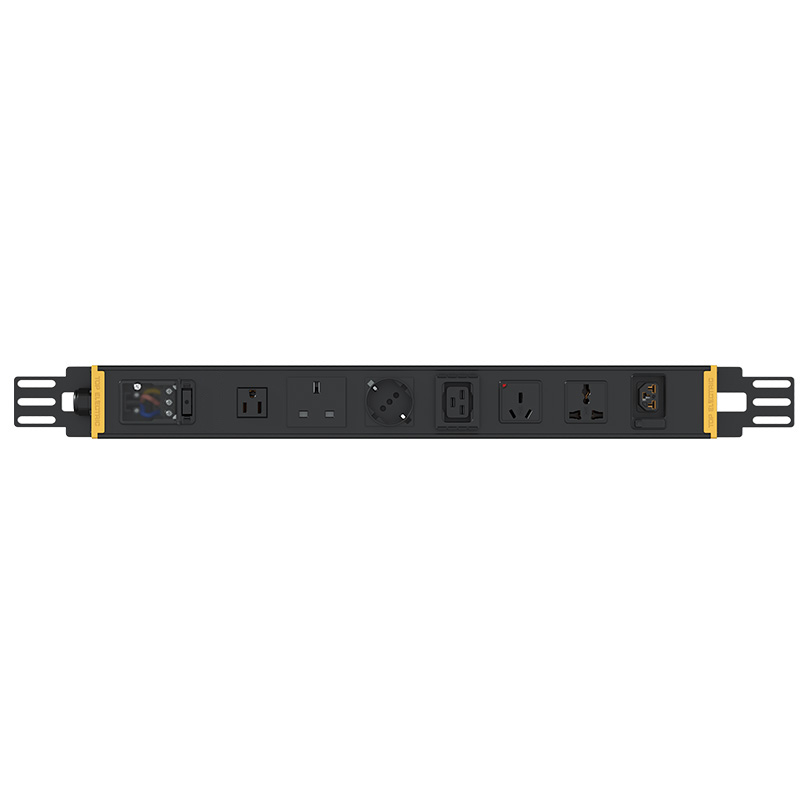

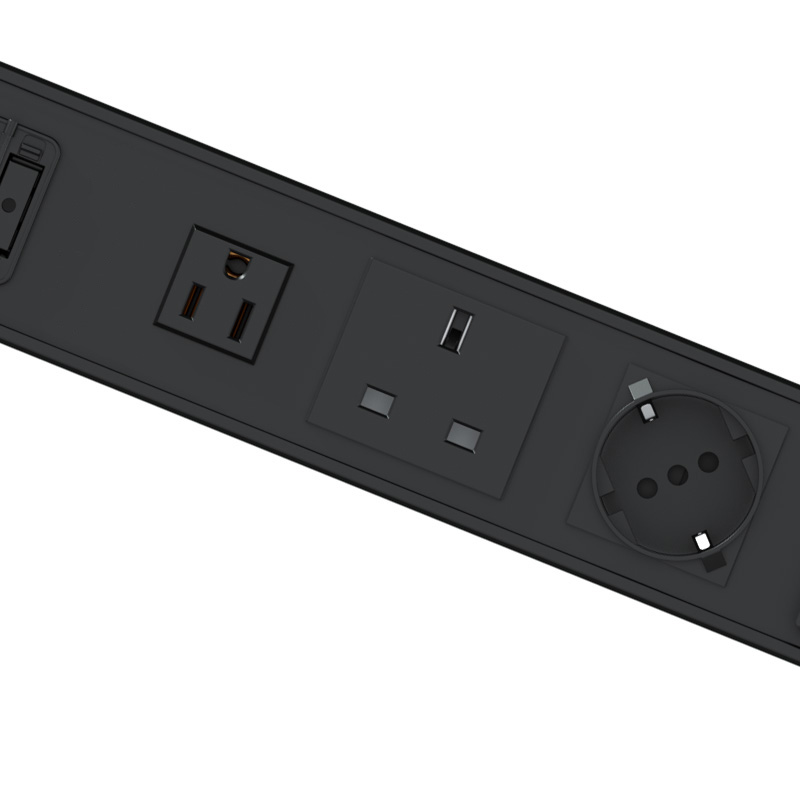

Boasting 7 distinct outlets (US/UK/German/universal/C19/10A Chinese/anti-drop C13), this PDU supports testing of nearly all mainstream plug types worldwide. The anti-drop C13 jack adds stability for long-duration tests, eliminating the need for multiple test PDUs and streamlining plug validation workflows.
2. 20KA Hot-Swappable Surge Protection for Test Safety
The 20KA-rated surge module shields test equipment and DUTs (Devices Under Test) from voltage spikes during plug testing. It supports hot swapping—replace the module without powering down the PDU—to avoid interrupting critical testing cycles and ensure accurate, uninterrupted results.

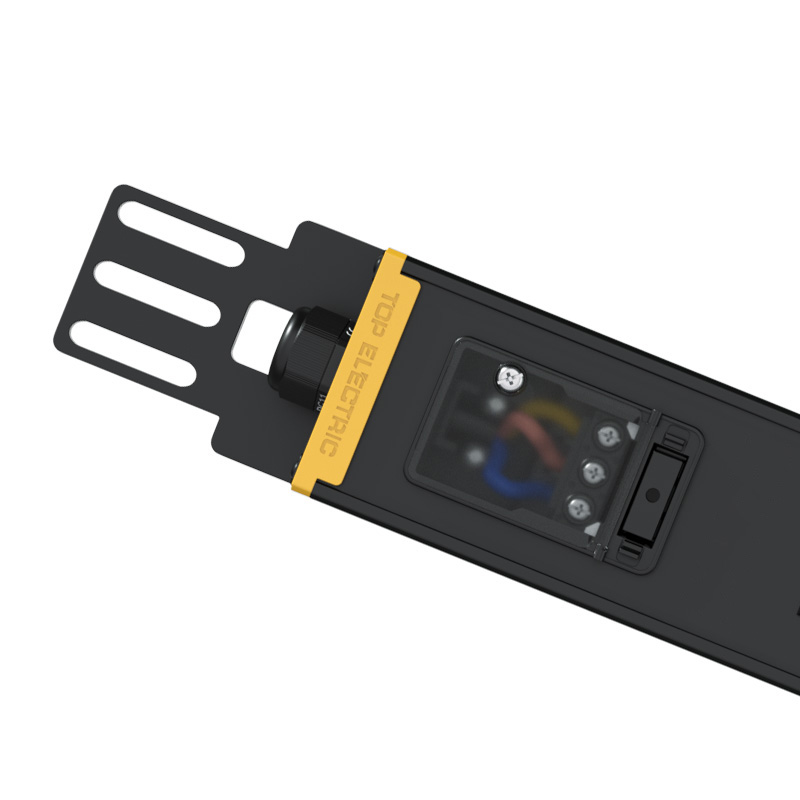

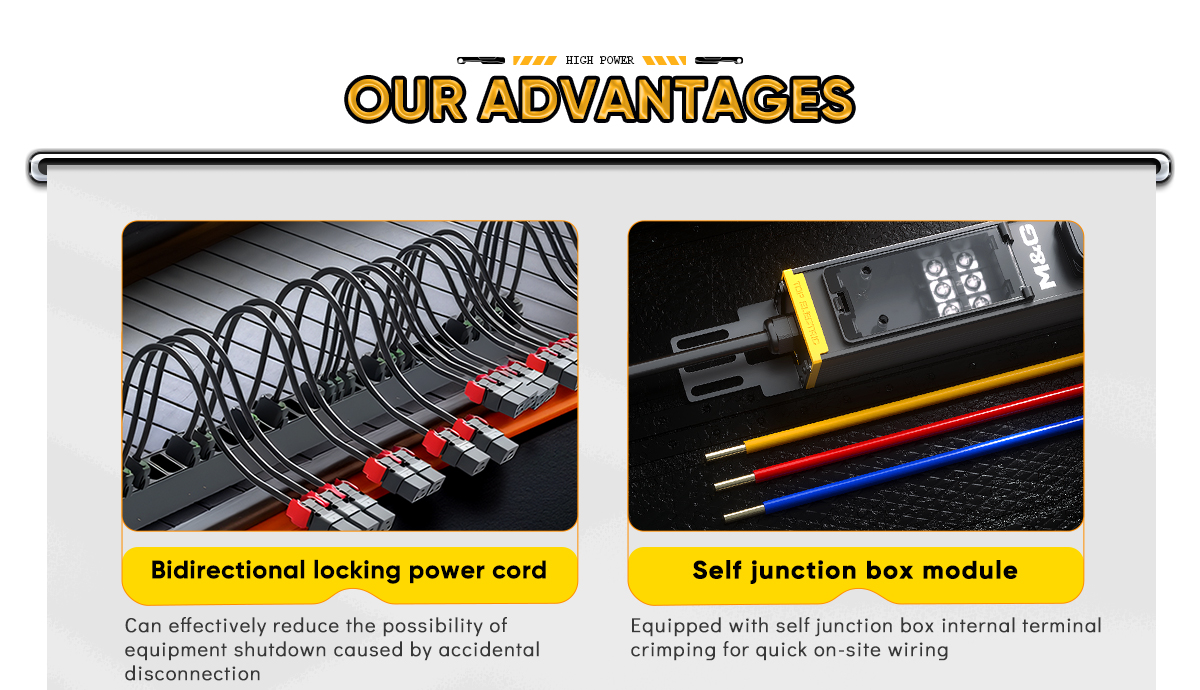

3. OT Junction Box for Flexible Test Setup
The OT junction box enables quick, customizable wiring to 250V 16A power supplies. Its labeled, corrosion-resistant terminals simplify adjustments to test parameters (e.g., voltage input), making it ideal for lab environments where frequent setup changes are required for diverse plug tests.
4. Hot-Swappable Power Indicators for Real-Time Monitoring
The detachable power indicator module supports hot swapping, allowing maintenance without halting tests. Bright LEDs display real-time power status, enabling instant detection of anomalies (e.g., voltage drops) that could skew plug test accuracy and compromise results.

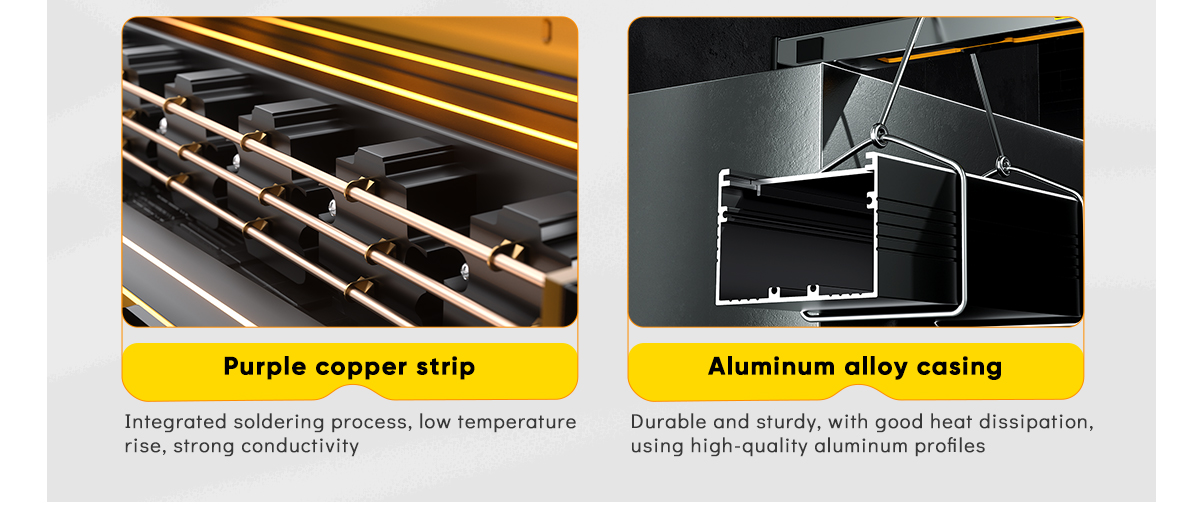

5. 1.5-Square Welded Copper Bars for Stable Testing
1.5-square high-conductivity copper bars, joined via precision welding, minimize resistance and heat buildup. Even at full 16A load, they deliver consistent power output—critical for accurate plug performance testing, as voltage fluctuations can invalidate test data.
Product Uses
1. Electrical Plug Test Labs
Enables comprehensive validation of global plug types (US/UK/Chinese/C13/C19 etc.), with surge protection ensuring test accuracy and stable power for precision measuring equipment.
2. Electronics Manufacturing QC Departments
Tests plugs for finished products (e.g., chargers, servers) across global markets, with diverse outlets covering regional standards and anti-drop C13 for rugged production-line testing.
3. Appliance Certification Centers
Supports compliance testing for household/industrial appliances, verifying plug compatibility with international power grids and meeting certification standards for global sales.
4. R&D Labs for Power Devices
Facilitates prototype plug testing for new electrical products, with flexible OT wiring adapting to custom test setups and real-time indicators tracking power performance.






Q1: What's the total power capacity and max load per outlet?
A1: Rated 250V 16A (4000W total). Each outlet supports its rated current (e.g., 10A for Chinese/16A for C19), with total load capped at 16A to avoid overloads.

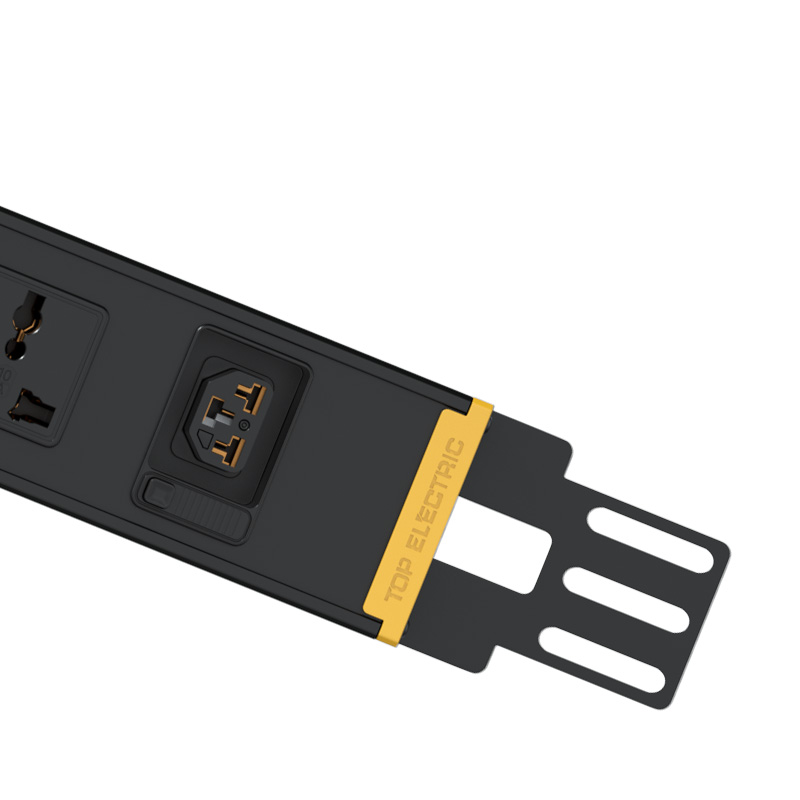

Q2: Can the anti-drop C13 jack be used for standard C13 plug testing?
A2: Yes, the anti-drop latch secures C13 plugs during long-duration tests but can be easily released for plug removal, making it suitable for all C13 plug validation.
Q3: How to replace the 20KA surge module during testing?
A3: Hot swapping is supported-unclip the old module and snap in a new one without powering down the PDU, ensuring no disruption to ongoing plug tests.
Q4: Is the PDU compatible with 220V grids for global test labs?
A4: Yes, it works seamlessly with 220-250V single-phase grids, matching standard voltages in most countries and supporting international plug testing workflows.
