（DMCN-2UT-E5-6KG-1.5p2m-YB13A)-Red
PEDIU
PE20260828-331

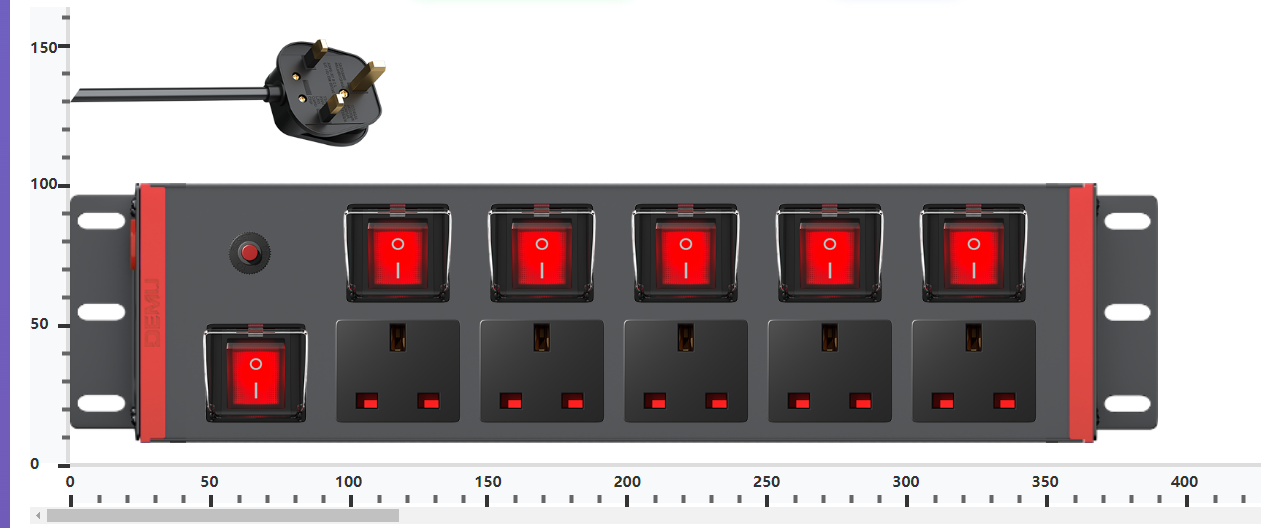

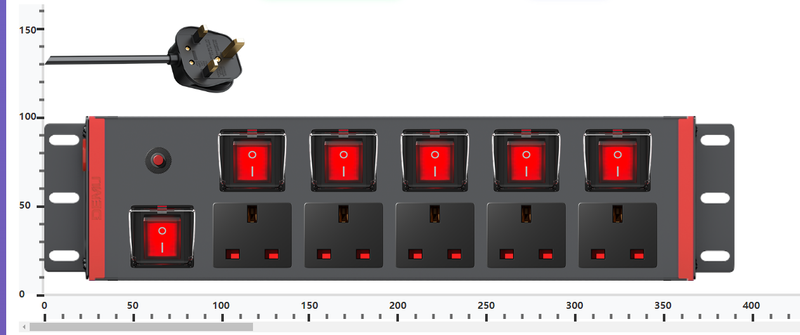

The 2U CN Series Aluminium PDU Power Strip is designed to provide reliable power distribution for UK residential, commercial and indoor applications. Featuring a durable 6063-T5 aluminium alloy housing with a high-strength PC side cover, this PDU combines a robust structure with a clean and professional appearance.
Rated at 250V AC, 13A Max and 50Hz, the PDU is equipped with a BS 1363-1 13A UK plug and five BS 1363-2 UK socket outlets, providing convenient power distribution for multiple compatible electrical devices. The product also incorporates red double-pole switches with protective covers and an overload protection device for convenient power control and added electrical protection.
The 2U CN Series profile features a 45mm profile height and a left-side cable entry for organised installation. The black aluminium housing is finished with an eco-friendly powder coating, complemented by red high-strength PC side covers for a distinctive appearance.
Designed in accordance with applicable UK electrical safety requirements and UKCA conformity requirements, this PDU is suitable for a wide range of indoor power distribution applications where durable construction, UK socket compatibility and practical power control are required.
The 2U Aluminium PDU is suitable for a variety of indoor UK power distribution applications, including:
Home and residential power distribution
Home offices and desktop workspaces
Commercial offices and workstations
Meeting rooms and conference areas
Hotels and hospitality environments
Educational facilities
Entertainment and AV areas
Commercial and general indoor electrical equipment
Its five UK socket outlets and compact 2U profile make it suitable for applications requiring multiple power connections within a practical and organised installation space.
We provide OEM and ODM customisation services for PDU products to meet different application and project requirements. Customisation options may include outlet configuration, plug type, cable length, switch configuration, housing colour, side cover colour, surface finish, cable entry position, product dimensions, mounting solutions, logo and product packaging.
Our engineering and manufacturing capabilities support customised PDU solutions based on customers' electrical, structural, functional and appearance requirements. From product specification confirmation and sample development to production and quality control, we provide professional support throughout the product development process.
The PDU is manufactured using specified electrical and mechanical materials and components. Internal wiring is securely fastened and properly insulated, while all electrical connections are securely terminated. Finished products are inspected before delivery, including applicable dimensional, visual, assembly and electrical safety checks.
The product is designed to comply with applicable UK electrical safety requirements and relevant product regulations, as well as applicable UKCA conformity assessment requirements for the Great Britain market. UKCA marking and the applicable Declaration of Conformity are maintained where required.
For safe operation, the PDU must be properly earthed before use and must not be overloaded beyond its rated capacity.
We provide a one-year limited warranty for this aluminium PDU series.
During the warranty period, free repair service is available for confirmed quality-related issues. Customers may return defective products for inspection and repair in accordance with the applicable warranty terms.
Constructed with a 6063-T5 aluminium alloy main housing and high-strength PC side covers, this 2U CN Series PDU combines a robust enclosure with a practical design for everyday power distribution. The black powder-coated finish and red side covers give the unit a distinctive appearance.
Fitted with five BS 1363-2 UK socket outlets, this PDU provides convenient power access for multiple compatible devices from a single unit. It is designed for applications requiring UK-standard socket connections.
The PDU features a BS 1363-1 13A UK plug and is rated for 250V AC, 13A maximum and 50Hz operation. This configuration is intended for compatible UK electrical applications. The total connected load must remain within the product’s rated capacity.
The unit is equipped with six red double-pole switches with covers, providing individual switching controls for the configured circuits. The covered switch design helps protect the switch operating area during normal use.
Built-in overload protection helps protect the PDU against excessive connected loads. Users should always check the combined power demand of connected equipment and avoid exceeding the maximum rated current of 13A.
The 2U CN Series profile, with a specified profile height of 45mm, provides a practical form factor for installations designed around this product series. The unit is assembled in accordance with the approved product drawing.
The left-side cable entry and 2m, 1.5mm² three-core power cord support the specified connection arrangement, helping accommodate installations where the power cable needs to enter from the left.
Internal conductors are required to be securely fastened and appropriately insulated, with electrical connections reliably terminated. Components are kept clean before assembly, supporting consistent assembly quality.
The product is designed with applicable UK electrical safety and product requirements in mind. UKCA conformity assessment, marking and supporting documentation are addressed where applicable. Finished units are inspected before dispatch, including relevant dimensional, visual, assembly and electrical safety checks.
The powder-coated aluminium surface is intended to provide a consistent black finish, complemented by red PC side covers. Finished surfaces are checked for visible defects, and the product is protected during handling, packaging and transport.
With five UK socket outlets, covered double-pole switches and overload protection, this PDU is suited to compatible indoor power distribution applications where controlled access to multiple UK-standard outlets is required. Correct earthing must be ensured before use.
Specification | Details |
|---|---|
Product Name | UK 5-Outlet 2U Aluminum PDU with Double-Pole Switches |
Product Category | Power Distribution Unit (PDU) |
Main Housing Material | 6063-T5 Aluminum Alloy |
Side Cover Material | High-Strength PC |
Surface Finish | Powder Coating |
Main Housing Color | Black |
Side Cover Color | Red |
Profile | 2U CN Series |
Profile Height | 45 mm |
Rated Voltage | 250V AC |
Rated Current | 13A Max. |
Rated Frequency | 50Hz |
Plug Type | BS 1363-1, 13A UK Plug |
Outlet Type | BS 1363-2 UK Socket Outlet ×5 |
Switch Type | Red Double-Pole Switch with Cover ×6 |
Overload Protection | Overload Protection |
Power Cord | 1.5 mm², 3-Conductor, 2 m |
Cable Entry | Left Entry |
Dimensions | All dimensions are specified in millimetres; general tolerance ±0.5 mm unless otherwise noted. |
Electrical Safety | Internal conductors shall be securely fixed and appropriately insulated; all electrical connections shall be reliably terminated. |
Earthing | Proper Earthing Required |
Safety & Compliance | Designed to comply with applicable UK electrical safety requirements and relevant product regulations; applicable UKCA conformity assessment requirements for Great Britain. |
UKCA Marking | UKCA marking shall be applied where required by applicable regulations. |
Yes. This 2U CN Series PDU is designed for applications using a 250V AC, 13A maximum UK power supply. It features a BS 1363-1 13A UK plug and five BS 1363-2 UK socket outlets.
The PDU has five UK socket outlets. The total connected load must remain within the maximum rated current of 13A. Always check the power requirements of your connected devices before use.
The PDU is rated at 250V AC, 13A maximum and 50Hz. Do not exceed these ratings when connecting electrical equipment.
Yes. This model includes overload protection. However, it must still be operated within its 13A maximum rating. Overload protection does not mean the PDU can safely support loads above its rated capacity.
The PDU is equipped with six red covered double-pole switches, as specified. Double-pole switching is designed to switch both live and neutral conductors. Use the switches according to the product instructions.
It may be used in suitable home and office applications where the connected equipment is compatible with the UK socket standard and the PDU’s 13A maximum rating. Always confirm the requirements of the equipment before connecting it.
Only if the appliance’s electrical requirements are compatible with the PDU and the combined load remains within 13A. Appliances that would cause the total load to exceed the rating must not be connected.
This model uses a BS 1363-1 13A UK plug and five BS 1363-2 UK socket outlets.
The PDU comes with a 2m power cord made from 1.5 mm², 3-core cable.
Yes. The product must be correctly earthed before use. Do not use it if the earthing connection is missing, damaged or uncertain.
