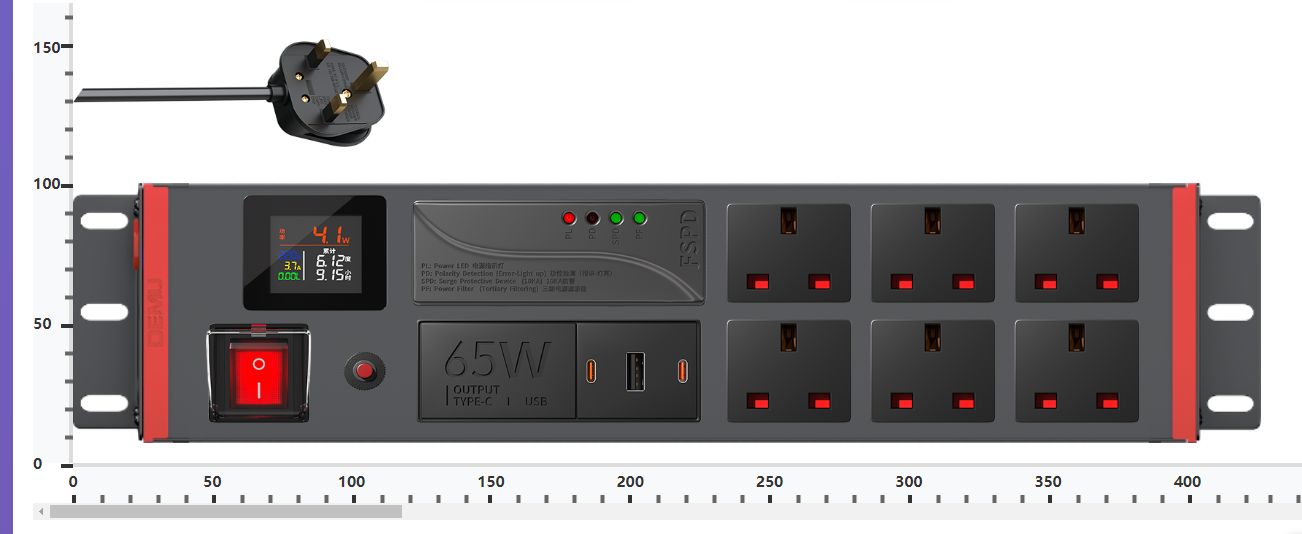

This 2U UK Power Distribution Unit is designed to provide safe, efficient, and intelligent power management for home, office, and commercial environments. Featuring a durable 6063-T5 aluminum alloy housing with eco-friendly powder coating and a red side cover design, it combines reliable performance with a modern appearance.
Equipped with 6 BS 1363 UK socket outlets, overload protection, filtered surge protection, full display metering, and 65W USB-C PD fast charging, this PDU delivers comprehensive power distribution and device charging capabilities. Supporting 250V AC and 13A maximum current, it is suitable for computers, home appliances, entertainment systems, and other electronic equipment. The product adopts a compact 2U structure, secure internal wiring design, and complies with applicable UK electrical safety requirements, providing a reliable power solution for various indoor applications.
| Availability: | |
|---|---|
| Quantity: | |
(DMCN-2UT-E6-KGFdJqUt65-1.5p2m-YB13A)-Red
PEDIU
PE20260828-336
The 2U CN Series Black Aluminum UK PDU is a professional power distribution solution designed for modern office workstations, conference tables, commercial furniture, and other indoor applications requiring reliable UK-standard power access and integrated power management.
The PDU features a durable 6063-T5 aluminum alloy housing with an eco-friendly black powder-coated finish and high-strength red PC side covers. This construction provides a professional appearance and durable enclosure for daily use.
With a compact 2U CN Series profile and 45 mm profile height, the PDU is suitable for applications where a compact and organised power distribution solution is required. The left-side cable entry helps support cleaner cable routing.
The electrical configuration includes 6 × BS 1363-2 UK socket outlets, a BS 1363-1 13A UK plug, a red double-pole switch with cover, overload protection, filtered surge protection, full display metering, and 65W USB-C PD fast charging. The rated capacity is 250V AC, 13A Max, 50Hz.
The integrated USB-C PD charging function provides up to 65W charging power for compatible devices, while the metering function provides a convenient way to monitor electrical parameters through the integrated display.
The 2U CN Series UK PDU is suitable for indoor applications requiring multiple UK socket outlets, device charging, electrical protection, and power monitoring.
Typical applications include:
Office Workstations
Executive Desks
Conference Tables
Meeting Rooms
Training Tables
Commercial Office Furniture
Smart Office Furniture
Home Office Workspaces
Audio-Visual Equipment Areas
Educational Facilities
Coworking Spaces
Hotel Furniture
Commercial Projects
The PDU is designed with consideration of applicable UK electrical safety requirements and product requirements. Its internal wiring is securely fastened and properly insulated, while electrical connections are securely terminated during assembly.
The product incorporates overload protection and filtered surge protection to support safer operation of connected equipment. The integrated grounding system must be properly connected before use.
Finished products are inspected before delivery, with applicable dimensional, visual, assembly, and electrical safety checks performed according to the defined inspection requirements.
For safe operation:
Do not exceed the 13A maximum rated current.
Ensure the product is properly earthed before use.
Do not operate the PDU beyond its rated electrical capacity.
Follow the approved product drawing and applicable installation requirements.
We provide OEM and ODM support for customers requiring customised UK PDU solutions. Product development can be evaluated according to specific electrical configurations, installation requirements, functional requirements, appearance specifications, and project requirements.
Potential customisation options include:
Housing dimensions and structural design
Socket outlet quantity and arrangement
Plug and power cord specifications
Protection module configuration
Metering functions
USB-C charging specifications
Housing colour and surface finish
Logo and product marking
Packaging requirements
All customised solutions are subject to technical evaluation and confirmation before production.
We provide a one-year limited warranty for this aluminum desktop PDU series.
During the warranty period, free repair service is available for confirmed quality-related issues. Customers may return defective products for inspection and repair according to warranty terms.
Equipped with 6 BS 1363-2 UK socket outlets, this PDU provides convenient power distribution for multiple compatible electrical devices. The multi-outlet design helps reduce the need for separate power strips and supports a more organised desktop or equipment setup.
The integrated 65W USB-C PD fast-charging module provides high-power charging for compatible laptops, tablets, smartphones and other USB-C devices. By integrating charging directly into the PDU, users can reduce the need for additional charging adapters on the desktop.
The PDU integrates filtered surge protection, combining surge protection with power filtering to provide an additional layer of protection for connected equipment. This design is suitable for applications where cleaner and better-managed power is required.
The built-in full display metering module with a white display provides visible electrical information during operation. It allows users to monitor the PDU's operating status and connected load conditions more conveniently.
A red double-pole switch with cover provides a clearly identifiable main switching interface. The protective cover helps reduce accidental operation while the red switch creates a distinct visual control point.
The integrated overload protection device helps protect the PDU under overload conditions. The unit should always be operated within its specified 250V AC and 13A maximum rated capacity.
The main housing is manufactured from 6063-T5 aluminium alloy, providing a strong and durable enclosure for the internal electrical components. High-strength PC side covers complement the aluminium structure and provide additional mechanical protection.
The aluminium housing features an eco-friendly powder-coated black finish, complemented by red high-strength PC side covers. The contrasting colour combination gives the PDU a distinctive and professional appearance.
Built around a 2U CN Series profile with a specified profile height of 45mm, this PDU provides a structured form factor for professional power distribution applications. Its aluminium profile construction combines practical dimensions with a robust enclosure design.
The left-side cable entry is paired with a 2m, 1.5mm² three-conductor power cord, providing a practical connection configuration for indoor installations and helping users plan cable routing more efficiently.
Internal wiring is securely fastened and properly insulated, while electrical connections are securely terminated according to the product assembly requirements. These measures support consistent construction and reliable electrical connections.
With multiple UK outlets, 65W USB-C PD charging, filtered surge protection and full display metering, this PDU is suitable for a variety of indoor applications, including:
Home office workstations
Computer and laptop setups
Gaming desks
Meeting and conference areas
Audio and video equipment
Professional desktop workstations
Indoor electronic equipment environments
Each finished product is inspected before delivery, including applicable dimensional, visual, assembly and electrical safety checks. The finished surface is also protected during handling, packaging and transportation to help maintain product appearance.
Specification | Details |
|---|---|
Product Category | Power Distribution Unit (PDU) |
Main Housing Material | 6063-T5 Aluminum Alloy |
Side Cover Material | High-Strength PC |
Surface Finish | Eco-Friendly Powder Coating |
Main Housing Color | Black |
Side Cover Color | Red |
Profile | 2U CN Series |
Profile Height | 45 mm |
Rated Voltage | 250V AC |
Rated Current | 13A Max. |
Rated Frequency | 50Hz |
Plug Type | BS 1363-1, 13A UK Plug |
Outlet Type | BS 1363-2 UK Socket Outlet ×6 |
Switch Type | Red Double-Pole Switch with Cover ×1 |
Overload Protection | Overload Protection Device |
Surge Protection | Filtered Surge Protection |
Metering Function | Full Display Metering (White) |
Charging Function | USB-C PD Fast Charging 65W |
Power Cord | 1.5 mm², 3-Conductor, 2 m |
Cable Entry | Left Entry |
Internal Wiring | Internal wiring shall be securely fastened and properly insulated. |
Electrical Connections | All electrical connections shall be securely terminated. |
Safety Requirements | Overloading beyond the rated capacity is prohibited. Proper earthing is required before use. |
This 2U CN Series PDU combines six UK socket outlets with overload protection, filtered surge protection, full display metering and 65W USB-C PD fast charging. It provides a more integrated power distribution and device charging solution than a basic power strip.
Yes. The PDU combines overload protection with filtered surge protection to provide an additional layer of protection for connected equipment. It should still be operated within its rated capacity and according to applicable electrical safety requirements.
Yes. This model features a white full-display metering module, providing visible electrical information directly from the PDU and making power management more convenient.
Yes. Six UK socket outlets, 65W USB-C PD charging, metering and protection functions make it suitable for workstations where several electrical and electronic devices need to be powered from one central point.
The 6063-T5 aluminium alloy housing provides a durable structural enclosure with a professional appearance. The eco-friendly powder-coated finish also gives the product a clean and consistent surface finish.
Yes. Its multi-outlet design, metering display, USB-C PD charging and electrical protection functions make it suitable for professional workstations, offices, meeting areas and other indoor applications.
The product must not be operated beyond its 13A maximum rated current. The built-in overload protection provides an additional safety function, but users must not intentionally exceed the rated capacity.
Q17. Can this PDU be customised for furniture or commercial projects?
Yes. OEM and ODM requirements can be discussed for suitable projects. Depending on technical feasibility, customisation may cover product configuration, appearance and functional requirements.
