The 1+1U Black Aluminum Rackmount PDU Power Strip is a high-reliability power distribution solution designed for server racks, networking equipment, and professional IT power management environments. Featuring a durable 6063-T5 aluminum alloy housing with an eco-friendly powder-coated finish, it provides excellent structural strength, durability, and efficient heat dissipation.
Supporting 125V AC / 15A power distribution, the PDU is equipped with a NEMA 5-15P input plug and provides seven NEMA 5-15R outlets and two IEC C13 outlets for servers, networking equipment, communication devices, and rack-mounted electronics. The front panel integrates a red double-pole power switch, overload protection, and filtered surge protective device to enhance equipment safety and reduce power interference.
With a 1+1U CN series rackmount design and rear cable entry configuration, this PDU improves rack space utilization and cable management efficiency. Complying with ETL safety requirements, it supports OEM/ODM customization for outlet configurations, protection functions, cable specifications, and structural designs.
| Cord Length: | |
|---|---|
| Availability: | |
| Quantity: | |
DMCN-1+1U-U7C2-KGVe-2.08p3m-MB15A
PEDIU
This 1+1U Aluminum PDU Power Strip is a professional power distribution solution designed for reliable power management in IT equipment, server environments, commercial facilities, and industrial applications.
Featuring a durable 6063-T5 aluminum alloy housing, compact 1+1U profile design, integrated overload protection, filtered surge protection, and multiple outlet configurations, this PDU provides safe and organized power distribution for various electronic and networking equipment.
Compared with traditional plastic power strips, this aluminum PDU delivers superior durability, improved heat dissipation, enhanced electrical protection, and a professional appearance suitable for equipment rooms, workstations, and technical environments.
Designed for professional environments requiring stable power distribution and equipment protection, this PDU provides reliable power access and improved cable management.
Suitable applications include:
Data Centers
Server Rooms
Network Cabinets
IT Equipment Racks
Communication Equipment Rooms
Industrial Control Systems
Security Monitoring Systems
Laboratory Equipment
Audio & Video Systems
Commercial Buildings
Office Workstations
Professional Equipment Installations

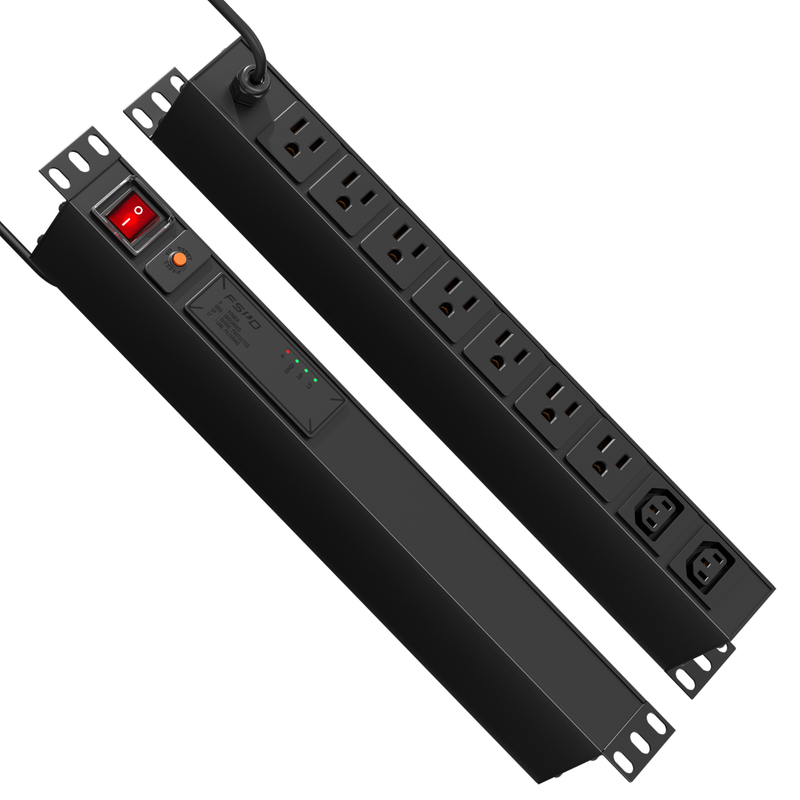

This PDU features a compact 1+1U structure with a 6063-T5 aluminum alloy main housing and high-strength PC side covers. The housing adopts an eco-friendly powder-coated black finish, providing excellent durability, corrosion resistance, and professional appearance.
The product supports 125V AC input with a maximum rated current of 15A. It is equipped with a NEMA 5-15P plug and a 14 AWG 3-conductor power cord with a 3-meter length.
The front panel integrates a red double-pole switch, overload protection, and filtered surge protection. The rear panel provides seven NEMA 5-15R outlets and two C13 outlets, supporting different types of equipment connections.

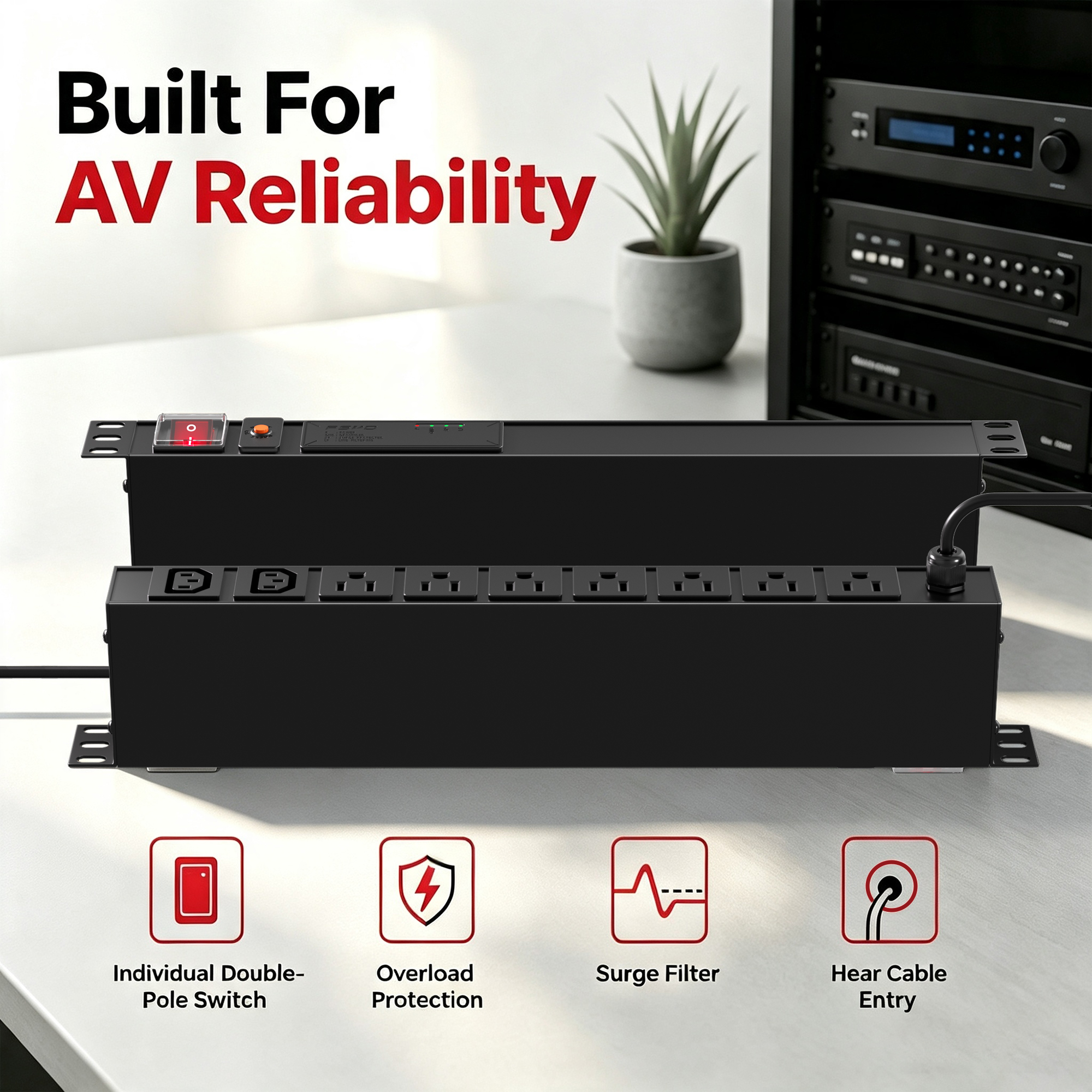

The PDU integrates multiple power management functions, including double-pole switching control, overload protection, and filtered surge protection.
The front double-pole switch provides convenient power control and clear operation indication. The overload protection function helps prevent excessive current conditions, while the filtered surge protection design helps reduce interference and protect connected equipment from unstable power conditions.
The combination of NEMA 5-15R outlets and C13 outlets provides flexible power distribution for both standard electronic devices and professional equipment.

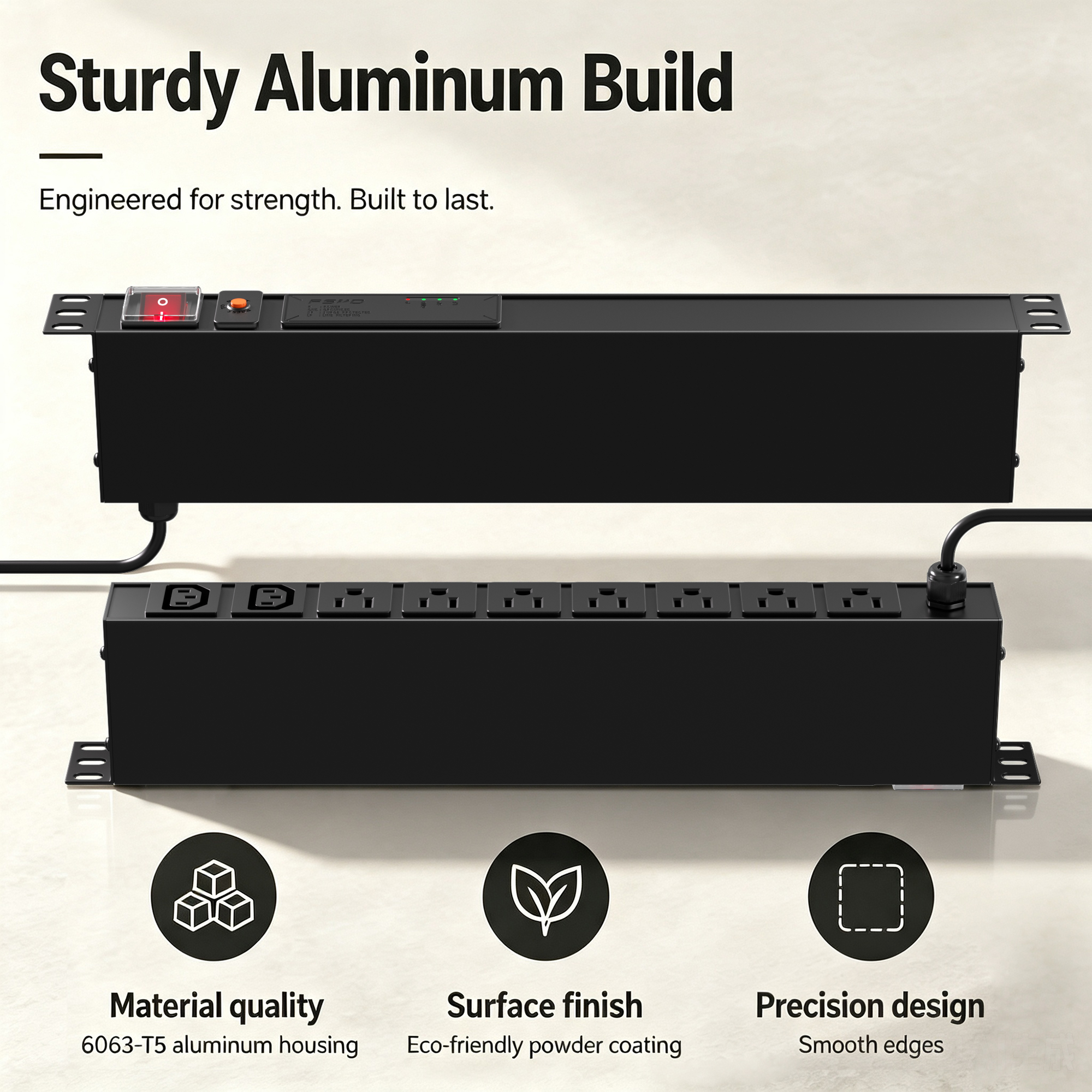

Constructed with 6063-T5 aluminum alloy, the housing provides excellent structural strength, durability, and heat dissipation.
Compared with traditional plastic power strips, the aluminum housing offers stronger mechanical protection and better long-term reliability in professional environments.
Integrated filtered surge protection helps protect connected equipment from voltage fluctuations and electrical interference.
Built-in overload protection provides additional safety during continuous operation and helps prevent damage caused by excessive current.
Equipped with seven NEMA 5-15R outlets and two C13 outlets, this PDU supports various equipment connections.
The mixed outlet configuration improves power management flexibility for IT equipment, office devices, and professional systems.

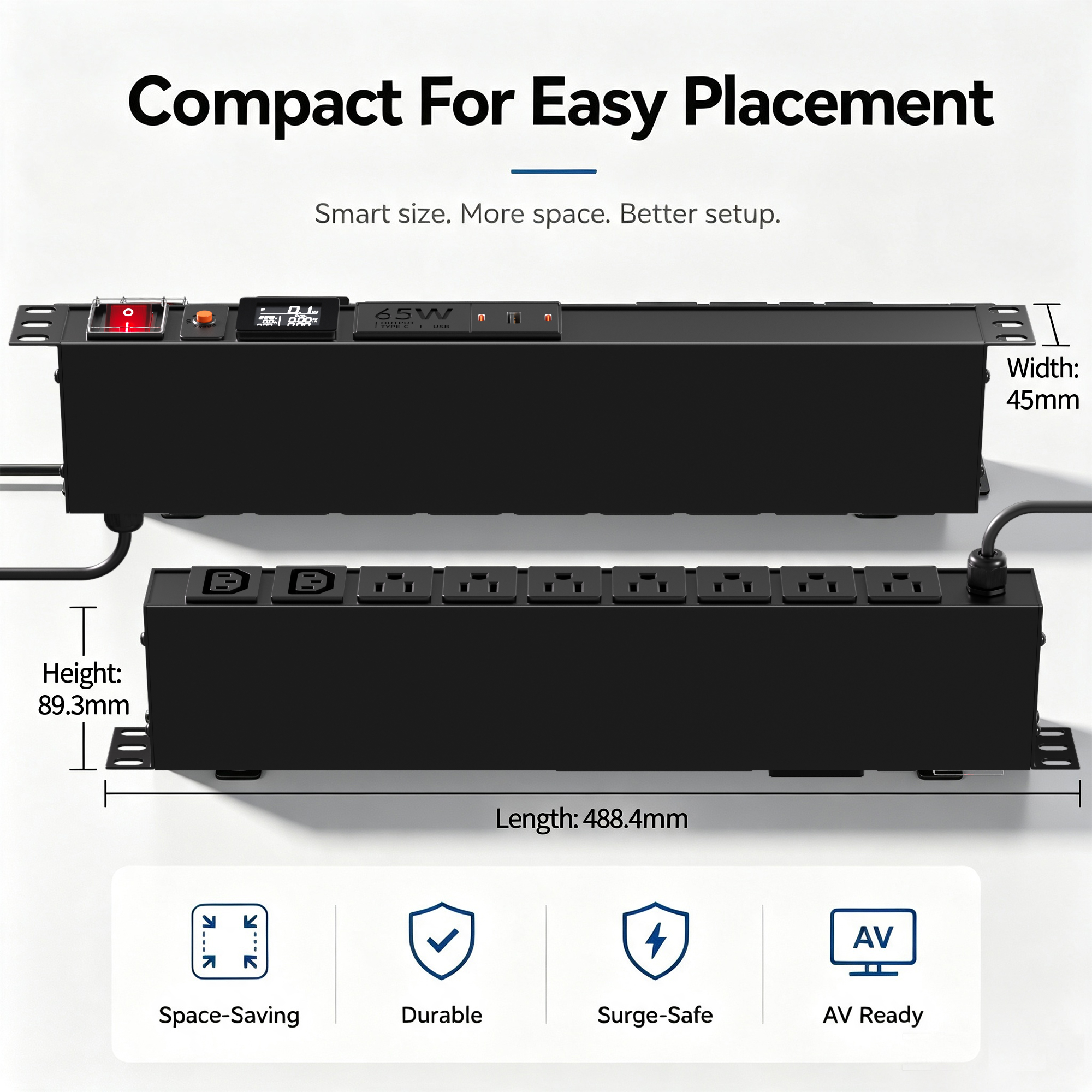

The compact 1+1U profile saves installation space while providing efficient power distribution.
Suitable for equipment racks, technical environments, and professional installations requiring organized power management.

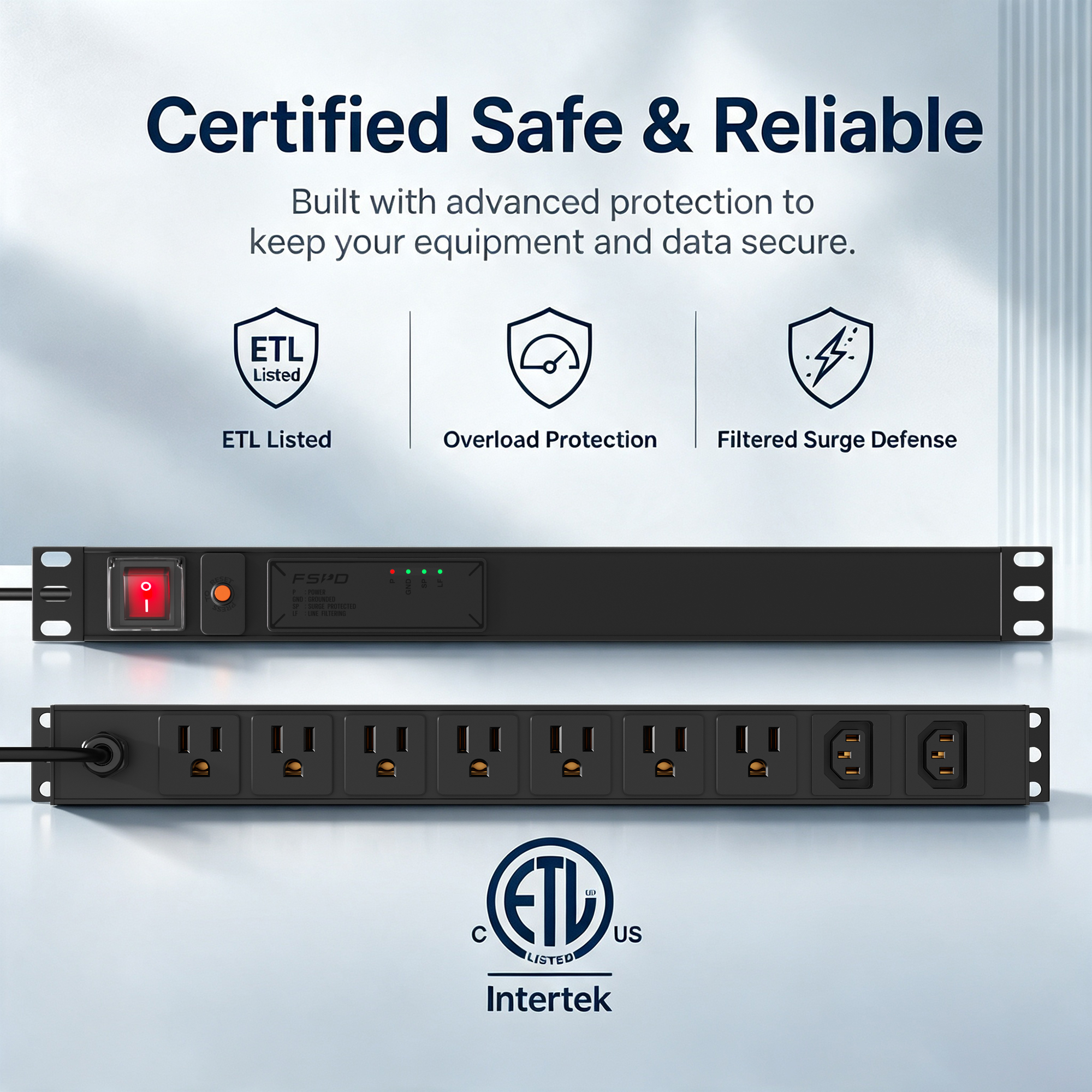

Designed to comply with ETL electrical safety requirements, this PDU ensures reliable operation and long-term safety performance.
All finished products undergo inspection before shipment, including grounding tests and electrical safety checks.
Featuring a black aluminum alloy housing with an eco-friendly powder-coated finish, this PDU combines professional aesthetics with excellent durability.
The clean black appearance makes it suitable for modern equipment rooms, commercial facilities, and professional technical environments.
The PDU supports horizontal installation and can be integrated into equipment racks, workstations, and professional power distribution systems.
The rear cable entry design helps optimize cable routing and improves installation efficiency.
Customized solutions are available according to different application requirements.
Customization options include:
Product structure design
Housing color and surface treatment
Outlet quantity and configuration
Plug and cable specifications
Functional modules
Logo customization
Packaging solutions
The product includes a one-year warranty period.
During the warranty period, free repair service is provided for quality-related issues. Customers may return products to the manufacturer for repair, with no repair fees charged. Domestic shipping costs will be covered by the manufacturer. Specific arrangements can be negotiated.
Constructed with high-strength 6063-T5 aluminum alloy, this 1+1U professional PDU delivers excellent durability, mechanical strength, and heat dissipation performance, providing a reliable power distribution solution for professional equipment environments.
The eco-friendly black powder-coated surface treatment provides a modern professional appearance while improving corrosion resistance, scratch resistance, and long-term durability.
Compared with conventional plastic power strips, the aluminum housing provides better structural protection, improved thermal management, and enhanced service life.
The 1+1U profile integrates front control functions and rear power outputs into a compact structure, maximizing space utilization while maintaining professional power management performance.
The front panel features one red double-pole switch, providing centralized power control with clear status indication for convenient operation.
The rear panel provides 7 × NEMA 5-15R outlets and 2 × IEC C13 outlets, supporting various equipment connection requirements.
Integrated filtered surge protective device helps protect connected equipment from transient voltage spikes, electrical interference, and unstable power conditions.
Built-in overload protection helps prevent excessive current conditions, improving electrical safety during continuous operation.
The combination of surge filtering and overload protection provides enhanced protection for sensitive electronic equipment.
Equipped with multiple AC outlets and IEC C13 outputs, this PDU supports a wide range of professional equipment applications.
The NEMA 5-15R outlets are suitable for general electrical devices, while IEC C13 outlets provide compatibility with IT equipment and professional systems.
The optimized outlet configuration improves workspace organization and reduces cable complexity.
Designed for 125V AC applications with a maximum current rating of 15A, this PDU provides stable and efficient power distribution for professional equipment.
The NEMA 5-15P input plug, 14 AWG 3-conductor power cord, and 3mm² copper busbar ensure reliable current transmission and improved electrical performance.
Internal wiring is securely arranged and insulated to improve safety, reliability, and long-term operating performance.
The rear cable entry structure keeps the front operation area clean and organized, improving installation appearance and cable management efficiency.
The front control and rear output layout allows convenient operation while supporting flexible integration into equipment systems, workstations, and professional environments.
Designed to comply with ETL electrical safety requirements, ensuring reliable performance and safe operation for connected equipment.
All finished products undergo strict inspection procedures, including grounding tests, electrical function verification, and appearance inspection before shipment.
Finished surfaces are protected during transportation to maintain product appearance and quality.
Professional OEM and ODM services are available to provide customized power distribution solutions for different industries and application requirements.
Specification | Details |
|---|---|
Product Name | Aluminum Desktop PDU |
Model Number | DMCN-1+1U-U7C2-KGVe-2.08p3m-MB15A |
Housing Material | 6063-T5 Aluminum Alloy |
Housing Finish | Eco-friendly Powder-Coated Finish |
Housing Color | Black |
Side Cover Material | High-Strength PC |
Profile Specification | 1+1U CN Series Aluminum Profile |
Rated Voltage | 125V AC |
Rated Current | 15A Max |
Frequency | 50/60Hz |
Plug Type | NEMA 5-15P |
Front View of PDU | Red Double-Pole Switch *1 Overload Protection Filtered Surge Protective Device |
Rear View of PDU | NEMA 5-15R *7 C13 *2 |
Power Entry | Rear Cable Entry |
Power Cord Type | 14 AWG 3-Conductor Power Cord |
Power Cord Length | 3 m (9.84 ft) |
Grounding Type | Grounded 3-Prong Design |
Mounting Accessories | Included |
Certification | ETL Listed |
Safety Features | Grounding Protection |
Operating Environment | Indoor Use Only |
Country Standard | USA / Canada |
Warranty | 1 Year Limited Warranty |
This rack PDU is designed for professional power distribution applications. It features seven NEMA 5-15R outlets, two C13 outlets, a master double-pole switch, filtered surge protection, overload protection, and a durable aluminum alloy housing.
This PDU is ideal for server racks, network cabinets, data centers, communication equipment, IT rooms, laboratories, and industrial equipment installations requiring reliable power distribution.
The NEMA 5-15R outlets are suitable for general electrical equipment, while the C13 outlets are commonly used for IT equipment such as servers, networking devices, and computer hardware. The mixed outlet design improves compatibility with different equipment types.
The integrated filtered surge protective device helps suppress voltage spikes and electrical interference, providing additional protection for connected equipment and improving power quality stability.
Yes. The built-in overload protection function helps protect connected equipment from excessive current conditions. The safety design helps reduce risks caused by abnormal electrical loads.
The red double-pole switch provides centralized power control for the entire PDU. Users can conveniently turn the connected equipment power supply on or off during operation and maintenance.
The rated input is 125V AC with a maximum current rating of 15A. The maximum power capacity is up to 1875W (125V × 15A). Users should operate within the rated specifications to ensure safe performance.
The main housing is made of 6063-T5 aluminum alloy with an eco-friendly black powder-coated finish. The aluminum structure provides excellent strength, durability, and heat dissipation performance.
The compact 1+1U profile provides efficient rack space utilization while maintaining professional power distribution capability. It is suitable for installations where space efficiency and equipment organization are important.
Yes. We provide OEM and ODM services, including outlet configurations, C13/NEMA combinations, cable specifications, housing colors, logo printing, packaging design, and other customized requirements.
