The 1+1U Black Aluminum Rackmount PDU Power Strip is a high-density power distribution solution designed for rack equipment, server systems, and professional power management applications. Featuring a durable 6063-T5 aluminum alloy housing with an eco-friendly powder-coated finish, it provides excellent structural strength, durability, heat dissipation, and a professional black appearance.
Supporting 125V AC / 15A power distribution, the PDU is equipped with a NEMA 5-15P input plug, providing 10 NEMA 5-15R outlets on the front panel and 9 NEMA 5-15R outlets on the rear panel, with a total of 19 power outputs. It delivers reliable centralized power management for servers, networking equipment, communication devices, and rack systems. The rear cable entry design improves cable organization and installation efficiency.
Featuring a 1+1U CN series rackmount design, this PDU is suitable for standard racks, equipment cabinets, and professional IT environments. It complies with ETL safety requirements and supports OEM/ODM customization for outlet configurations, housing colors, cable specifications, and structural designs.
| Cord Length: | |
|---|---|
| Availability: | |
| Quantity: | |
DMCN-1+1U-U19-2.08p3m-MB15A
PEDIU
This 1+1U Black Aluminum PDU Power Strip is a professional power distribution solution designed for office, commercial, and equipment management environments requiring multiple power outlets and efficient cable organization. With a dual-side outlet layout and compact 1+1U structure, it provides flexible power access and improved workspace organization for multiple electronic devices.
Constructed with a durable aluminum alloy housing featuring an eco-friendly powder-coated black finish, this PDU offers excellent structural strength, heat dissipation, and long-term reliability. Compared with traditional plastic power strips, it provides better durability, improved thermal performance, and a more professional appearance, making it suitable for workstations, equipment rooms, furniture applications, and professional power management systems.
Designed for environments requiring multiple power connections and organized cable management, this dual-side outlet PDU provides a practical power solution for commercial and professional applications.
Suitable applications include:
Office Workstations
Conference Tables
Server Rooms
Network Equipment Areas
Data Center Auxiliary Equipment
Control Rooms
Commercial Buildings
Educational Facilities
Coworking Spaces
Industrial Equipment Applications
Professional Workbenches
Furniture Integrated Power Systems
This 1+1U PDU features an aluminum alloy housing with high-strength PC side covers and an eco-friendly powder-coated black finish. It supports 125V AC input with a maximum rated current of 15A.
The product adopts a dual-side outlet design, including 10 NEMA 5-15R outlets on the front side and 9 NEMA 5-15R outlets on the rear side, providing a total of 19 AC outlets for multiple device connections. The rear cable entry design helps improve cable routing efficiency and creates a cleaner installation environment.
The dual-side outlet configuration provides flexible access to power from different installation directions, reducing cable clutter and improving workspace organization.
The rear cable entry design allows centralized cable routing, making installation cleaner and more convenient. The integrated aluminum structure provides reliable mechanical protection and improved heat dissipation for continuous operation.
Constructed with durable aluminum alloy, the housing provides excellent structural strength, heat dissipation, and long-term reliability compared with traditional plastic power strips.
The eco-friendly powder-coated black finish improves corrosion resistance and provides a professional appearance suitable for commercial environments.
Equipped with 19 NEMA 5-15R outlets, this PDU provides high-density power distribution for multiple electronic devices, reducing the need for multiple power strips.
Front and rear outlet layouts provide flexible access points for different installation environments, improving usability and equipment organization.
Rear cable entry helps organize power cables effectively, creating a cleaner and more professional installation environment.
Designed to comply with ETL electrical safety requirements, this PDU ensures reliable operation and long-term safety performance. Finished products undergo inspection and grounding tests before shipment.
The PDU supports horizontal installation and can be integrated into suitable equipment environments, furniture systems, or professional workstations. The rear cable entry design simplifies installation and cable routing.
Customized solutions are available according to customer requirements, including:
Housing color and surface finishing
Outlet quantity and configuration
Cable length and specifications
Structural design customization
Logo branding
Packaging solutions
The product includes a one-year warranty. During the warranty period, free repair service is provided for quality-related issues.
For repair items, customers can return products to the manufacturer. No repair fees will be charged, and domestic shipping costs will be covered by the manufacturer. Specific service arrangements can be negotiated.
Constructed with high-quality 6063-T5 aluminum alloy, this 1+1U desktop PDU provides excellent structural strength, durability, and heat dissipation performance for professional power distribution applications.
The eco-friendly powder-coated finish provides a durable, scratch-resistant surface with a premium black appearance, creating a modern and professional style suitable for offices, workstations, and commercial environments.
Compared with traditional plastic power strips, the aluminum housing delivers enhanced mechanical protection, improved heat dissipation, and longer service life.
Designed with a 1+1U profile structure, this PDU integrates a large number of AC outlets into a compact housing, maximizing power accessibility while saving installation space.

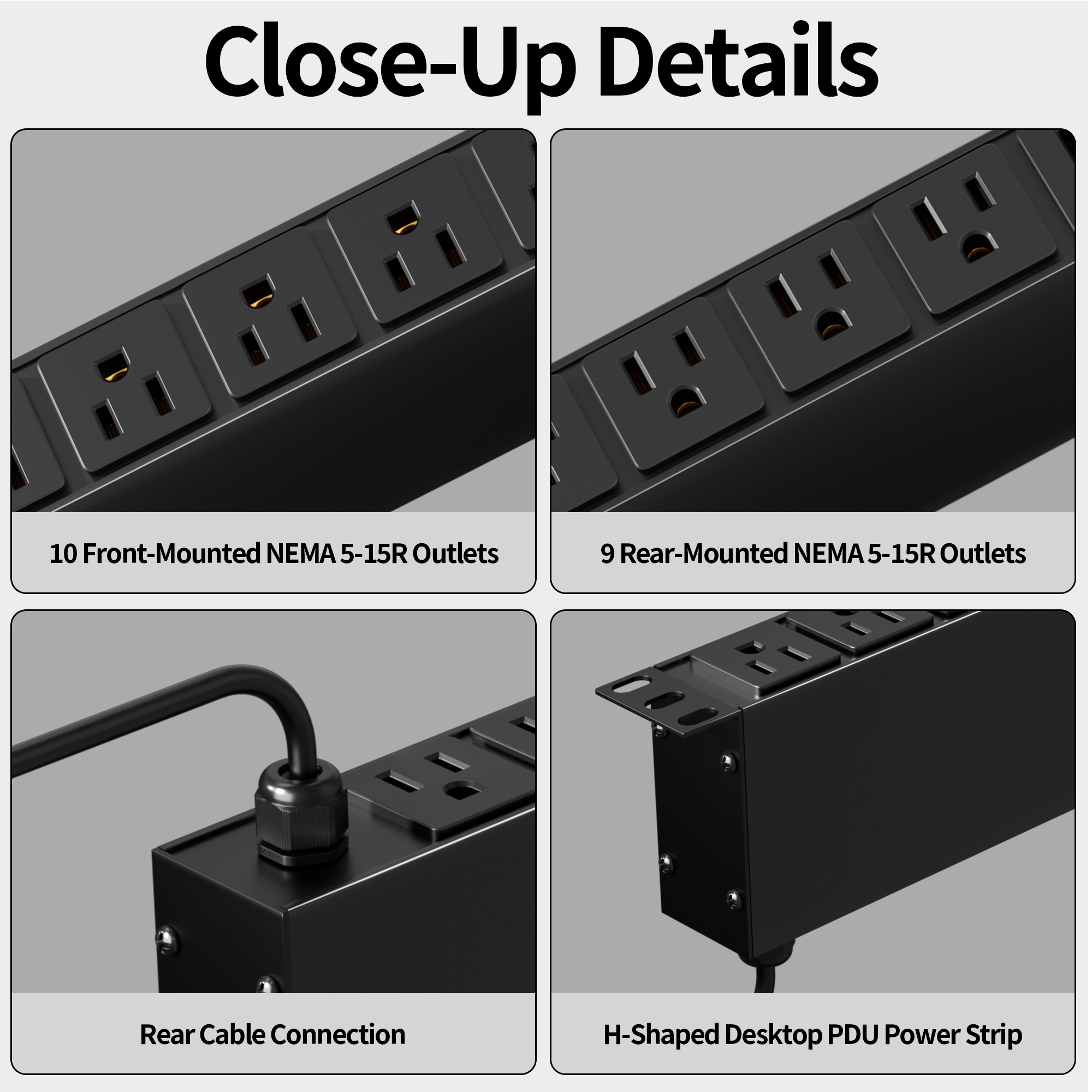

The front panel provides 10 × NEMA 5-15R outlets, while the rear panel provides 9 × NEMA 5-15R outlets, offering a total of 19 AC power connections for multiple devices.
The high-density outlet configuration is ideal for data centers, professional workstations, office systems, and equipment integration applications requiring centralized power management.
Designed for 125V AC applications with a maximum current rating of 15A, this PDU provides stable and efficient power distribution for professional and commercial environments.
The NEMA 5-15P input plug, 14 AWG 3-conductor power cord, and internal 3mm² copper busbar ensure safe and reliable electrical transmission.
The optimized internal wiring design improves conductivity, reduces power loss, and enhances long-term operating reliability.
The rear cable entry configuration provides a cleaner installation appearance and improves cable management efficiency in professional environments.
The rear-entry structure is suitable for equipment cabinets, office furniture, conference tables, and customized power integration solutions.

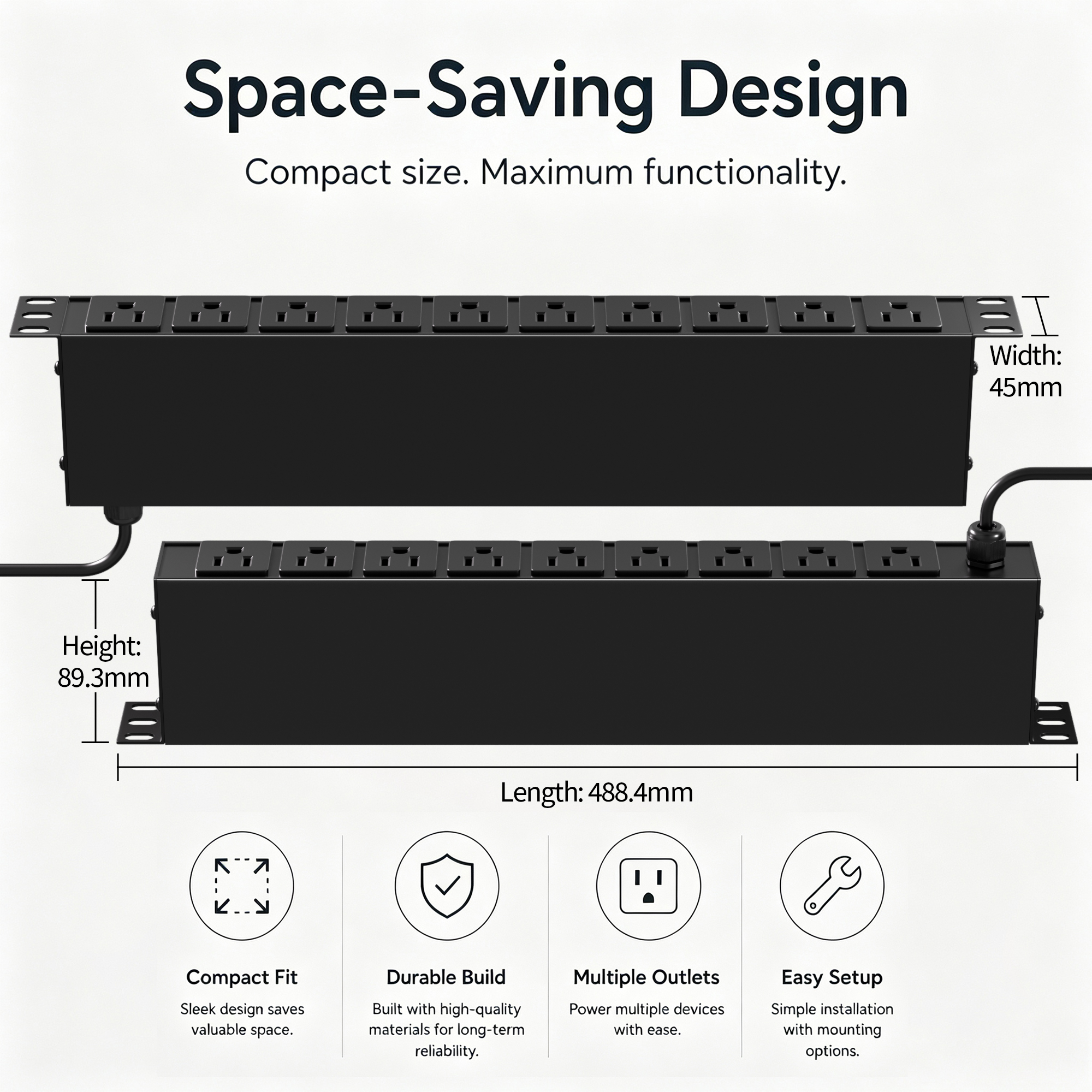

The 1+1U profile combines compact dimensions with high-capacity power distribution capability, providing an efficient solution where installation space is limited.
The slim aluminum structure supports flexible integration into professional workstations, equipment platforms, and customized furniture systems.
With 19 AC outlets integrated into a durable aluminum enclosure, this PDU provides centralized power distribution for multiple devices while maintaining a clean workspace.
The centralized power distribution design reduces cable complexity and improves equipment organization and operational efficiency.
Designed to comply with ETL electrical safety requirements, ensuring reliable operation and safe power distribution for connected equipment.
All finished products undergo strict inspection procedures, including grounding tests, functional verification, and appearance inspection before shipment.
Internal wiring is securely fastened and insulated to ensure electrical safety and long-term reliability.
Professional OEM and ODM services are available to support customized power solutions for different markets, industries, and application requirements.
Customization options include housing design, colors, surface finishes, outlet configurations, cable specifications, logo printing, and packaging solutions.
Specification | Details |
|---|---|
Product Name | Aluminum Desktop PDU |
Model Number | DMCN-1+1U-U19-2.08p3m-MB15A |
Housing Material | 6063-T5 Aluminum Alloy |
Housing Finish | Eco-friendly Powder-Coated Finish |
Housing Color | Black |
Side Cover Material | High-Strength PC |
Profile Specification | 1+1U CN Series Aluminum Profile |
Rated Voltage | 125V AC |
Rated Current | 15A Max |
Frequency | 50/60Hz |
Plug Type | NEMA 5-15P |
Outlet Type | NEMA 5-15R |
Front View of PDU | NEMA 5-15R *10 |
Rear View of PDU | NEMA 5-15R *9 |
Power Entry | Rear Cable Entry |
Power Cord Type | 14 AWG 3-Conductor Power Cord |
Power Cord Length | 3 m (9.84 ft) |
Grounding Type | Grounded 3-Prong Design |
Mounting Accessories | Included |
Certification | ETL Listed |
Safety Features | Grounding Protection |
Operating Environment | Indoor Use Only |
Country Standard | USA / Canada |
Warranty | 1 Year Limited Warranty |
This PDU combines desktop power distribution and USB charging functions in a compact 1U aluminum housing. It features five grounded AC outlets, a Type-C + USB charging module, and an illuminated circuit breaker for convenient and reliable power management.
Yes. The integrated Type-C + USB charging module provides a convenient charging solution for smartphones, tablets, wireless devices, and other USB-powered electronics while keeping the desktop area organized.
It is ideal for home offices, computer desks, executive workstations, conference tables, study rooms, creative workspaces, and modern furniture applications requiring convenient power access.
By combining multiple AC outlets and USB charging ports into one compact unit, this PDU reduces cable clutter and provides a centralized power solution for multiple devices.
The 6063-T5 aluminum alloy housing provides higher structural strength, better durability, and improved heat dissipation. The sandblasted silver finish also creates a premium metallic appearance suitable for modern environments.
Yes. The built-in illuminated circuit breaker provides overload protection by interrupting the circuit when excessive current occurs. The indicator light also allows users to easily check the operating status.
The five NEMA 5-15R outlets can power computers, monitors, printers, desk lamps, audio equipment, networking devices, and other desktop electronics. The USB ports provide additional charging capability for personal electronic devices.
Yes. The durable aluminum structure, reliable internal wiring design, copper conductor components, and strict quality inspection process ensure stable performance during continuous use.
Yes. OEM and ODM services are available. Customers can customize outlet standards, USB charging modules, cable specifications, housing colors, surface finishes, logos, and packaging according to different market requirements.
Each finished product undergoes inspection before shipment, including grounding tests, electrical safety verification, and assembly quality checks. Finished surfaces are protected during transportation to ensure product quality.
