Product Features And Advantages

1. High-Current Power Handling

Designed for demanding electrical loads, the series supports configurations from 20A to 50A. High-current models use appropriately sized copper busbars and heavy-duty power cords to provide a robust internal power path for high-load equipment.

2. Heavy-Duty Copper Busbar Structure

The internal power distribution structure uses copper busbars in different cross-sectional sizes according to the rated current. Configurations include 3 mm², 6 mm², and 12.4 mm² copper busbars, helping maintain efficient current transmission and stable power distribution.

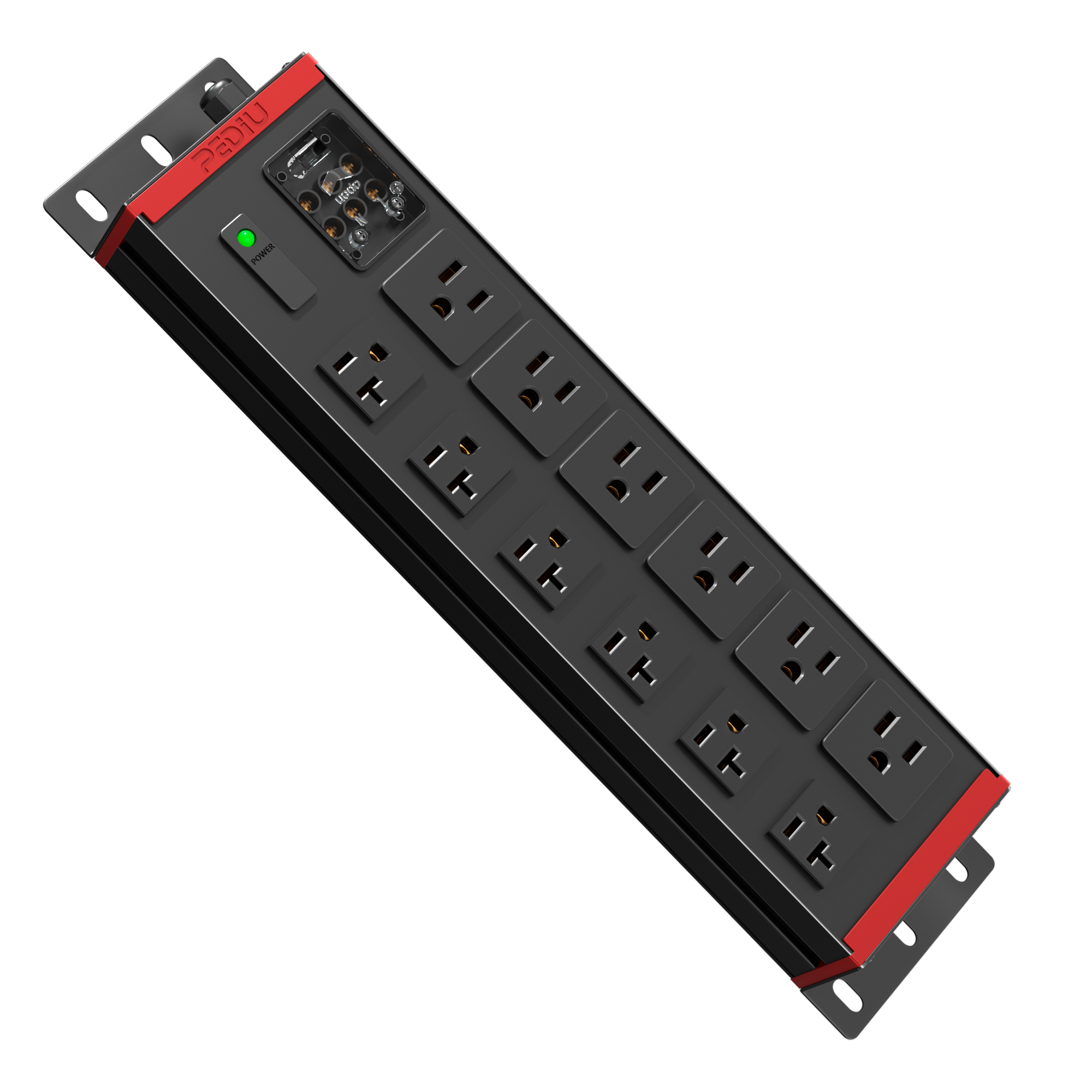

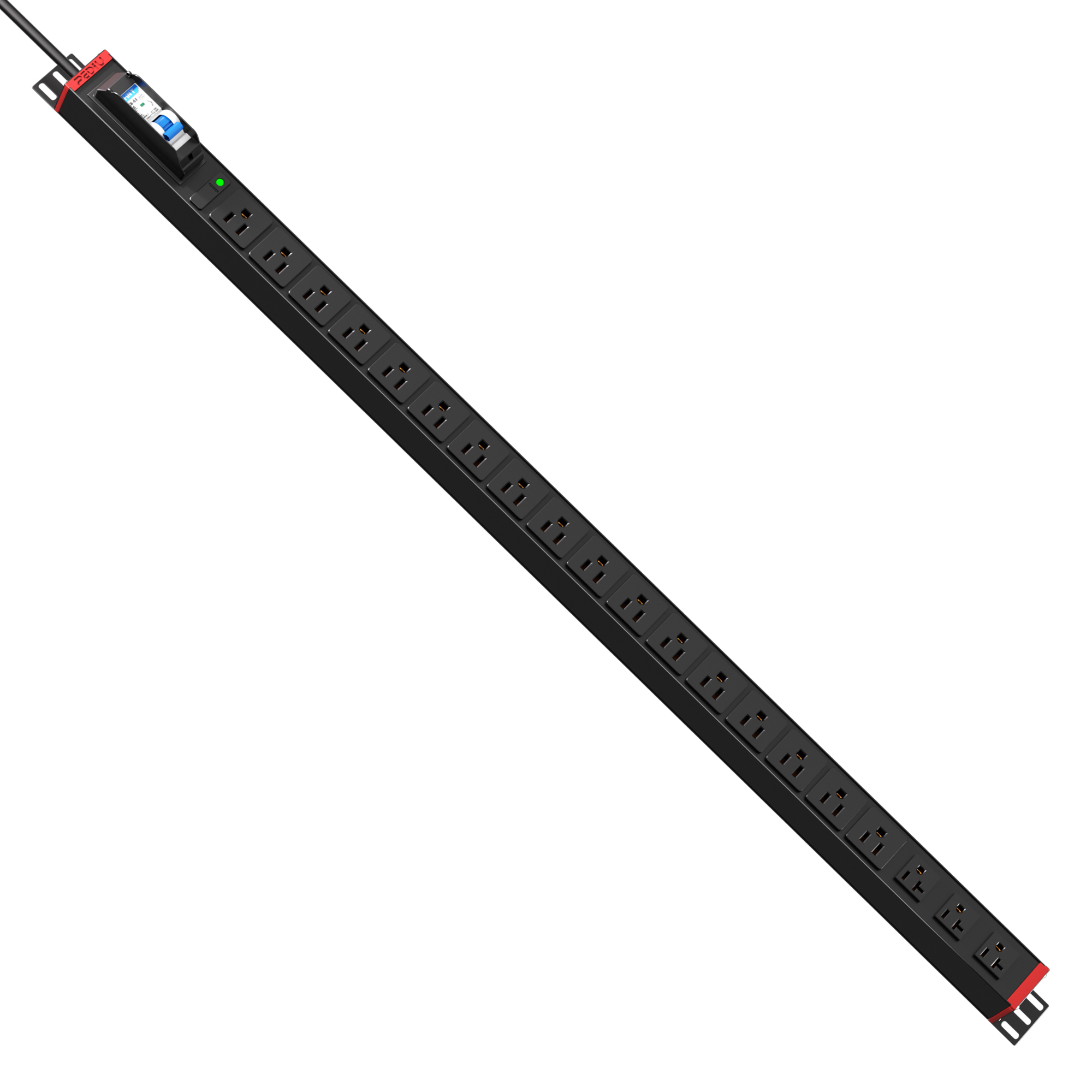

3. Multiple Outlet Combinations

The series provides flexible outlet configurations according to different equipment requirements. Options include NEMA 5-15R, NEMA 5-20R, IEC C13, and IEC C19, allowing the same product platform to accommodate different connection requirements.

4. 1U, 2U & 1+1U Structural Options

Three profile configurations provide different levels of installation capacity:

• 1U: Compact structure for efficient use of installation space

• 2U: Increased structural space for expanded outlet and protection layouts

• 1+1U: Two-section structure for separated front and rear power distribution

This modular approach makes it easier to match the PDU structure with the available installation space.

5. Durable 6063-T5 Aluminum Housing

The housing is manufactured from 6063-T5 aluminum alloy, providing a rigid enclosure with good mechanical durability and heat dissipation characteristics. The eco-friendly powder-coated finish provides additional surface protection for long-term use.

6. High-Power Input Configurations

Different input configurations are available to match the rated current of each model, including NEMA 5-20P, NEMA 5-30P, and NEMA 5-50P. The 50A configuration uses a 6 AWG, 3-conductor power cord, providing an appropriate high-current input solution.

7. Integrated Circuit Protection

Selected configurations incorporate 1P circuit breakers, overload protection, and surge protective devices. These functions provide additional protection for the PDU power circuit and connected equipment under abnormal electrical conditions.

8. Power Status Control

Depending on the configuration, the PDU can be equipped with a power indicator or control switch, providing a simple way to identify or control the power status of the unit.

9. Flexible Cable Entry Design

The series supports left-side and rear cable entry configurations. Selected models can also be equipped with M18 or M25 waterproof cable glands, helping provide improved cable retention and protection for specialized installation requirements.

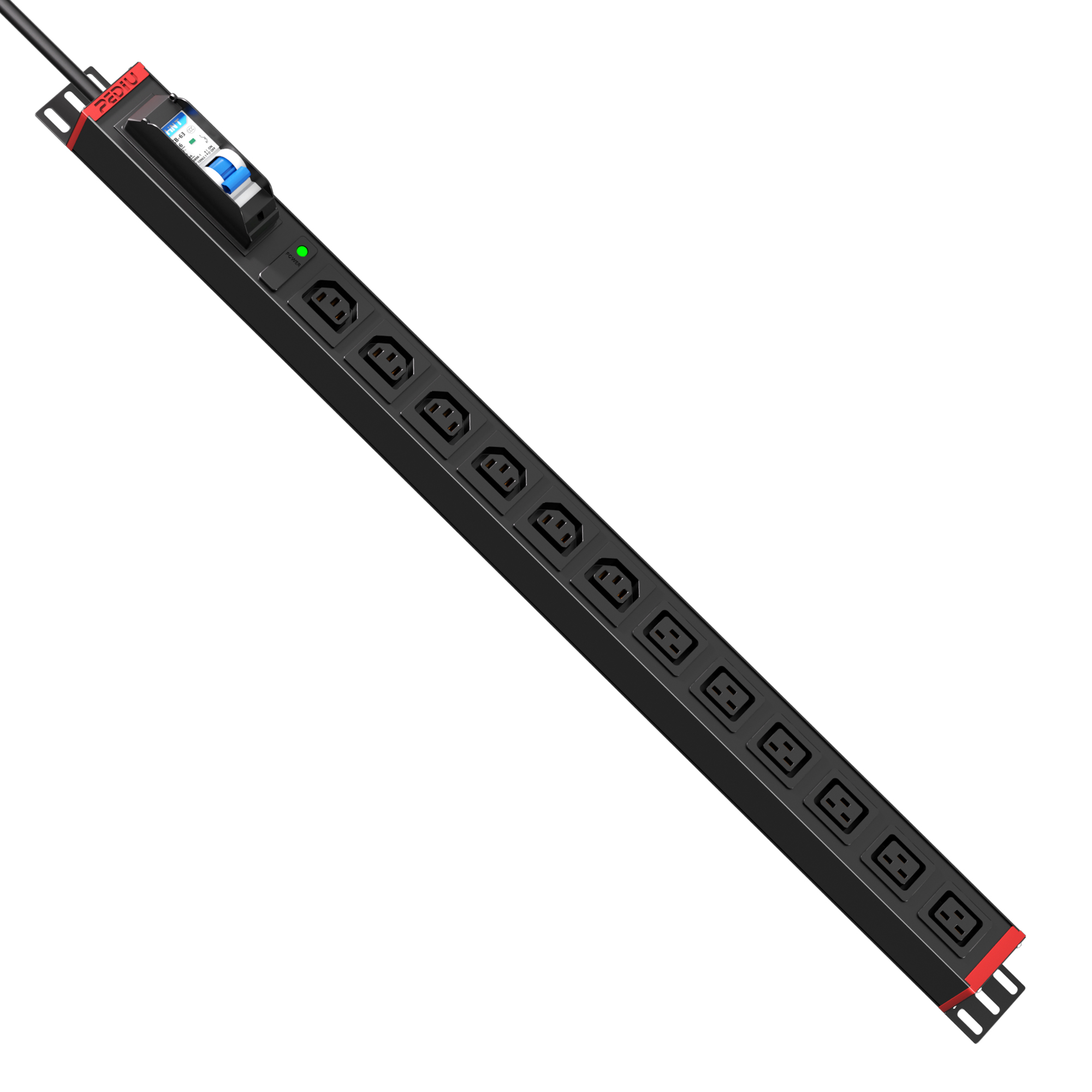

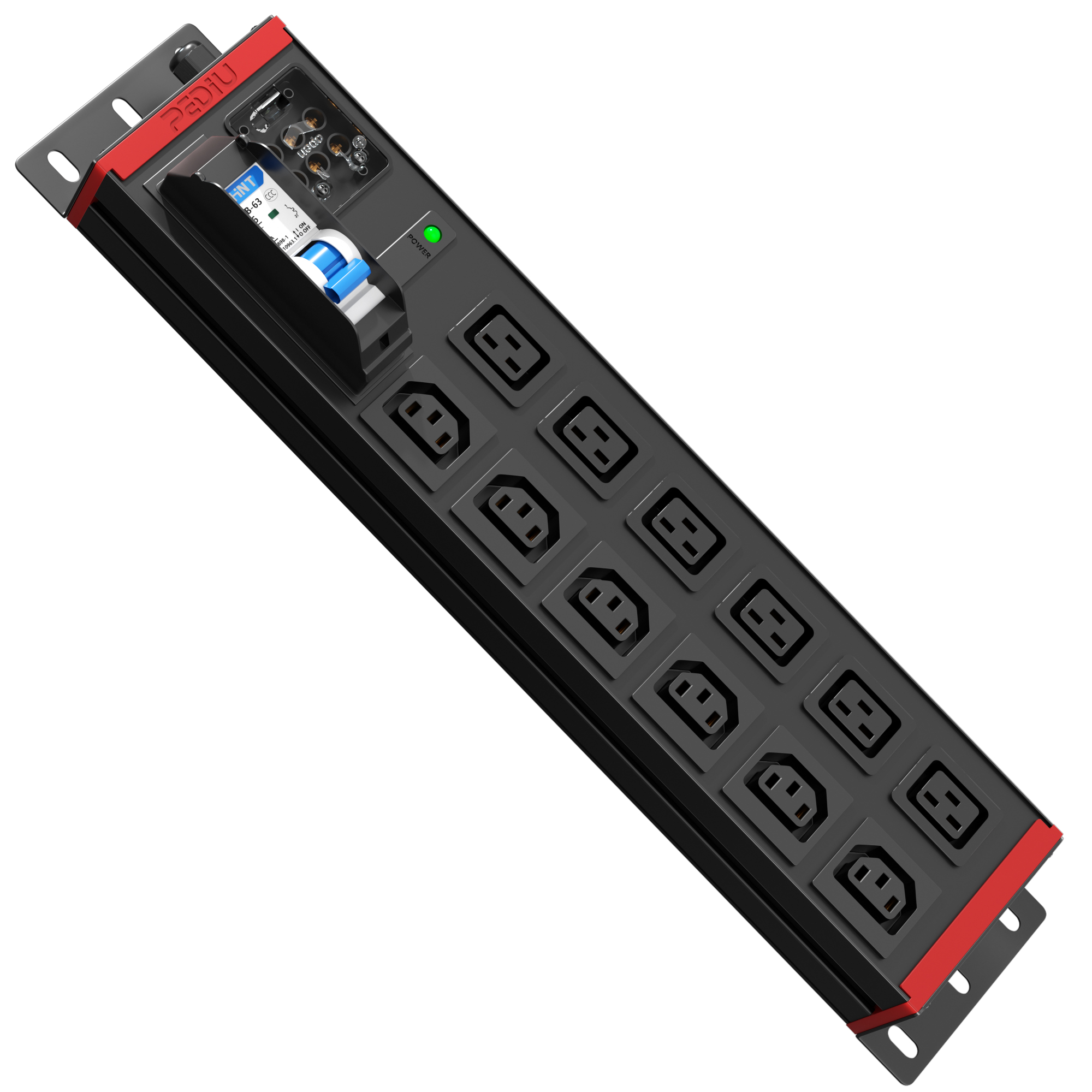

10. Professional IEC C13 & C19 Configuration

The 50A configuration combines IEC C13 and IEC C19 outlets, providing different IEC outlet sizes within one PDU. This configuration is suitable for equipment requiring multiple IEC-compatible power connections.

11. Secure Internal Wiring

Internal conductors are securely fastened and insulated to minimize movement and maintain electrical separation during operation. The internal construction is designed to support reliable long-term power distribution.

12. Flexible Configuration & Customization

The product platform can be configured according to different electrical and structural requirements, including rated current, outlet type and quantity, input connector, cable specification, protection functions, profile size, and cable-entry method.

OEM and ODM customization is available for project-specific power distribution requirements.

Product Specification

Frequently Asked Questions

Q1. What current ratings are available?

The series supports different current configurations, including 15A, 20A, 30A, and 50A models.

The appropriate model should be selected according to the connected equipment, input circuit capacity, plug specification, and installation requirements.

Q2. How do I choose between the 1U, 2U, and 1+1U versions?

The three structural configurations are designed for different installation and outlet-density requirements.

1U PDU:
Compact solution for applications where installation space is limited.

2U PDU:
Provides additional space for higher outlet capacity or larger functional modules.

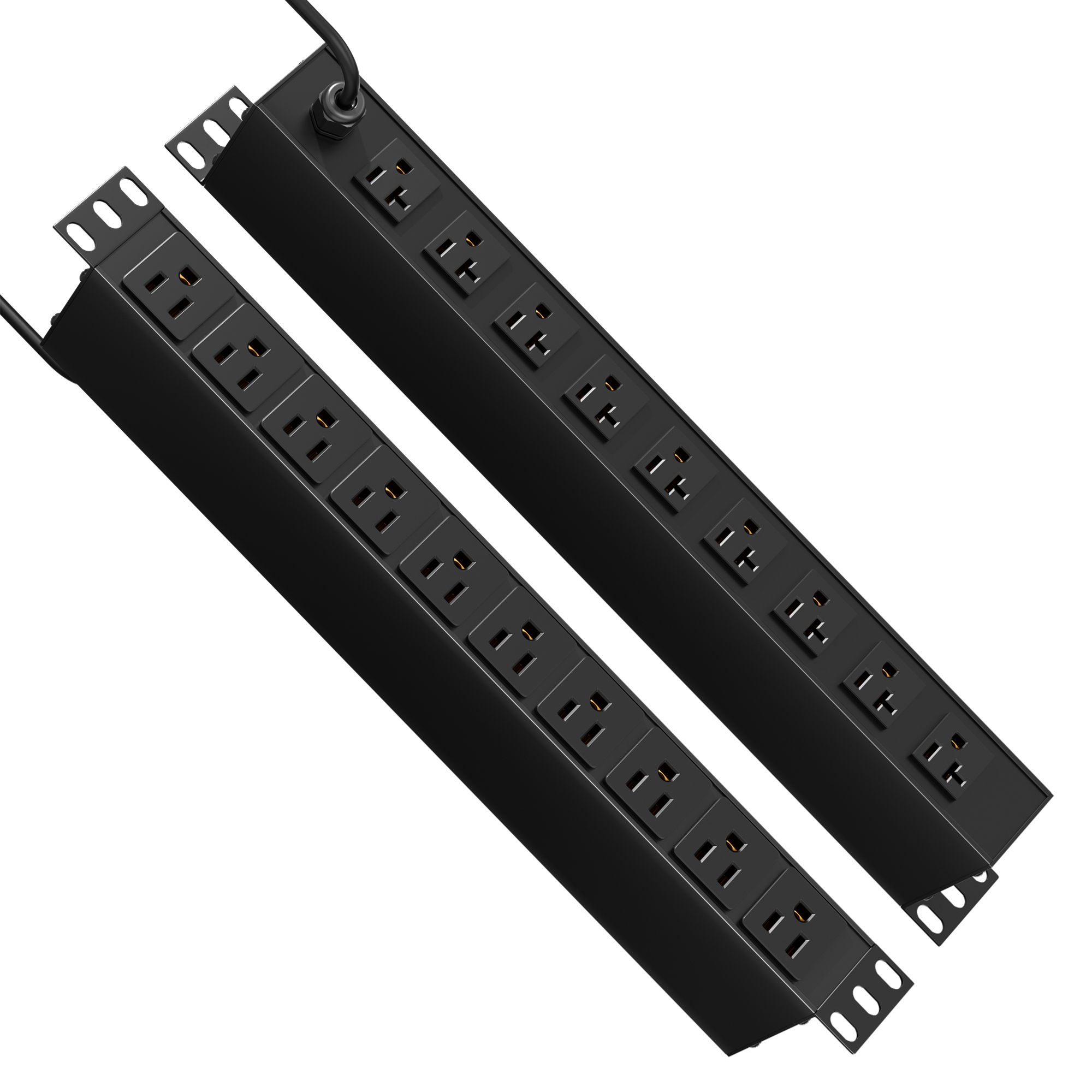

1+1U PDU:
Uses a dual-level structure to provide flexible front/rear outlet distribution and higher-density power access.

Q3. What is the advantage of the 1+1U configuration?

The 1+1U configuration separates the PDU into two functional levels, allowing outlets and control components to be distributed more efficiently.

This design can help improve:

• Outlet accessibility

• Cable routing

• Installation flexibility

• Space utilization

• Equipment connection management

Q4. What outlet configurations are available?

The series supports different outlet standards and combinations, including:

• NEMA 5-15R

• NEMA 5-20R

• IEC C13

• IEC C19

Different outlet quantities and combinations can be configured according to the target application.

Q5. What protection functions are available?

Depending on the configuration, the PDU can include:

• Circuit breaker

• Overload protection

• Surge Protective Device

• Filtered Surge Protection

• Power Indicator

Different protection combinations can be selected according to application requirements.

Q6. What is the purpose of the circuit breaker?

The circuit breaker provides a convenient method of disconnecting the PDU from the load and helps provide protection against excessive current conditions.

It also allows operators to manually disconnect power when maintenance or troubleshooting is required.

Q7. Why does this PDU use a copper busbar?

High-power models use copper busbars to provide a robust internal current distribution path.

The copper busbar design supports efficient current transmission and is suitable for high-capacity power distribution applications.

Q8. Is the aluminum housing suitable for continuous operation?

The main housing is made from 6063-T5 aluminum alloy, providing a durable mechanical structure and good heat dissipation characteristics.

The aluminum enclosure is suitable for professional equipment power distribution applications requiring a robust and long-lasting housing.
