This Industrial 2U High Power PDU is designed for industrial equipment, control systems, automation applications, and high-load power distribution environments. Supporting 20A maximum current with NEMA 5-15R and NEMA 5-20R outlets, it provides a reliable solution for centralized power management.
Featuring a rugged 6063-T5 aluminum alloy housing, 3 mm² copper busbar wiring, and integrated surge protection, this PDU delivers excellent electrical stability, heat dissipation, and protection performance. The 2U compact structure with waterproof cable gland design supports flexible installation in industrial environments. Compliant with applicable ETL / UL safety requirements.
| Cord Length: | |
|---|---|
| Availability: | |
| Quantity: | |
DMCN-2UT-U6Ua6-Fu-W
PEDIU
This 2U Industrial Power Distribution Unit (PDU) is a high-performance power management solution designed for industrial equipment, automation systems, manufacturing facilities, and professional electrical applications requiring stable and efficient power distribution.
Built with a durable 6063-T5 aluminum alloy housing and eco-friendly matte black powder-coated finish, this industrial PDU delivers excellent mechanical strength, heat dissipation, and long-term reliability. The 2U profile structure provides flexible installation options for industrial environments, equipment integration systems, and customized power distribution applications.
Designed for high-power industrial applications, this PDU supports NEMA 5-15R and NEMA 5-20R output configurations, allowing connection of multiple electrical devices through a centralized power distribution platform. The integrated surge protective device helps reduce risks caused by transient voltage fluctuations and improves equipment protection in demanding operating environments.
Featuring a junction box input configuration, M18 waterproof cable gland, and industrial-grade copper bar wiring structure, this 2U PDU provides reliable power transmission, enhanced electrical safety, and efficient power management for industrial equipment and professional electrical systems.
This 2U industrial PDU is designed for professional environments requiring reliable power distribution, equipment protection, and continuous operation.
Suitable applications include:
Industrial Automation Systems
Manufacturing Equipment
Factory Production Lines
Industrial Control Cabinets
Machine Equipment Systems
Electrical Distribution Systems
Robotics and Automation Equipment
Testing and Measurement Equipment
Industrial Workstations
Commercial Equipment Integration
Engineering Projects
Professional Workshops
Customized Power Distribution Solutions
Equipped with multiple NEMA 5-15R and NEMA 5-20R outlets, this industrial PDU provides flexible power distribution for various electrical devices and industrial equipment.
The multi-output design allows centralized power management, reduces cable complexity, and improves the organization and efficiency of industrial electrical systems.

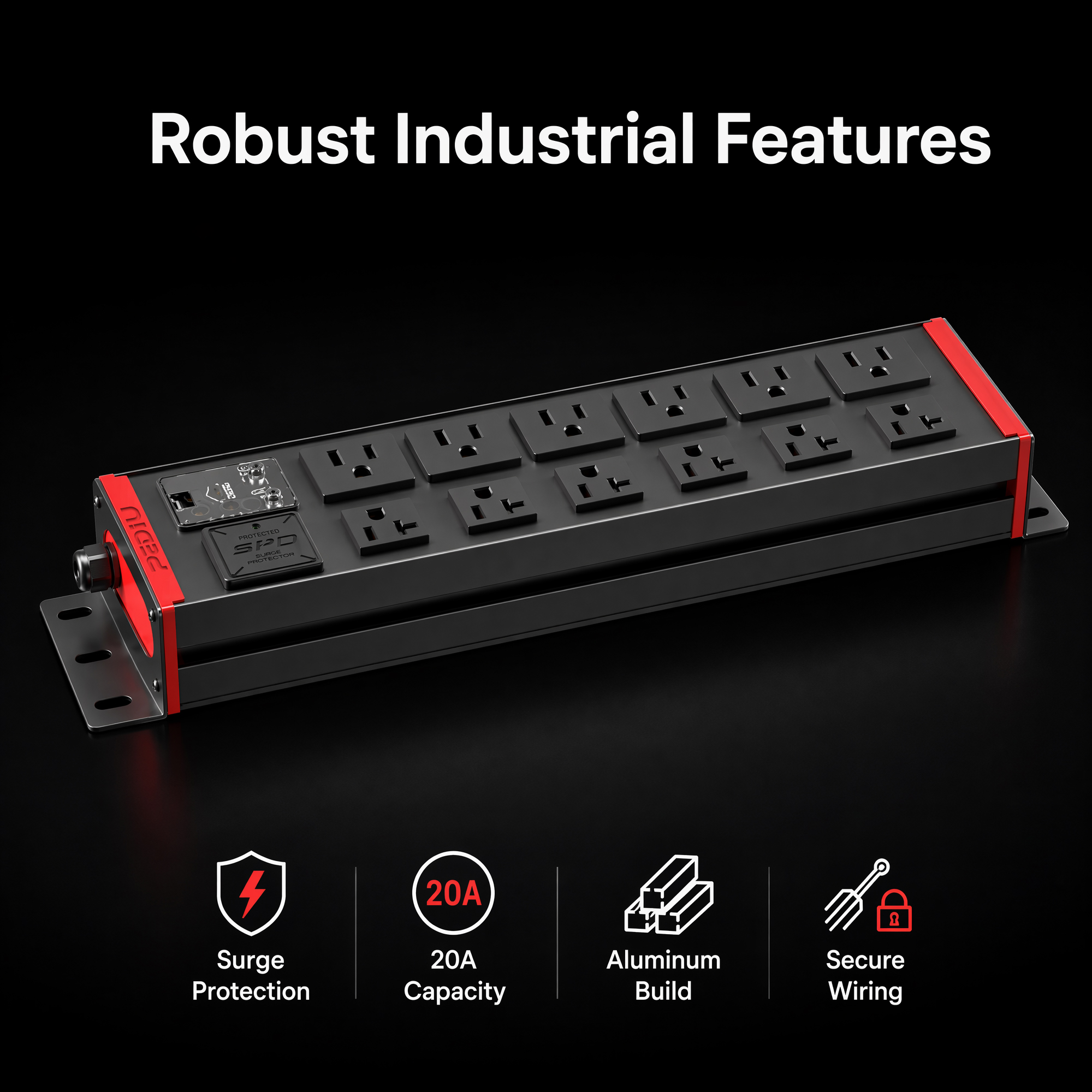

The integrated surge protective device provides additional protection against transient voltage surges and electrical disturbances.
This protection function helps improve the operational stability of connected equipment and enhances reliability in industrial environments with complex electrical conditions.
Constructed with 6063-T5 aluminum alloy, the housing provides excellent durability, structural strength, and thermal management performance.
The matte black eco-friendly powder-coated finish improves surface protection while creating a professional industrial appearance. The red PC side covers enhance product identification and overall visual design.
Compared with traditional plastic power distribution products, the aluminum structure provides improved protection, better heat dissipation, and extended service life.

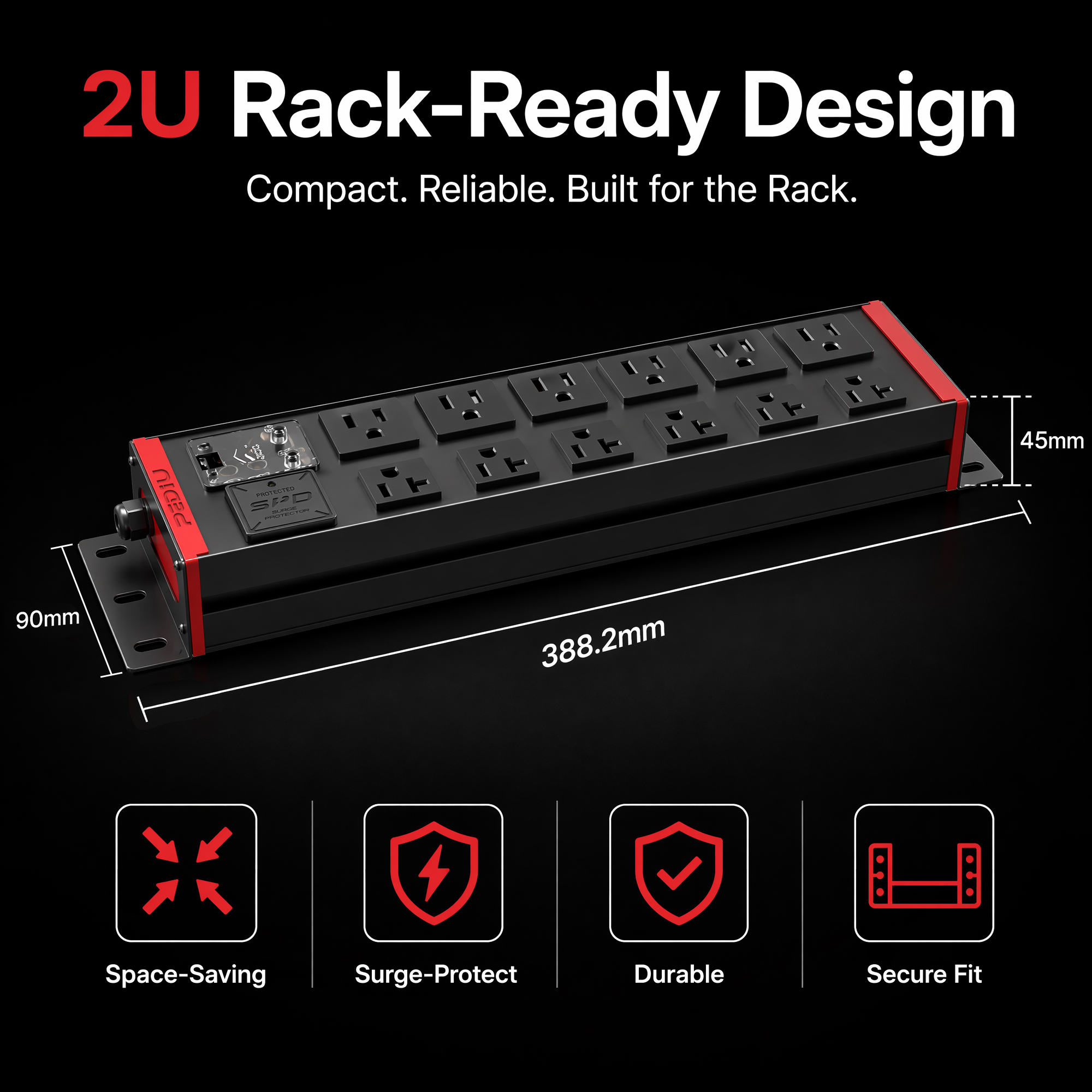

The 2U profile structure supports flexible horizontal installation for industrial equipment integration and customized applications.
The junction box input design combined with an M18 waterproof cable gland provides secure cable connection and enhanced protection in industrial environments.
The internal copper bar wiring structure ensures stable current transmission, while all finished products undergo grounding tests and quality inspections before shipment.
We provide professional OEM and ODM customization services to meet different industrial power distribution requirements.
Customization options include:
Product Structure Design
Housing Dimensions
Surface Finish and Colors
Outlet Quantity and Standards
Input Connection Methods
Cable Specifications and Lengths
Surge Protection Configuration
Internal Wiring Solutions
Logo Customization
Packaging Solutions
Customized industrial PDU solutions are available for equipment manufacturers, system integrators, and industrial projects.
The product includes a one-year warranty period.
During the warranty period, free repair service is provided for quality-related issues. Customers may return products to the manufacturer for repair, with no repair fees charged. Domestic shipping costs will be covered by the manufacturer. Specific arrangements can be negotiated.
Designed for industrial environments requiring stable and reliable power distribution, this 1+1U PDU provides high-capacity power output for manufacturing equipment, industrial control systems, workshops, test benches, and commercial electrical applications. Its compact rack-style structure allows efficient installation in limited spaces.
Supporting rated currents from 15A to 30A with various NEMA outlet configurations, this industrial PDU is engineered for demanding power distribution requirements. The optimized internal copper busbar design ensures stable current transmission and improved electrical reliability under heavy loads.
Constructed with premium 6063-T5 aluminum alloy, the housing provides excellent mechanical strength, heat dissipation performance, and long-term durability. The eco-friendly powder-coated surface finish enhances corrosion resistance and maintains a professional industrial appearance.
Available with multiple outlet combinations including NEMA 5-15R and NEMA 5-20R receptacles, the PDU supports different industrial equipment power requirements. Customized outlet layouts and configurations are available to meet specific application needs.
Equipped with industrial-grade protection features including circuit breakers, surge protective devices, and power indicators, the PDU helps protect connected equipment from overloads, voltage surges, and abnormal electrical conditions.
The PDU uses high-quality copper conductors and optimized internal wiring design to ensure safe and efficient power distribution. All internal connections are securely fixed and insulated to improve operational safety and product reliability.
Featuring waterproof cable glands for secure cable routing, the PDU provides improved protection against dust, moisture, and environmental factors, making it suitable for industrial workshops, equipment rooms, and customized electrical installations.
The compact 2U structural design provides flexible installation options for industrial equipment, control cabinets, workstations, and customized power distribution systems while maximizing available space.

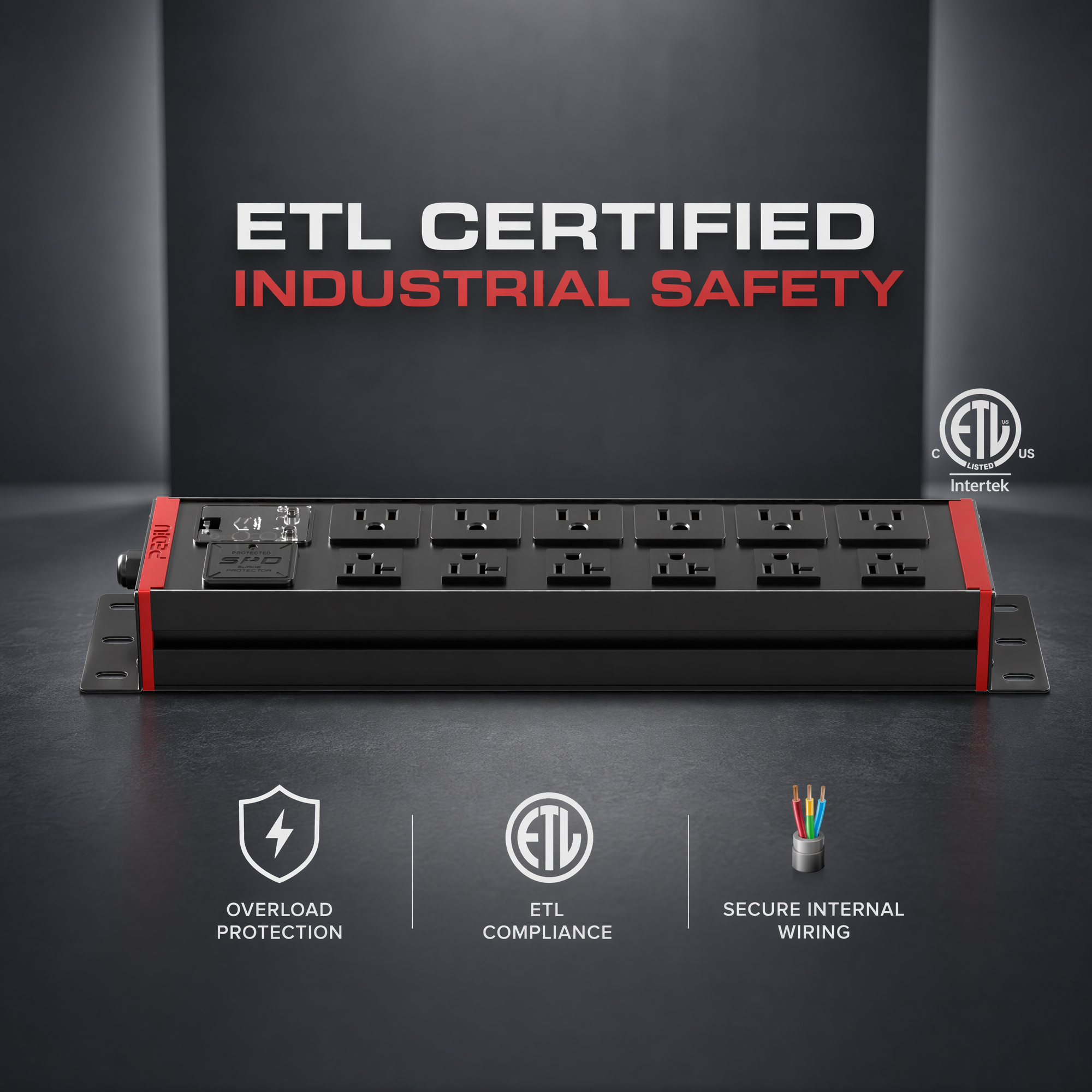

Designed to meet applicable ETL electrical safety requirements, this industrial PDU undergoes strict inspection and grounding tests before shipment to ensure reliable and safe operation.
Support for customized outlet configurations, cable specifications, colors, installation methods, and functional modules allows integration into various industrial power distribution applications.
Specification | Details |
|---|---|
Product Name | Industrial PDU |
Model Number | DMCN-2UT-U6Ua6-Fu-W |
Housing Material | 6063-T5 Aluminum Alloy |
Housing Finish | Eco-friendly Powder-Coated Finish |
Housing Color | Black |
Side Cover Material | High-Strength PC |
Profile Specification | 2U Series Aluminum Profile |
Rated Voltage | 125V AC |
Rated Current | 20A Max |
Frequency | 50/60Hz |
Plug Type | Junction Box M18 Waterproof Cable Gland |
Outlet Type | NEMA 5-15R *6 NEMA 5-20R *6 |
Function Modules | Surge Protective Device |
Power Entry | Rear Cable Entry |
Power Cord Type | / |
Power Cord Length | 3 m (9.84 ft) |
Grounding Type | Grounded 3-Prong Design |
Mounting Accessories | Included |
Certification | ETL Listed |
Safety Features | Grounding Protection |
Operating Environment | Indoor Use Only |
Country Standard | USA / Canada |
Warranty | 1 Year Limited Warranty |
A1. This 2U industrial PDU is designed for high-capacity power distribution in industrial environments, including automation equipment, manufacturing systems, electrical cabinets, and professional power management applications. It provides reliable multi-device power access with a compact 2U structure.
A2. This model supports 125V AC rated voltage and up to 20A maximum current. It features both NEMA 5-15R and NEMA 5-20R outlets to support different types of industrial equipment.
A3. This PDU provides 12 total outlets, including 6 × NEMA 5-15R outlets and 6 × NEMA 5-20R outlets, allowing multiple industrial devices to share a centralized power source.
A4. The mixed outlet configuration improves compatibility by supporting both standard electrical devices and higher-power equipment requiring 20A-rated connections, providing greater flexibility for industrial applications.
A5. Yes. This model integrates a Surge Protective Device (SPD) to help protect connected equipment from transient voltage surges and improve the stability and reliability of the power supply system.

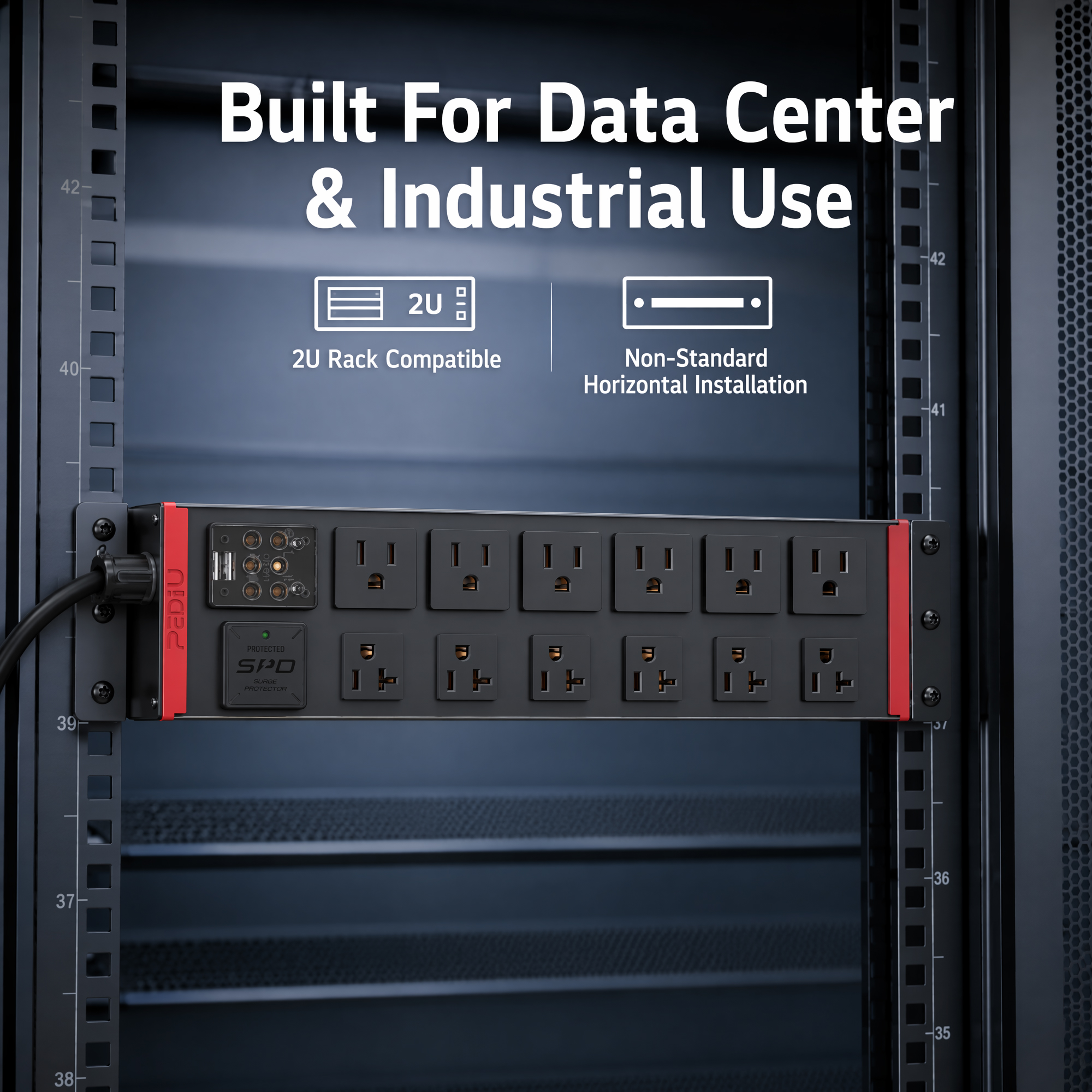

A6. This 2U PDU adopts a non-standard horizontal installation design. The junction box input configuration with an M18 waterproof cable gland provides flexible wiring options for industrial installation environments.
A7. The main housing is made of 6063-T5 aluminum alloy with a matte black eco-friendly powder-coated finish. The aluminum housing provides excellent durability, corrosion resistance, and heat dissipation performance. The side covers use high-strength PC material for insulation protection.
A8. Yes. The product is designed with reliable internal wiring, secure insulation, durable aluminum construction, and grounding tests before shipment to ensure safe and stable operation in industrial environments.
A9. Yes. OEM and ODM customization are available, including outlet combinations, input configurations, cable specifications, housing design, and functional modules to meet different industrial power distribution requirements.
A10. Each finished PDU undergoes inspection before delivery, including wiring verification, grounding tests, surface inspection, and compliance checks according to applicable industry standards. The product complies with ETL / UL electrical safety requirements.
