This Industrial 1+1U PDU Power Distribution Unit is designed for industrial equipment, control cabinets, automation systems, and professional power management applications. Supporting 15A rated current with NEMA 5-15P input and 9 NEMA 5-15R outputs, it provides reliable and efficient power distribution.
Built with a durable 6063-T5 aluminum alloy housing, integrated surge protection, and a dual-pole switch, this PDU ensures enhanced safety, durability, and stable operation. The compact 1+1U design with waterproof cable entry supports flexible installation in industrial environments. Compliant with applicable ETL / UL safety requirements.
| Cord Length: | |
|---|---|
| Availability: | |
| Quantity: | |
DMCN-1+1UT-U9-KFu-2.08p3m-MB15A
PEDIU
This 1+1U Industrial Power Distribution Unit (PDU) is a professional power management solution designed for industrial equipment, automation systems, manufacturing environments, and commercial electrical applications requiring reliable and centralized power distribution.
Featuring a durable 6063-T5 aluminum alloy housing with an eco-friendly powder-coated finish, this industrial PDU provides excellent structural strength, heat dissipation performance, and long-term operational reliability. The compact 1+1U CN Series profile design enables flexible installation in industrial equipment cabinets, control systems, and customized power distribution applications.
Unlike conventional power strips, this industrial PDU is engineered for professional environments with enhanced electrical protection, high-reliability internal wiring, and industrial-grade construction. It integrates a double-pole switch, surge protective device, and multiple AC output interfaces to provide safe and organized power management for connected equipment.
Designed for industrial automation, equipment integration, production facilities, and professional electrical systems, this 1+1U PDU delivers stable power distribution, improved equipment protection, and efficient power management for demanding applications.
This industrial PDU is designed for applications requiring reliable power distribution, equipment protection, and continuous operation.
Suitable applications include:
Industrial Automation Systems
Manufacturing Equipment
Factory Production Lines
Industrial Control Cabinets
Electrical Equipment Systems
Machine Control Systems
Testing and Measurement Equipment
Robotics Applications
Laboratory Equipment
Commercial Equipment Integration
Industrial Workstations
Customized Electrical Systems
Production Facilities
Professional Workshop Applications
This 1+1U industrial PDU provides centralized power distribution through multiple AC outlets, allowing users to connect and manage multiple industrial devices through a single power management solution.
The rear outlet configuration helps optimize cable organization and simplifies equipment power connections, improving workspace efficiency and system reliability.
The integrated double-pole switch provides convenient power control and improves operational safety. The built-in surge protective device helps protect connected equipment from transient voltage fluctuations and electrical disturbances.
This multi-layer protection design enhances reliability in industrial environments where equipment stability is critical.
Constructed with 6063-T5 aluminum alloy, the housing provides excellent mechanical strength, durability, and heat dissipation performance.
The eco-friendly powder-coated surface finish enhances corrosion resistance and provides a professional appearance suitable for industrial environments.
Compared with traditional plastic power distribution products, the aluminum housing offers improved structural protection and better thermal management for long-term operation.
The 1+1U CN Series profile design provides flexible installation options for industrial equipment and customized electrical systems.
The rear cable entry design with M18 waterproof cable gland improves cable protection and installation reliability in professional environments.
Internal wiring is securely fastened and insulated, and all finished products undergo grounding tests and quality inspections before shipment to ensure safe and reliable operation.
We provide professional OEM and ODM customization services to support different industrial application requirements.
Customization options include:
Product Structure Design
Housing Dimensions
Surface Finish and Colors
Input Plug Standards
Outlet Quantity and Types
Cable Length and Specifications
Protection Function Configuration
Internal Wiring Solutions
Logo Customization
Packaging Solutions
Customized industrial PDU solutions are available for equipment manufacturers, system integrators, and industrial projects.
The product includes a one-year warranty period.
During the warranty period, free repair service is provided for quality-related issues. Customers may return products to the manufacturer for repair, with no repair fees charged. Domestic shipping costs will be covered by the manufacturer. Specific arrangements can be negotiated.
Designed for industrial and commercial power distribution applications, this 1+1U PDU provides stable and reliable power management for equipment cabinets, automation systems, control panels, communication racks, and other high-demand electrical environments. The compact 1+1U structure delivers efficient installation while maintaining professional power distribution performance.
Supporting up to 15A rated current with a NEMA 5-15P input plug, this PDU ensures stable power delivery for multiple connected devices. The 3 mm² copper bar wiring structure enhances electrical conductivity and supports reliable long-term operation.
Featuring a 6063-T5 aluminum alloy main housing and high-strength PC side covers, the PDU provides excellent durability, mechanical protection, and heat dissipation performance. The eco-friendly powder-coated finish improves surface protection and maintains a professional industrial appearance.

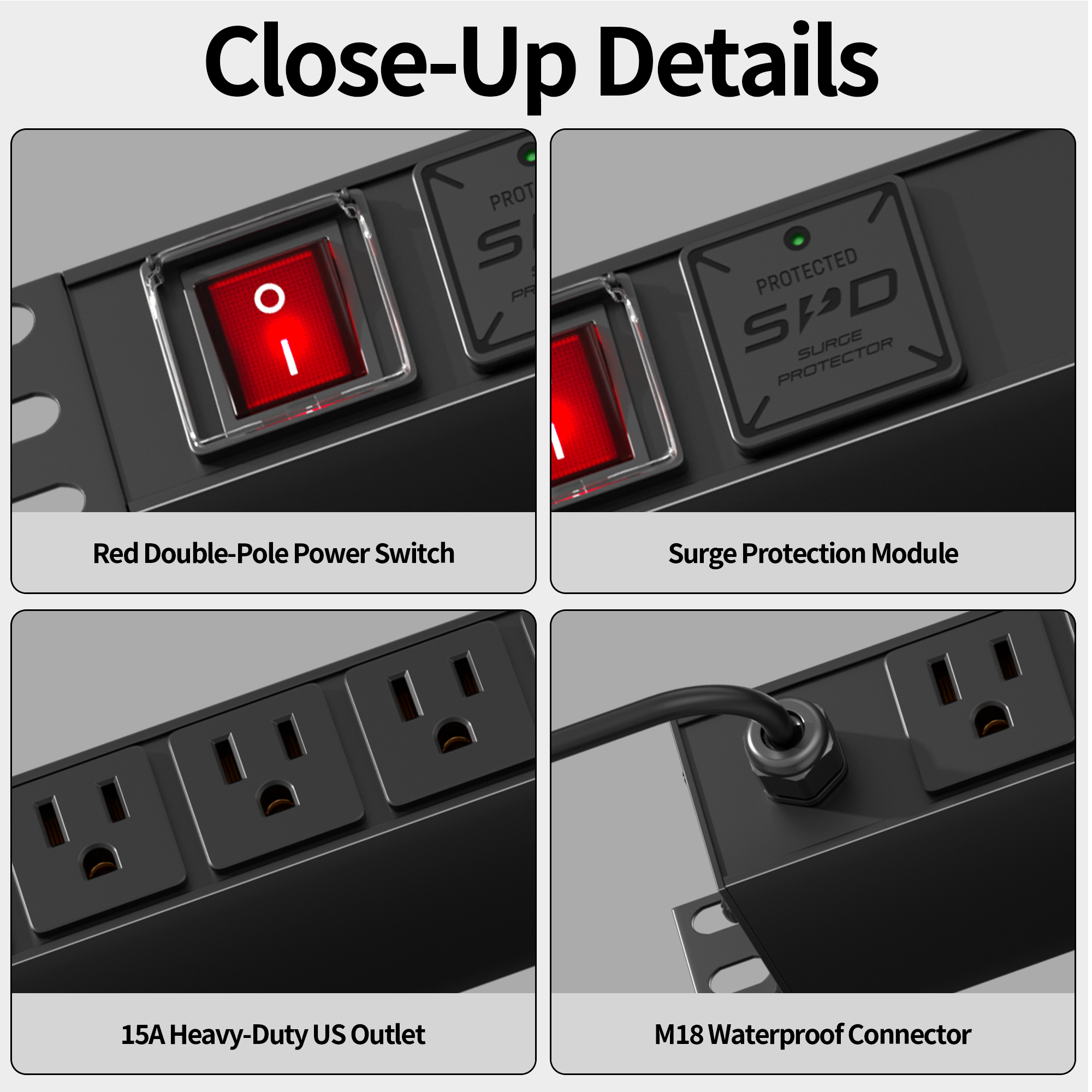

Equipped with a red double-pole switch and surge protective device, this PDU provides enhanced power control and protection against abnormal voltage conditions. The integrated protection design helps safeguard connected equipment and improves overall system reliability.
The rear panel is equipped with 9 × NEMA 5-15R outlets, providing multiple power connections within a compact 1+1U structure. The centralized outlet layout improves equipment connectivity and simplifies power distribution management.
Designed with rear cable entry and an M18 waterproof cable gland, the PDU provides organized cable routing and improved protection in industrial installation environments. The secure cable management design helps maintain stable operation in demanding applications.
Adopting a copper bar power distribution structure with secure internal wiring fixation and insulation design, the PDU ensures reliable electrical performance, improved safety, and consistent operation during continuous use.
The CN Series 1+1U profile offers a compact installation solution for industrial cabinets, equipment enclosures, and communication racks. Its efficient structure helps maximize cabinet space utilization while providing flexible power distribution.

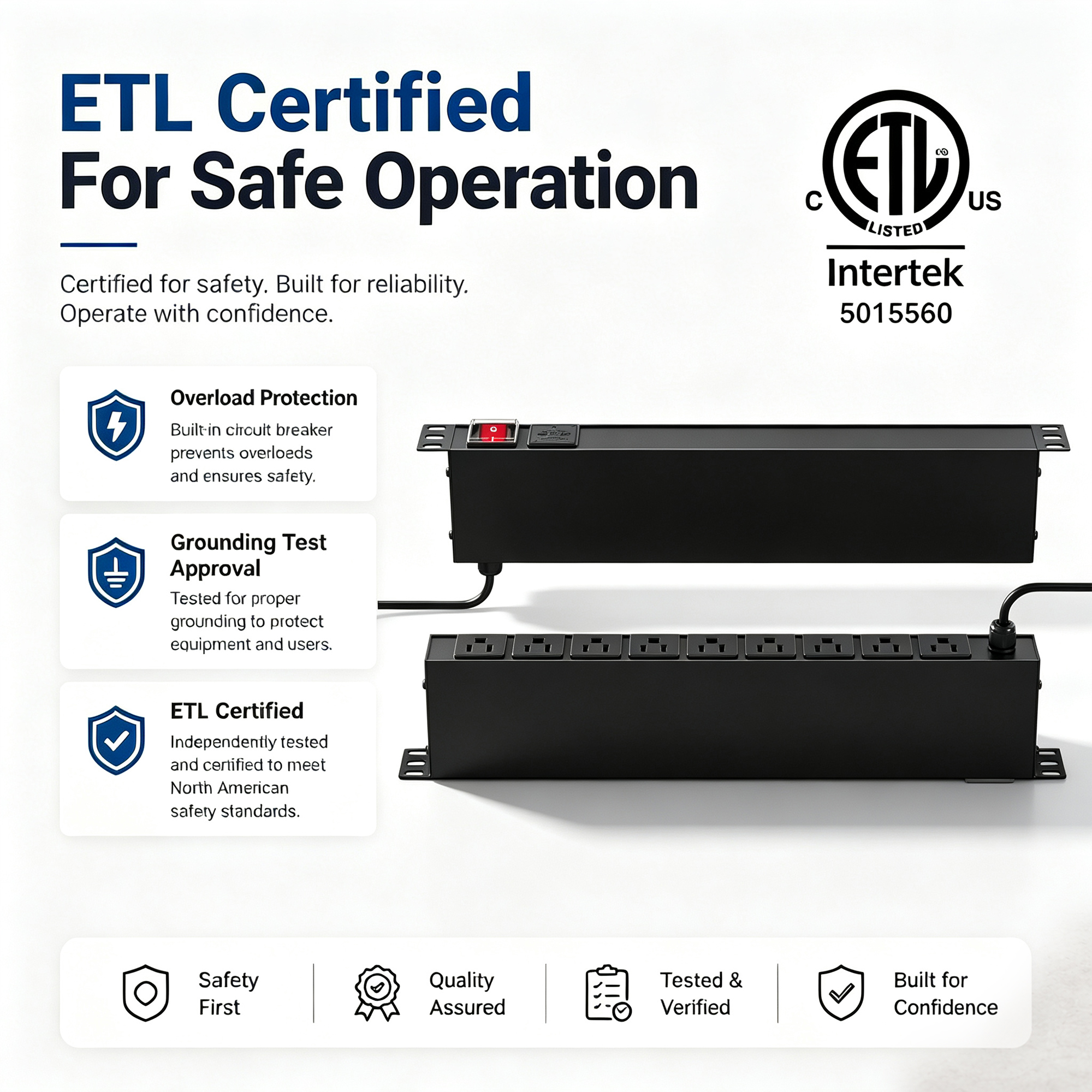

Designed according to applicable ETL / UL electrical safety requirements, each finished product undergoes strict inspection and grounding tests before shipment to ensure product quality, safety, and reliability.
Supports customized solutions including outlet quantity, input configuration, cable specifications, protection modules, housing appearance, and structural design to meet different industrial power distribution requirements.
Specification | Details |
|---|---|
Product Name | Aluminum Desktop PDU |
Model Number | DMCN-1+1UT-U9-KFu-2.08p3m-MB15A |
Housing Material | 6063-T5 Aluminum Alloy |
Housing Finish | Eco-friendly Powder-Coated Finish |
Housing Color | Black |
Side Cover Material | High-Strength PC |
Profile Specification | 1+1U CN Series Aluminum Profile |
Rated Voltage | 125V AC |
Rated Current | 15A Max |
Frequency | 50/60Hz |
Plug Type | NEMA 5-15P |
Front View of PDU | Red Double-Pole Switch *1; Surge Protective Device |
Rear View of PDU | NEMA 5-15R *9 |
Power Entry | Rear Cable Entry |
Power Cord Type | 14 AWG 3-Conductor Power Cord |
Power Cord Length | 3 m (9.84 ft) |
Grounding Type | Grounded 3-Prong Design |
Mounting Accessories | Included |
Certification | ETL Listed |
Safety Features | Grounding Protection |
Operating Environment | Indoor Use Only |
Country Standard | USA / Canada |
Warranty | 1 Year Limited Warranty |
A1. This 1+1U industrial PDU is designed for industrial power distribution applications, including automation equipment, electrical control cabinets, manufacturing systems, and other professional environments requiring stable and reliable power management. It provides centralized power distribution with a compact installation structure.
A2. The 1+1U structure provides efficient space utilization while integrating power distribution and control functions. It is suitable for industrial installations where compact size, organized wiring, and convenient maintenance are required.
A3. This model is rated at 125V AC with a maximum current rating of 15A. It uses a NEMA 5-15P input plug and a 14 AWG three-conductor power cord to provide stable power input.
A4. The rear panel is equipped with 9 × NEMA 5-15R outlets, allowing multiple industrial devices to be connected to a single power distribution unit.
A5. The front red double-pole switch provides convenient main power control, allowing users to quickly turn the PDU power supply on or off during operation, maintenance, or equipment management.
A6. Yes. This model integrates a Surge Protective Device (SPD) to help protect connected equipment from transient voltage surges and improve power system reliability.
A7. The main housing is made of 6063-T5 aluminum alloy with an eco-friendly powder-coated finish, providing excellent durability, corrosion resistance, and heat dissipation performance. The side covers use high-strength PC material for additional insulation protection.
A8. Yes. The product features reliable internal wiring, secure insulation design, aluminum alloy construction, and grounding tests before shipment, making it suitable for continuous industrial applications.
A9. Yes. The rear cable entry design with an M18 waterproof cable gland provides better cable protection and helps improve installation reliability in industrial environments.
A10. Yes. OEM and ODM customization are available, including outlet configuration, input plug type, cable specifications, housing design, functional modules, and other requirements to meet different industrial power distribution applications.
