This Industrial 1+1U High Power PDU is designed for high-current power distribution in industrial equipment, control cabinets, automation systems, and professional electrical applications. Supporting 30A maximum current with a NEMA 5-30P input, it provides stable and reliable power distribution for demanding environments.
Featuring a durable 6063-T5 aluminum alloy housing, 10 AWG power cord, and 6 mm² copper busbar wiring, this PDU delivers excellent strength, heat dissipation, and electrical reliability. The compact 1+1U design saves installation space while meeting industrial high-power requirements. Designed to comply with applicable ETL / UL safety requirements.
| Cord Length: | |
|---|---|
| Availability: | |
| Quantity: | |
DMCN-1+1UT-U10Ua9-5.26p3m-MB30A
PEDIU
This 1+1U High Power Industrial PDU is a professional-grade power distribution solution designed for industrial environments, manufacturing facilities, data centers, server rooms, network equipment systems, and other applications requiring high-capacity and reliable power management.
Designed with a compact 1+1U CN Series aluminum profile structure, this industrial PDU provides efficient power distribution while optimizing installation space. The product adopts a durable 6063-T5 aluminum alloy housing with an eco-friendly black powder-coated finish, delivering excellent mechanical strength, heat dissipation performance, and long-term durability in demanding industrial environments.
Unlike conventional power strips, this high-power PDU is engineered for industrial-grade applications with a 30A high-current input configuration, supporting multiple connected devices through front and rear outlet layouts. The dual-side outlet design improves power accessibility and cable management efficiency, making it suitable for large-scale equipment deployment and professional power distribution systems.
Equipped with NEMA industrial-grade power interfaces, a 10 AWG 3-conductor power cord, and 6 mm² copper bar internal wiring, this PDU ensures stable current transmission and reliable operation under high-load conditions. The integrated waterproof cable gland design enhances cable protection and supports installation in industrial environments requiring improved safety and reliability.
This 1+1U industrial PDU is an ideal solution for factories, automation systems, IT infrastructure, server equipment, communication cabinets, and other professional applications requiring high-power, organized, and dependable power distribution.
This high-power industrial PDU is designed for professional applications requiring stable, high-capacity, and organized power distribution.
Suitable applications include:
Industrial Equipment Systems
Manufacturing Facilities
Factory Automation Systems
Industrial Control Cabinets
Data Centers
Server Rooms
Network Equipment Cabinets
Communication Infrastructure
Testing Equipment Stations
Laboratory Equipment Systems
Large-Scale IT Installations
Professional Workstations
Energy Management Systems
Industrial Power Distribution Applications
Designed for high-current industrial applications, this PDU supports large-scale equipment power distribution with reliable electrical performance. The 30A input configuration provides sufficient power capacity for demanding industrial environments, helping maintain stable operation of connected equipment.
The front and rear outlet configuration provides flexible equipment connection options. This design improves installation convenience, reduces cable congestion, and allows more efficient power management in industrial equipment layouts.
Constructed with 6063-T5 aluminum alloy housing, this industrial PDU provides excellent durability, structural strength, and heat dissipation. The black powder-coated surface improves corrosion resistance and maintains a professional industrial appearance.
The internal electrical system uses a 6 mm² copper bar structure to ensure efficient current transmission and reliable operation under high-load conditions. The 10 AWG power cable provides enhanced electrical stability for industrial applications.
The compact 1+1U CN Series profile design allows flexible integration into industrial equipment systems and professional power distribution environments. The M25 waterproof cable gland improves cable protection and enhances installation reliability.
We provide professional OEM and ODM customization services to meet different industrial power distribution requirements.
Customization options include:
Product dimensions and structural design
Housing materials and surface finishes
Outlet quantity and socket standards
Input plug specifications
Cable length and cable specifications
Internal wiring configurations
Functional module customization
Logo customization
Packaging solutions
Customized industrial PDU solutions are available for equipment manufacturers, system integrators, industrial projects, and specialized applications.
The product includes a one-year warranty period.
During the warranty period, free repair service is provided for quality-related issues. Customers may return products to the manufacturer for repair, with no repair fees charged. Domestic shipping costs will be covered by the manufacturer. Specific arrangements can be negotiated.
Designed for industrial high-power applications, this 1+1U Power Distribution Unit provides reliable and efficient power distribution for industrial equipment, automation systems, server cabinets, network infrastructure, and other high-load electrical environments. The compact 1+1U profile combines high power capacity with space-saving installation advantages.
Supporting up to 30A rated current with a NEMA 5-30P input plug, this industrial PDU is engineered for demanding power applications. The 10 AWG 3-conductor power cord and 6 mm² copper bar wiring structure ensure stable current transmission and reliable operation under heavy loads.
Built with durable 6063-T5 aluminum alloy housing and high-strength PC side covers, the PDU provides excellent mechanical strength, heat dissipation performance, and long-term durability. The eco-friendly powder-coated finish enhances surface protection and supports reliable operation in industrial environments.

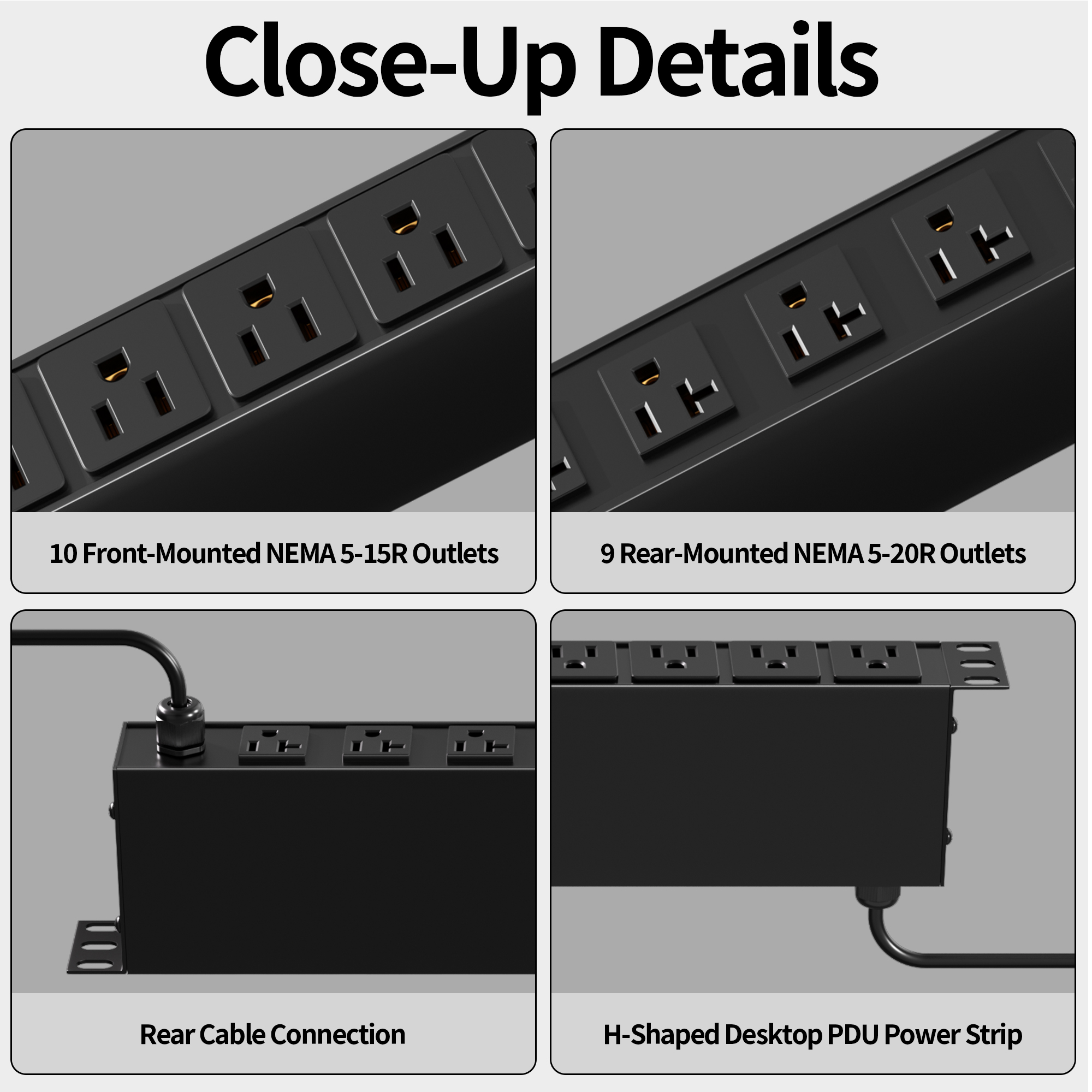

Featuring a front and rear outlet layout, this 1+1U PDU provides flexible equipment connection options. The front panel includes 10 × NEMA 5-15R outlets, while the rear panel provides 9 × NEMA 5-20R outlets, enabling efficient power distribution for multiple industrial devices.
Equipped with a high-capacity copper bar wiring system, the PDU improves electrical conductivity and reduces power loss. Secure internal wiring fixation and insulation design enhance electrical safety and ensure stable performance during continuous operation.
The 1+1U CN Series profile design offers efficient rack and cabinet integration while maintaining high-power output capability. It is ideal for industrial control cabinets, equipment racks, communication cabinets, and high-density power distribution environments.
Designed with rear cable entry and an M25 waterproof cable gland, the PDU provides improved cable management and additional protection for industrial installation environments where secure cable routing is required.
Designed according to applicable ETL / UL electrical safety requirements, the product undergoes strict manufacturing inspection, including grounding tests before shipment. The robust structure and safety-focused design help ensure reliable operation in industrial applications.
Supports customized solutions including outlet configurations, input plugs, cable specifications, housing design, installation methods, and functional modules to meet different industrial power distribution requirements.
Specification | Details |
|---|---|
Product Name | Aluminum Desktop PDU |
Model Number | DMCN-1+1UT-U10Ua9-5.26p3m-MB30A |
Housing Material | 6063-T5 Aluminum Alloy |
Housing Finish | Eco-friendly Powder-Coated Finish |
Housing Color | Black |
Side Cover Material | High-Strength PC |
Profile Specification | 1+1U CN Series Aluminum Profile |
Rated Voltage | 125V AC |
Rated Current | 30A Max |
Frequency | 50/60Hz |
Plug Type | NEMA 5-30P |
Front View of PDU | NEMA 5-15R *10 |
Rear View of PDU | NEMA 5-20R *9 |
Power Entry | Rear Cable Entry |
Power Cord Type | 10 AWG 3-Conductor Power Cord |
Power Cord Length | 3 m (9.84 ft) |
Grounding Type | Grounded 3-Prong Design |
Mounting Accessories | Included |
Certification | ETL Listed |
Safety Features | Grounding Protection |
Operating Environment | Indoor Use Only |
Country Standard | USA / Canada |
Warranty | 1 Year Limited Warranty |
A1. This 1+1U industrial PDU is a high-power power distribution unit designed for industrial equipment, control cabinets, machinery systems, and other applications requiring reliable power distribution. Its compact 1+1U structure provides flexible installation while supporting high-current power requirements up to 30A.
A2. The 1+1U design combines two functional spaces into a compact configuration, allowing more outlets and enhanced power distribution capacity within limited installation space. It is suitable for industrial environments where efficient space utilization and high-density power access are required.
A3. This industrial PDU supports a rated voltage of 125V AC and a maximum current rating of 30A. It is equipped with a NEMA 5-30P input plug and a 10 AWG three-conductor power cord to support high-power industrial applications.
A4. This model provides dual-side outlet configurations, including 10 × NEMA 5-15R outlets on the front panel and 9 × NEMA 5-20R outlets on the rear panel, allowing flexible connection of different industrial devices.
A5. Yes. The product is designed for industrial environments with reliable internal wiring, secure insulation, grounding inspection before shipment, and a durable aluminum alloy housing to support stable long-term operation.
A6. The main housing is manufactured from 6063-T5 aluminum alloy, providing excellent strength, durability, and heat dissipation performance. High-strength PC side covers enhance insulation and structural protection.
A7. The product complies with applicable ETL / UL electrical safety requirements. It includes grounding inspection before shipment, secure internal wiring, insulation protection, and overload prevention through proper rated power usage.
A8. Yes. We support OEM and ODM customization, including outlet types, input configurations, cable specifications, housing design, functional modules, and installation requirements to meet different industrial applications.
A9. This PDU is suitable for industrial control cabinets, automation equipment, manufacturing systems, electrical enclosures, and other professional environments requiring high-capacity power distribution.
A10. Each finished product undergoes inspection before delivery, including grounding tests, surface inspection, wiring verification, and compliance checks according to applicable industry standards.
