Product Features And Advantages

High-Capacity Industrial Power Distribution Solution

Designed for industrial, commercial, and equipment power management applications, this 1U CN Series PDU provides high-density and reliable power distribution in a compact structure. It is ideal for equipment rooms, workshops, test environments, automation systems, and professional electrical installations requiring multiple power connections.

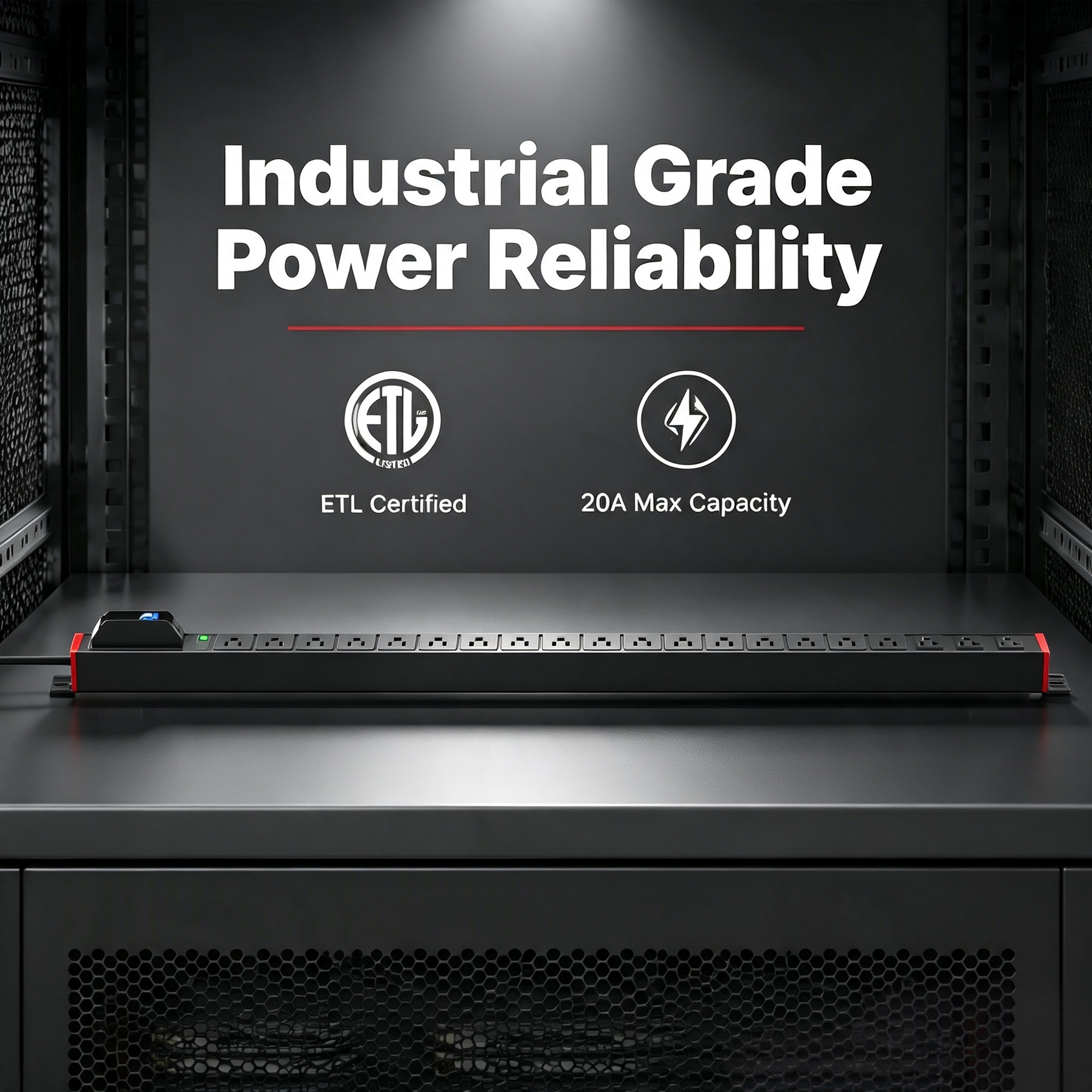

20A High-Power Output Capability

Supporting up to 20A rated current with a NEMA 5-20P input plug, this PDU delivers enhanced power capacity for demanding applications. The combination of NEMA 5-15R and NEMA 5-20R outlets provides flexible compatibility with different electrical devices and high-load equipment.

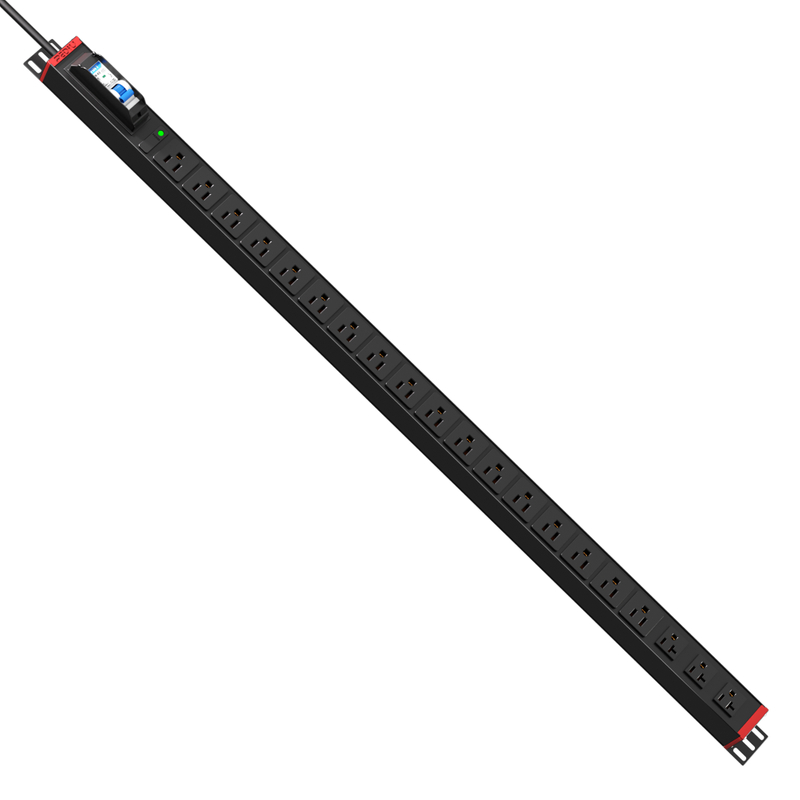

High-Density 20-Outlet Configuration

Equipped with 17 × NEMA 5-15R outlets and 3 × NEMA 5-20R outlets, this PDU provides extensive power distribution capability while maximizing rack and installation space efficiency. The optimized outlet arrangement supports multiple connected devices simultaneously.

Durable Aluminum Alloy Housing

Constructed with premium 6063-T5 aluminum alloy, the housing provides excellent mechanical strength, heat dissipation, and long-term durability. The eco-friendly powder-coated black finish enhances corrosion resistance and maintains a professional industrial appearance.

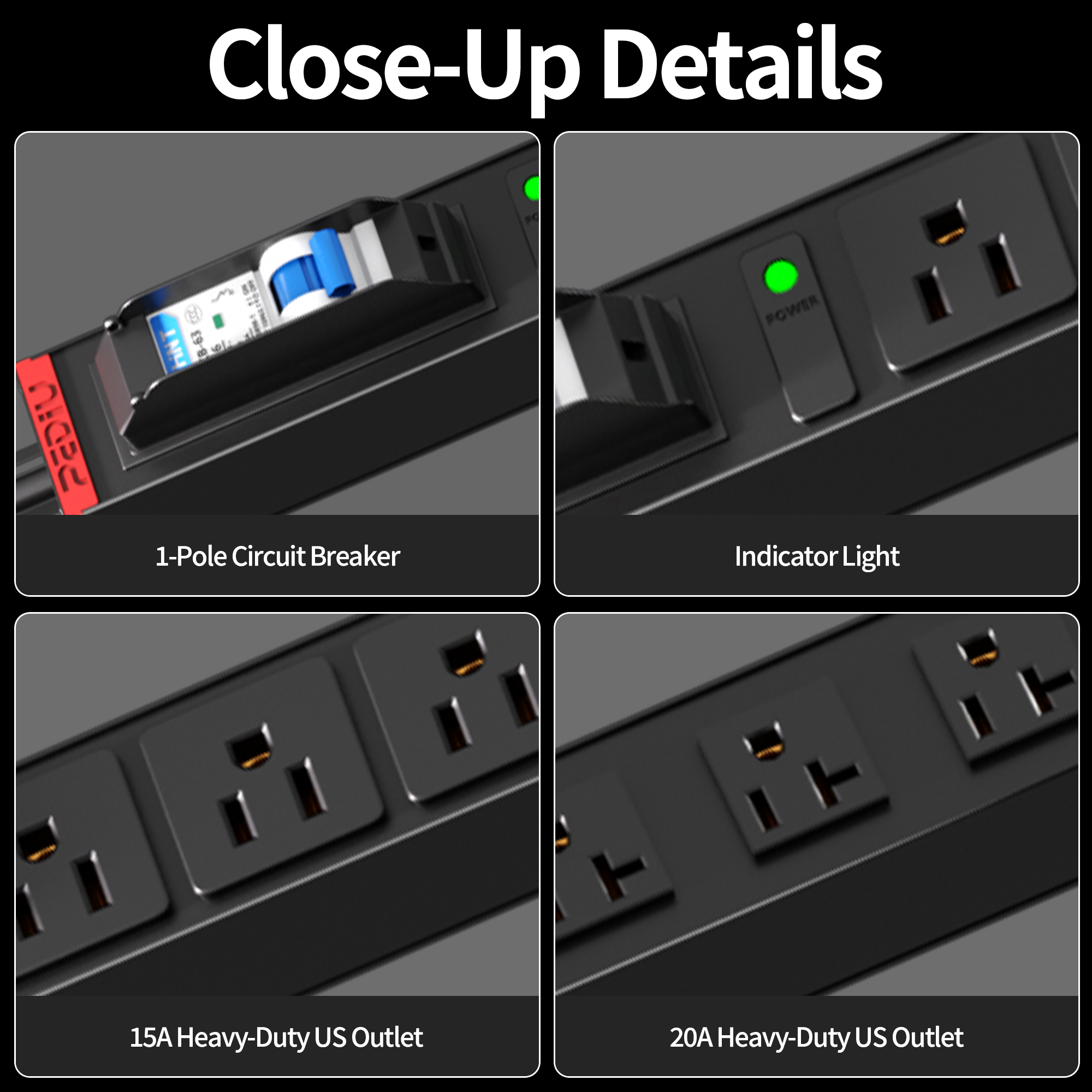

Integrated Circuit Protection & Power Status Monitoring

Featuring a 1P circuit breaker and power indicator, the PDU provides essential protection and operational visibility. The circuit breaker helps prevent damage caused by overload conditions, while the indicator allows quick identification of power availability.

Reliable Copper Busbar Power Structure

Utilizing a 3mm² copper busbar design, the PDU ensures efficient current transmission, reduced electrical loss, and improved power stability. Internal wiring is securely fastened and insulated to enhance safety and reliability during continuous operation.

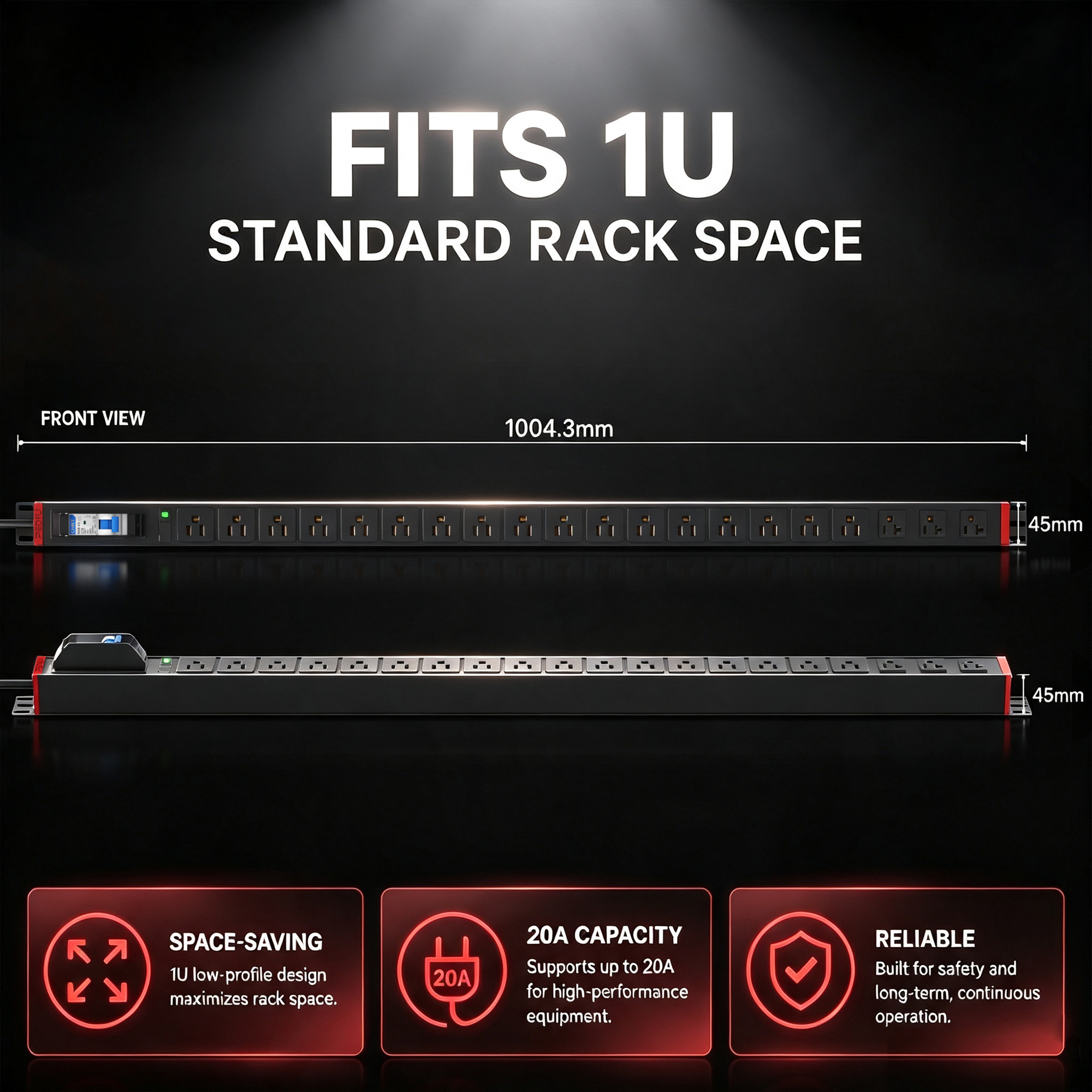

Flexible Industrial Installation Design

The left-side cable entry configuration and 1U CN Series profile provide convenient installation options for industrial equipment cabinets, electrical panels, workstations, and customized power distribution systems.

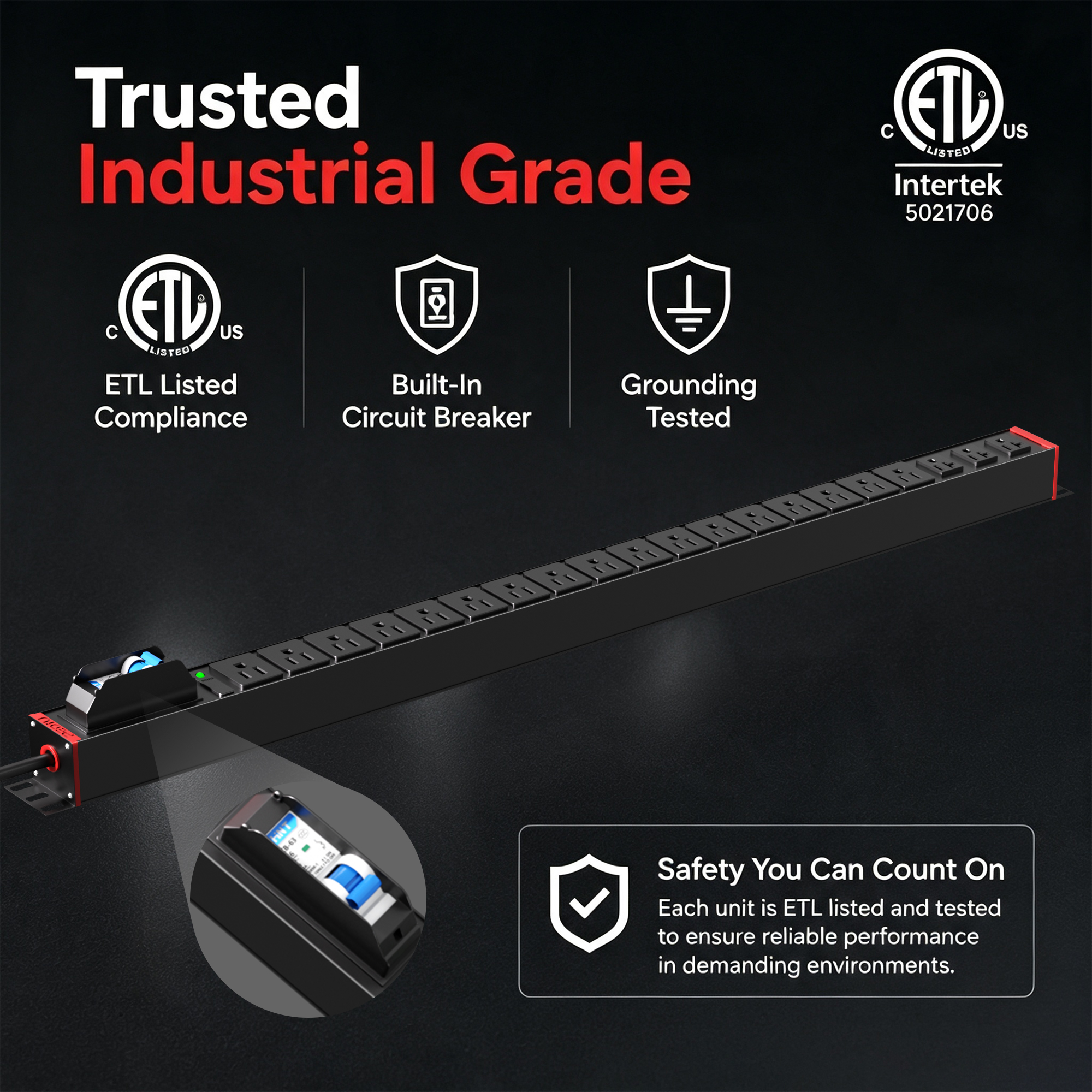

ETL Safety Compliance & Quality Assurance

Designed to comply with applicable ETL electrical safety requirements, each finished product undergoes inspection and grounding tests before shipment to ensure safe and reliable operation.

OEM & ODM Customization Support

Customized solutions are available for outlet configurations, electrical specifications, cable assemblies, functional modules, and structural requirements to meet different industrial and commercial power distribution needs.

Frequently Asked Questions

Q1: What is this 20A Industrial PDU designed for?

This 20A 1U CN Series Industrial PDU is designed for high-density power distribution in industrial, commercial, and professional equipment applications. It provides reliable power management for automation systems, electrical cabinets, workshops, equipment rooms, testing environments, and other applications requiring multiple power connections.

Q2: What is the maximum current capacity of this PDU?

This industrial PDU supports up to 20A rated current and is equipped with a NEMA 5-20P input plug with a 14 AWG 3-conductor power cord, providing enhanced power capacity for industrial and commercial electrical equipment.

Q3: How many outlets does this 20A PDU provide?

This model features a high-density outlet configuration:

• 17 × NEMA 5-15R outlets

• 3 × NEMA 5-20R outlets

The 20-outlet design allows multiple devices to be powered simultaneously while maximizing installation efficiency.

Q4: What applications are suitable for this industrial PDU?

This PDU is suitable for various professional applications, including:

• Industrial control systems

• Factory automation equipment

• Electrical control cabinets

• Manufacturing equipment

• Testing and laboratory systems

• Equipment rooms

• Commercial facilities

• Professional power distribution installations

Q5: Can this PDU support high-power equipment?

Yes. With a 20A rated capacity, NEMA 5-20P input configuration, and reinforced internal copper busbar structure, this PDU provides stable power distribution for equipment requiring higher current capacity.

It is suitable for applications involving multiple connected devices and continuous power operation.

Q6: What protection features does this PDU include?

This model includes:

• 1P Circuit Breaker

• Power Indicator

The circuit breaker helps protect connected equipment from overload conditions, while the power indicator provides quick confirmation of power availability.

Additional protection functions can be customized based on application requirements.

Q7: What materials are used for this industrial PDU?

The PDU housing is manufactured from 6063-T5 aluminum alloy, providing:

• Excellent mechanical strength

• Efficient heat dissipation

• Corrosion resistance

• Long-term durability

The high-strength PC side covers provide reliable insulation and structural protection.

Q8: Why does this PDU use a copper busbar structure?

This PDU uses a 3mm² copper busbar power structure to improve electrical performance by providing:

• Efficient current transmission

• Reduced electrical loss

• Improved power stability

• Reliable operation under continuous load conditions

The internal wiring is securely fastened and insulated to enhance safety.

Q9: Can this PDU be installed in industrial cabinets or equipment systems?

Yes. The compact 1U CN Series profile allows flexible installation in:

• Industrial equipment cabinets

• Electrical panels

• Automation systems

• Workstations

• Custom power distribution enclosures

The left-side cable entry design provides convenient cable management and installation flexibility.

Q10: What input configuration does this industrial PDU use?

This model uses:

• Input Plug: NEMA 5-20P

• Power Cord: 14 AWG 3-Conductor Cable

• Cable Length: 3 meters

This configuration provides reliable power input for 20A applications.
