This Industrial 2U High Power PDU is designed for industrial equipment, control cabinets, automation systems, and high-load electrical applications. Supporting 20A maximum current with multiple NEMA 5-15R and NEMA 5-20R outlets, it provides reliable power distribution for professional environments.
Featuring a durable 6063-T5 aluminum alloy housing, 3 mm² copper busbar wiring, and a built-in power indicator, this PDU ensures stable electrical performance, excellent heat dissipation, and long-term reliability. The 2U compact design with waterproof cable gland supports flexible installation in industrial applications. Compliant with applicable ETL / UL safety requirements.
| Cord Length: | |
|---|---|
| Availability: | |
| Quantity: | |
DMCN-2UT-U6Ua6-S-W
PEDIU

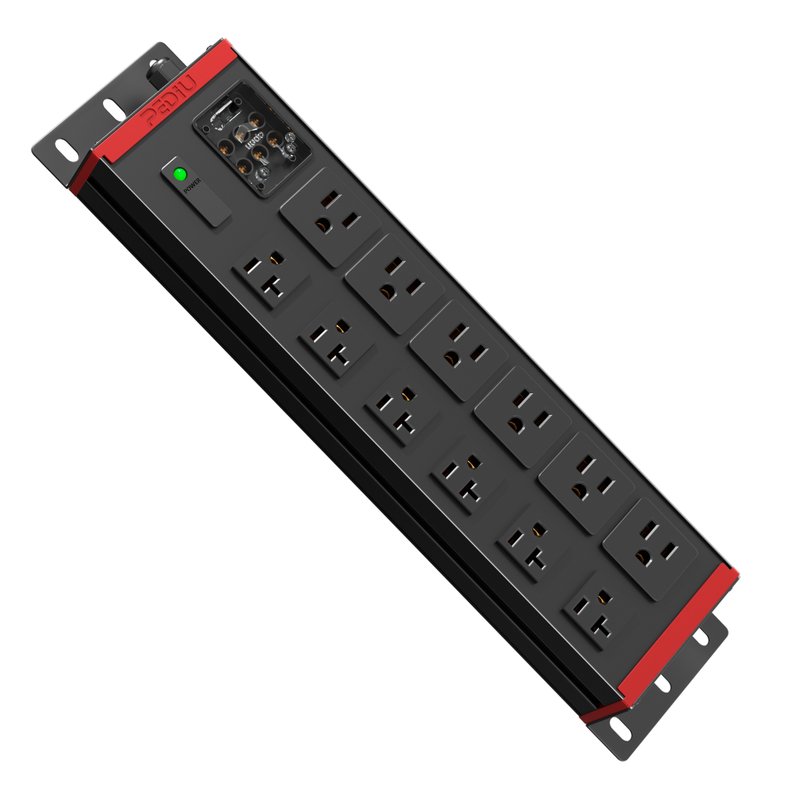

This 2U Industrial Power Distribution Unit (PDU) is a high-capacity power distribution solution designed for industrial equipment, automation systems, commercial facilities, and professional electrical applications requiring reliable and centralized power management.
Designed with a robust 6063-T5 aluminum alloy housing and eco-friendly matte black powder-coated finish, this industrial PDU provides excellent structural strength, durability, and heat dissipation performance. The compact 2U profile supports flexible installation in industrial environments, equipment integration systems, and customized power distribution applications.
Unlike conventional power strips, this industrial PDU is engineered for high-power applications with multiple AC output configurations, industrial-grade copper bar wiring, and reliable power distribution performance. Equipped with NEMA 5-15R and NEMA 5-20R outlets, it provides flexible power access for different types of industrial equipment and electrical devices.
With a junction box input configuration, M18 waterproof cable gland design, and professional internal wiring structure, this 2U industrial PDU delivers stable power transmission, enhanced installation reliability, and efficient power management for demanding industrial environments.
This 2U high-power industrial PDU is suitable for environments requiring reliable power distribution, multi-device connection, and continuous electrical operation.
Suitable applications include:
Industrial Automation Systems
Manufacturing Equipment
Factory Production Lines
Industrial Control Systems
Machine Equipment Integration
Electrical Control Cabinets
Commercial Equipment Systems
Testing and Measurement Equipment
Robotics and Automation Applications
Industrial Workstations
Professional Workshops
Customized Power Distribution Systems
Equipment Rooms
Engineering Projects
Designed for high-power industrial applications, this PDU provides multiple AC output interfaces including NEMA 5-15R and NEMA 5-20R outlets, allowing multiple electrical devices to be connected through a centralized power management platform.
The optimized outlet configuration improves equipment connectivity and helps create a cleaner, safer, and more organized power distribution environment.
The internal power distribution system adopts a 3mm² copper bar structure, providing excellent current carrying capability and stable power transmission performance.
The industrial-grade wiring design helps reduce power loss and improves long-term operational reliability in demanding electrical environments.
The integrated power indicator provides clear operating status visibility, allowing users to quickly identify the power condition of the PDU.
The aluminum housing structure and professional internal wiring design enhance overall safety and reliability during continuous operation.

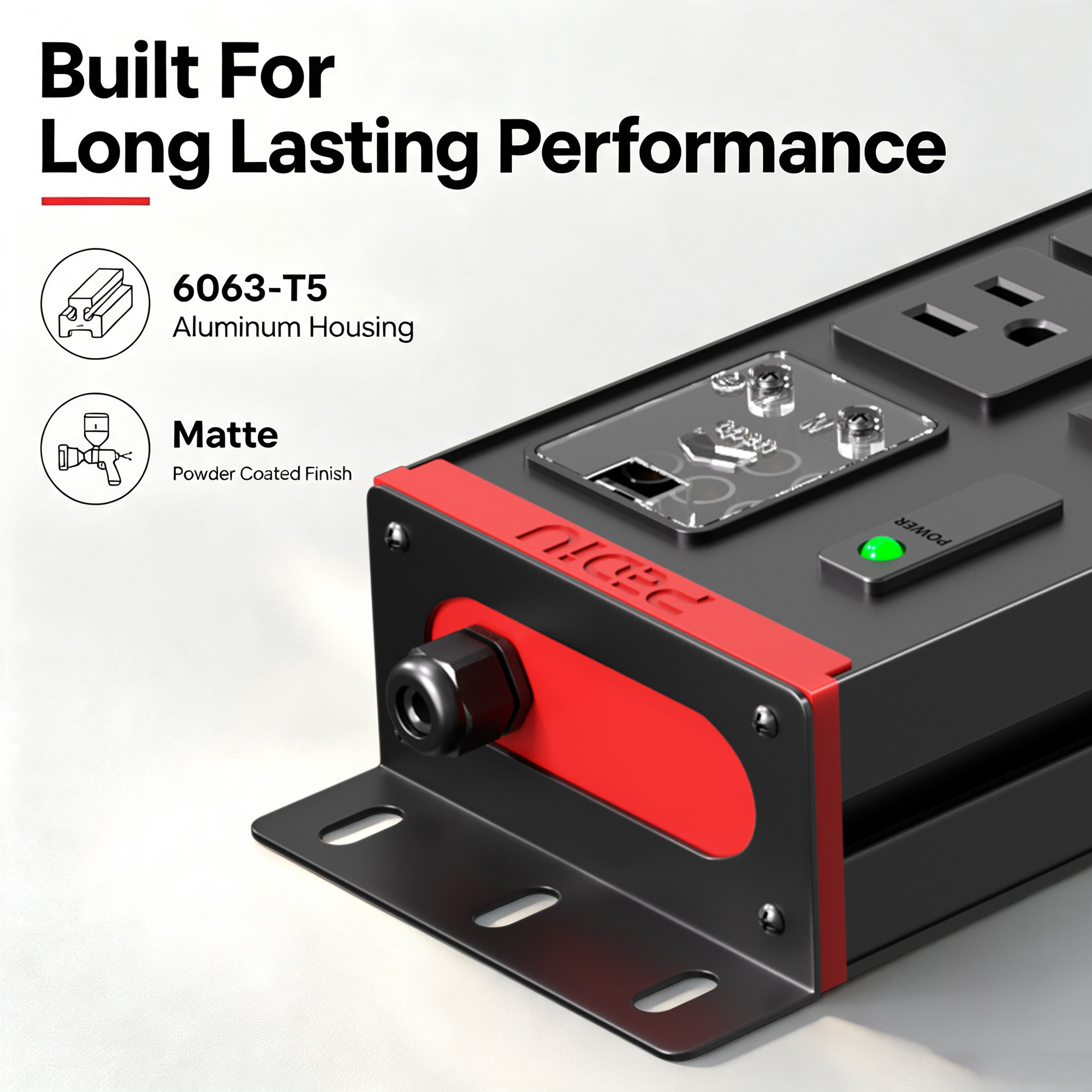

Constructed with 6063-T5 aluminum alloy, the housing provides excellent mechanical strength, durability, and thermal performance.
The eco-friendly matte black powder-coated finish improves surface protection while delivering a professional industrial appearance. The red PC side covers provide visual identification and enhance product aesthetics.
Compared with traditional plastic power distribution products, the aluminum housing offers superior protection, better heat dissipation, and extended service life.

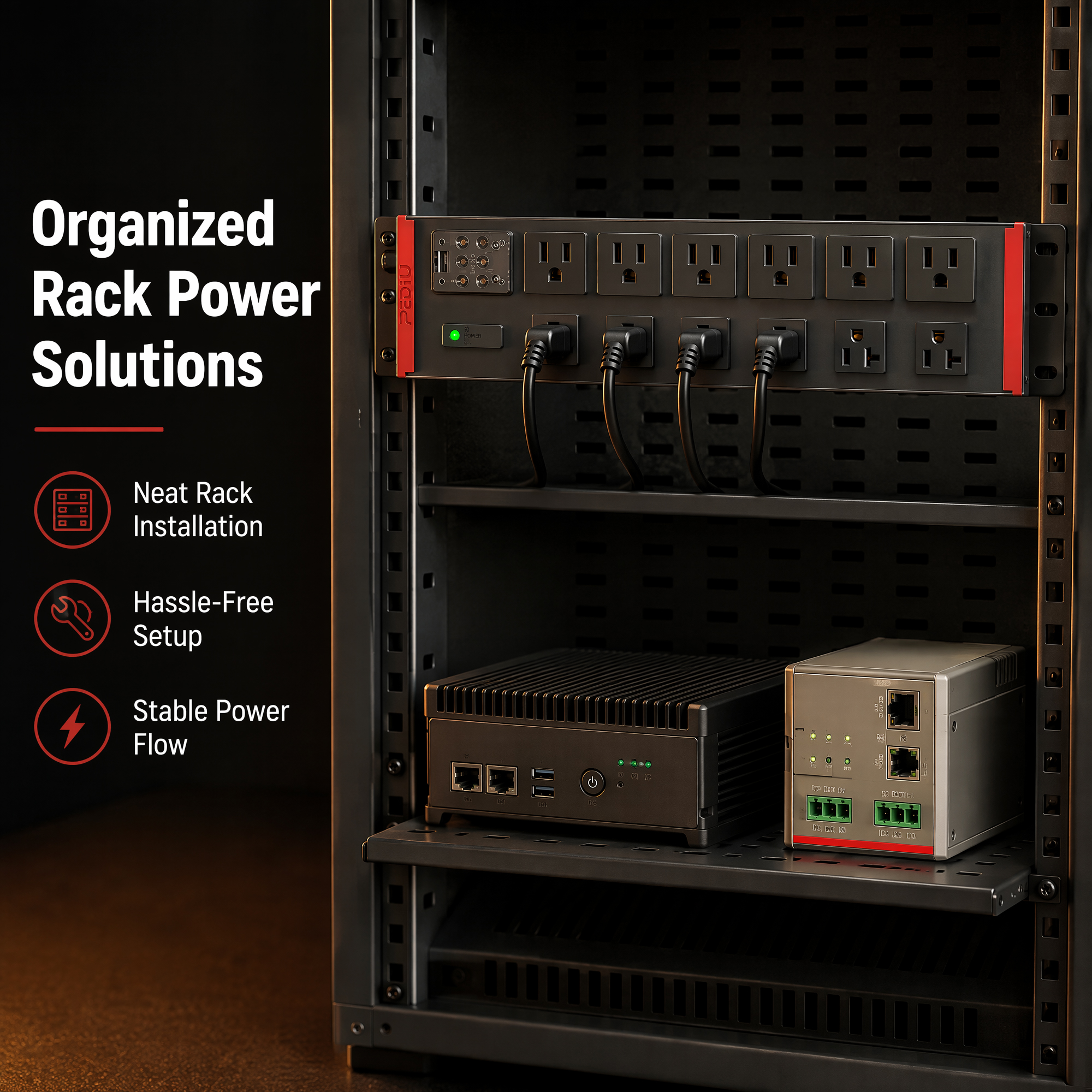

The 2U profile structure supports flexible horizontal installation for industrial applications and customized equipment integration.
The junction box input configuration combined with M18 waterproof cable gland provides reliable cable connection and improved protection in professional environments.
All internal wiring is securely fastened and insulated, and finished products undergo grounding tests and quality inspections before shipment to ensure safe and reliable operation.
We provide professional OEM and ODM customization services to support different industrial power distribution requirements.
Customization options include:
Product Structure Design
Housing Size and Appearance
Surface Finish and Colors
Outlet Quantity and Standards
Input Connection Solutions
Cable Specifications and Lengths
Power Distribution Configuration
Internal Wiring Solutions
Logo Customization
Packaging Solutions
Customized industrial PDU solutions are available for equipment manufacturers, engineering companies, and industrial projects.
The product includes a one-year warranty period.
During the warranty period, free repair service is provided for quality-related issues. Customers may return products to the manufacturer for repair, with no repair fees charged. Domestic shipping costs will be covered by the manufacturer. Specific arrangements can be negotiated.
Designed for industrial power distribution applications, this 2U PDU provides reliable and efficient power management for industrial equipment, automation systems, control cabinets, workshops, and high-load electrical environments. The robust structure and high-capacity configuration ensure stable power delivery for demanding applications.
Supporting up to 20A rated current, this PDU is designed for high-power industrial applications. The internal 3 mm² copper bar wiring structure improves electrical conductivity and load-bearing capability, ensuring reliable power transmission and long-term operational stability.
Built with 6063-T5 aluminum alloy housing and high-strength PC side covers, the PDU provides excellent mechanical strength, heat dissipation performance, and durability. The matte black eco-friendly powder-coated finish enhances surface protection while delivering a professional industrial appearance.

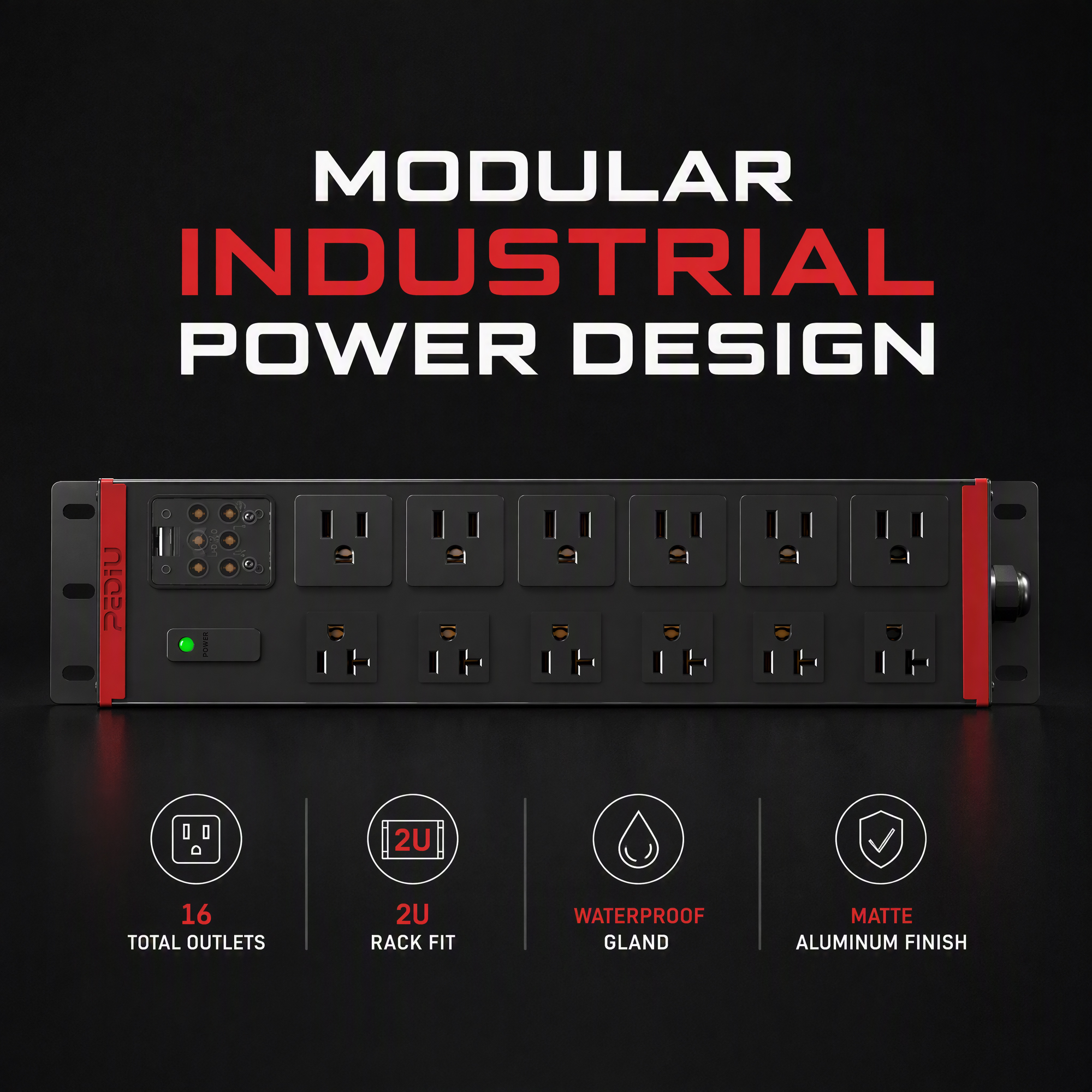

Equipped with 10 × NEMA 5-15R outlets and 6 × NEMA 5-20R outlets, this PDU provides multiple power connection options for industrial equipment, control devices, and electrical systems. The diversified outlet configuration improves application flexibility and equipment connectivity.
Featuring a power indicator module, this PDU allows users to quickly identify power availability and operating status, improving daily operation efficiency and simplifying equipment inspection.
Designed with a junction box input configuration and M18 waterproof cable gland, the PDU provides secure cable connection and improved protection in industrial environments. The optimized wiring structure supports safer installation and reliable operation.
The internal wiring adopts a secure copper bar distribution structure with reliable fastening and insulation design. Each finished product undergoes grounding tests before shipment to ensure electrical safety and product reliability.

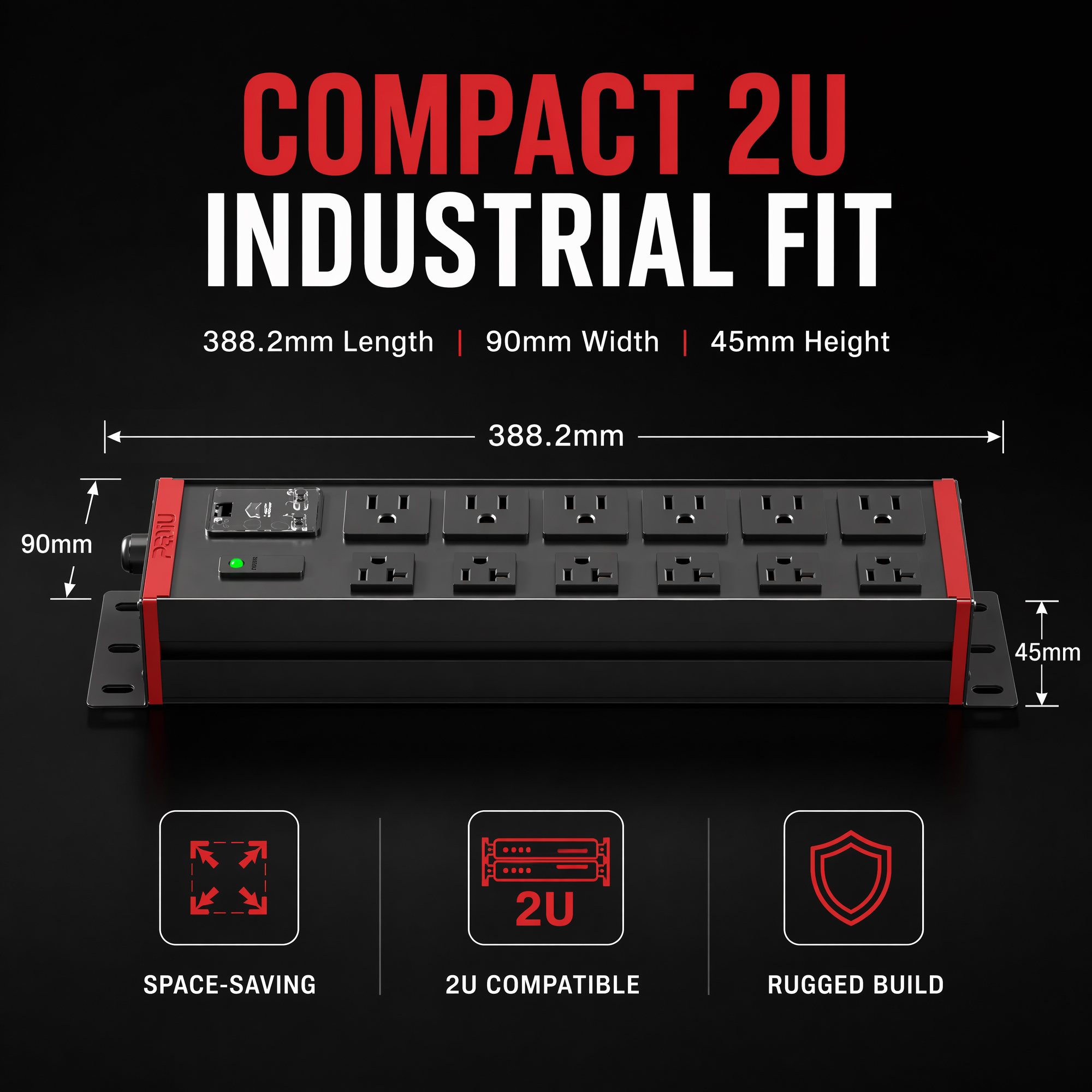

The 2U profile design provides a practical installation solution for industrial cabinets, equipment enclosures, production lines, and electrical control systems. The compact structure helps optimize installation space while maintaining high-power distribution capability.

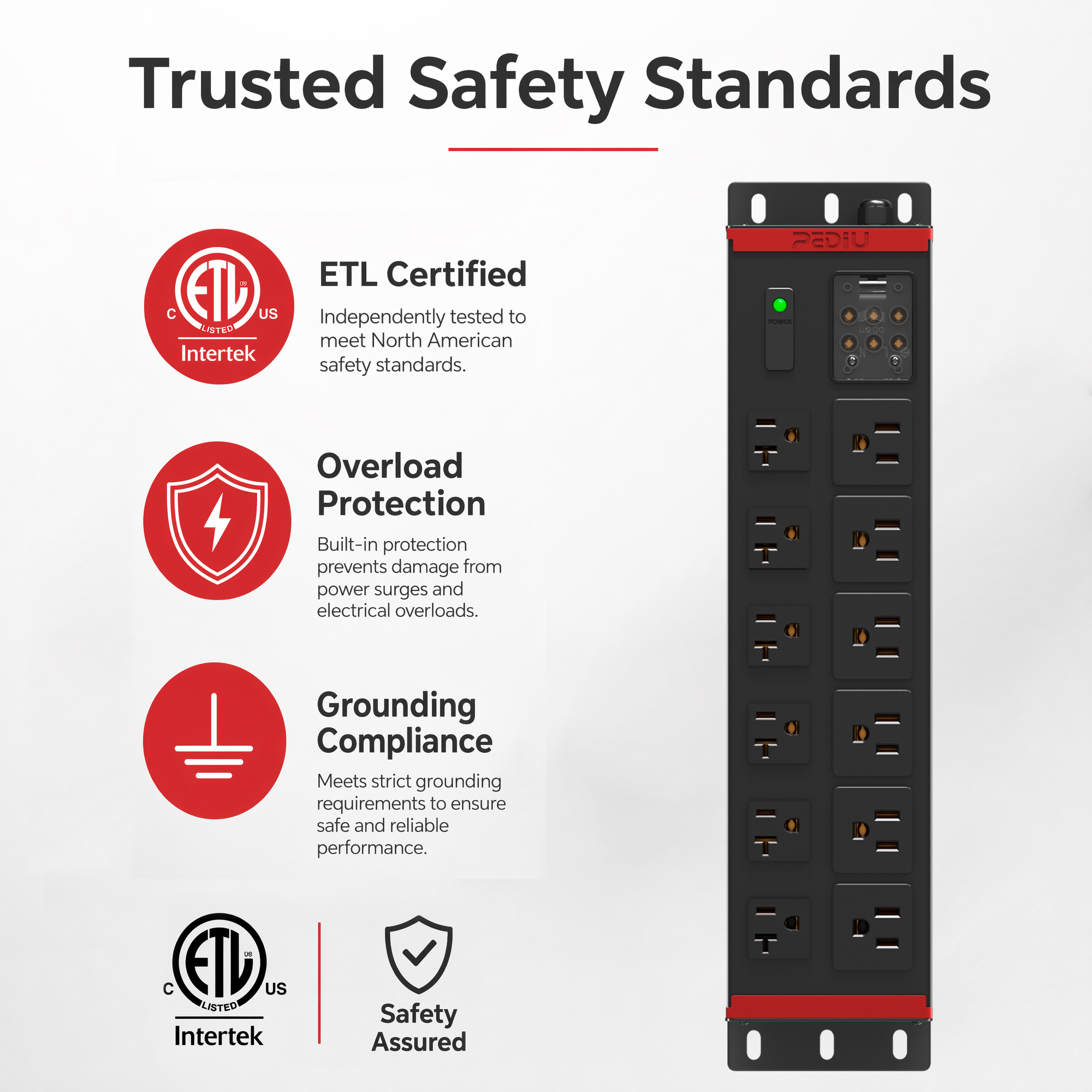

Designed according to applicable ETL / UL electrical safety requirements, the product follows strict manufacturing standards and inspection procedures. Finished surfaces are protected during transportation to maintain product quality and appearance.
Supports customized solutions including outlet combinations, input configurations, cable specifications, housing colors, functional modules, and structural designs to meet different industrial power distribution requirements.
Specification | Details |
|---|---|
Product Name | Industrial PDU |
Model Number | DMCN-2UT-U6Ua6-S-W |
Housing Material | 6063-T5 Aluminum Alloy |
Housing Finish | Eco-friendly Powder-Coated Finish |
Housing Color | Black |
Side Cover Material | High-Strength PC |
Profile Specification | 2U Series Aluminum Profile |
Rated Voltage | 125V AC |
Rated Current | 20A Max |
Frequency | 50/60Hz |
Plug Type | Junction Box M18 Waterproof Cable Gland |
Outlet Type | NEMA 5-15R *10 NEMA 5-20R *6 |
Function Modules | Power Indicator *1 |
Power Entry | Rear Cable Entry |
Power Cord Type | / |
Power Cord Length | 3 m (9.84 ft) |
Grounding Type | Grounded 3-Prong Design |
Mounting Accessories | Included |
Certification | ETL Listed |
Safety Features | Grounding Protection |
Operating Environment | Indoor Use Only |
Country Standard | USA / Canada |
Warranty | 1 Year Limited Warranty |
A1. This 2U industrial PDU is designed for high-capacity power distribution in industrial environments, including manufacturing equipment, automation systems, electrical cabinets, and professional power management applications. It provides centralized power access with multiple outlet configurations for industrial devices.
A2. This model supports 125V AC input with a maximum current rating of 20A. It provides both NEMA 5-15R and NEMA 5-20R outlet options to support different industrial power requirements.
A3. This industrial PDU provides 16 total outlets, including 10 × NEMA 5-15R outlets and 6 × NEMA 5-20R outlets, allowing multiple devices to be connected simultaneously.
A4. The combination of NEMA 5-15R and NEMA 5-20R outlets provides greater flexibility, allowing users to connect standard electrical equipment as well as higher-power devices requiring 20A-rated outlets.
A5. The integrated power indicator provides a clear visual status of the PDU power connection, helping users quickly identify whether the unit is receiving power during operation and maintenance.
A6. This model adopts a 2U horizontal installation structure and supports non-standard horizontal mounting methods. The junction box input configuration with M18 waterproof cable gland provides flexible installation options for industrial environments.
A7. The main housing is made of 6063-T5 aluminum alloy with a matte black eco-friendly powder-coated finish. The aluminum structure provides durability, corrosion resistance, and improved heat dissipation performance.
A8. Yes. The product features a durable aluminum housing, secure internal wiring, insulated electrical components, and grounding tests before shipment, making it suitable for reliable long-term industrial use.
A9. Yes. OEM and ODM services are available. Customers can customize outlet combinations, input methods, cable specifications, housing designs, and other requirements according to specific industrial applications.
A10. This product complies with applicable ETL / UL electrical safety requirements. Internal wiring is securely fastened and insulated, and each finished product undergoes inspection and grounding testing before shipment to ensure safe operation.
