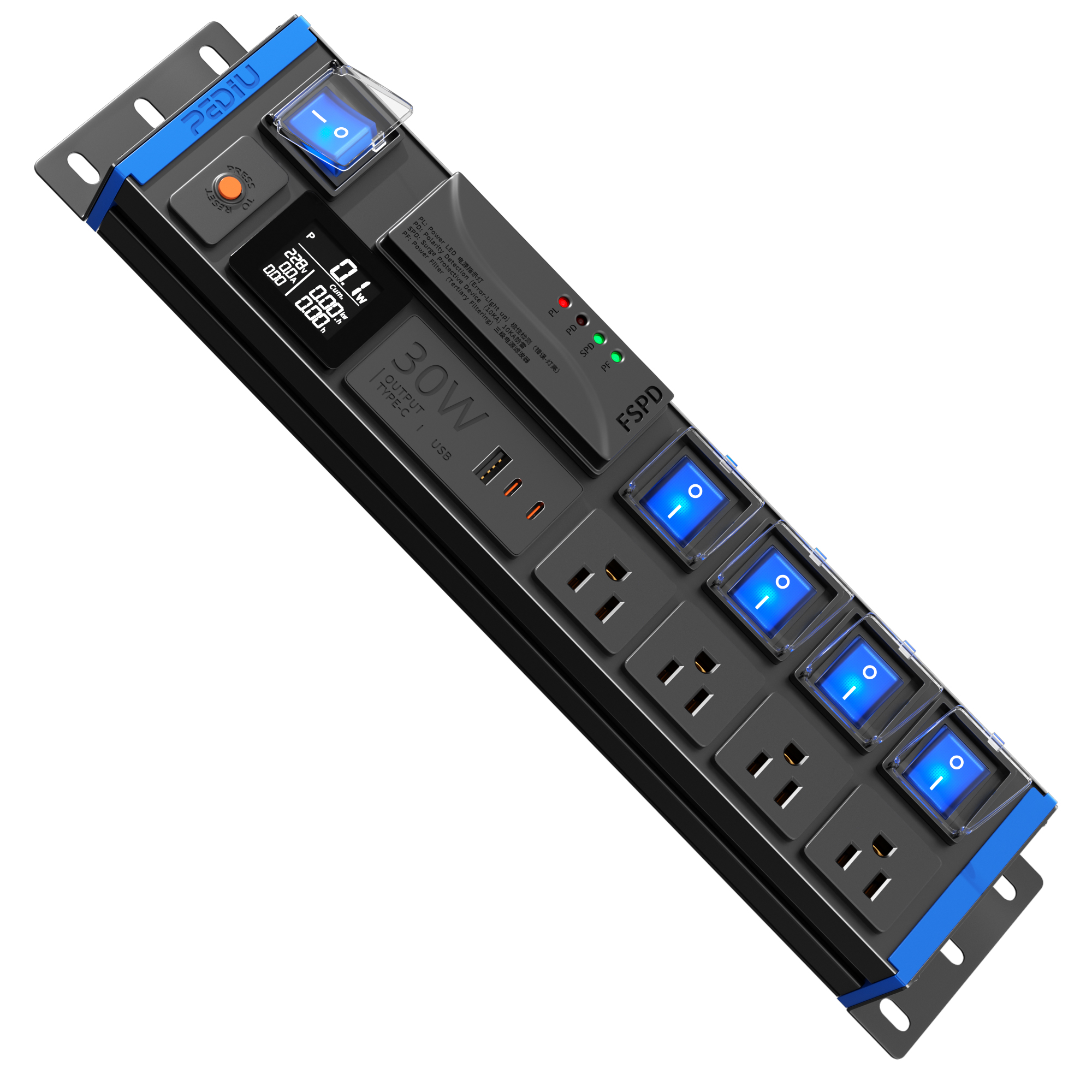

The 2U Aluminum Smart PDU is a professional power management solution designed for workstations, office environments, network equipment, and electronic applications. Featuring a durable 6063-T5 aluminum alloy housing with an eco-friendly matte black powder-coated finish and blue high-strength PC side covers, it delivers excellent durability, heat dissipation, and modern industrial aesthetics.
Designed for 125V AC / 15A applications, this PDU provides 4 NEMA 5-15R outlets with independent blue double-pole switches, overload protection, filtered surge protection, full display power metering, and a 30W Type-C + USB charging module. The compact 2U design with left-side cable entry ensures efficient installation and cable management. ETL compliant and available with OEM/ODM customization for different applications.
| Cord Length: | |
|---|---|
| Availability: | |
| Quantity: | |
DMCN-2UT-U4-5KGJqVeUt30-2.08p3m-MB15A
PEDIU
This 2U Aluminum PDU Power Strip is a compact and multifunctional power distribution solution designed for modern home, office, and professional workspace environments. It integrates power distribution, charging, surge protection, overload protection, and real-time power monitoring functions into one professional power management unit.
Featuring a durable 6063-T5 aluminum alloy housing with an eco-friendly powder-coated finish, this PDU provides excellent structural strength, heat dissipation, and premium appearance. Compared with traditional plastic power strips, it offers improved durability, better thermal performance, and a more professional installation experience.

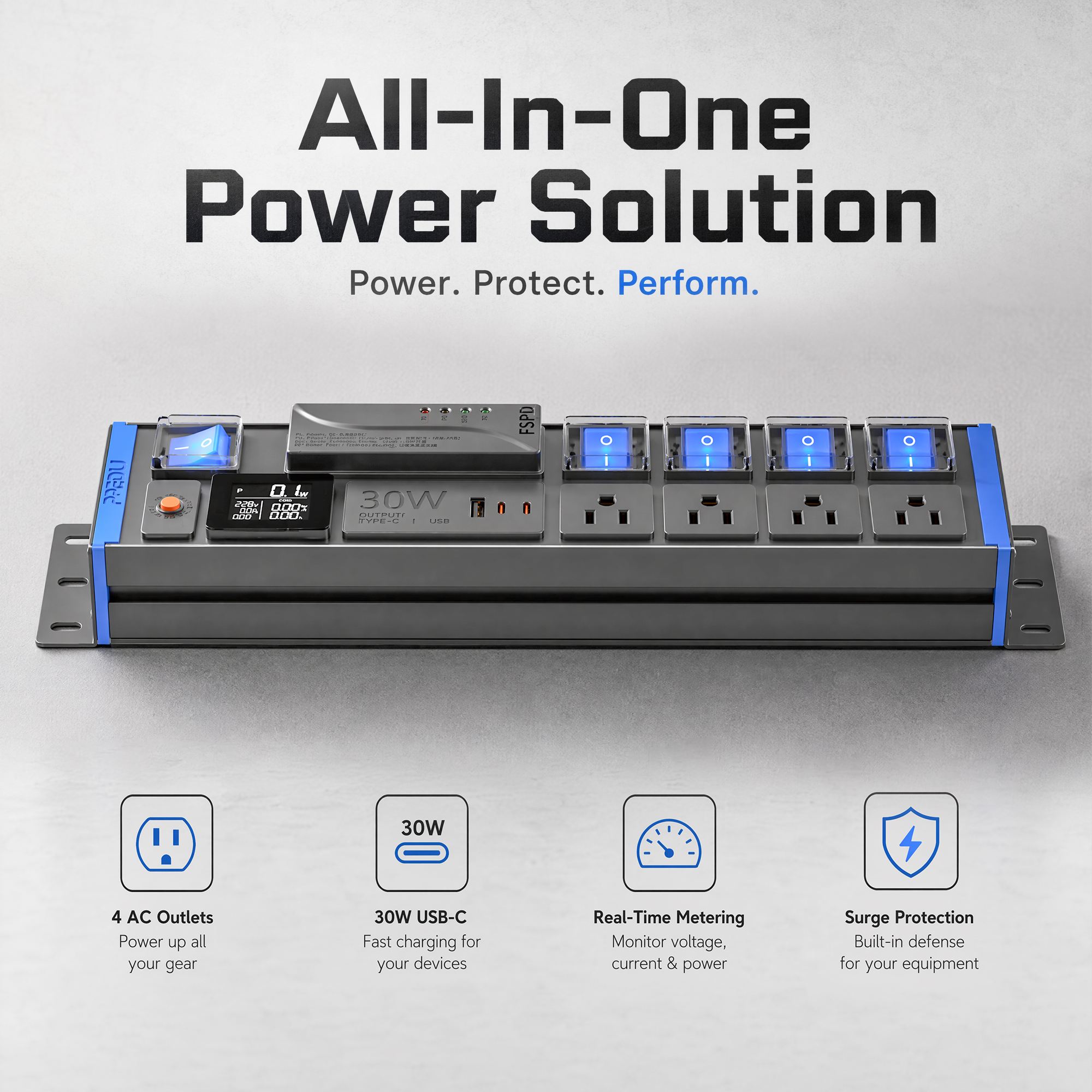

Equipped with four NEMA 5-15R outlets, Type-C + USB charging, full display metering, filtered surge protection, and a blue double-pole switch, this product provides a safe, organized, and efficient power solution for users requiring advanced power management.
Designed for flexible installation in residential, office, and commercial environments, this 2U PDU provides centralized power access and intelligent power management for various applications.
Suitable applications include:
Home Office
Gaming Setup
Home Entertainment Systems
Desktop Workspaces
Smart Home Applications
Creative Workstations
Office Workstations
Executive Desks
Conference Tables
Coworking Spaces
Hotel Furniture
Educational Facilities
Commercial Buildings
Audio & Video Equipment
Computer and Peripheral Equipment
This PDU adopts a compact 2U aluminum profile structure with a 6063-T5 aluminum alloy housing and high-strength PC side covers.
Electrical specifications:
Rated Voltage: 125V AC
Rated Current: 15A Max
Plug Type: NEMA 5-15P
Outlet Type: NEMA 5-15R
Outlet Quantity: 4
Power Cord: 14 AWG 3-Conductor Cable, 3 m
Entry Method: Left Entry
Profile Height: 2U
The non-standard horizontal installation design provides flexible integration into different furniture and workspace applications.
Four NEMA 5-15R outlets provide convenient power access for multiple electronic devices, helping users create a cleaner and more organized workspace.
The integrated Type-C + USB charging module provides up to 30W output, supporting charging for smartphones, tablets, and other digital devices.
The built-in full display metering function provides real-time monitoring of power information, helping users understand energy consumption and improve power management efficiency.
The integrated filtered surge protective device helps reduce the impact of voltage fluctuations and transient surges, providing additional protection for connected equipment.
The blue double-pole switch provides clear power control and overload protection, improving operational safety during continuous use.

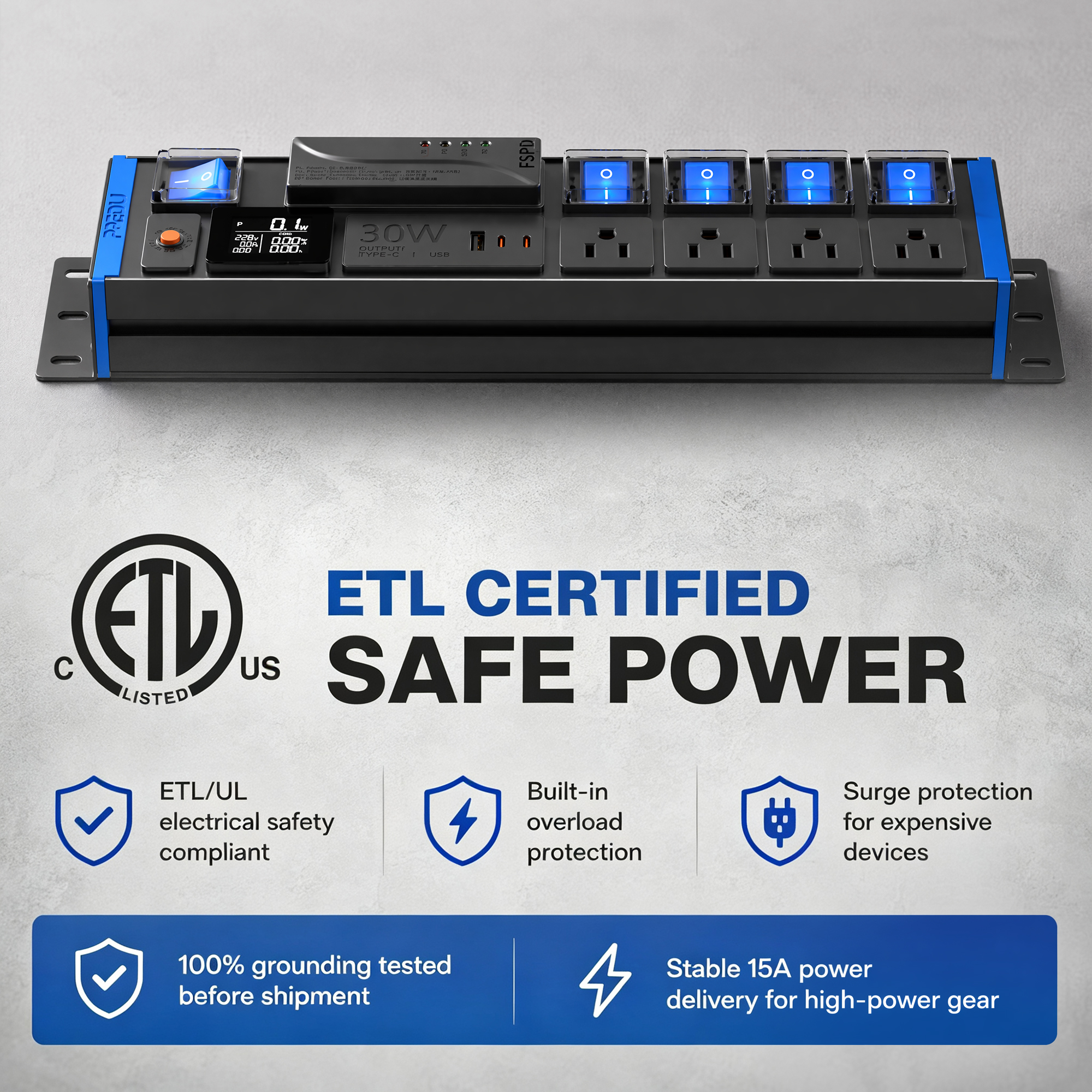

Designed according to professional electrical safety requirements, this PDU complies with applicable ETL certification requirements.
Safety features include:
ETL certification compliance
Grounding protection
Overload protection
Filtered surge protection
Secure internal wiring insulation
Grounding inspection before shipment
Featuring a matte black aluminum housing with a blue double-pole switch, this PDU combines modern aesthetics with professional functionality.
The eco-friendly powder-coated aluminum housing provides:
Excellent durability
Improved heat dissipation
Premium surface texture
Corrosion resistance
Long service life
The compact 2U design allows easy integration into modern furniture and professional workspaces.
We provide customized power solutions to meet different customer requirements.
Customization options include:
Housing colors and surface finishes
Outlet quantity and socket standards
Cable specifications and length
Functional modules
Switch configurations
Metering functions
Logo and packaging customization
OEM and ODM services are available for customers requiring personalized power solutions.
We provide a one-year warranty service for this product.
During the warranty period, free repair service is available for product quality issues. Customers can return defective products to the manufacturer for inspection and repair.
No repair fees will be charged, and domestic shipping costs will be covered by the manufacturer according to agreed arrangements.
The PDU is constructed with a high-strength 6063-T5 aluminum alloy housing, providing excellent durability, structural stability, and efficient heat dissipation.
The eco-friendly powder-coated surface finish enhances corrosion resistance and creates a premium matte appearance.
The matte black housing combined with a blue side cover delivers a modern and professional design suitable for office, home, and commercial environments.
Equipped with 4 × NEMA 5-15R AC outlets, providing reliable power distribution for multiple electrical devices.
Integrated with a 2Type-C + USB charging module, supporting up to 30W charging output for mobile devices, tablets, and other USB-powered equipment.
Provides a convenient all-in-one power solution combining AC power distribution and USB charging functions.

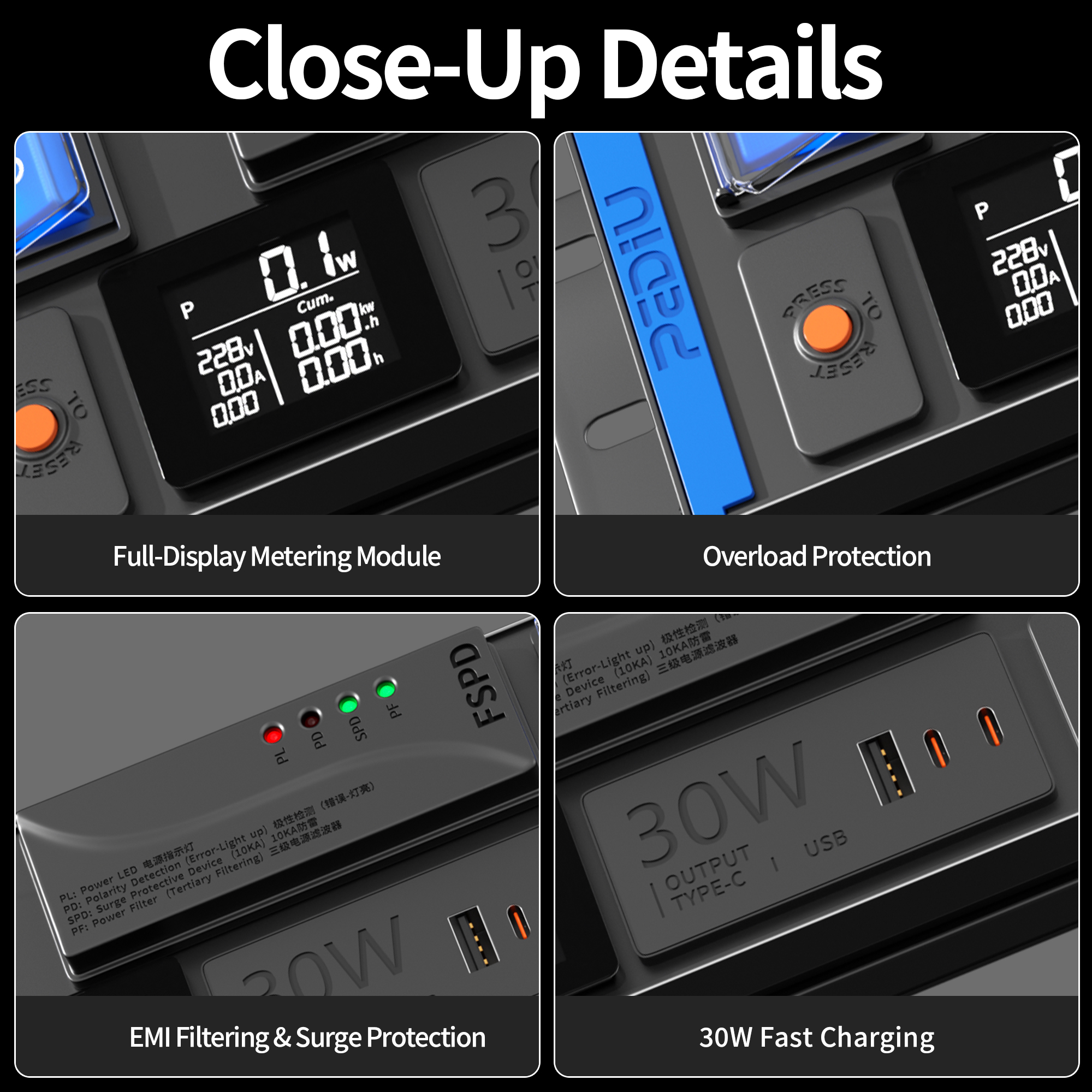

Built-in full display metering provides real-time monitoring of electrical parameters, helping users understand power usage status.
Integrated filtered surge protective device helps protect connected equipment from voltage spikes and transient disturbances.
The optimized connection sequence between metering and surge protection modules ensures reliable operation.
Equipped with a blue double-pole switch for convenient power control and improved electrical safety.
Built-in overload protection prevents excessive current conditions and helps protect connected equipment.
Internal wiring uses 2.5 mm² main wire and 1.5 mm² branch wires to ensure reliable current carrying performance.

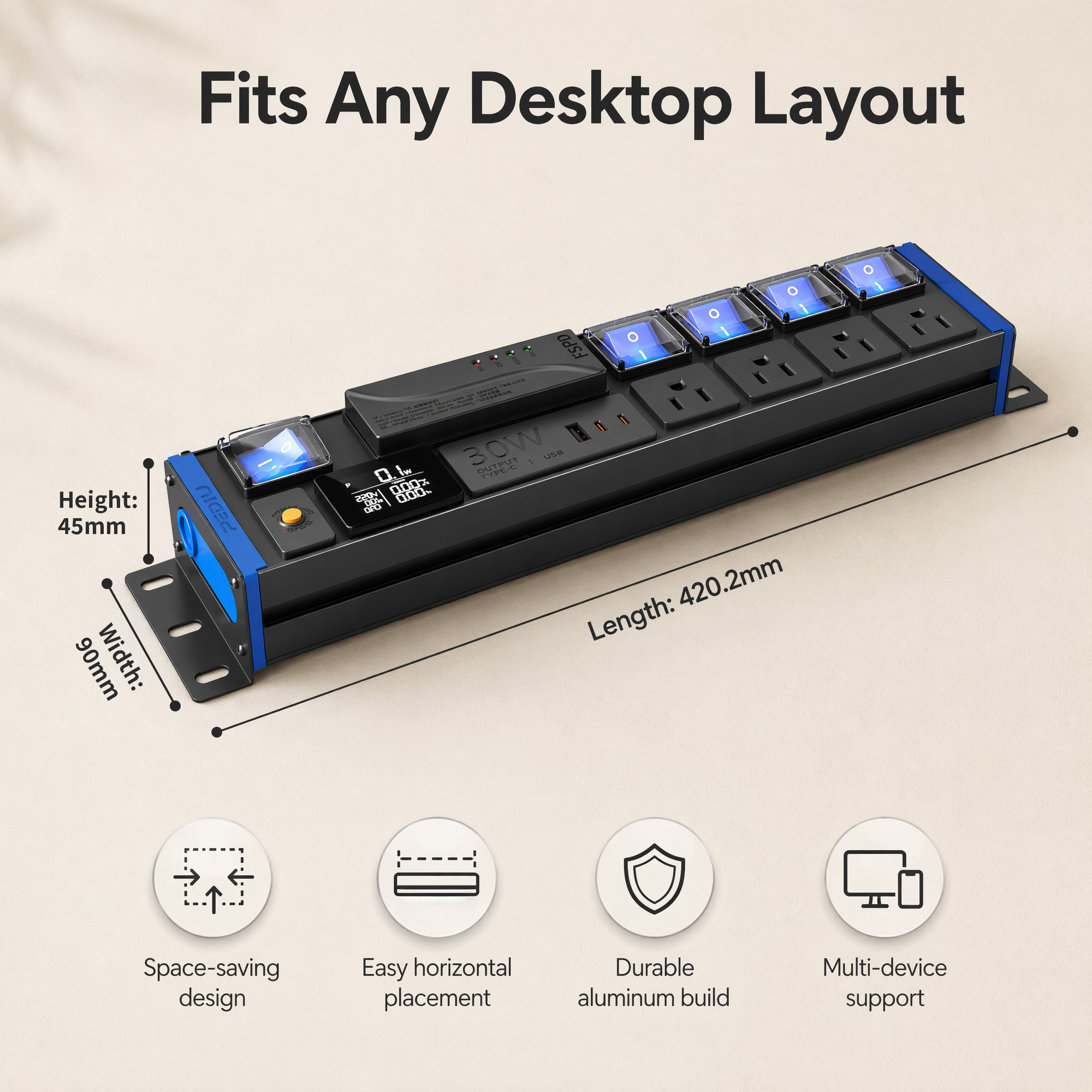

The 2U aluminum profile structure provides a compact and space-efficient power distribution solution.
Supports non-standard horizontal installation, allowing flexible integration into customized applications.
The lightweight yet strong aluminum structure improves mechanical reliability while maintaining a professional appearance.
Designed according to ASME Y14.5-2018 drawing control requirements to ensure dimensional accuracy and manufacturing consistency.
General dimensional tolerance is controlled within ±0.5 mm unless otherwise specified.
Each finished product undergoes inspection, grounding testing, and surface protection procedures before shipment.
The product is designed to comply with applicable ETL / UL electrical safety requirements.
Grounded power design and strict quality control ensure safe operation in residential, office, and commercial environments.
Users should operate within the rated voltage and current limits to ensure long-term reliability.
Suitable for home offices, executive desks, conference tables, entertainment systems, commercial workstations, and professional equipment setups.
Ideal for applications requiring integrated power distribution, charging capability, monitoring functions, and equipment protection.
Specification | Details |
|---|---|
Product Name | Aluminum Desktop PDU |
Model Number | DMCN-2UT-U4-5KGJqVeUt30-2.08p3m-MB15A |
Housing Material | 6063-T5 Aluminum Alloy |
Housing Finish | Eco-friendly Powder-Coated Finish |
Housing Color | Black |
Side Cover Material | High-Strength PC |
Profile Specification | 2U CN Series Aluminum Profile |
Rated Voltage | 125V AC |
Rated Current | 15A Max |
Frequency | 50/60Hz |
Plug Type | NEMA 5-15P |
Outlet Type | NEMA 5-15R *4 |
Switch Type | Blue Double-Pole Switch*5; Overload Protection *1; Full Display Metering (White) *1; Filtered Surge Protective Device *1; 2Type-C+USB(30W) *1; |
Power Entry | Left entry |
Power Cord Type | 14 AWG 3-Conductor Power Cord |
Power Cord Length | 3 m (9.84 ft) |
Grounding Type | Grounded 3-Prong Design |
Mounting Accessories | Included |
Certification | ETL Listed |
Safety Features | Grounding Protection |
Operating Environment | Indoor Use Only |
Country Standard | USA / Canada |
Warranty | 1 Year Limited Warranty |
Yes. This PDU is designed to comply with ETL electrical safety requirements. Each finished product undergoes quality inspection, including grounding tests and safety verification, before shipment to ensure reliable and safe operation.
The PDU is rated at 125V AC with a maximum current rating of 15A. It uses a NEMA 5-15P plug and supports NEMA 5-15R outlets for reliable power distribution.
The main housing is made of 6063-T5 aluminum alloy, providing excellent strength, durability, and heat dissipation. The side covers are made of high-strength PC material, offering reliable insulation and protection.
This PDU integrates multiple functional modules, including a blue double-pole switch, overload protection, full display metering, filtered surge protective device, and a Type-C + USB charging module with 30W output.
Yes. The built-in full display metering module provides real-time monitoring information, helping users check power-related data and improve power management efficiency.
Yes. The integrated filtered surge protective device helps protect connected equipment against electrical disturbances and surge events, improving overall system reliability.
Yes. The integrated Type-C + USB charging module provides up to 30W output, suitable for charging smartphones, tablets, and other portable electronic devices.
This model adopts a non-standard horizontal installation design. Its 2U aluminum profile structure makes it suitable for desktop applications, workstations, furniture integration, and customized installation environments.
The PDU uses a NEMA 5-15P plug with a 14 AWG 3-conductor power cord (3 meters). Internal wiring uses 2.5 mm² main wires and 1.5 mm² branch wires to ensure stable electrical performance.
Yes. We provide OEM and ODM customization services, including housing color, switch color, outlet configuration, functional modules, cable specifications, logo printing, and packaging design according to customer requirements.
