Product Features And Advantages

Premium Matte Black Aluminum Alloy Housing

Constructed with high-strength 6063-T5 aluminum alloy, this 2U PDU delivers excellent structural strength, durability, and heat dissipation performance. The eco-friendly powder-coated matte black finish provides enhanced corrosion resistance and a premium professional appearance, making it ideal for office workstations, equipment integration, and commercial power distribution applications.

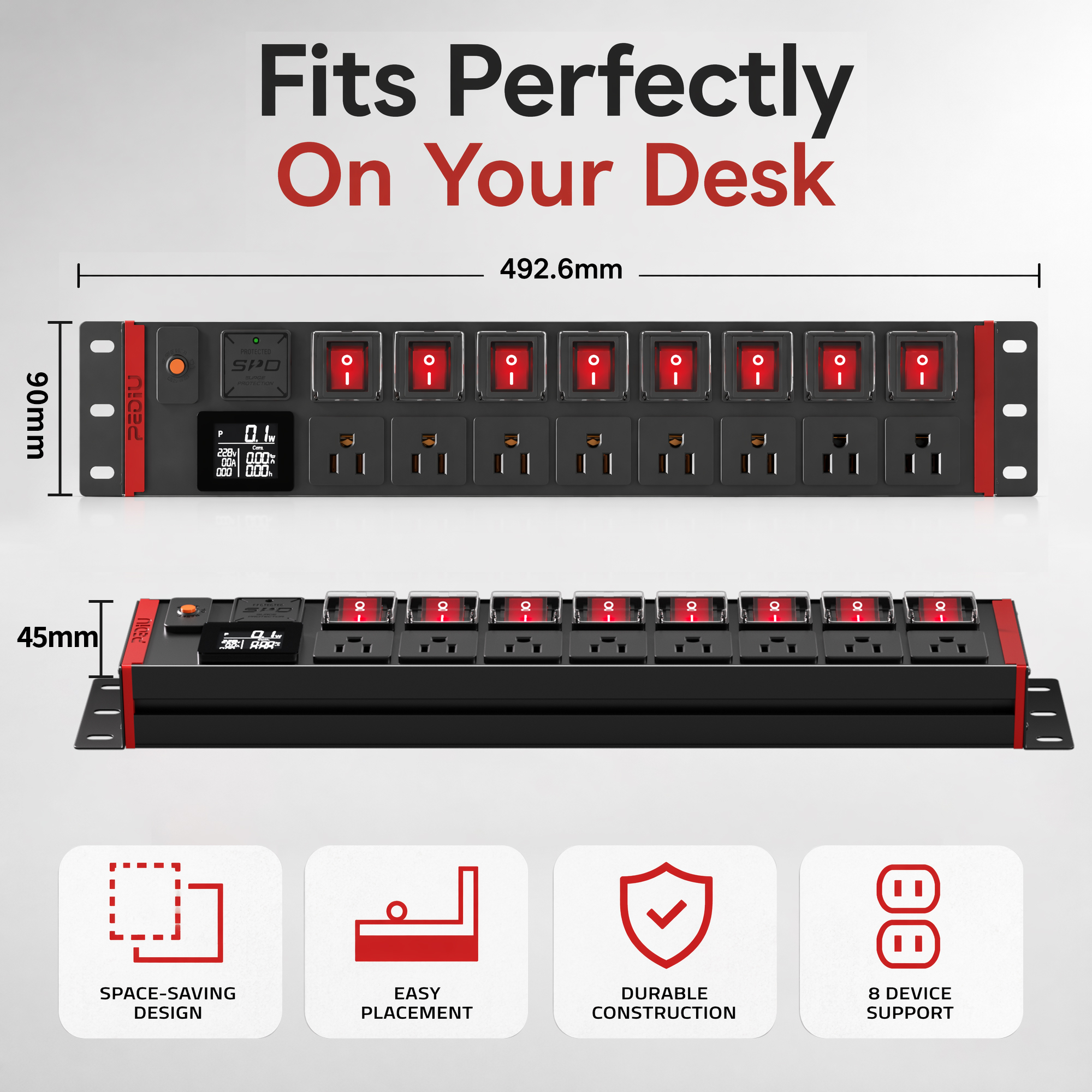

Compact 2U Professional Power Distribution Design

The 2U aluminum profile structure provides an efficient power distribution solution with optimized internal space utilization. The compact design supports multiple functional modules while maintaining a clean and organized installation appearance.

Eight NEMA 5-15R AC Outlet Configuration

Equipped with eight NEMA 5-15R AC outlets, this PDU provides reliable power access for multiple connected devices simultaneously. The optimized outlet layout improves accessibility and simplifies power management in professional environments.

Integrated Red Double-Pole Switch Control

The integrated red double-pole switch provides convenient power control with clear visual identification. The independent switching design allows users to quickly control power operation and improve overall system management efficiency.

Reliable Overload Protection

Built-in overload protection helps prevent excessive current conditions during continuous operation. The protection function improves electrical safety and helps protect connected equipment from potential damage caused by abnormal power conditions.

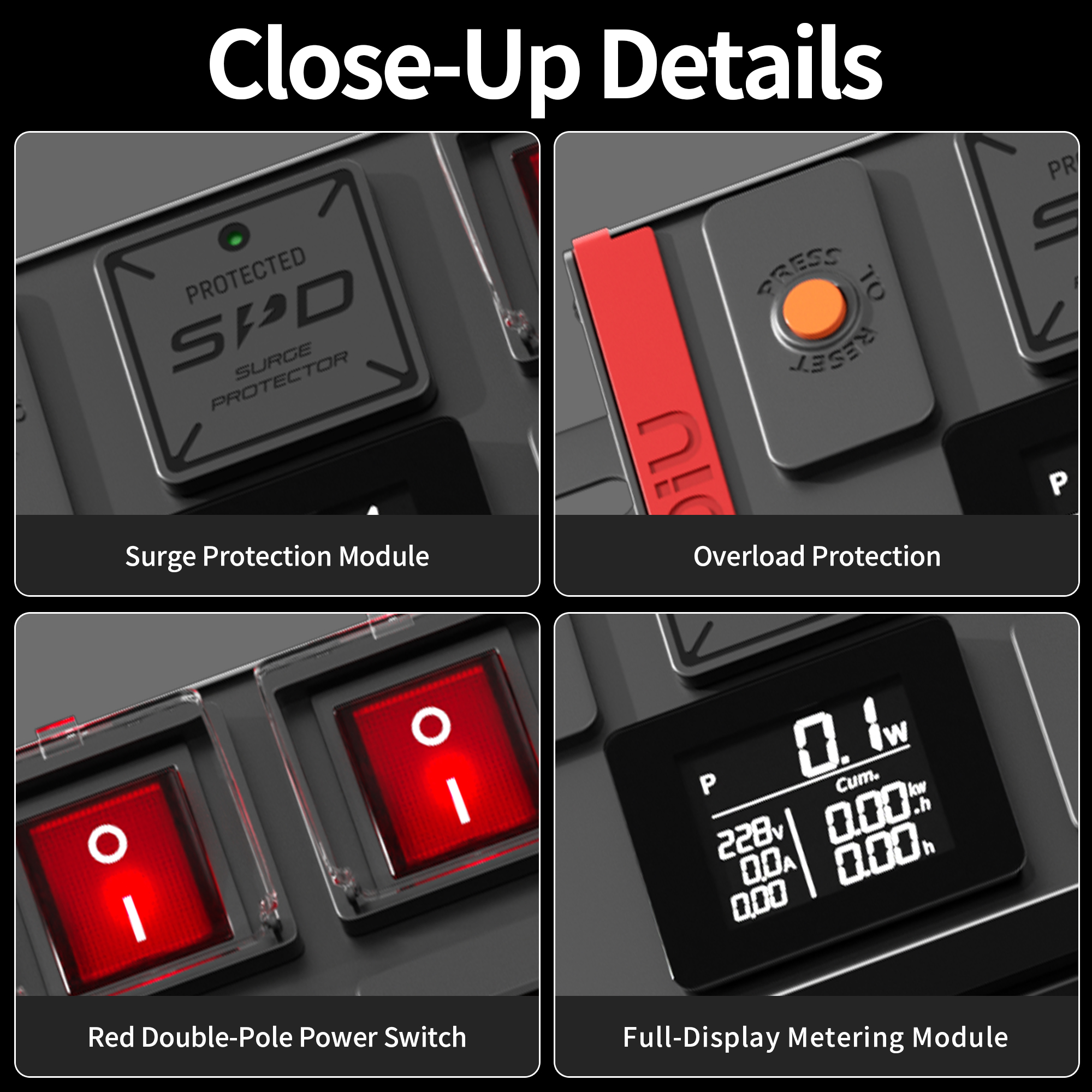

Integrated Surge Protective Device

The built-in surge protective device helps reduce the impact of transient voltage spikes and electrical disturbances, providing additional protection for sensitive electronic equipment and improving overall system reliability.

Full Display Power Metering Function

The integrated full display metering module provides real-time monitoring of key electrical parameters, including voltage, current, power, and energy consumption. Users can easily track power usage and optimize energy management.

Stable Internal Wiring Structure

The PDU adopts 2.5 mm² main wiring and 1.5 mm² branch wiring to ensure reliable current transmission. Internal wiring is securely fixed and insulated to enhance electrical stability and long-term operational safety.

Professional Horizontal Installation Design

Designed with a non-standard horizontal installation structure, this 2U PDU provides flexible integration solutions for workstations, furniture systems, equipment platforms, and customized power distribution applications.

ETL Safety Compliance

Designed to comply with ETL electrical safety requirements, this PDU ensures reliable operation and enhanced safety performance for professional and commercial applications.

OEM & ODM Customization Available

Flexible OEM and ODM customization services are available to meet different market requirements, including product appearance, colors, outlet configurations, functional modules, cable specifications, logo printing, and packaging solutions.

Frequently Asked Questions

Q1: What makes this 2U PDU different from a standard power strip?

This 2U PDU is designed for professional power distribution applications. Compared with standard power strips, it integrates individual outlet control, overload protection, surge protection, and full display metering functions, providing improved power management and equipment protection.

Q2: What information can the full display metering function provide?

The full display metering module provides real-time electrical status information, helping users monitor power conditions, improve energy management, and maintain safer operation of connected equipment.

Q3: Does each outlet have independent power control?

Yes. This PDU features eight individual red double-pole switches, allowing users to control connected devices separately without affecting other powered equipment.

Q4: What type of protection does this PDU provide for connected devices?

This PDU provides multiple protection functions, including overload protection and surge protection. These features help reduce risks caused by excessive current and transient voltage disturbances.

Q5: Is this PDU suitable for long-term continuous operation?

Yes. The product uses a 6063-T5 aluminum alloy housing, high-strength PC side covers, and reliable internal wiring structures, making it suitable for stable long-term operation in professional environments.

Q6: What is the rated electrical specification of this PDU?

This model is rated at 125V AC and 15A maximum current, with a NEMA 5-15P input plug and eight NEMA 5-15R output outlets.

Q7: Why does this PDU use a powder-coated aluminum housing?

The eco-friendly matte black powder-coated aluminum housing provides excellent durability, corrosion resistance, and a professional appearance while maintaining good structural strength and heat dissipation performance.

Q8: What environments can this 2U PDU be used in?

This PDU is suitable for server rooms, network cabinets, data centers, communication systems, industrial equipment, laboratories, and other applications requiring organized and reliable power distribution.

Q9: Does this PDU meet electrical safety requirements?

Yes. The product design complies with applicable ETL / UL electrical safety requirements. Finished products undergo inspection procedures, including grounding tests, before shipment.

Q10: Can this PDU be customized for different projects?

Yes. OEM and ODM customization services are available, including outlet configurations, functional modules, cable specifications, housing colors, surface finishes, logo printing, and packaging design to meet different project requirements.
